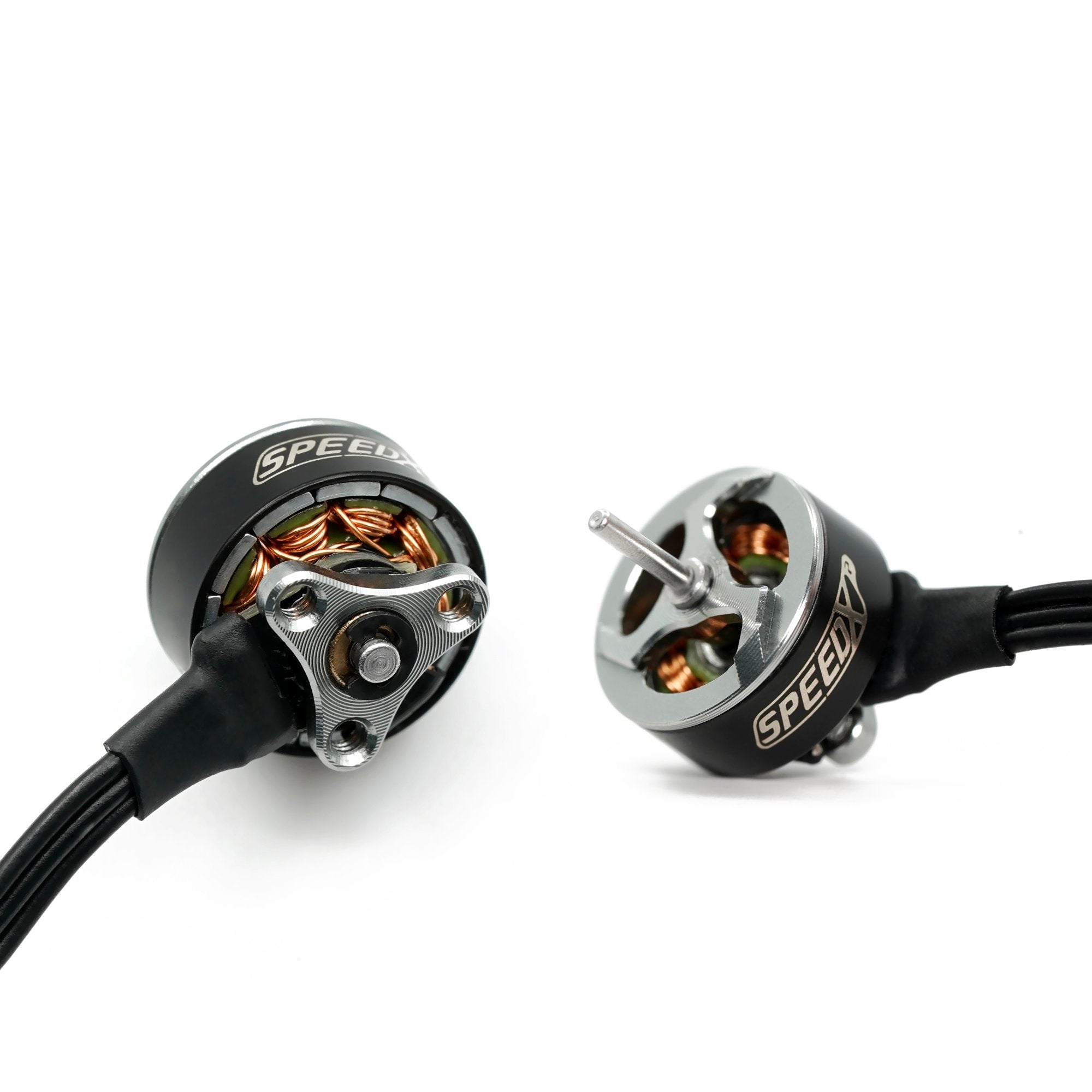

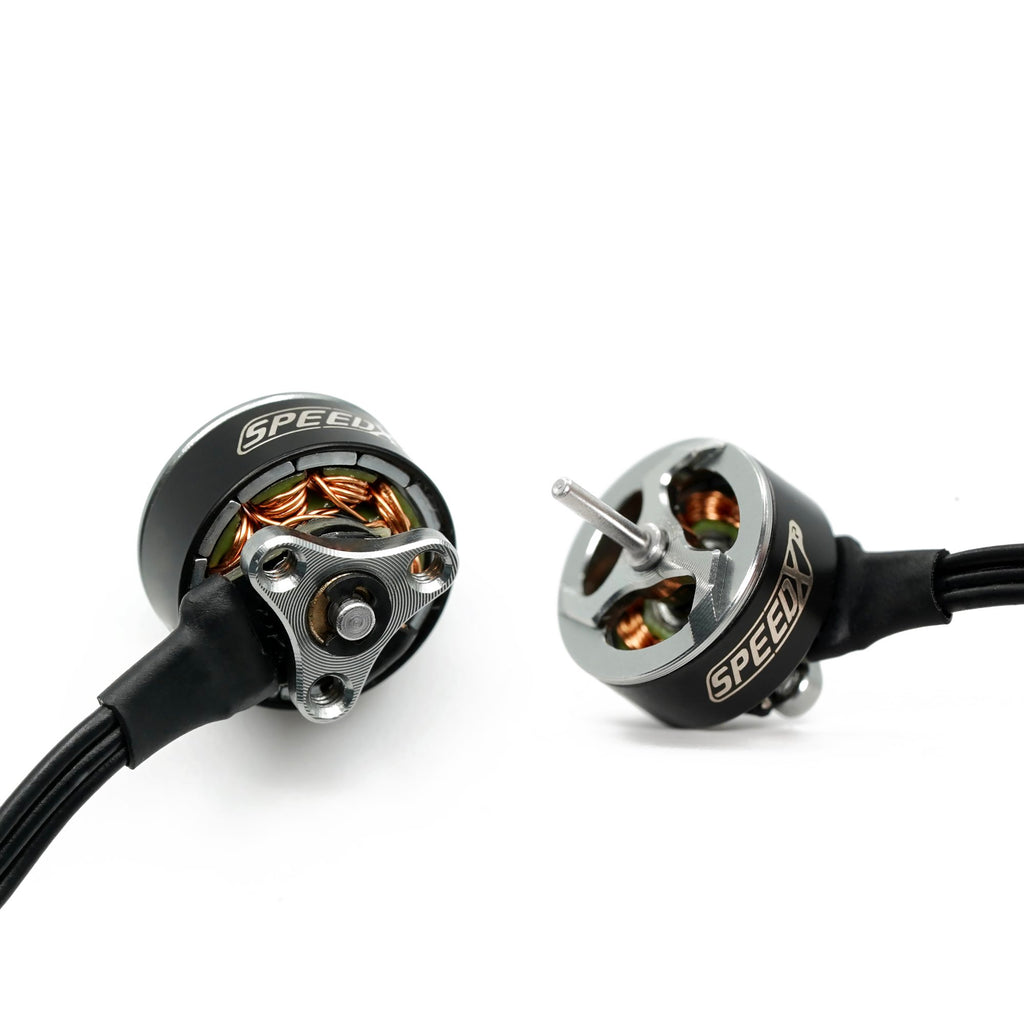

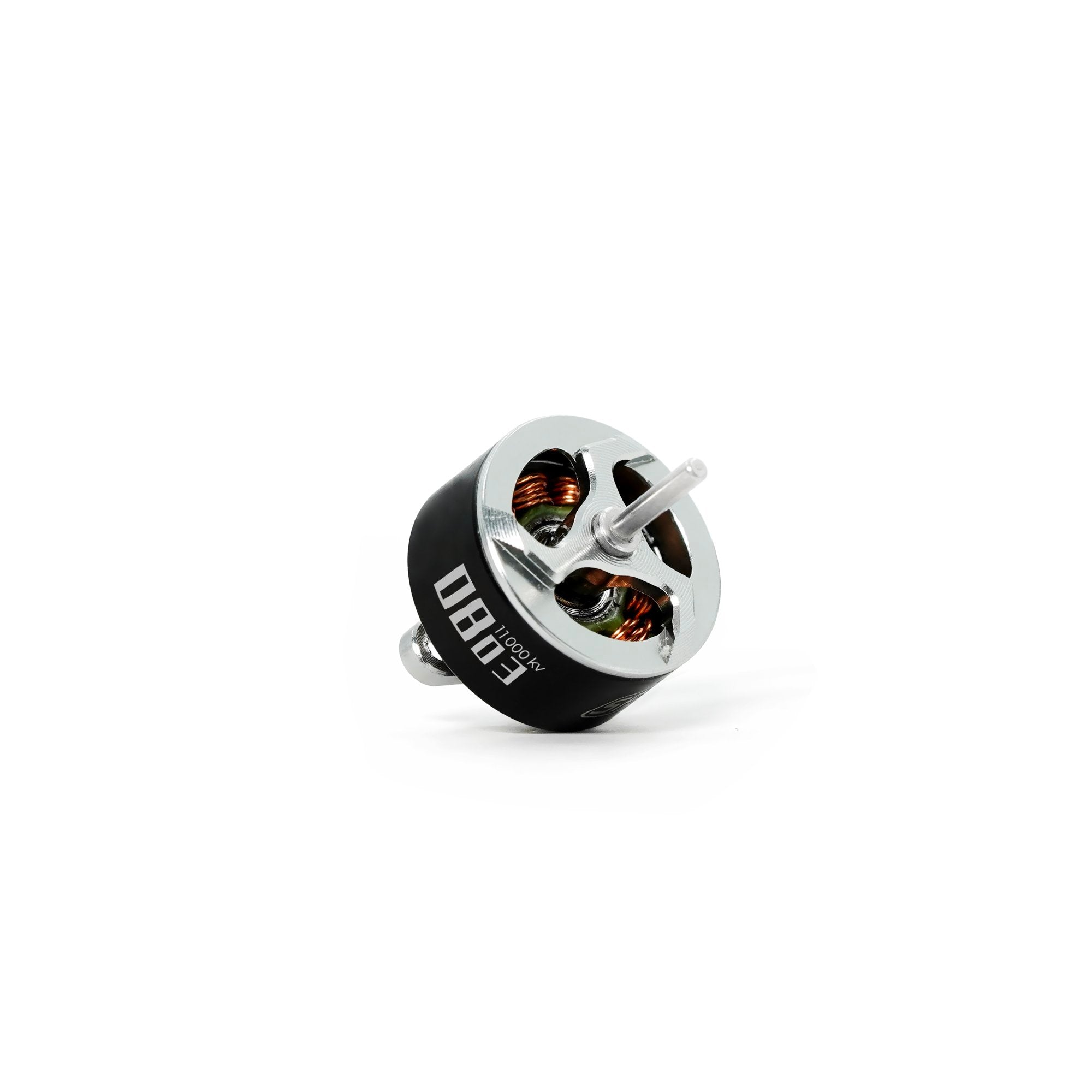

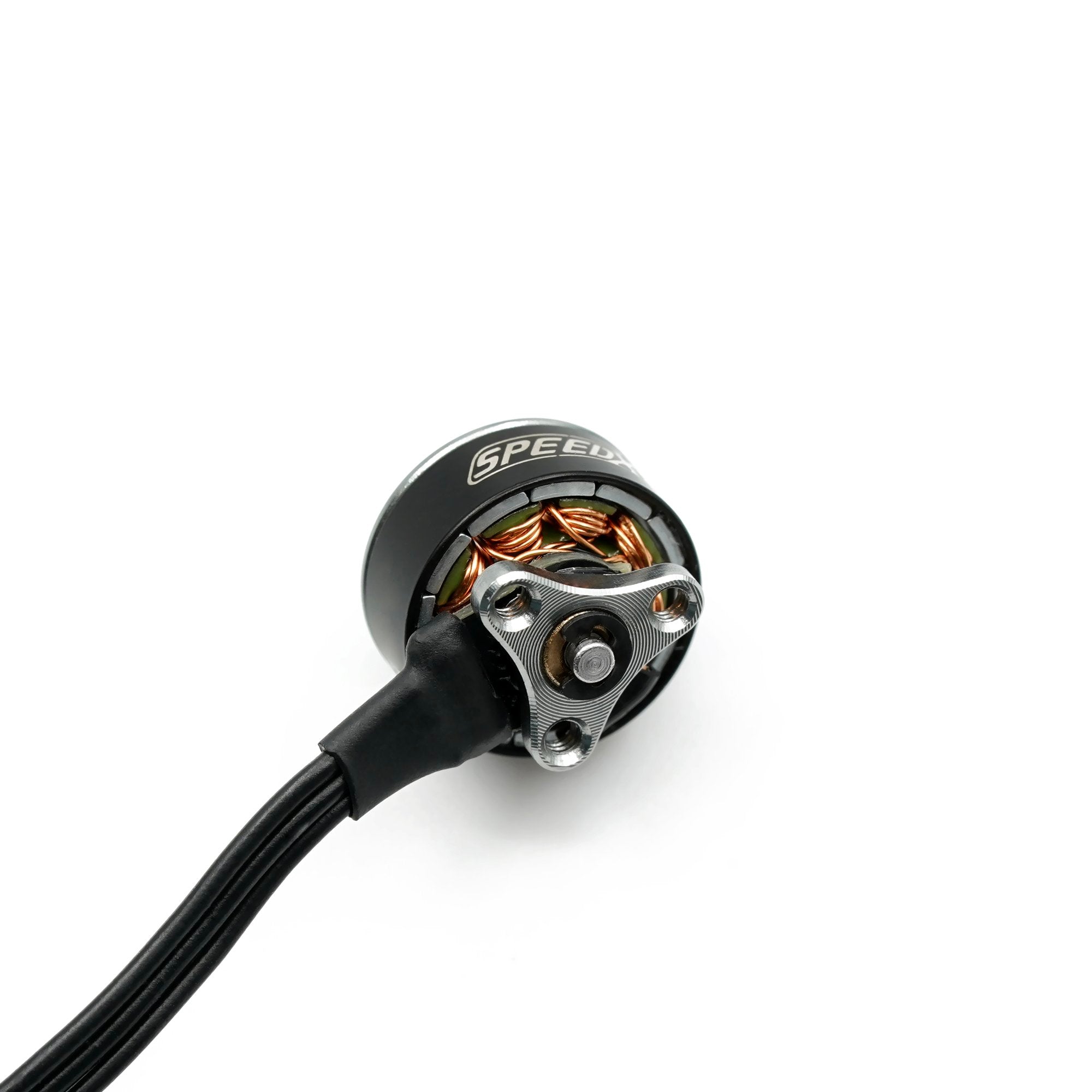

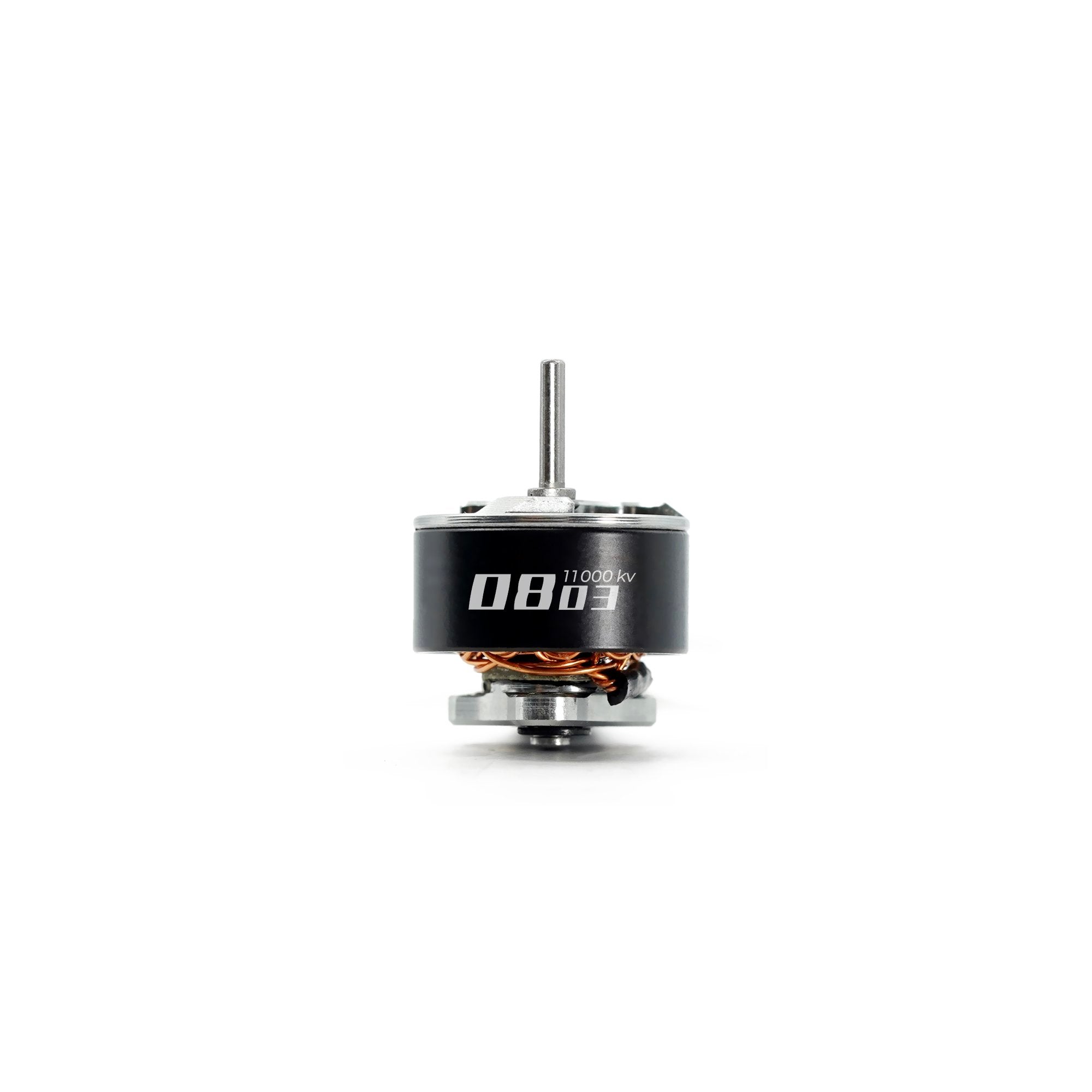

GEPRC SPEEDX2 0803 Brushless Motor 11000KV｜無刷馬達

GEPRC SPEEDX2 0803 Brushless Motor 11000KV｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

GEPRC SPEEDX2 0803 brushless motor, specially developed for Tiny and Whoop FPV, SPEEDX2 motors are enough to meet your needs.

GEPRC SPEEDX2 0803 motors have good heat dissipation, lightweight design, advanced material technology, perfect for Tiny and Whoop FPV.

Specifications

Model: SPEEDX2 0803

KV: 11000KV

Configuration: 9N12P

Stator Diameter: 8.4mm

Stator Height: 2.8mm

Shaft Diameter: Φ1.0mm

Size: Φ10.7mm*15mm

Rotor: N52H

Weight: 2.4g

Target: Tiny & Whoop FPV

Recommended battery: 2S 380mAh-530mAh LiPo

Feature

High efficiency and smooth

Perfect fit for Tiny and Whoop FPV

Motor dynamic balance, stable operation

Suitable for 1.4inch&1.6inch Propellers

Package Included

1 x SPEEDX2 0803 motor

1 x Spare screw set
