Summary

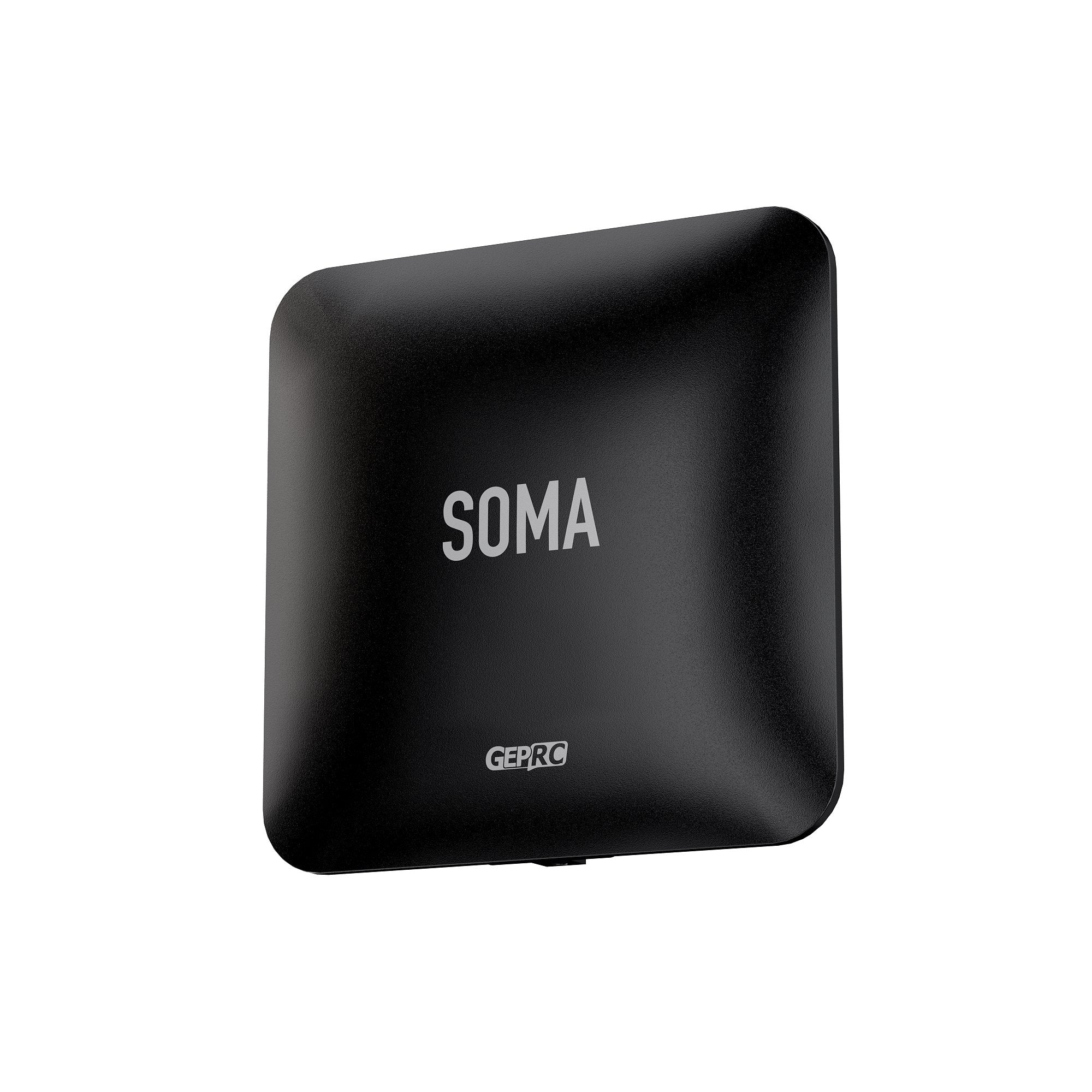

The GEPRC SOMA 3.3G Directional Flat-Panel Antenna features a dual-layer PCB RF design, offering a high gain of up to 17dBi and a low average VSWR of 1.47, ensuring excellent signal reception.

It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity

Features

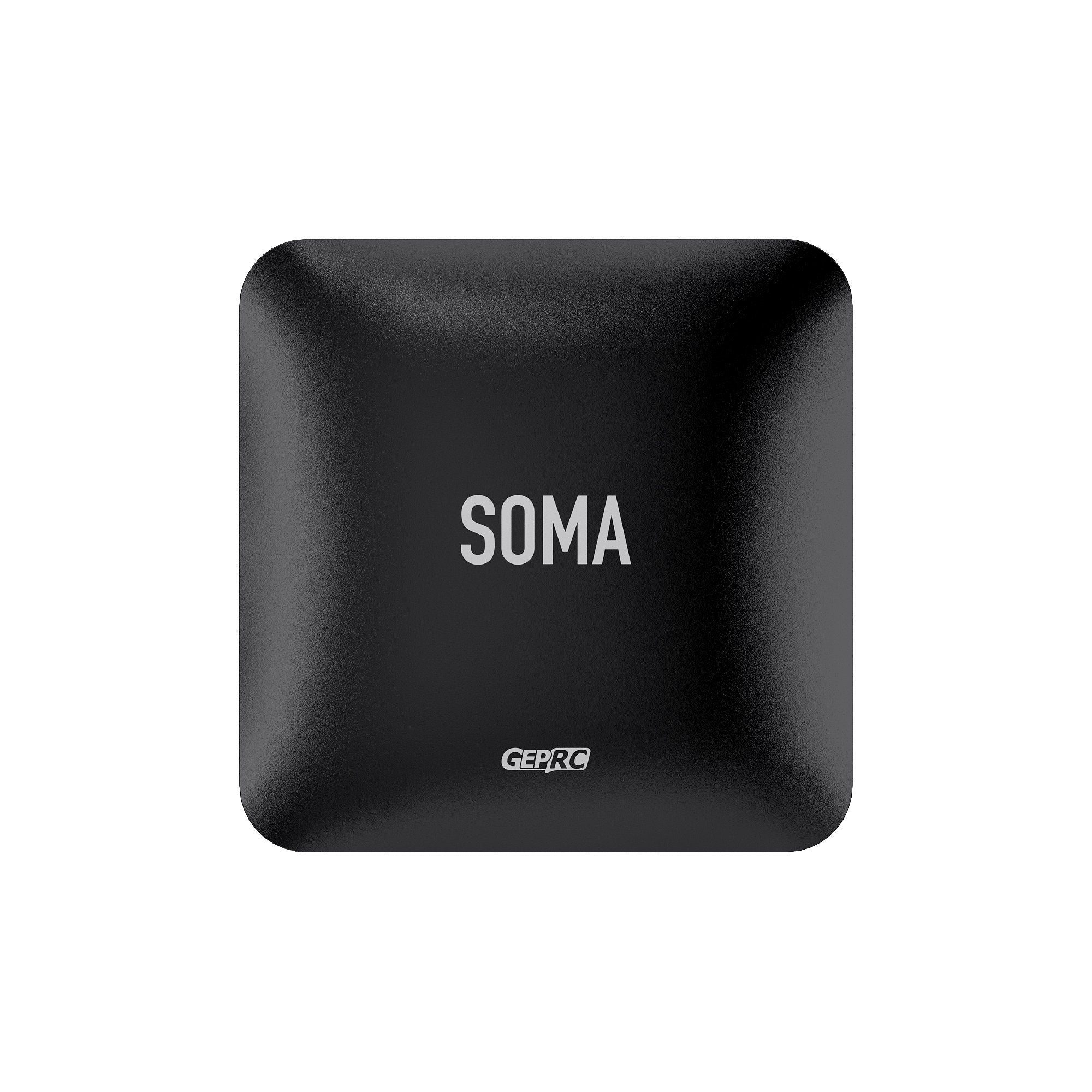

Smooth, ultra-thin design.

Low VSWR, high gain directional antenna, up to 17dBi.

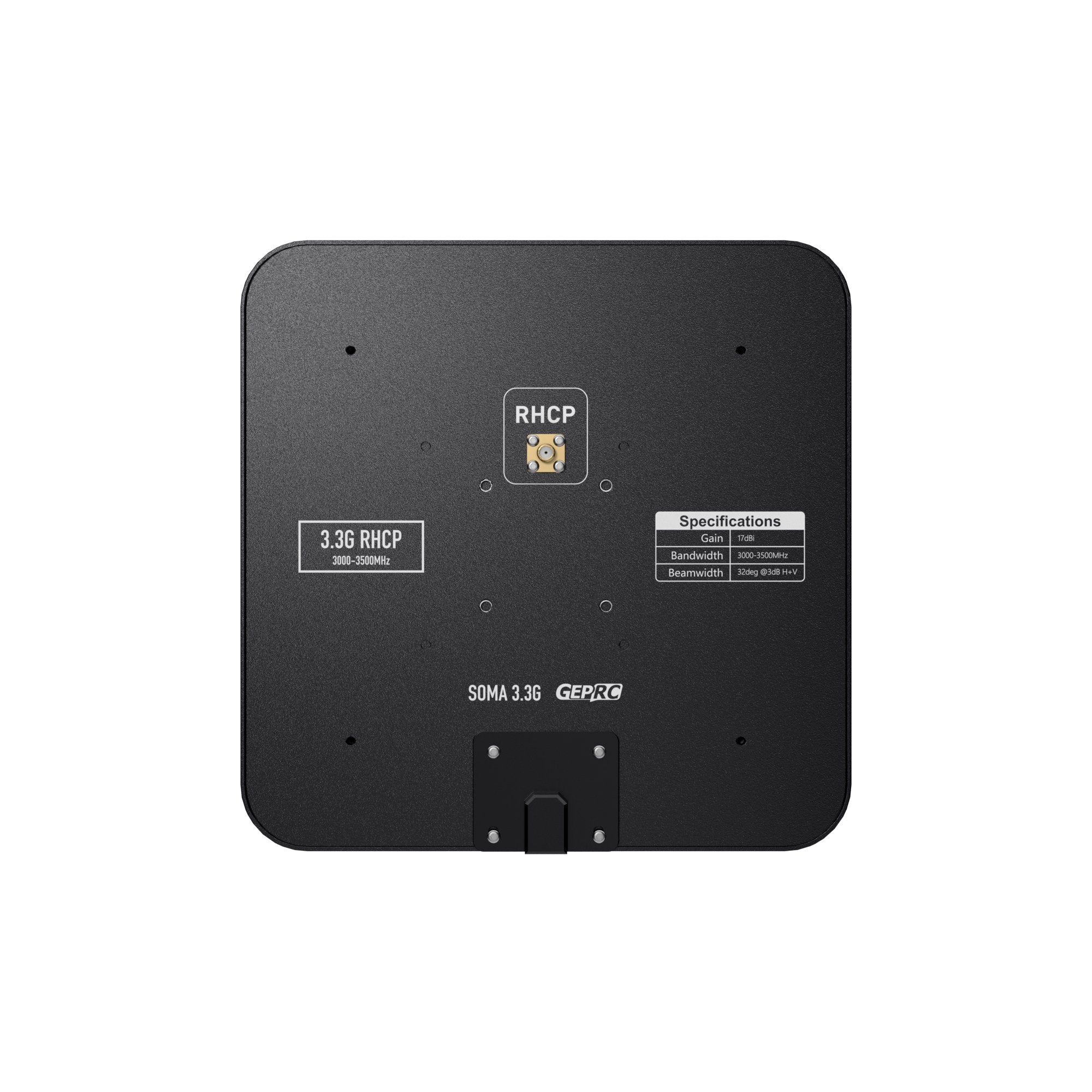

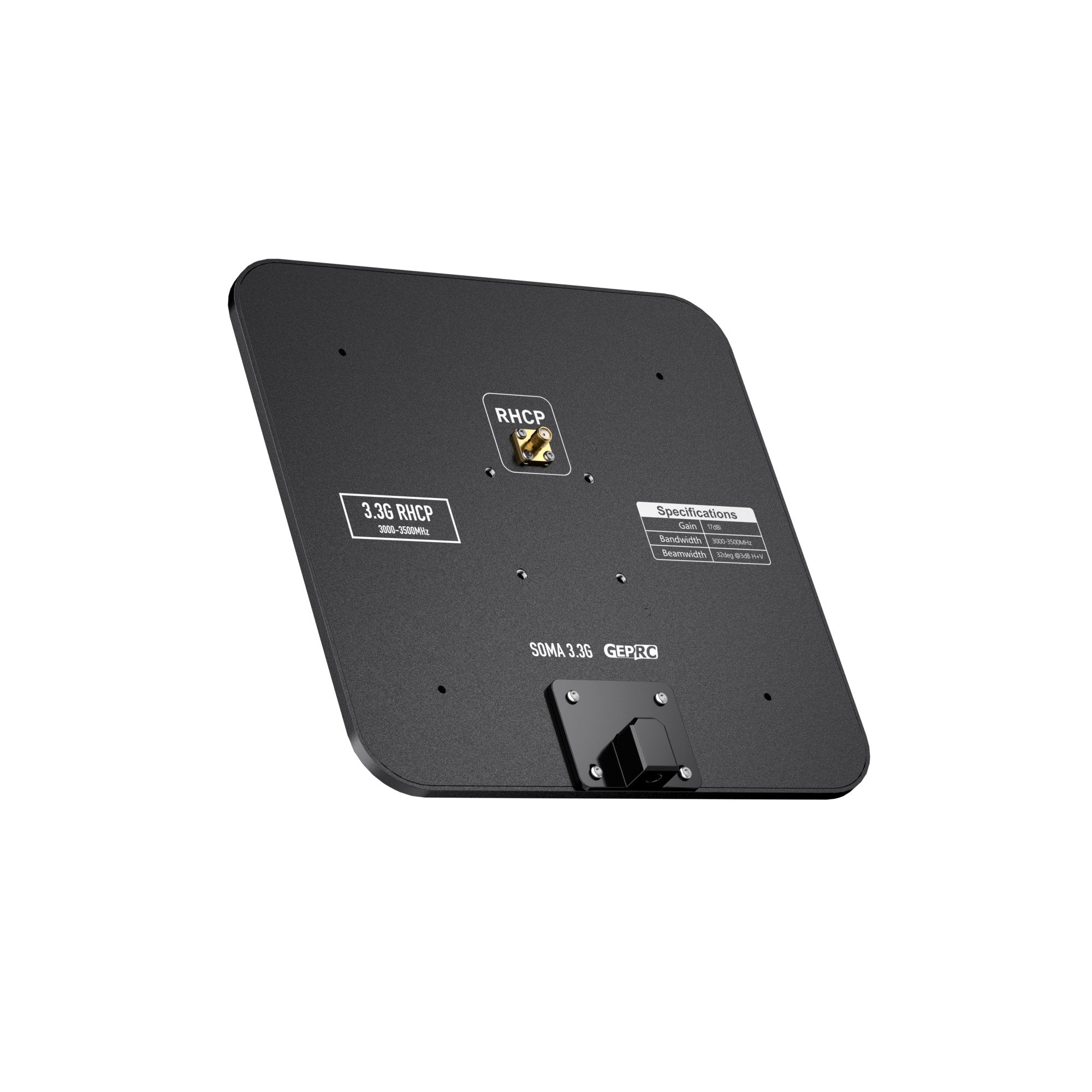

1/4 aluminum alloy base, compatible with various brackets.

High-quality SMA connector for lower impedance and better transmission efficiency.

Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

Specifications

Model: GEPRC SOMA 3.3G Directional Patch Antenna

Center Frequency: 3.3GHz

Bandwidth: 3.0GHz~3.5GHz

Polarization: RHCP

Gain: 17dBi

Axial Ratio: ≤3

SWR：≤1.47

Radiation Efficiency: 86%

Cross polarization suppression: -25dB

Overall Dimension: 203.5mm x 203.5mm x 20mm

Antenna Weight: 293g

Enclosure Material: ABS

Connector Type: SMA (external thread, internal hole）

Includes

1 x SOMA 3.3G Directional Patch Antenna
