GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

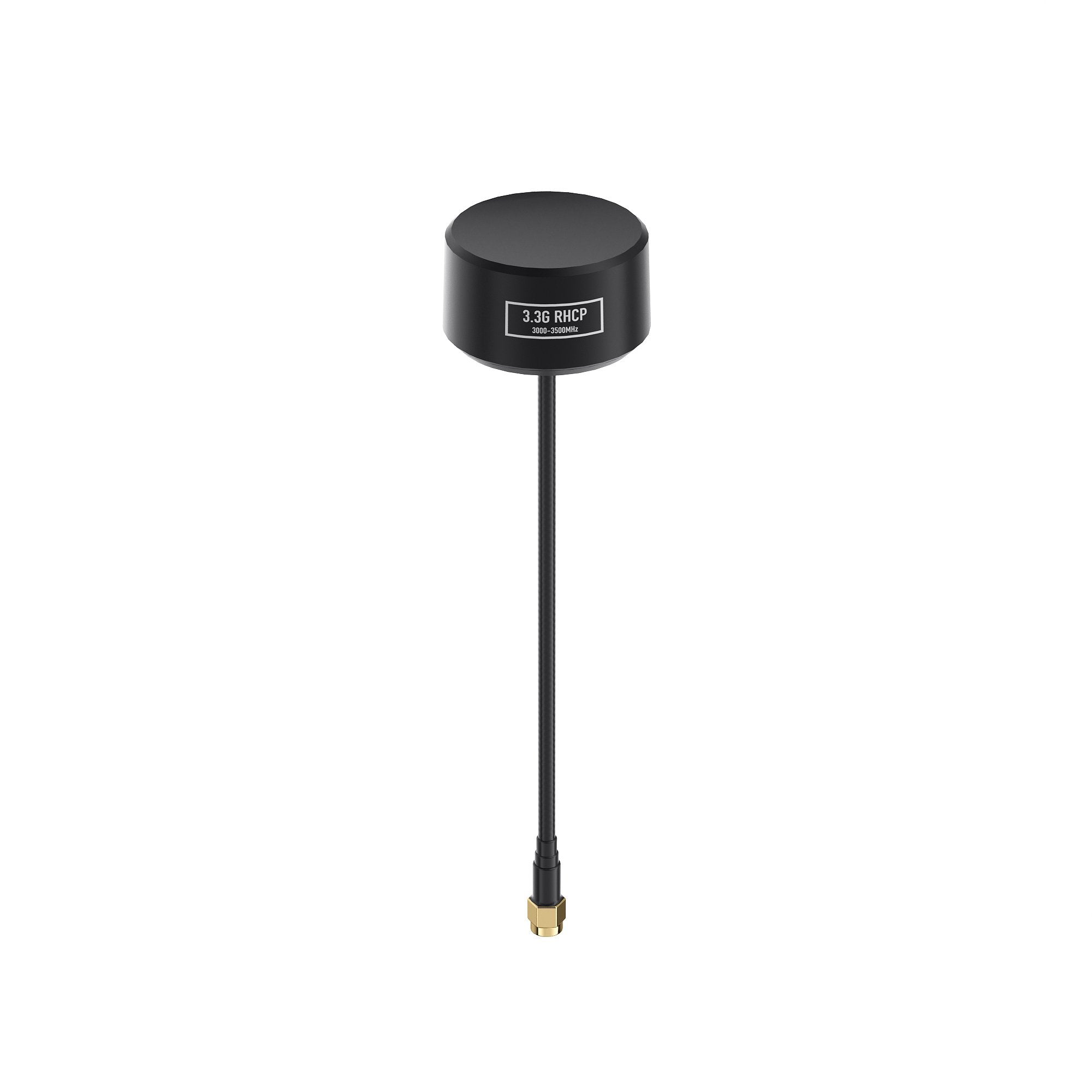

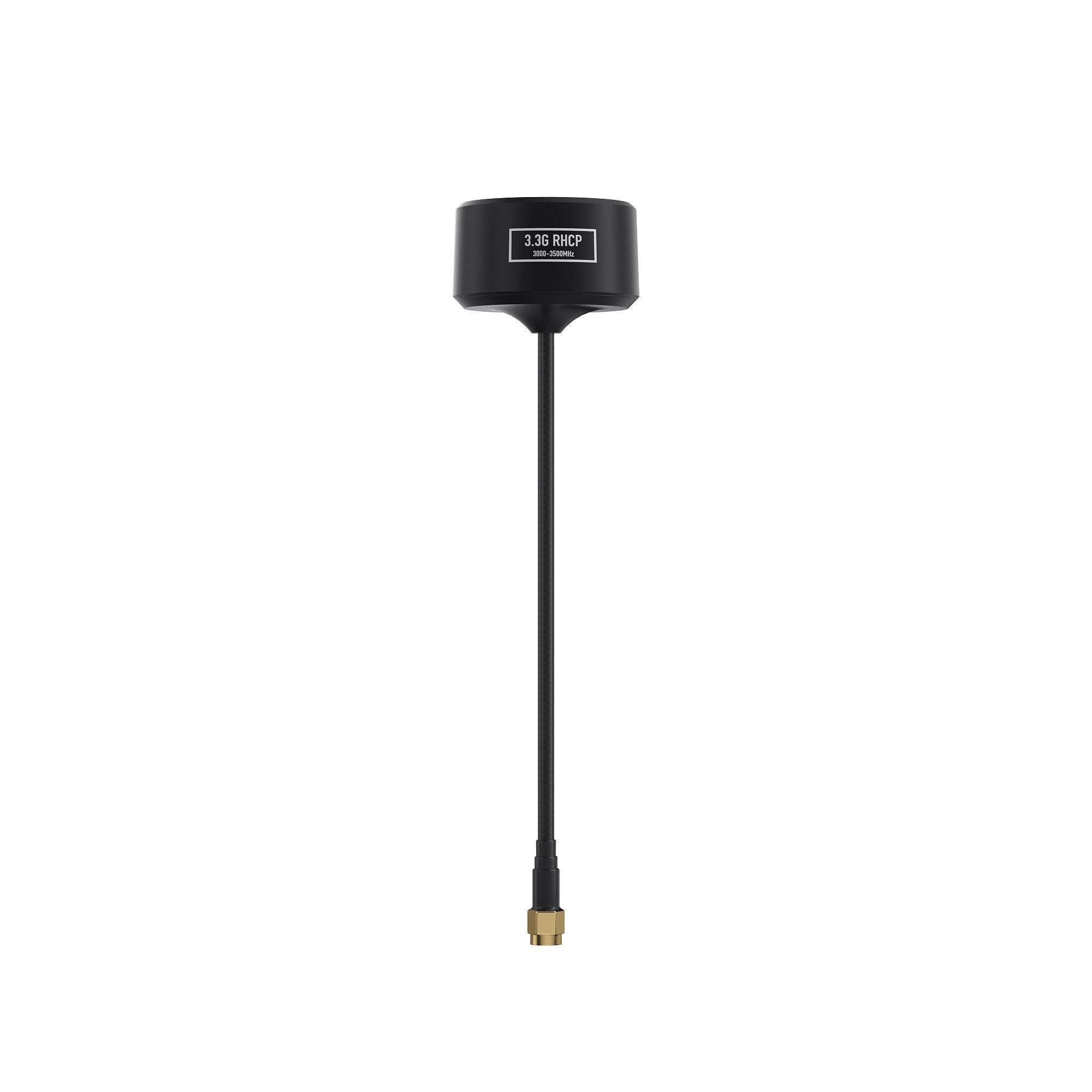

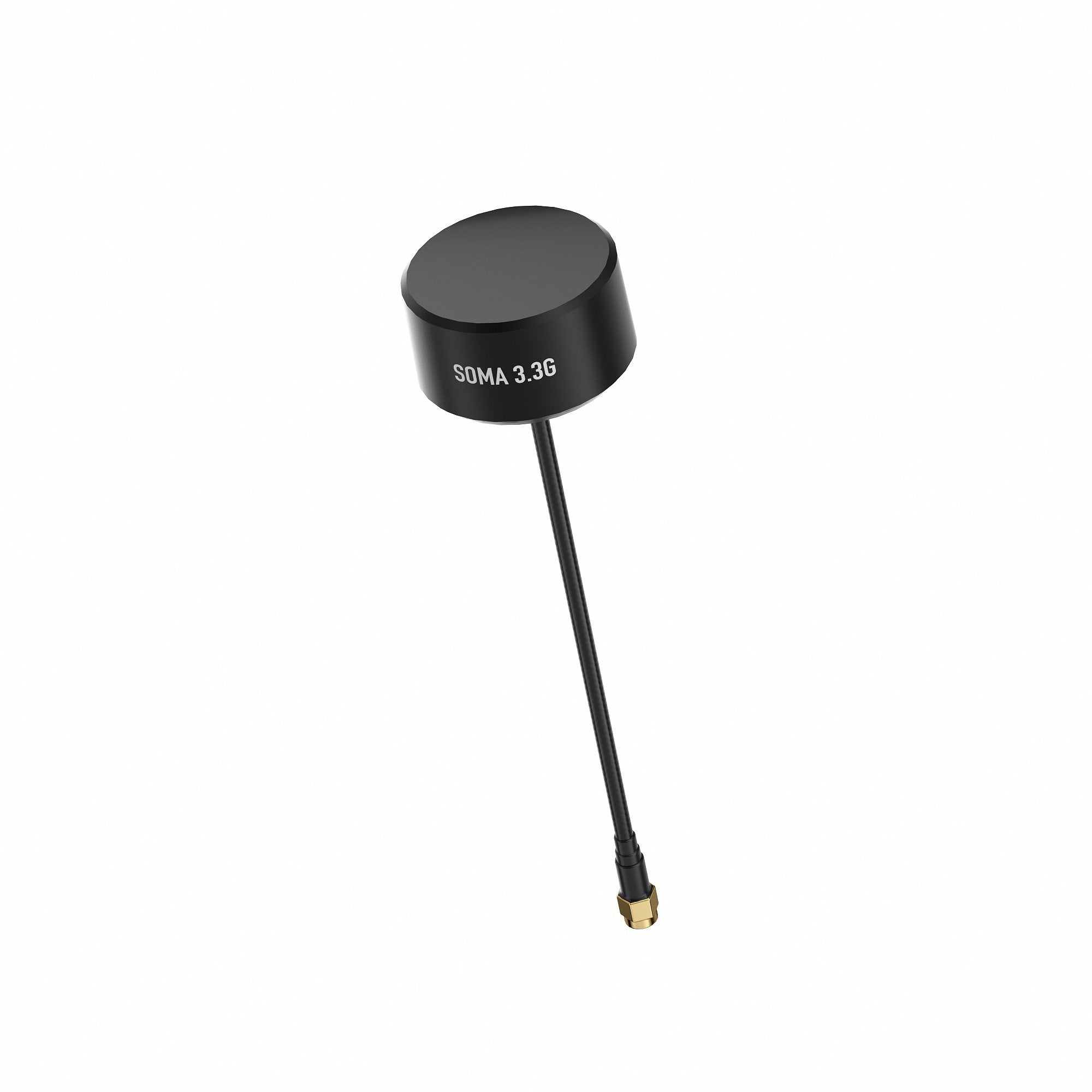

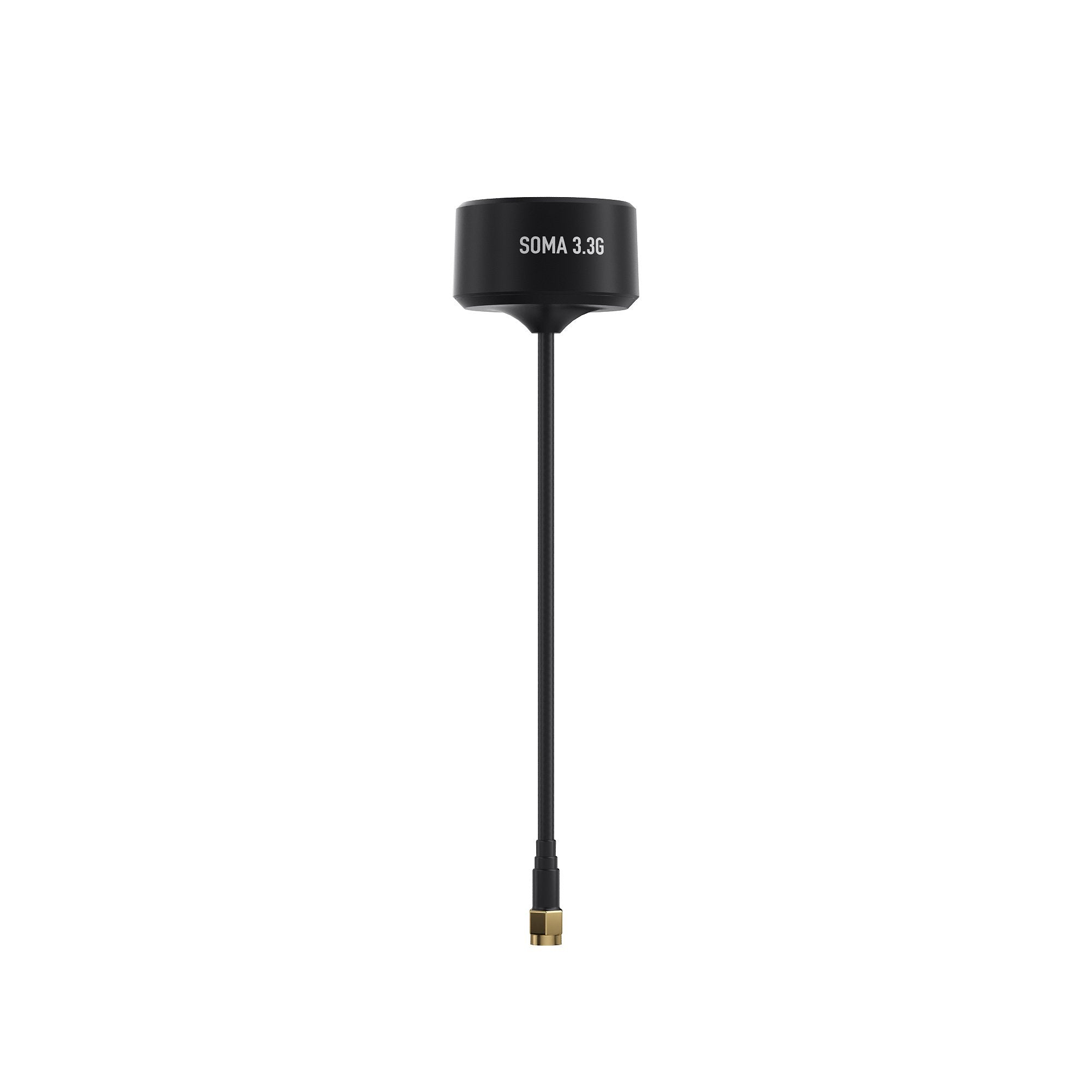

The GEPRC SOMA 3.3G antenna adopts an integrated molded enclosure to prevent signal instability from deformation of the RF PCB due to external forces. With an average gain of up to 4.85 dBi and a low SWR of 1.44, the antenna delivers impressive video transmission distances when paired with a 3.3G VTX.

Features

The molded enclosure shields the PCB board, enhancing overall reliability.

Provides up to 4.85 dBi gain and a low SWR of 1.44.

Premium SMA connectors offer lower impedance and better transmission efficiency.

Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

Specifications

Model：GEPRC SOMA 3.3G antenna

Center Frequency：3.3GHz

Bandwidth: 3.0GHz~3.5GHz

Polarization: RHCP

Gain: 4.85dbi

Axial Ratio: ≤3

SWR：≤1.44

Radiation Efficiency: 85%

Cross polarization suppression: -25dB

Length: 170mm

Antenna Design: FPC+PCB

Antenna Weight: 22g

Enclosure Material: ABS

Connector Type: SMA

Includes

1*SOMA 3.3G antenna
