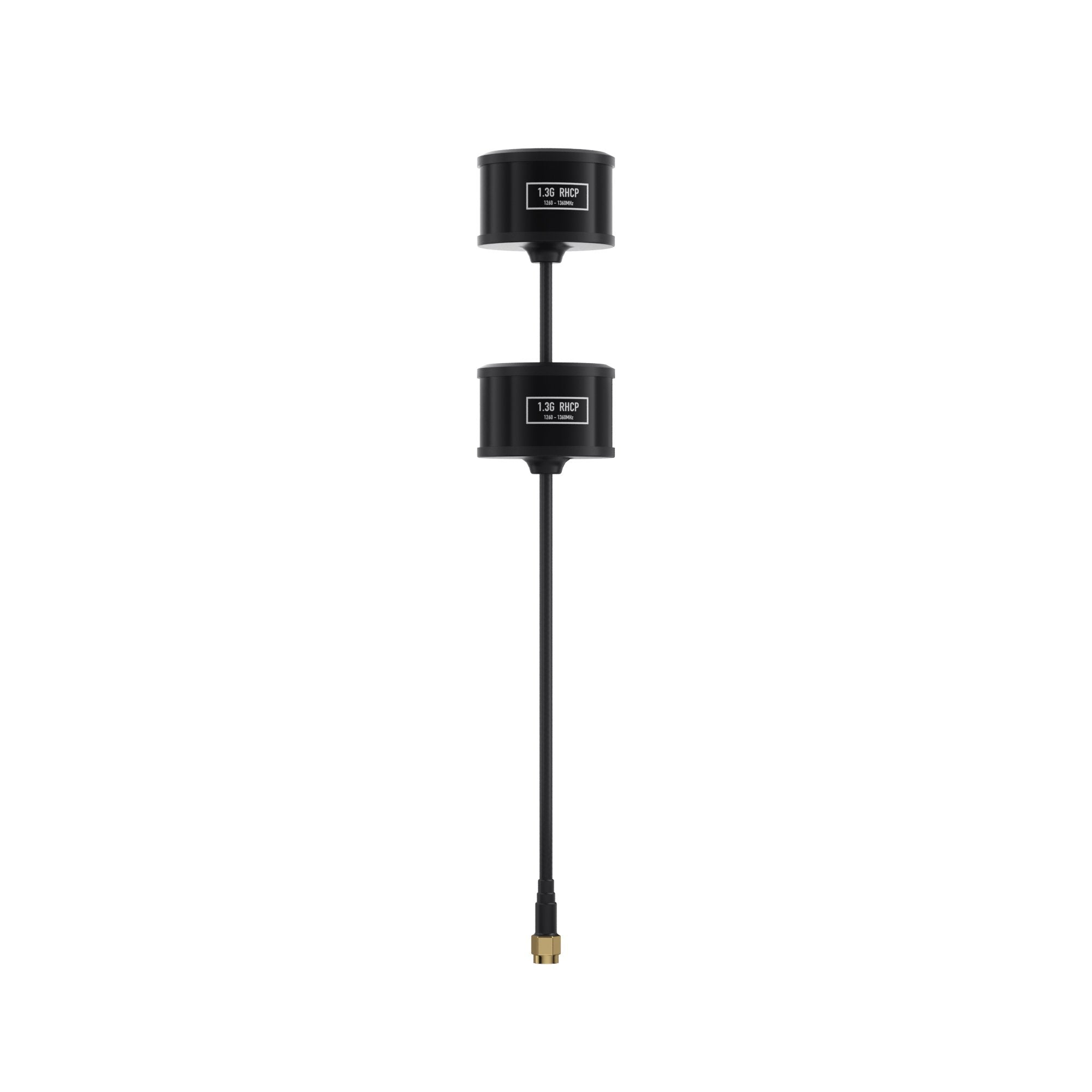

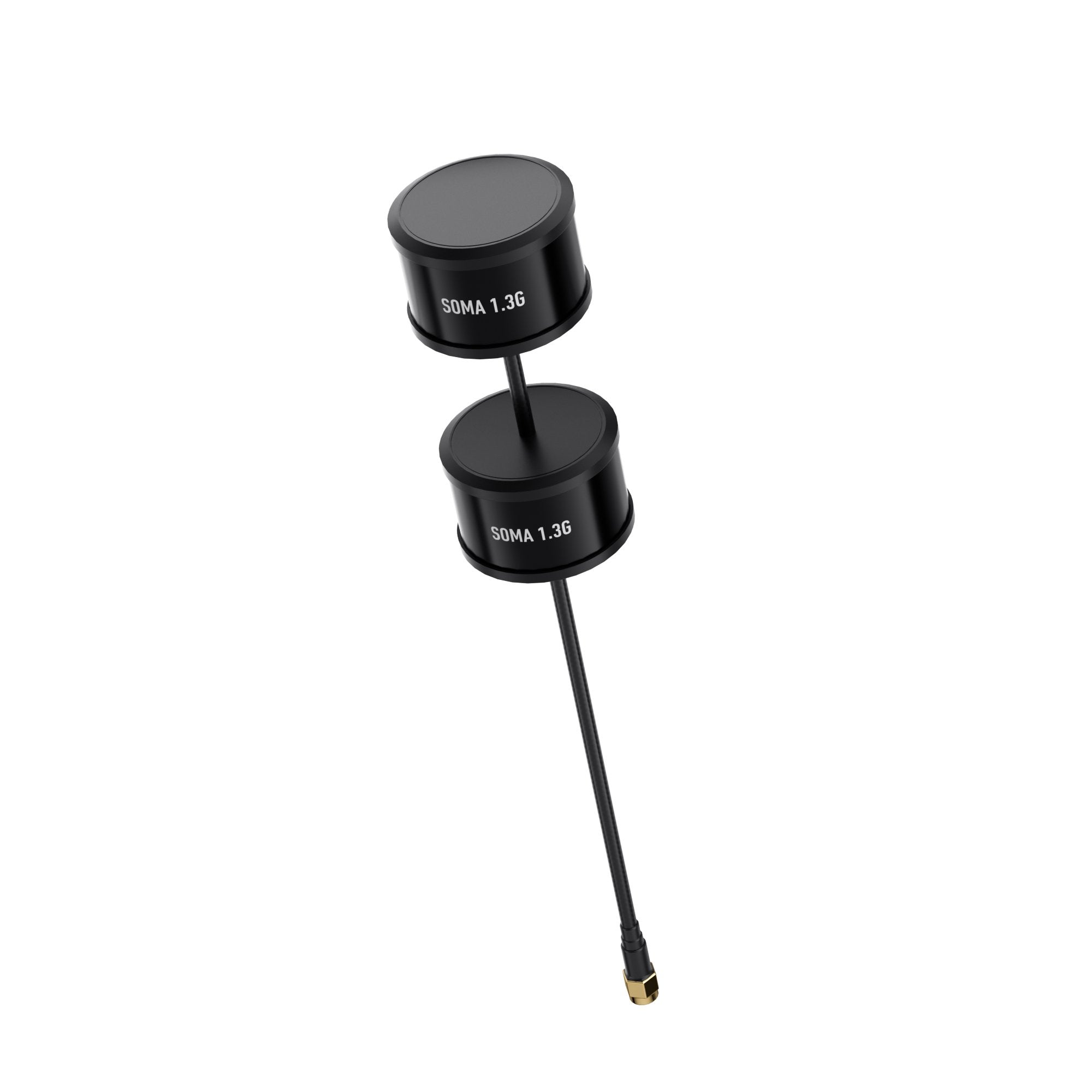

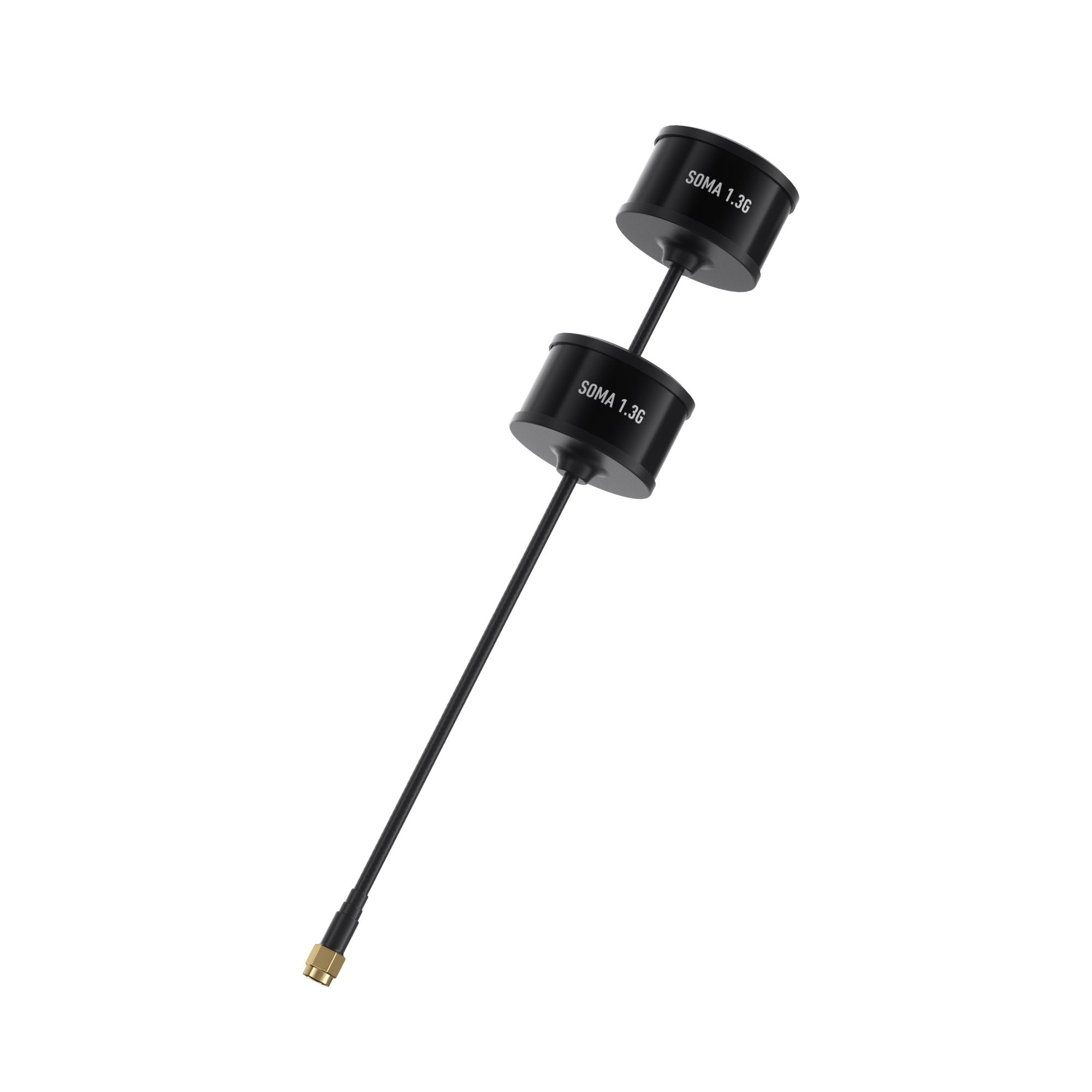

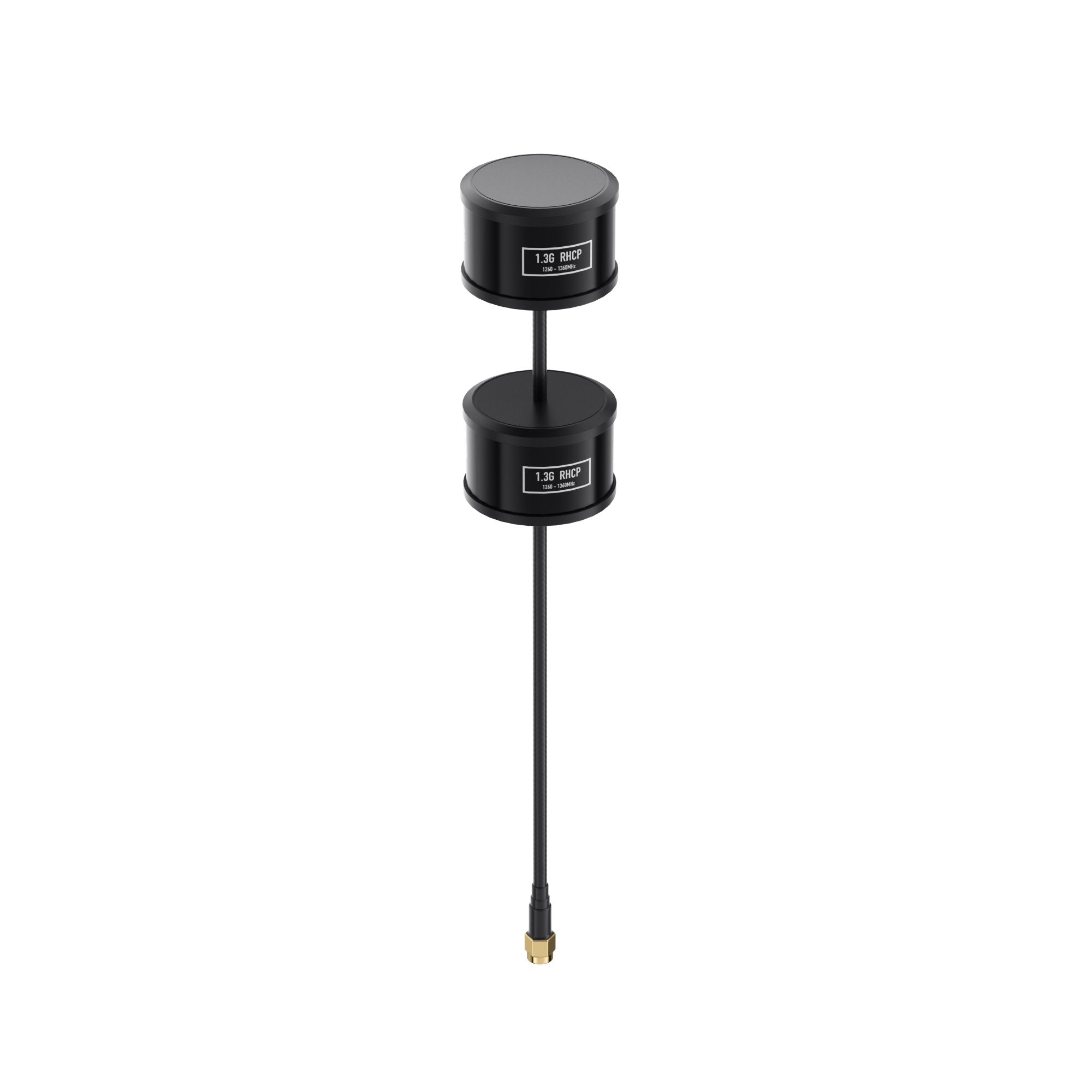

GEPRC SOMA 1.2G/1.3G DUAL Antenna｜FPV 天線

GEPRC SOMA 1.2G/1.3G DUAL Antenna｜FPV 天線

GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEPRC SOMA 1.2G 1.3G DUAL antenna features a dual-core RF solution for enhanced gain and wider coverage. Practical testing shows a significant improvement in directional compatibility. The SOMA 1.2G 1.3G DUAL antenna ensures stable and reliable image transmission during flight, maintaining excellent signal coverage even in high-maneuver situations.

Features

Enhanced gain with dual-core RF technology.

Ultra-low VSWR for improved transmission efficiency

Adopts premium antenna interface

Ultrasonic welding for tight and secure assembly

Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

Specifications

Model: GEPRC SOMA 1.2G DUAL Antenna

1.2G Center Frequency: 1200MHZ

1.2G Bandwidth: 1140 -1260MHZz

Polarization: RHCP

AVG Gain: 3.26dBi

Axial Ratio: ≤3

AVG VSWR: ≤1.50

AVG Radiation Efficiency: 75%

Cross Polarization Suppression: -25dB

Length: 170mm+80mm

Antenna Design: FPC+PCB

Antenna Weight: 30.6g

Enclosure Material: ABS

Connector: SMA

Model: GEPRC SOMA 1.3G DUAL Antenna

1.2G Center Frequency: 1300MHZ

1.2G Bandwidth: 1260 – 1360MHZ

Polarization: RHCP

AVG Gain: 3.26dBi

Axial Ratio: ≤3

AVG VSWR: ≤1.46

AVG Radiation Efficiency: 75%

Cross Polarization Suppression: -25dB

Length: 170mm+80mm

Antenna Design: FPC+PCB

Antenna Weight: 30.6g

Enclosure Material: ABS

Connector: SMA

Includes

1 x Momoda 1.2G/1.3G DUAL Antenna
