GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

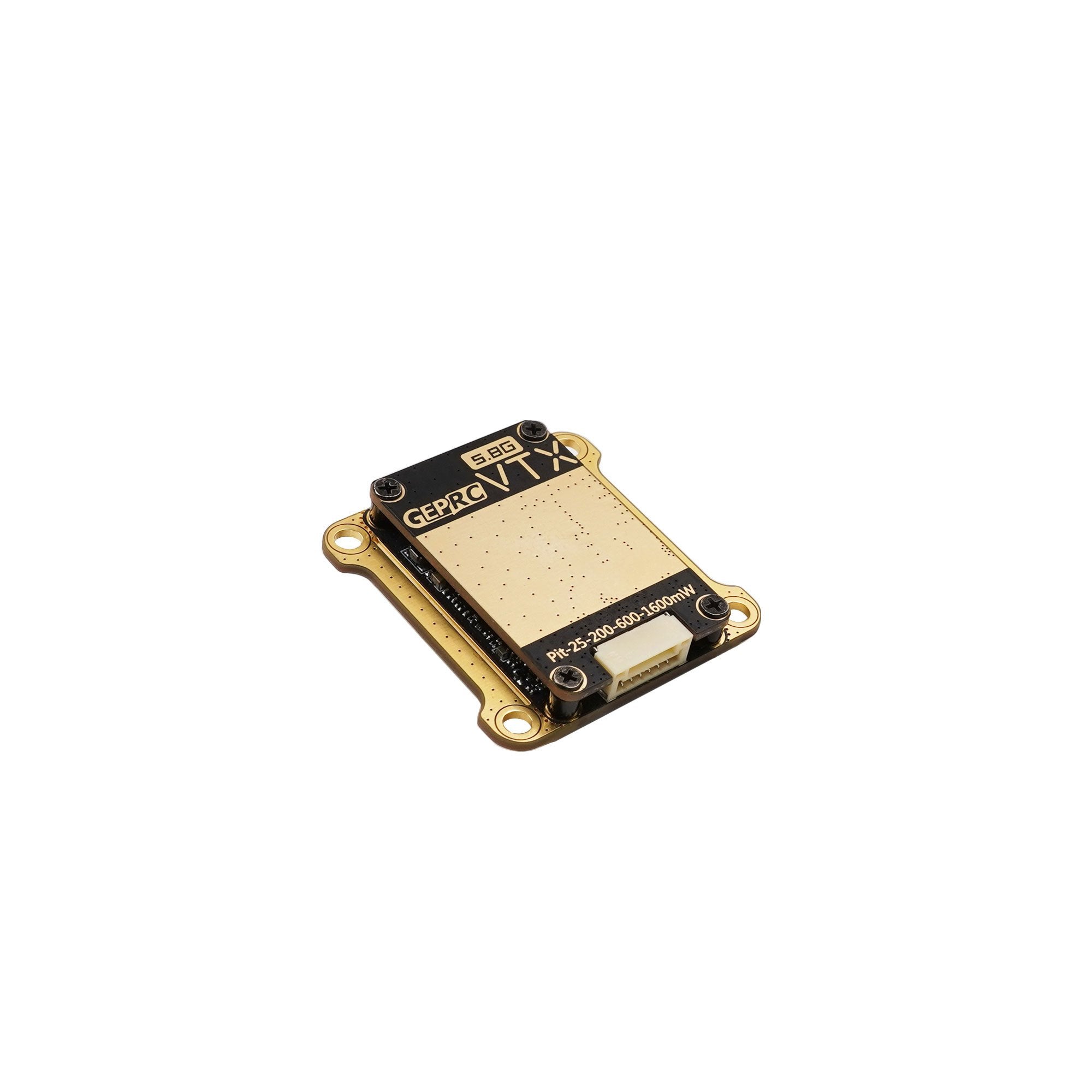

I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC.It is a super-power VTX with a maximum power of 1600MW and five adjustable gears:Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board,supports 7-36V voltage(2-8S Battery) input, uses the mainstream MMCX connector ,and the mounting hole is 30.5×30.5mm.

Feature:

1600mW Super power ,Suitable for Long Range flight with good stability.

Five power channel: PIT mode/25mW/200mW/600mW/1600mW.

Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.

Temperature control protection function that can prevent high temperature burning

Wide voltage input, Supports 7V-36V Voltage input.

VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

VTX built in microphone,Real-time transmission of Drone’s sounds.

Has 3 regional frequency tables to meet the needs of various regions.

Two function buttons, three indicator lights, easy to control.

Mounting hole is 30.5mmx30.5mm.

Specifications:

Model: GEPRC RAD VTX 5.8G 1.6W

Input voltage: DC 7-36V(2-8S Battery)

Output: 5V@600mA(power 5V to Camera)

Input impedance: 75Ω

Protocol: IRC Tramp

Antenna interface: MMCX

Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE

Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)

Video format: PAL / NTSC

Microphone: Built in microphone

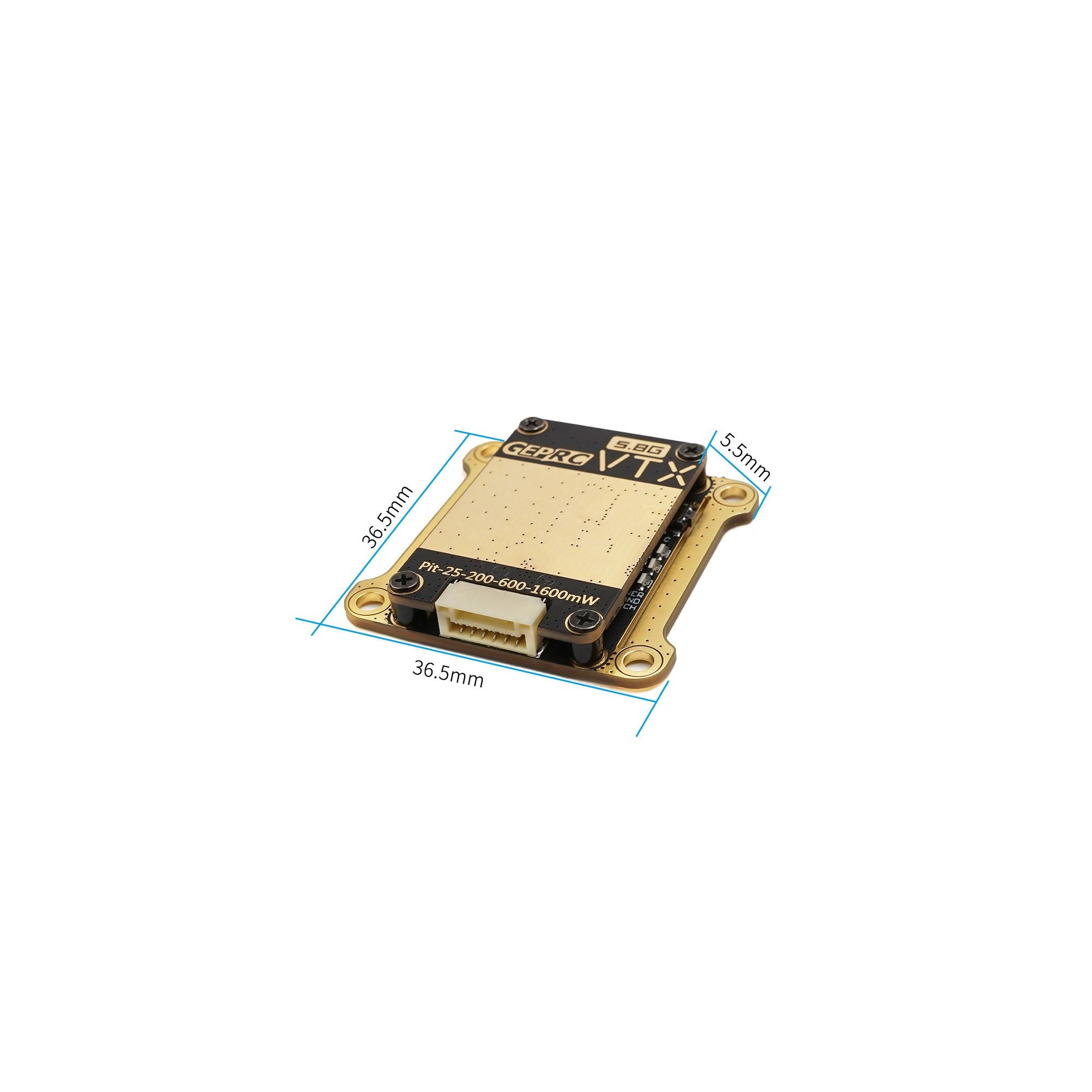

Size: 36×36.5×5.5mm

Weight: 9.7g(without cable)

Mounting hole: 30X30mm(M3)

Warning：

Install Antenna before use.

To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

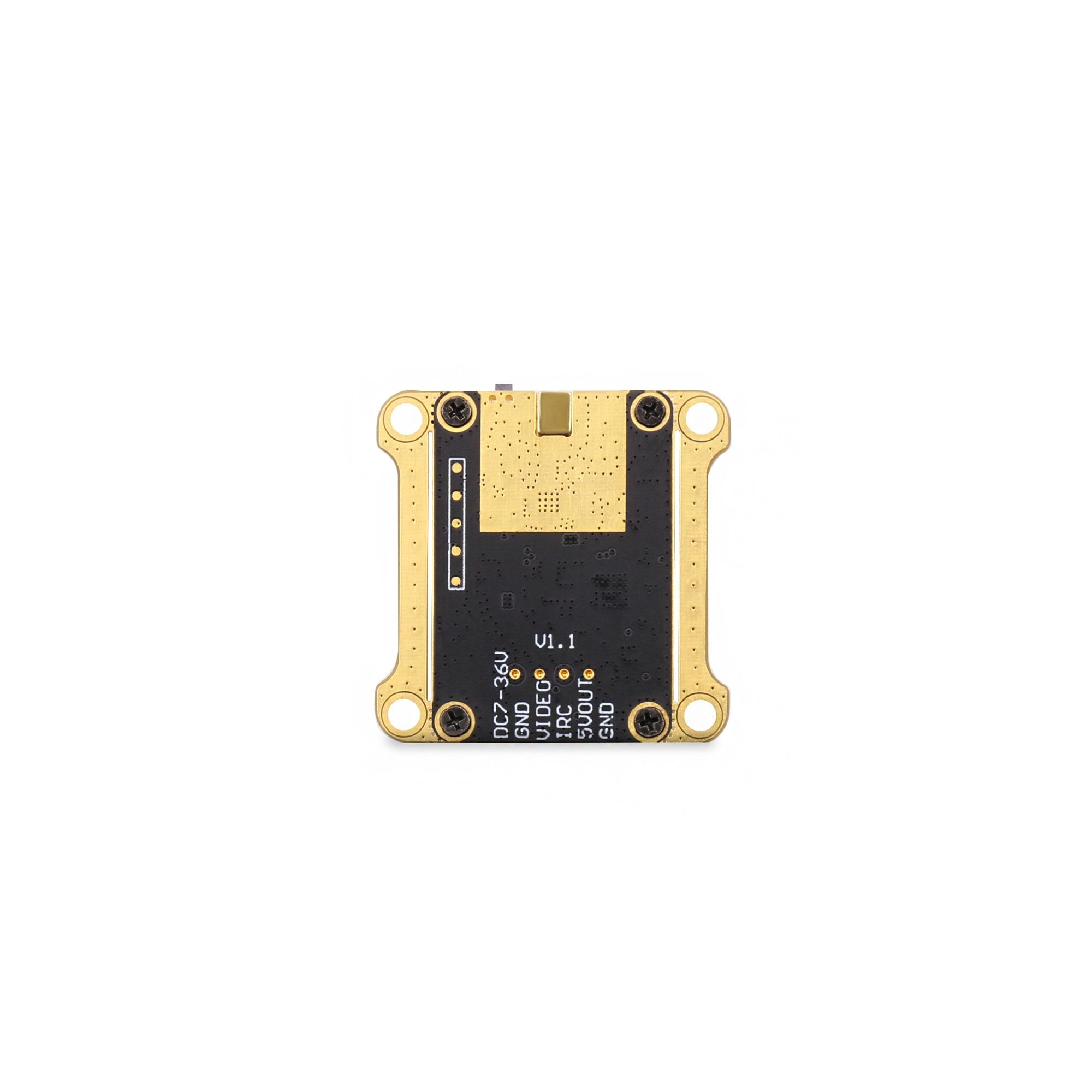

Connector definition description:

DC 7-36V: Input 2-8s Battery power

GND: Common ground wire

Video: connect to the video output port of FC or Camera

IRC: Connect to UART TX port of FC

5V OUT: output 5V power to the Camera

GND: Common ground wire

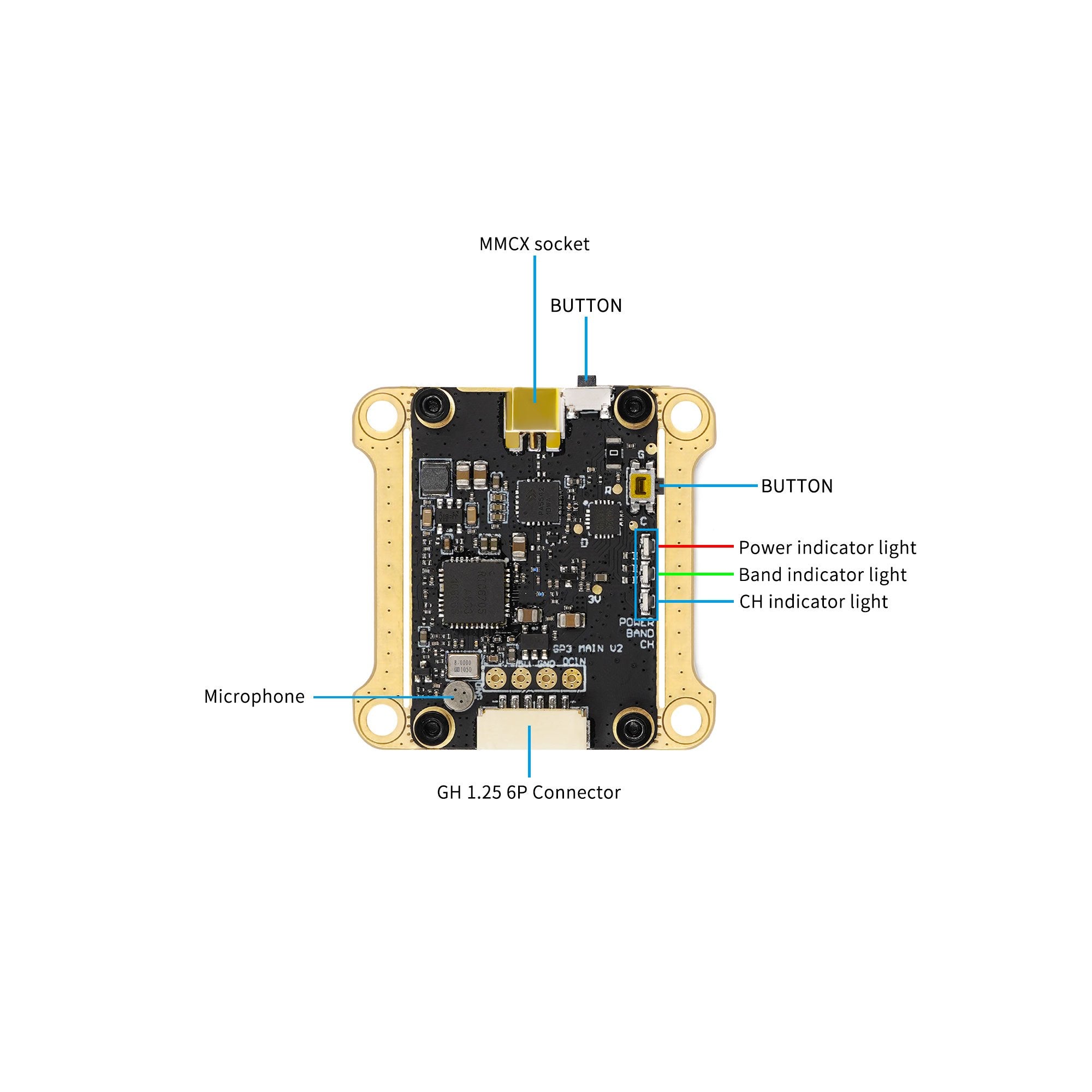

Description of button and indicator light:

Two function button are parallel in the VTX circuit, and the operation and function are the same

Blue light: Ch indicator

Green light: Band indicator

Red light: Power indicator

Includes:

1 x GEPRC RAD VTX 5G8 1.6W

1 x 72mm MMCX Copper tube antenna

1 x GH 1.25*6P 150mm Connecting cable

1 x MMCX to SMA（Internal foramen）connector

1 x Matching screw package.

Size:

Include:

Manual

RAD VTX 5.8G 1.6W Manual.pdf
