GEPRC Peano 5.8G Antenna｜FPV 天線
GEPRC Peano 5.8G Antenna｜FPV 天線
此選項為一次支付商品全額。完成付款後，我們將依商品庫存及訂單順序安排出貨。
此選項為支付商品總價三分之一作為訂金。庫存補充後，我們將通知您支付剩餘尾款，完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

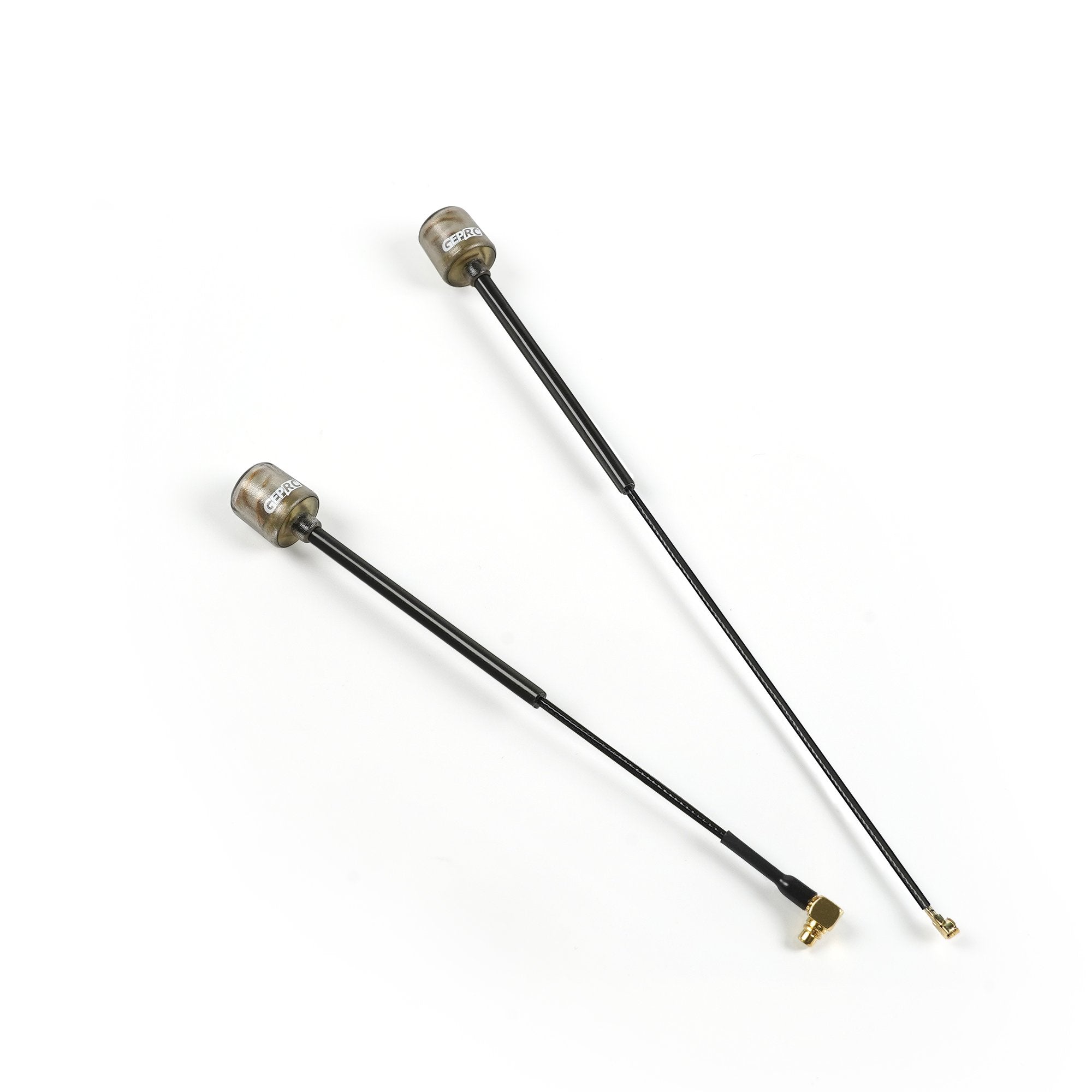

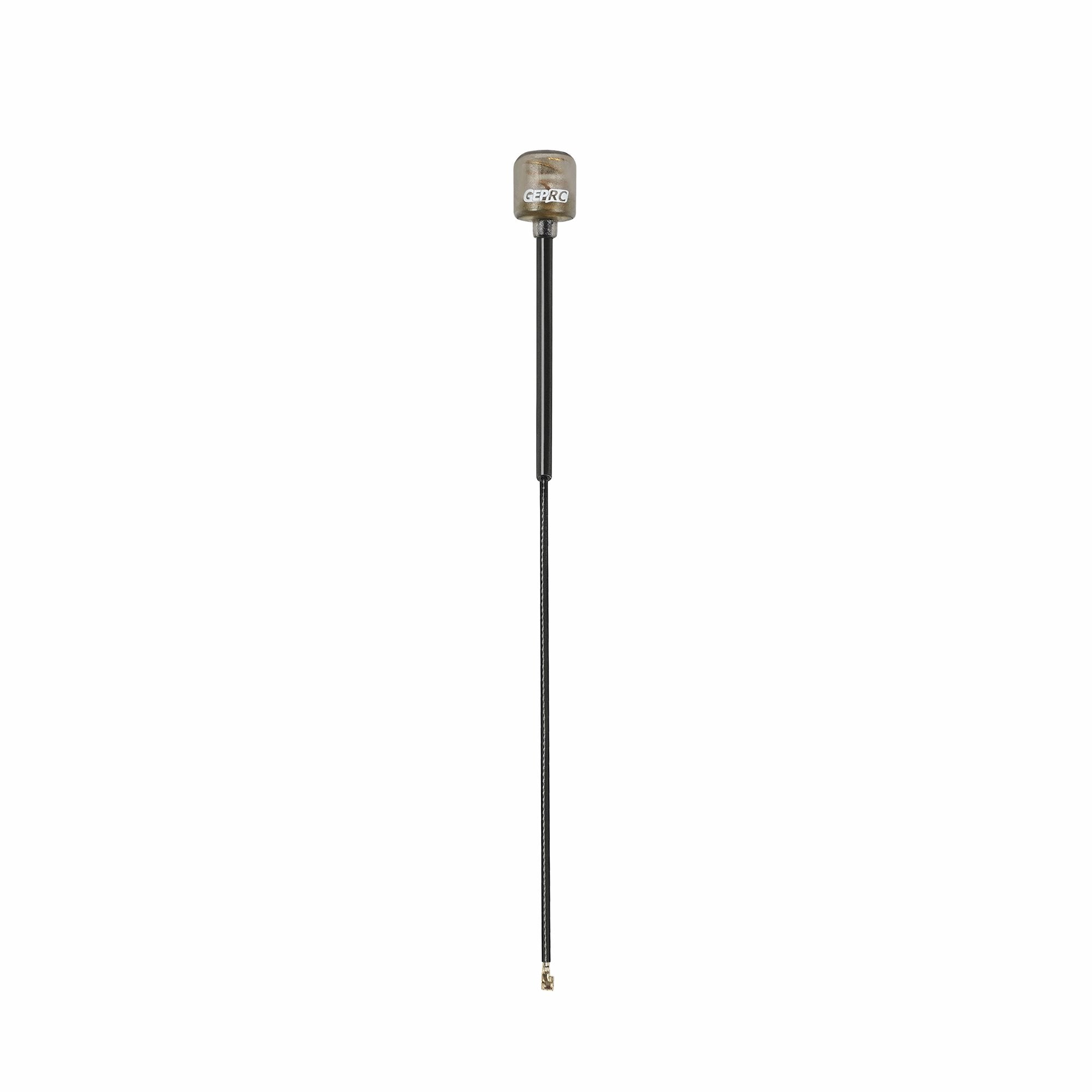

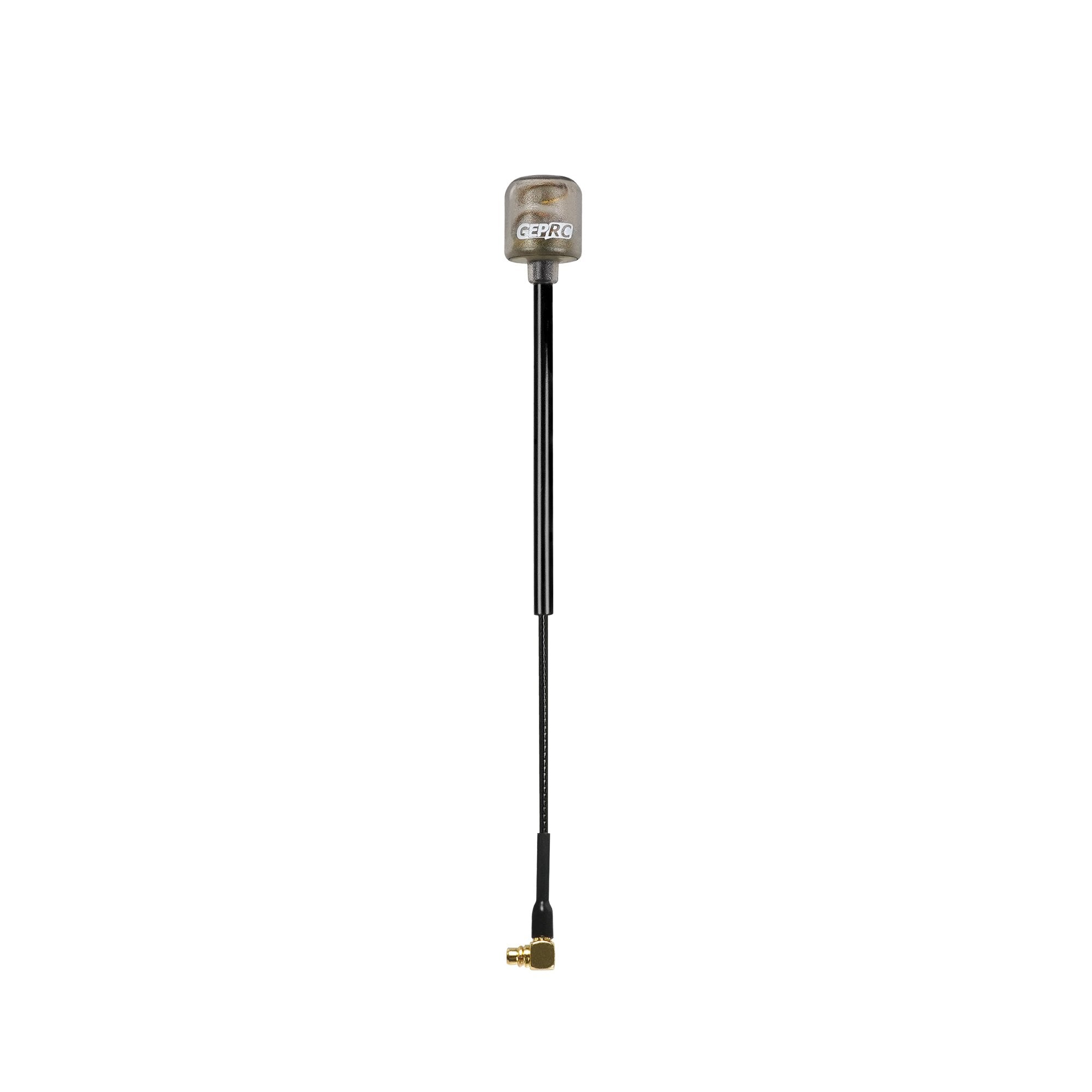

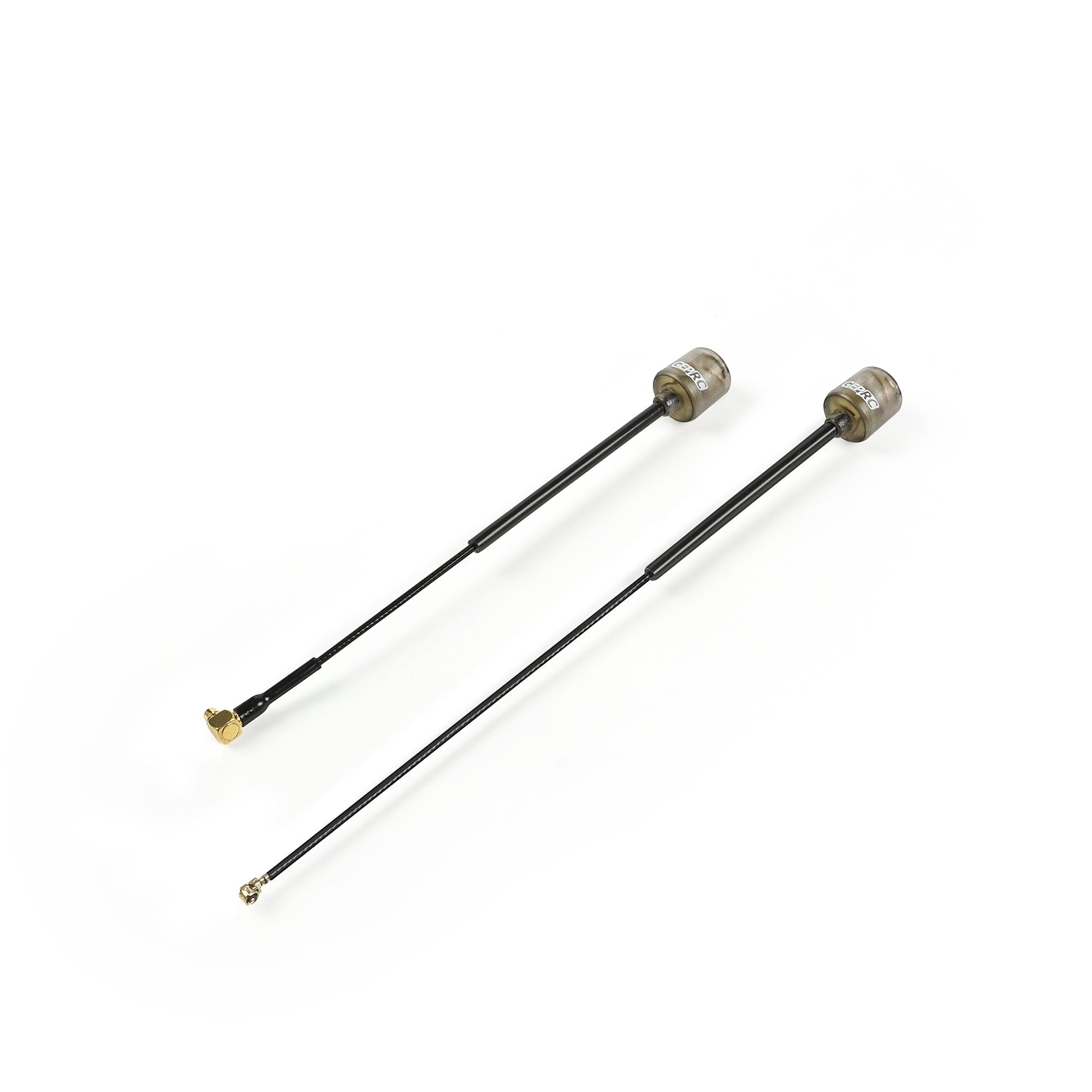

GEPRC Peano 5.8G Antenna｜FPV 天線
GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。
Summary
GEPRC Peano antenna is a 5.8G optimized antenna for FPV quad. The antenna has good gain performance and very compact. Working frequency range is 5600-5950 Ghz, with LHCP and RHCP options for multi-player competition. Peano 5.8G antenna also has a variety of connector options. Every antenna has been tested strictly before leaving the factory to ensure good performance.
Features
1. Compact and light-weight design, high quality ABS case for good protection and nice appearance.
2. Options of LHCP and RHCP.
3. Manufactured and tested to highest standards
4. Easy to install, multiple connectors and length options.
Specifications
Frequency Range: 5600-5950MHz
Polarization: LHCP/RHCP
Gain: 2.5DBi
SWR: ≤1.5
Input Impedance: 50Ω
Radiation Efficiency: 98%
Connector: UFL/MMCX
Weight: 1.6g~1.8g
Height: 175mm/195mm
Radome material: ABS
Radome color: transparent grey
Includes
2 x GEPRC Peano 5.8G Antenna
