GEPRC Naked Camera GP8 BEC｜FPV 相機與影像配件

GEPRC Naked Camera GP8 BEC｜FPV 相機與影像配件

GEPRC 官方FPV 相機與影像配件，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

GEPRC team specially designed a new BEC board for GP8, which supports 2S-6S voltage input and 5V@2A stable output. It perfectly matches GP8 motherboard and is easy to install.

Specifications:

Model: GEPRC Naked Camera GP8 BEC

Brand name: GEPRC

Color: Black/Blue

Input: 2S-6S

Output: 5V@2A

Connector: GH1.25-3P connector

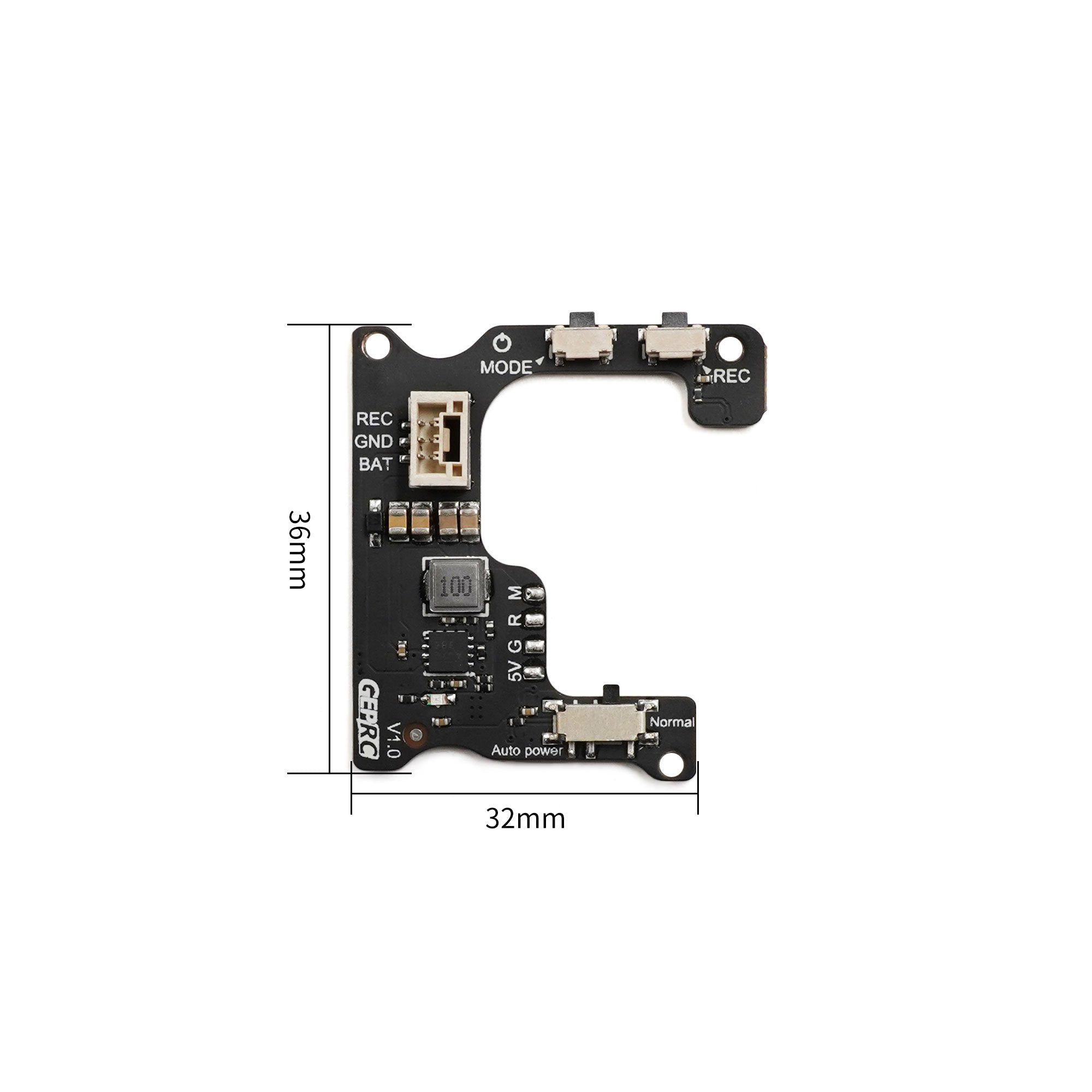

Size: 36mm*31.5mm/26.5mm

Weight: 1.7g

Features:

Include GH1.25-3P interface, and the control cable is connected with plug and play

Use control wire to connect flight control and realize remote control recording

Supports 2S-6S wide volt input

Supports 5V@2A output

Perfect installation of GP8 main board, uses BTB interface to connect with stable quality

Include POWER / MODE and REC button, which is easy to operate

Include switch between automatic power on and manual power on

Include:

1 x BEC Board

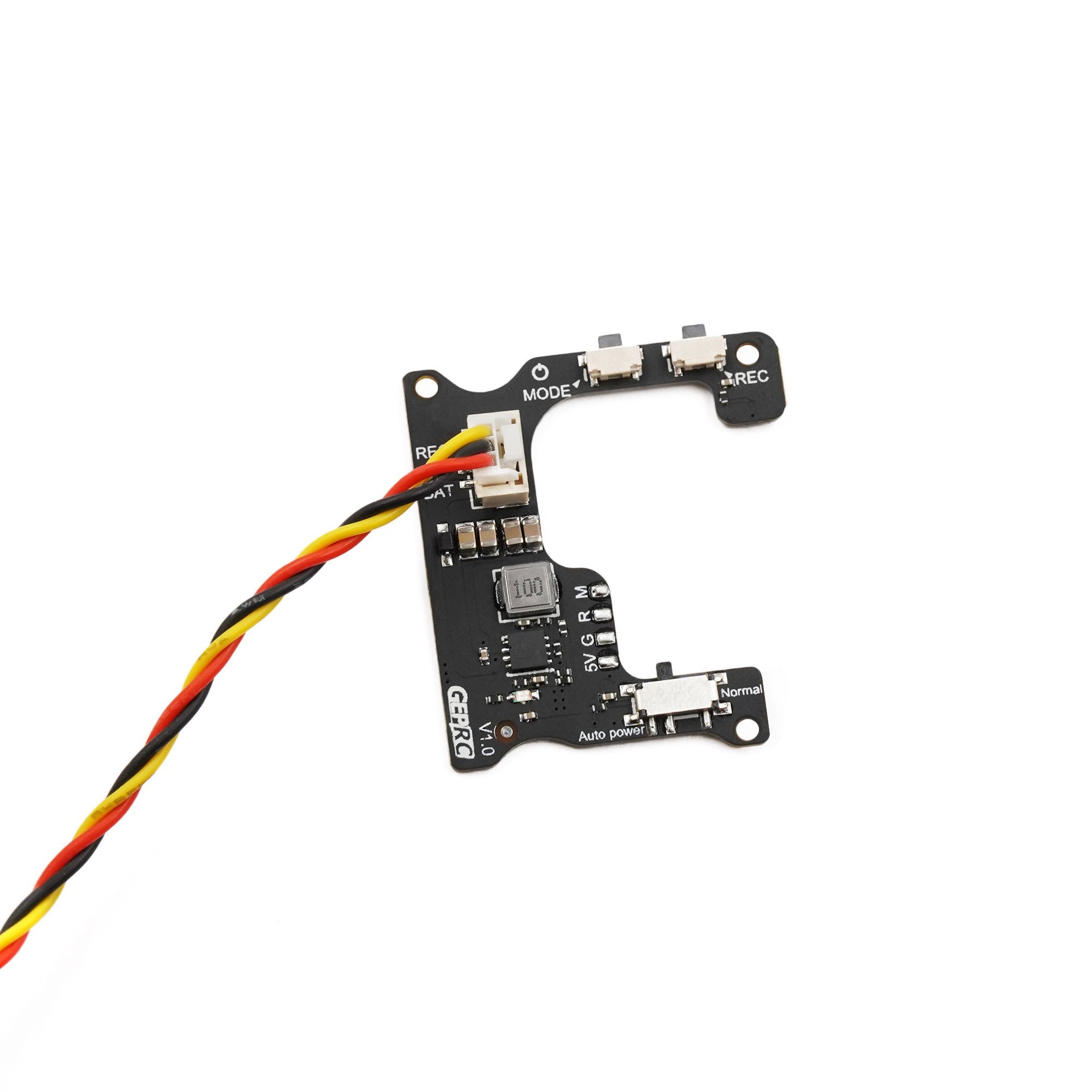

1 x Control cable

GEPRC BEC Board Diagram:

GEPRC BEC Board connect FC:

How to Assemble:
