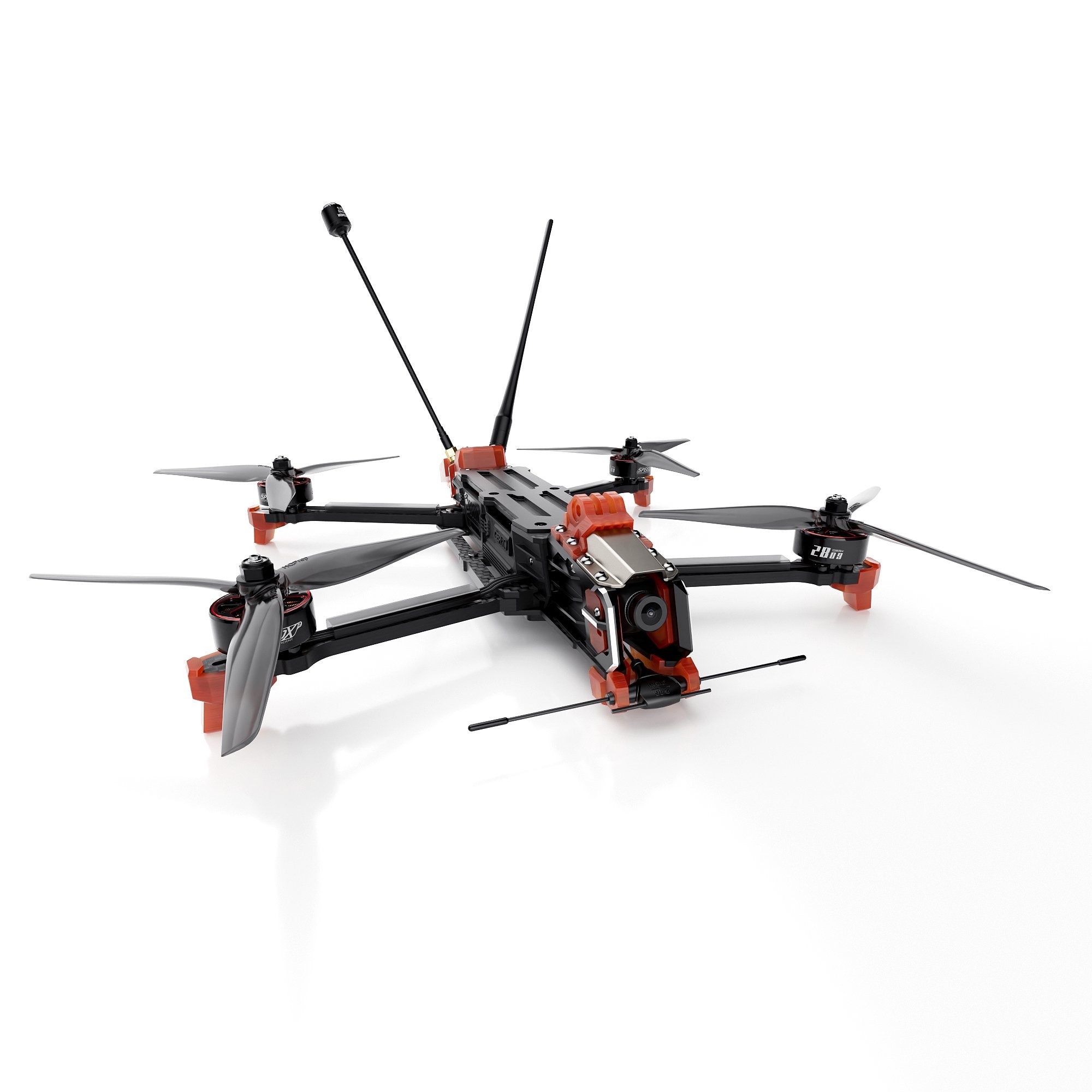

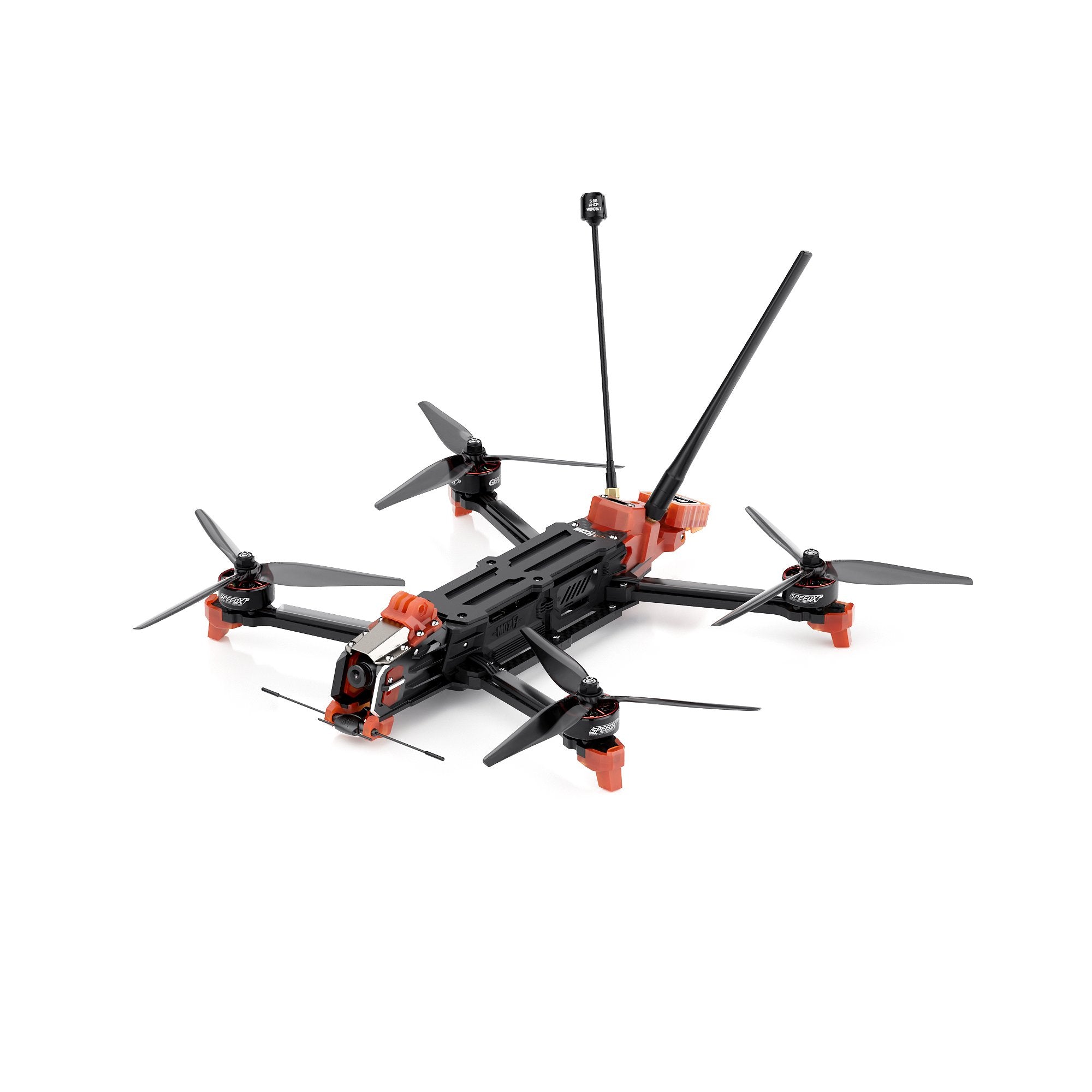

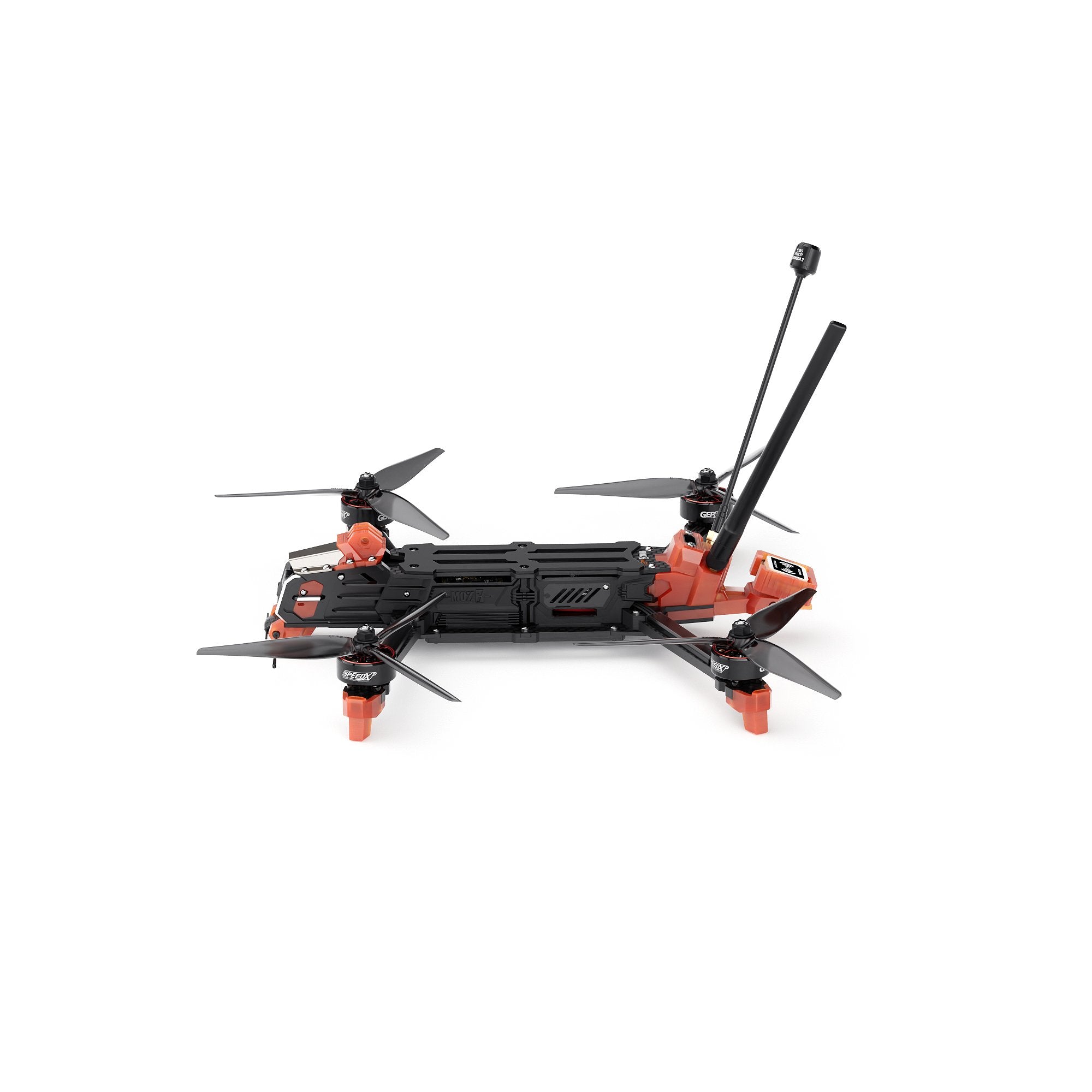

GEPRC MOZ7 V2 Analog Long Range FPV Drone｜FPV 穿越機

GEPRC MOZ7 V2 Analog Long Range FPV Drone｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

MOZ7 has been upgraded with the DJI O4 Air Unit Pro. The 1/1.3-inch image sensor offers a wider dynamic range and superior low-light performance. A155° ultra-wide field of view, enhances high-speed and low-altitude flying. The video transmission quality reaches 1080p/100fps in H.265, while recording supports up to 4K/120fps. Transmission distance extends to 15 km, and the 10-bit D-Log M color mode ensures excellent visual performance for a fully immersive flying experience.

Numerous optimizations have been made, including a reinforced frame, a more centered center of gravity, and a 7075 aerospace aluminum camera protector. This results in clear FPV footage with no propeller in view, enhancing both durability and flight experience. With the H743 flight controller, GEP-M1025 GPS, and ELRS 915M/2.4G Gemx dual-band receiver, the MOZ7 V2 guarantees long-range performance. And it offers two mounting options for the action camera and battery.

The MOZ7 V2 offers an unmatched flying and creative experience, raising the bar for immersive FPV visuals.

Changelog

Jul 19, 2025: MOZ7 V2 Motor changed from GEPRC SPEEDX2 2809 V1.1 1450kv Motor to GEPRC SPEEDX2 2809 V1.1 1280kv Motor.

Jul 19, 2025: MOZ7 V2 ESC changed from GEPRC GEP-BL32 50A 96K 4IN1 ESC to GEPRC TAKER H65_8S_32Bit 65A 4IN1 ESC.

Features

1. Reinforced frame for better stability.

2. DJI O4 Air Unit Pro supports 4K/120fps and 1080p/100fps H.265 image transmission.

3. Upgraded V1.1 version 2809 1280KV motors provide up to 25 minutes of flight time.

4. ELRS 915M/2.4G Gemx Dual-Band Receiver minimizes signal dead zones with its front-horizontal and rear-vertical setup.

5. GEP-M1025 GPS offers a quick, stable satellite connection.

6. Reinforced side bars ensure a balanced center of gravity.

7. Swappable action camera mount for versatile positioning.

8. Two battery mounting options for flexible setup.

9. Paired TAKER H743 BT FC with MPU6000&ICM42688-P gyro for fast data processing and stable flight.

10.Equipped with TAKER H65_8S_32Bit 65A 4IN1 ESC 32-bit delivers smooth, responsive control.

Specification

Model: GEPRC MOZ7 V2 Analog

Frame:

GEP-MOZ7 V2

Wheelbase: 336mm

Top Plate Thickness: 2.5mm

Bottom Plate Thickness: 2.5mm

Clamp Plate Thickness: 3mm

Arms Thickness: 6mm

FC:

TAKER H743 BT

MCU: STM32H743

Gyro: MPU6000&42688-P dual

Barometer: support

GPS: GEP-M1025

OSD：BetaFlight OSD w / AT7456E chip

ESC:

TAKER H65_8S_32Bit 65A 4IN1 ESC

VTX: MATEN 5.8G 2.5W

Camera: CADDX RATEL2

Antenna:

Momoda2-5.8G-SMA-RHCP-170mm

Power Connector: XT60E-M

Motor: SPEEDX2 2809 1280KV V1.1

Prop: HQ 7.5*3.7*3 3-blade-transparent grey

Weight: 782±10g

Receiver: PNP / ELRS 915M/2.4G GemX / TBSNanoRX

Recommended Battery:

LiPo 6S 3300mAh

/

Lilon 8000mAh

Flight Time: 25 minutes (based on slow cruising tests; actual results may vary due to product differences, firmware version, flying style, and environment)

Includes

1 x GEPRC MOZ7 V2 FPV

2 x HQ 7.5*3.7*3 (2CW+2CCW)

2 x 15*250mm battery strap

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x L-shaped screwdriver 3.0mm

1 x Spare screw pack

2 x Battery anti-slip pad

1 x Frequency pairing ejector pin

1 x VTX antenna

1 x tri-band stick antenna
