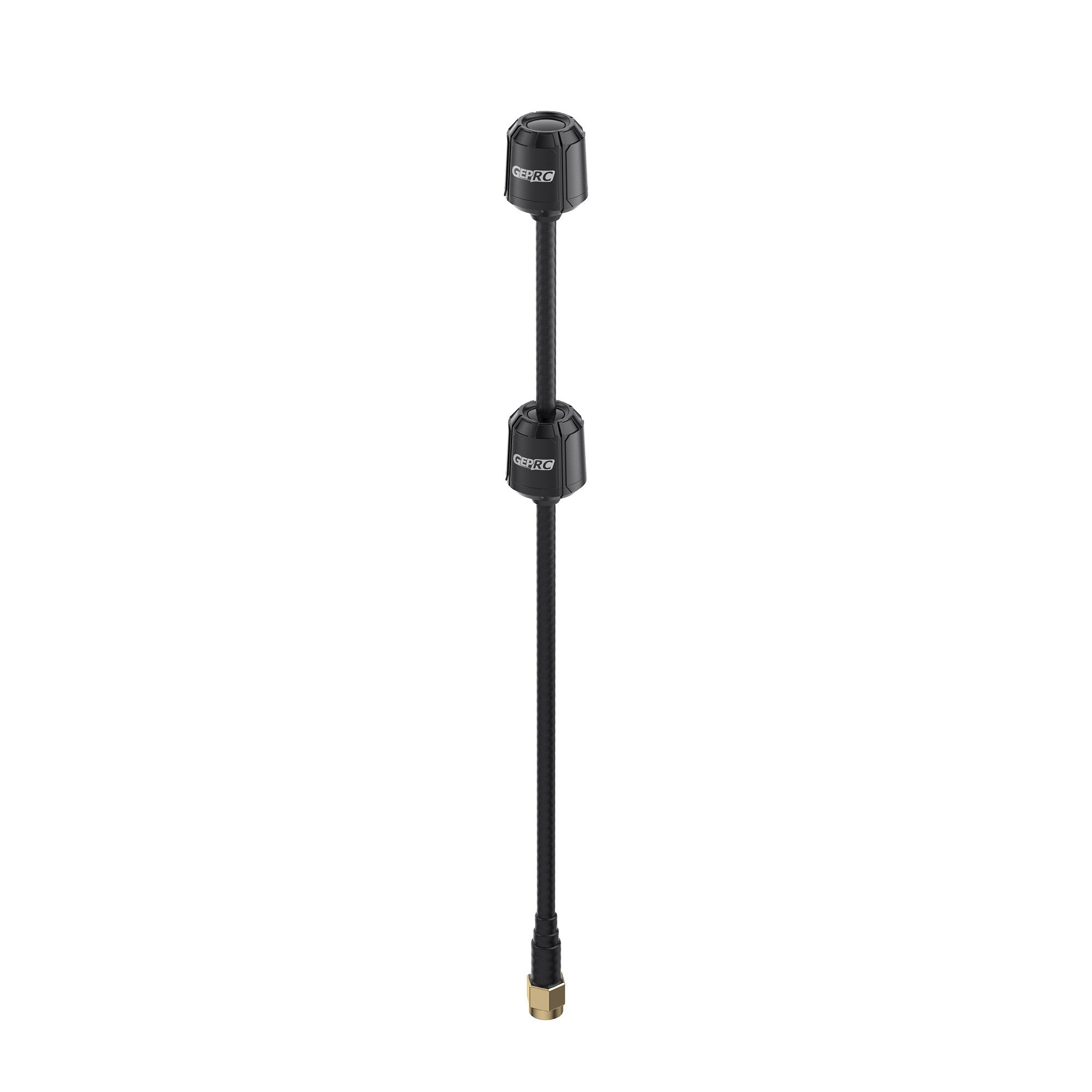

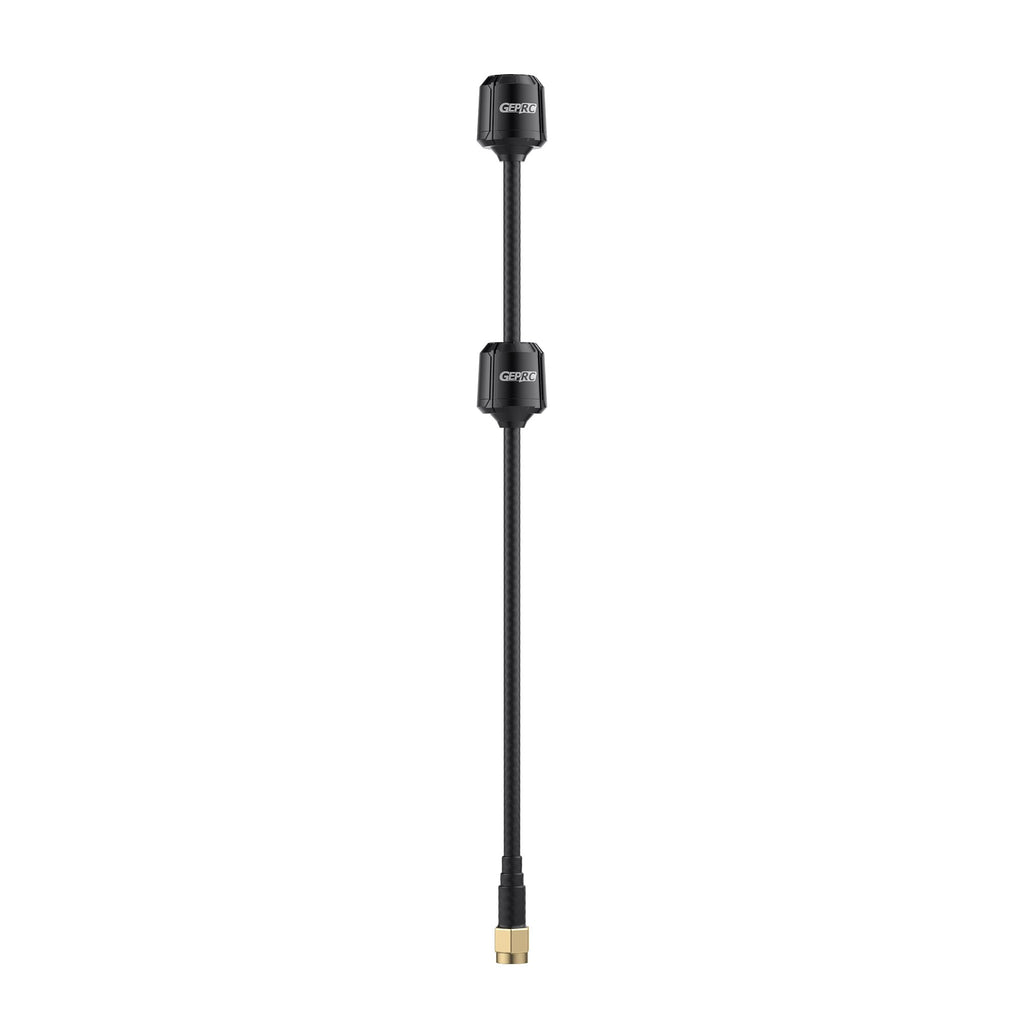

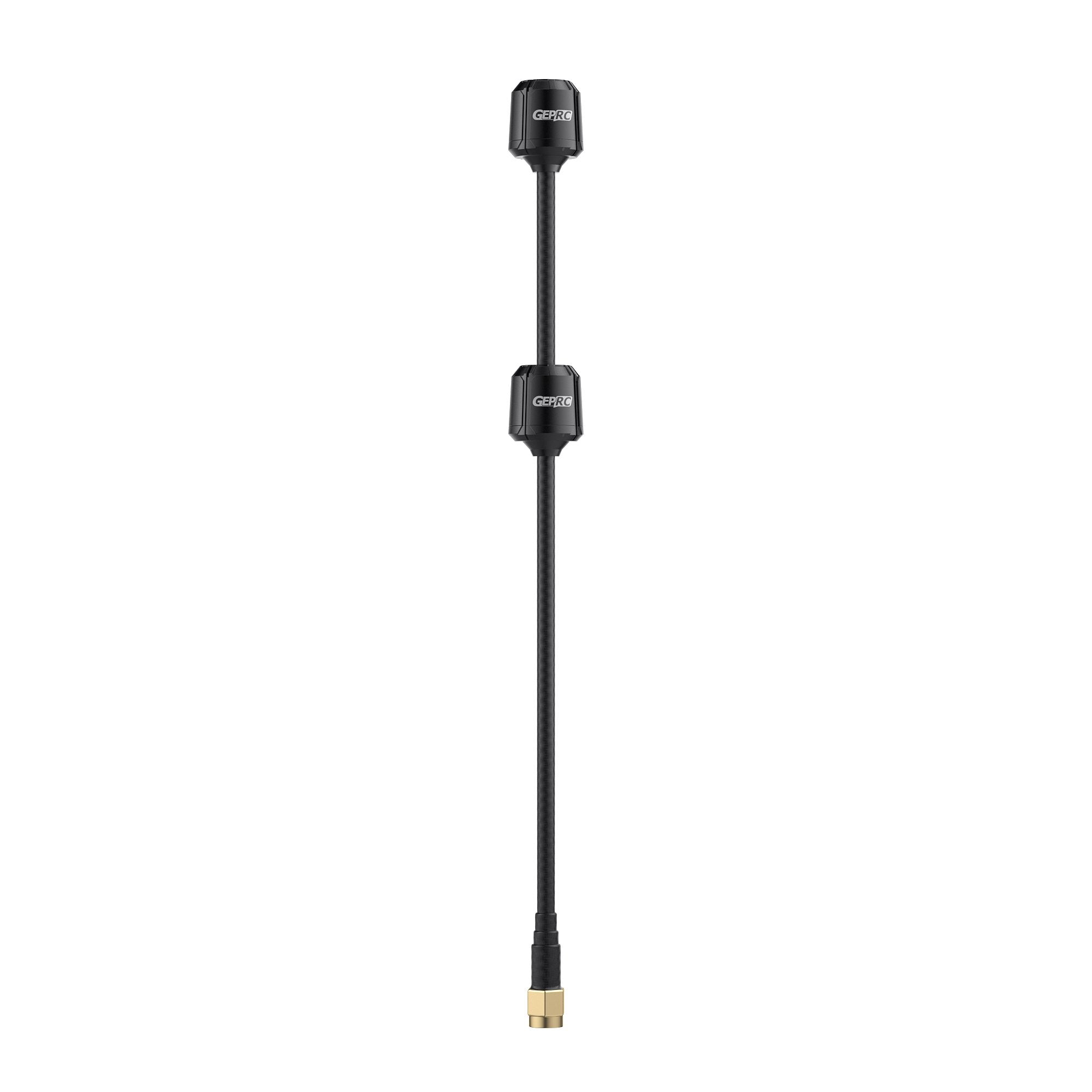

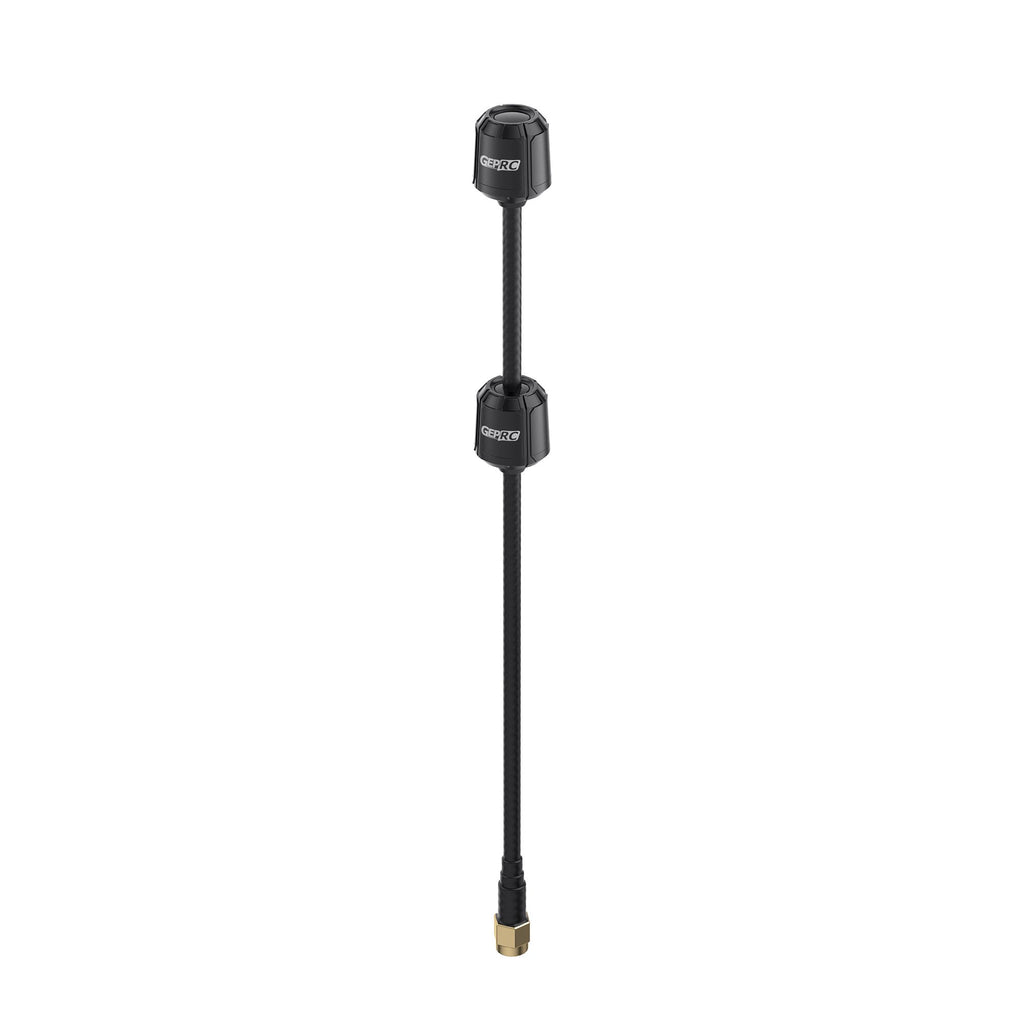

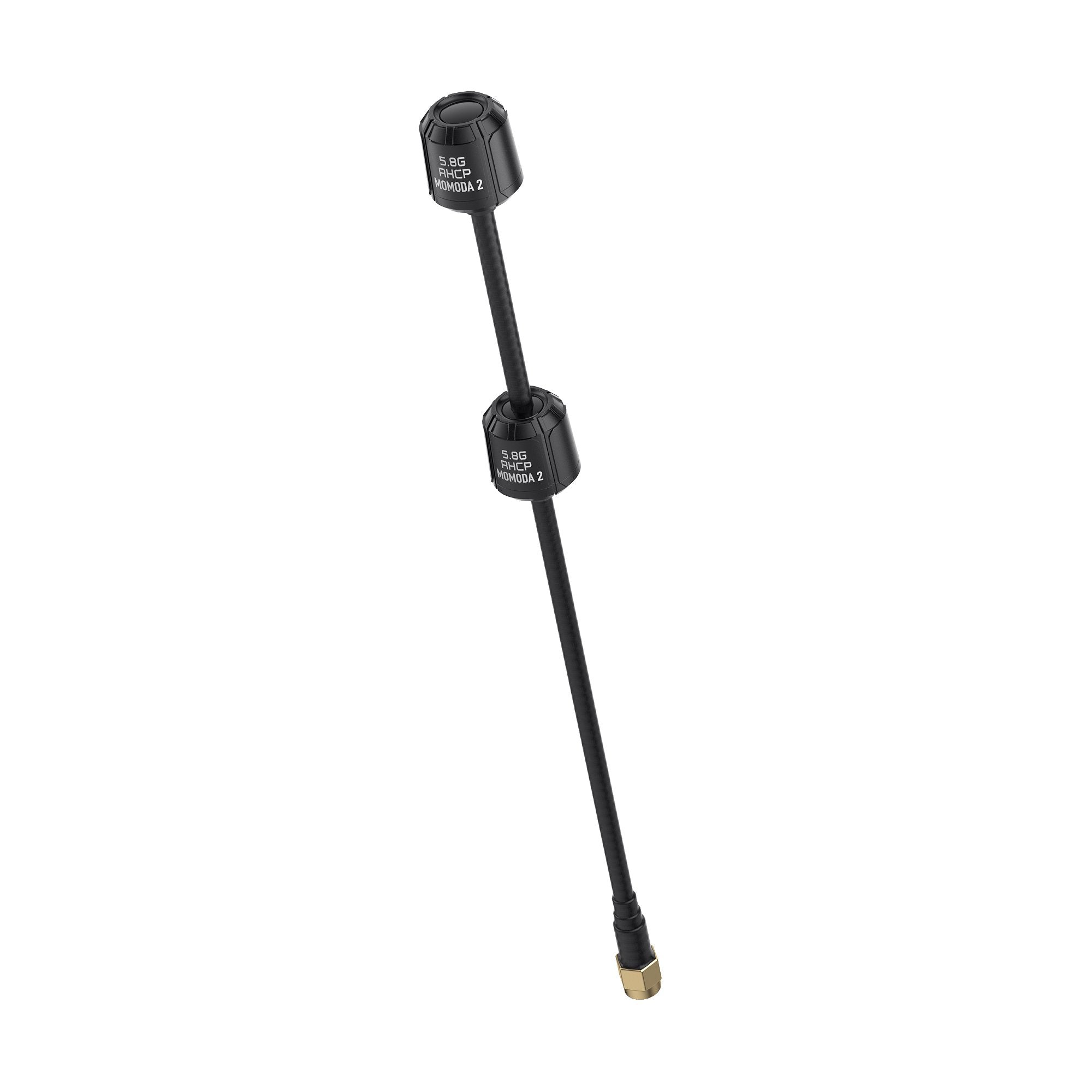

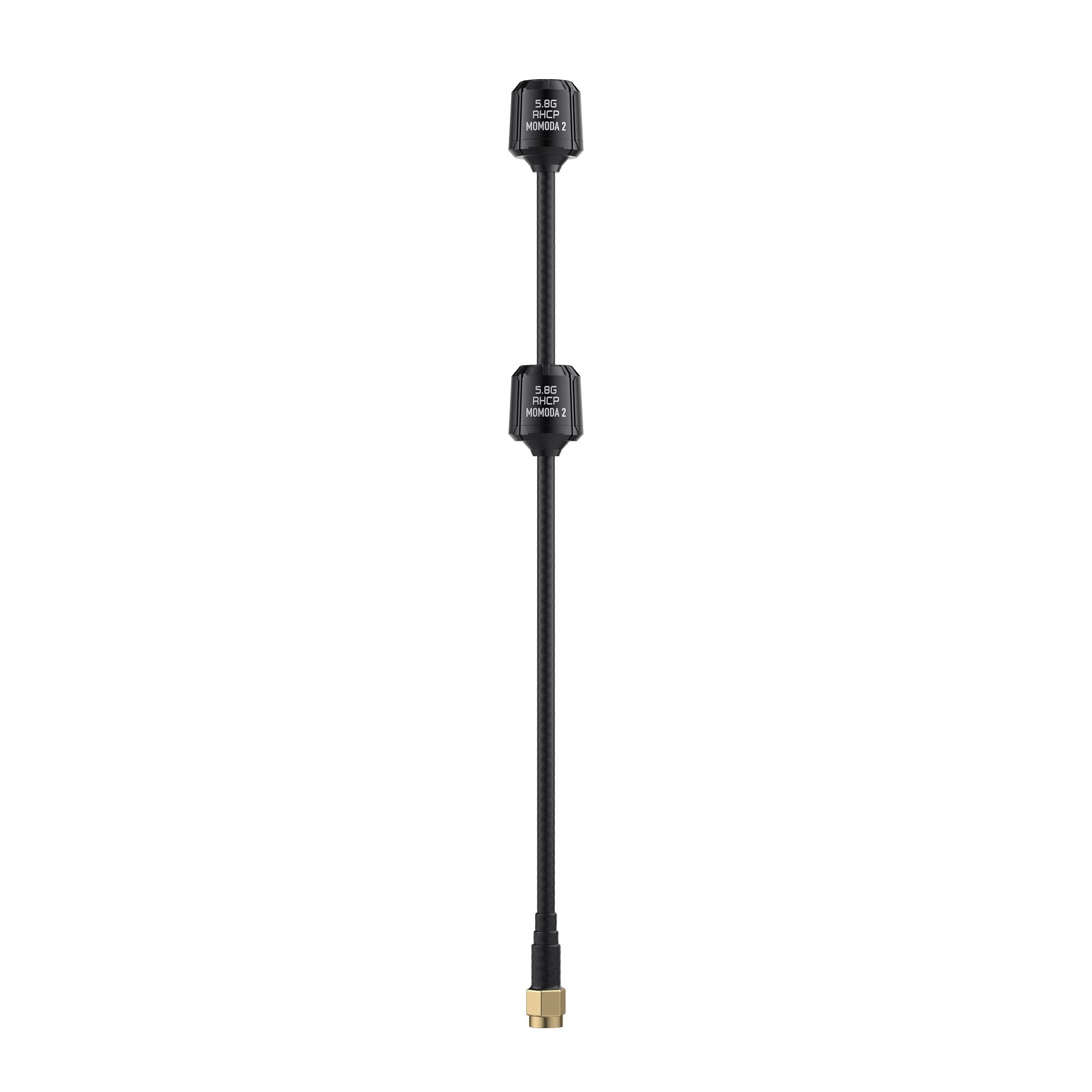

GEPRC Momoda2 5.8G DUAL Antenna｜FPV 天線

GEPRC Momoda2 5.8G DUAL Antenna｜FPV 天線

GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEPRC Momoda2 5.8G DUAL antenna incorporates a dual-core RF solution to enhance gain and expand coverage. Practical testing has demonstrated significantly improved directional compatibility. The Momoda2 5.8G DUAL antenna guarantees stable and reliable image transmission during flight, with extended transmission distance.

Features

Enhanced gain with dual-core RF technology.

Ultra-low VSWR for improved transmission efficiency

Adopts premium antenna interface

Ultrasonic welding for tight and secure assembly

Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

Specifications

Model: GEPRC Momoda2 5.8G DUAL antenna

Center Frequency: 5.65GHz

Bandwidth: 5.3GHz～6GHz

Polarization: LHCP/RHCP

Gain: 3.8dbi

Axial Ratio: ≤3

VSWR: ≤1.43

Radiation Efficiency: 85%

Cross Polarization Suppression: -25dB

Length: 170mm+57mm

Design Compostion: FPC+PCB

Weight: 16.6g

Enclosure Material: ABS

Connector Type: SMA

Includes

1*Momoda 5.8G DUAL antenna
