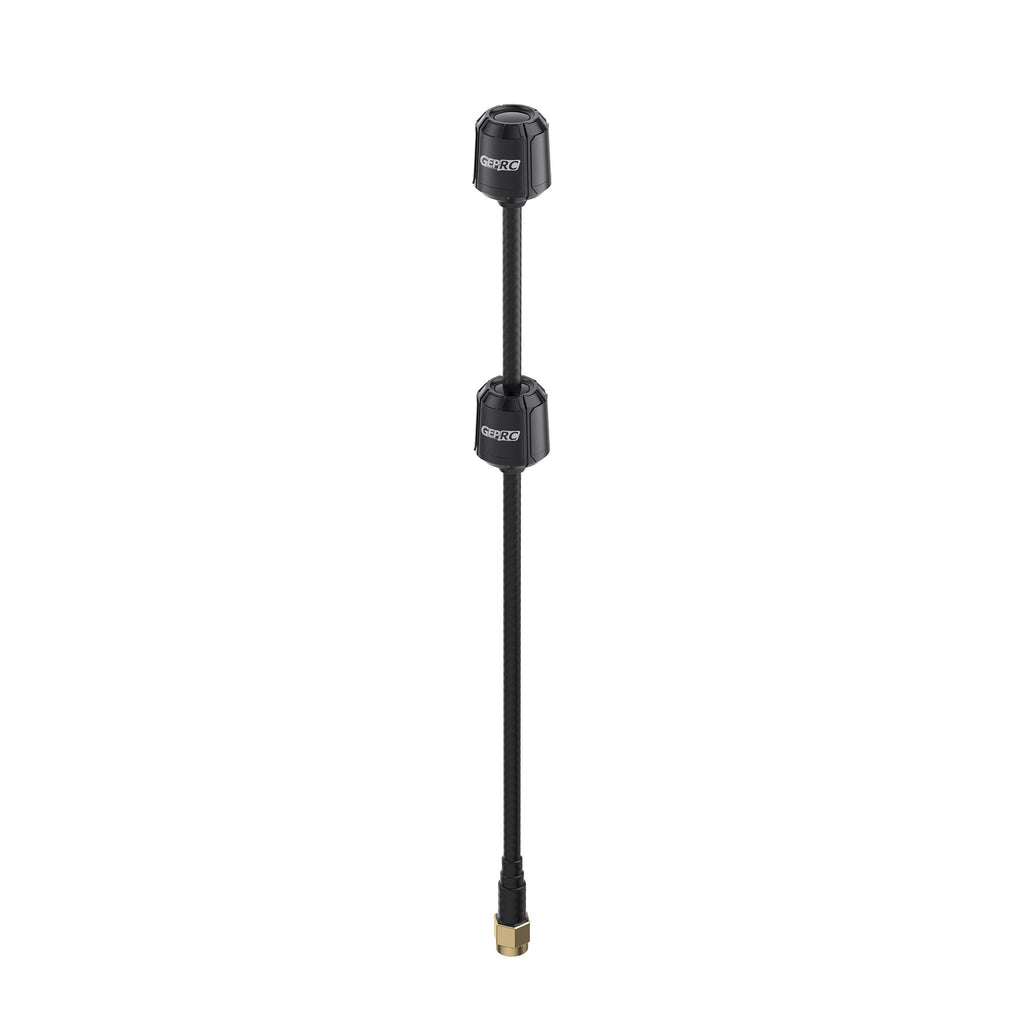

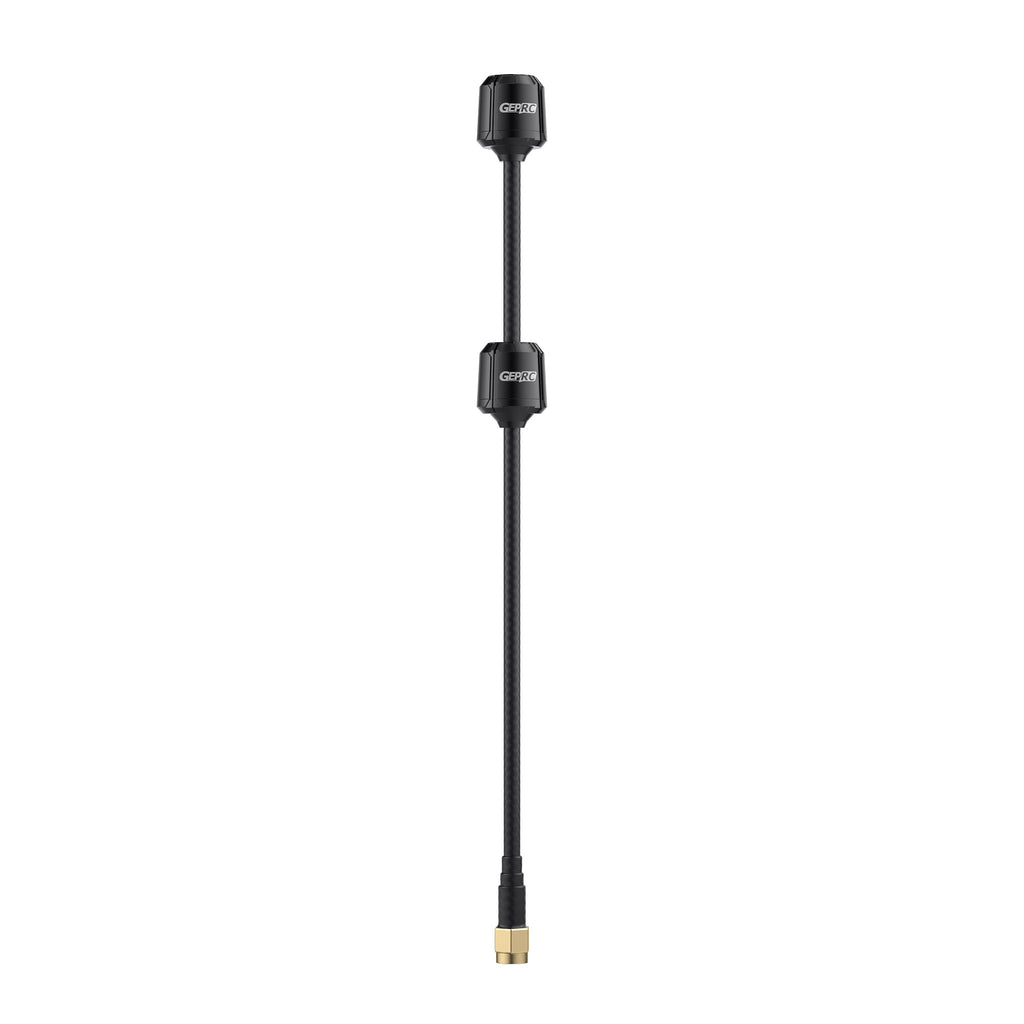

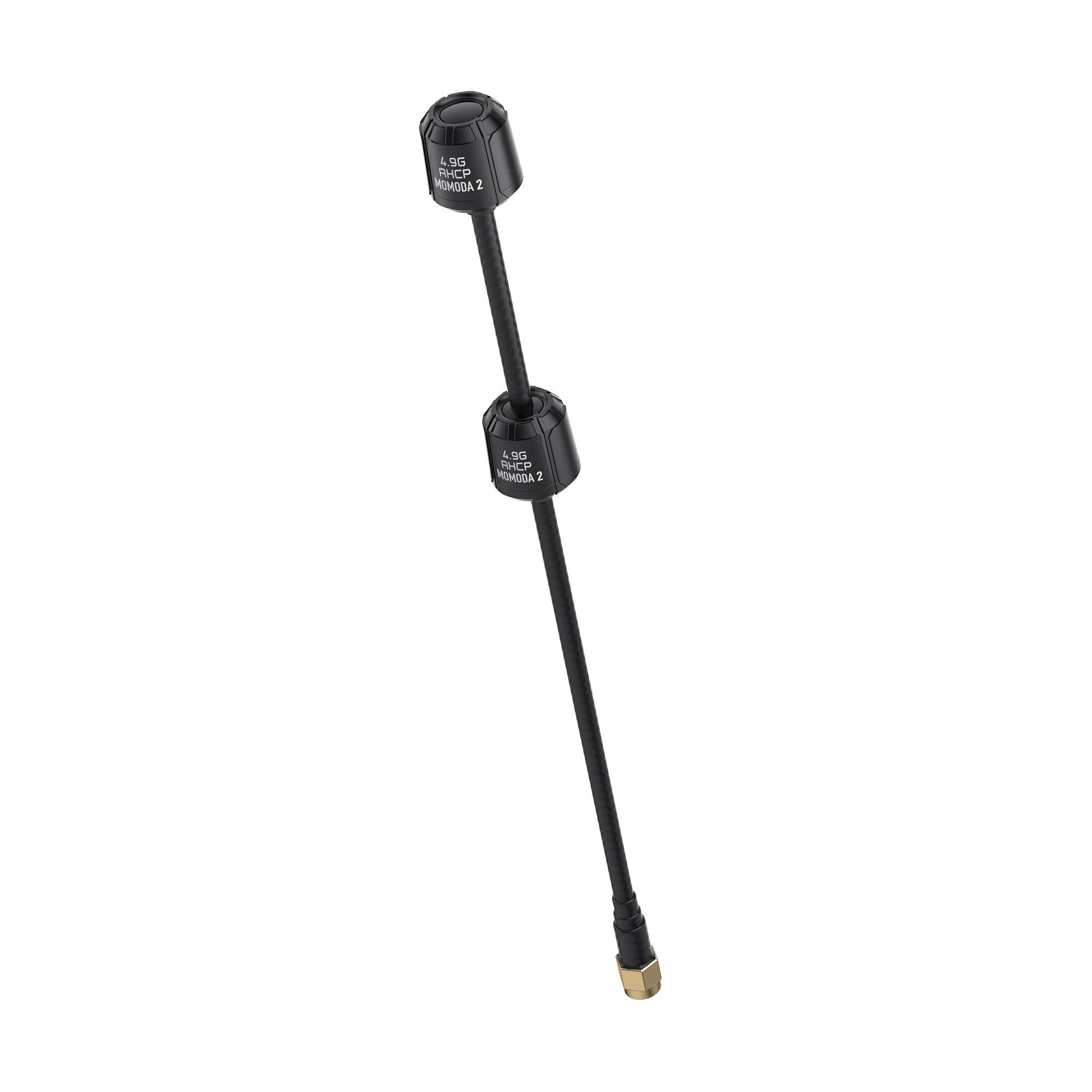

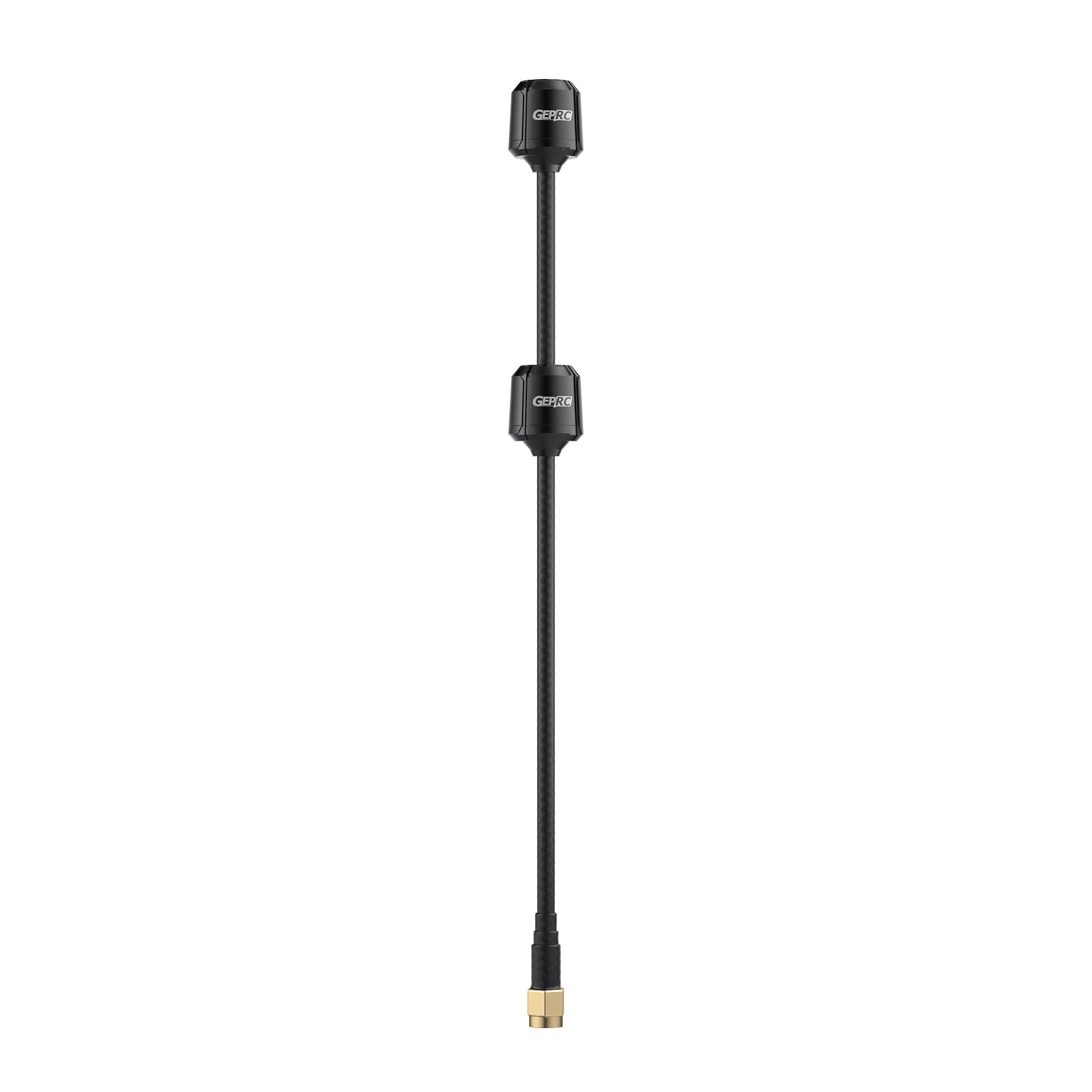

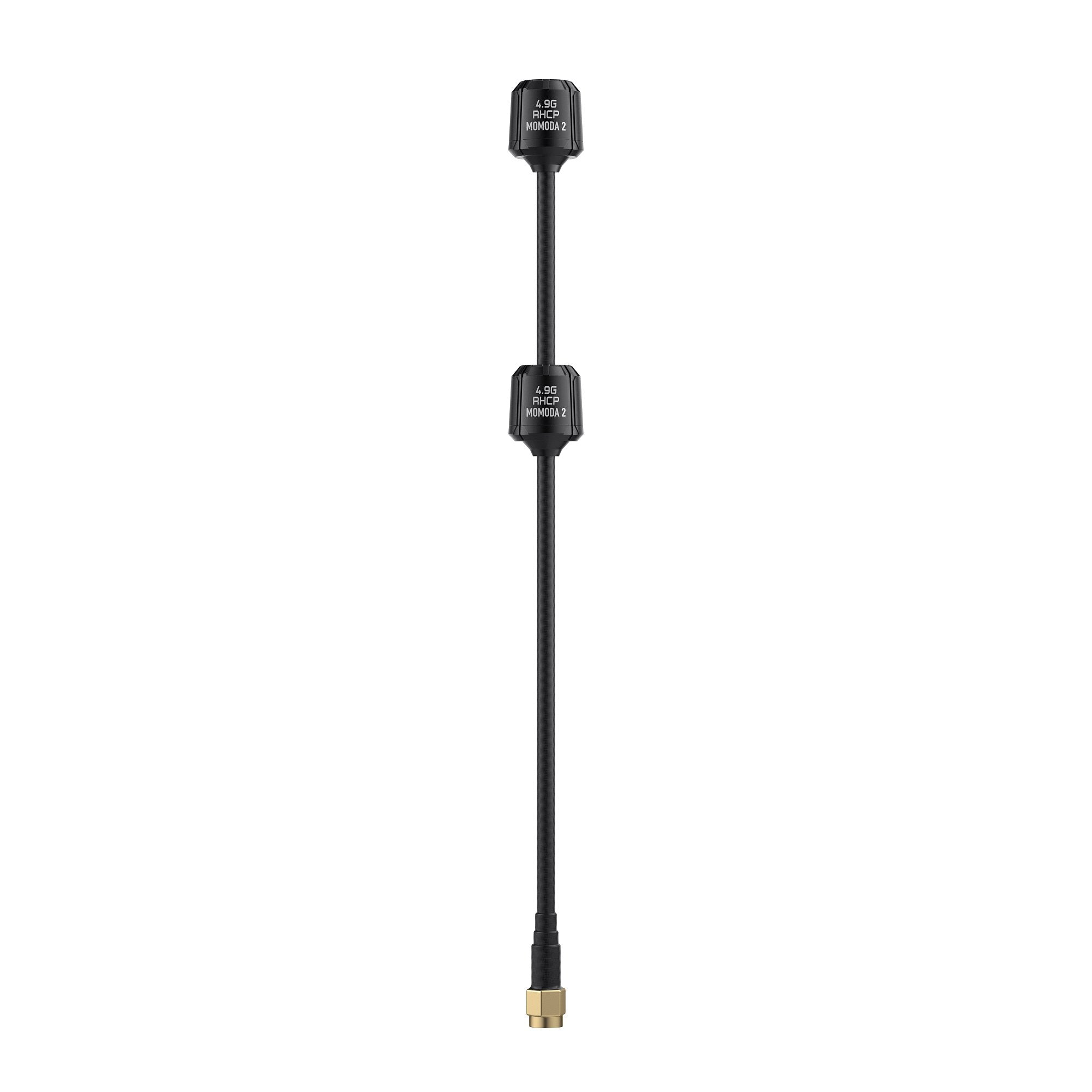

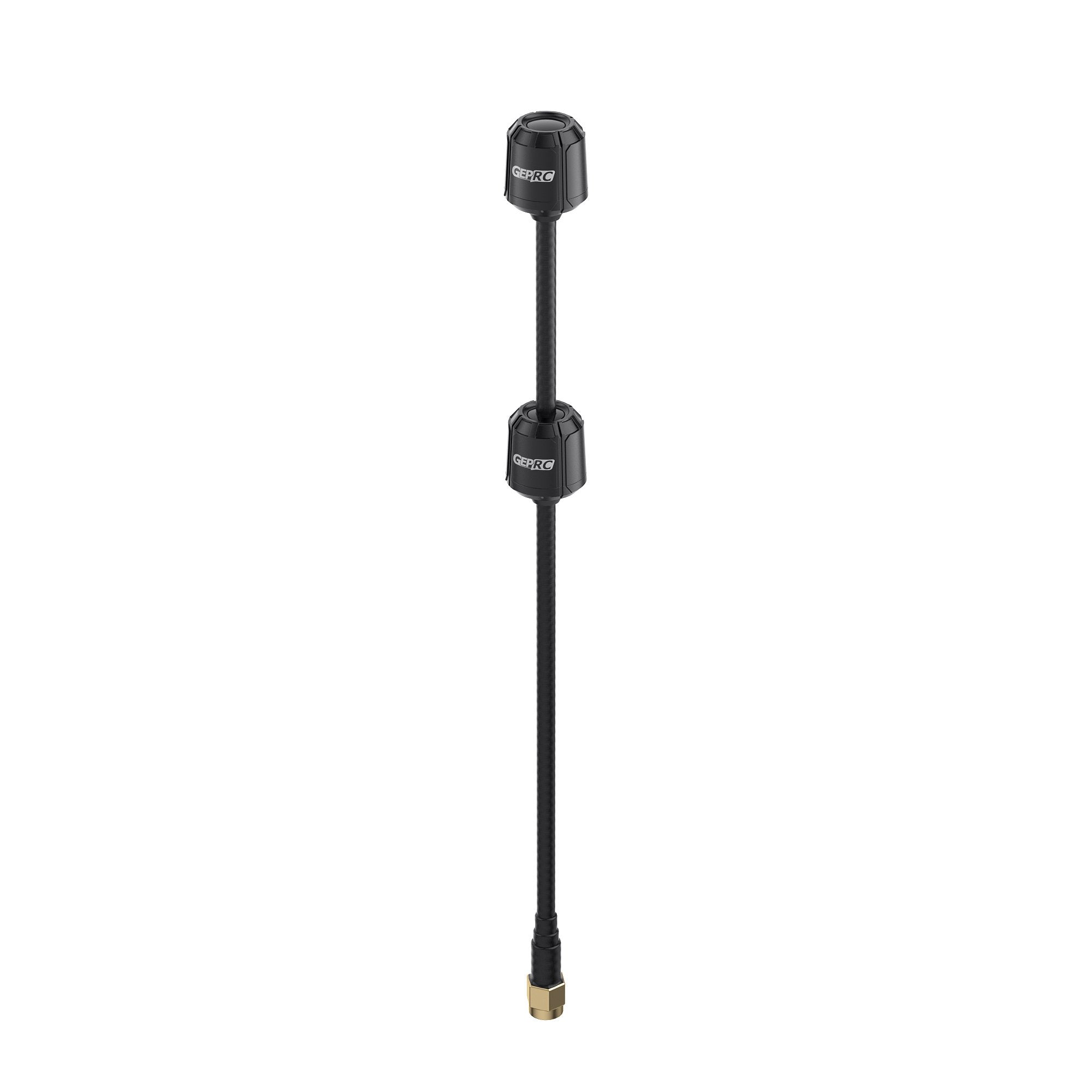

GEPRC Momoda2 4.9G DUAL Antenna｜FPV 天線

GEPRC Momoda2 4.9G DUAL Antenna｜FPV 天線

GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEPRC Momoda2 4.9G DUAL antenna features a dual RF solution with a gain of up to 3.65dBi, providing comprehensive signal coverage and effectively reducing FPV image instability caused by signal dead spots. This antenna is ideal for video transmission solutions within the 4.9GHz-5.3GHz frequency band.

Features

Stylish mechanical design with visual appeal.

Compact dual RF solution with ultra-high gain.

Superior signal coverage with no dead zones.

Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

Specifications

Model: GEPRC Momoda2 4.9G DUAL antenna

Center Frequency: 5.1GHz

Bandwidth: 4.9GHz~5.3GHz

Polarization: RHCP

Gain: 3.65dbi

Axial Ratio: ≤3

SWR: ≤1.45

Radiation Efficiency: 85%

Cross Polarization Suppression: -25dB

Length: 170mm

Antenna Design: FPC+PCB

Antenna Weight: 16.6g

Enclosure Material: ABS

Connector Type: SMA

Includes

1*Momoda 4.9G DUAL antenna
