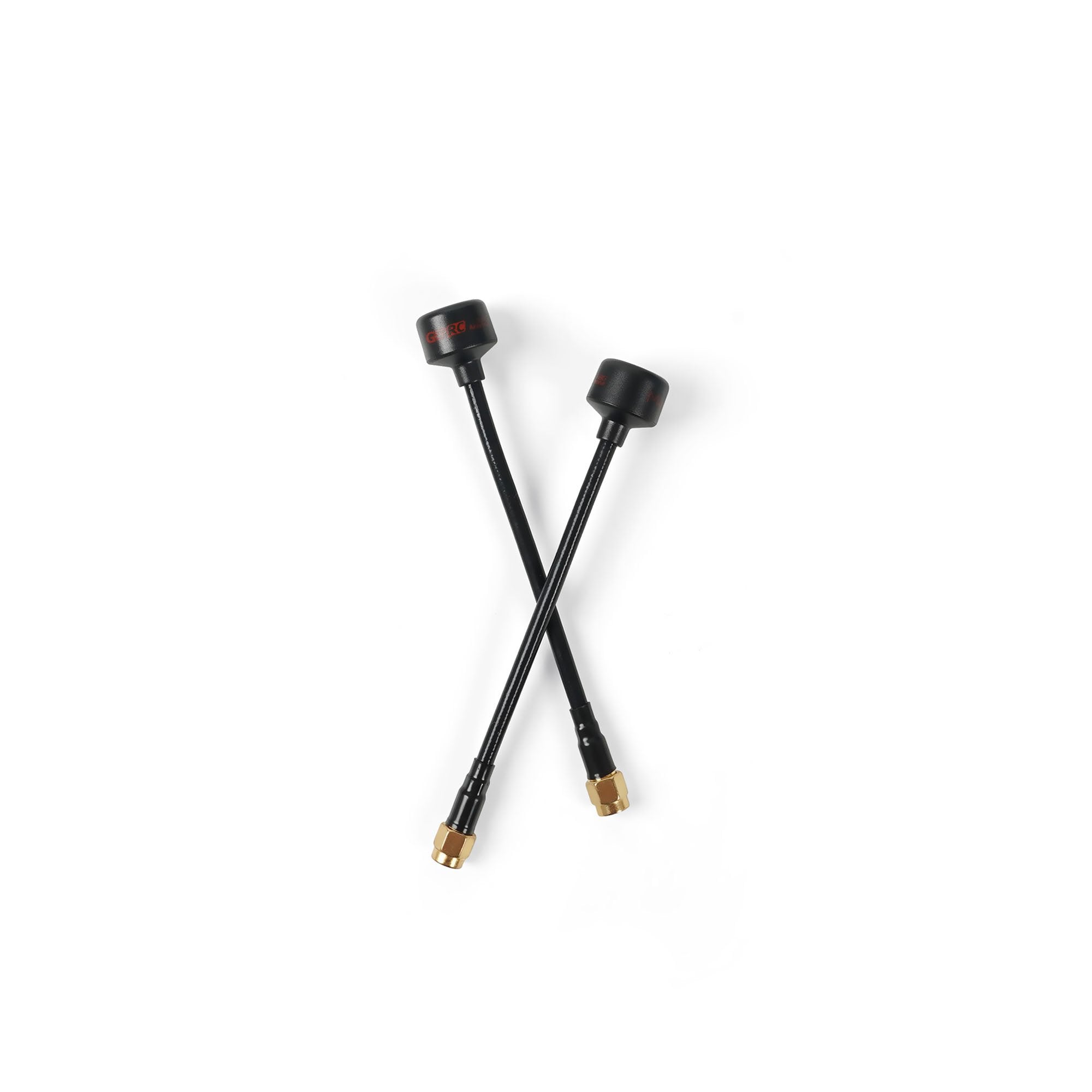

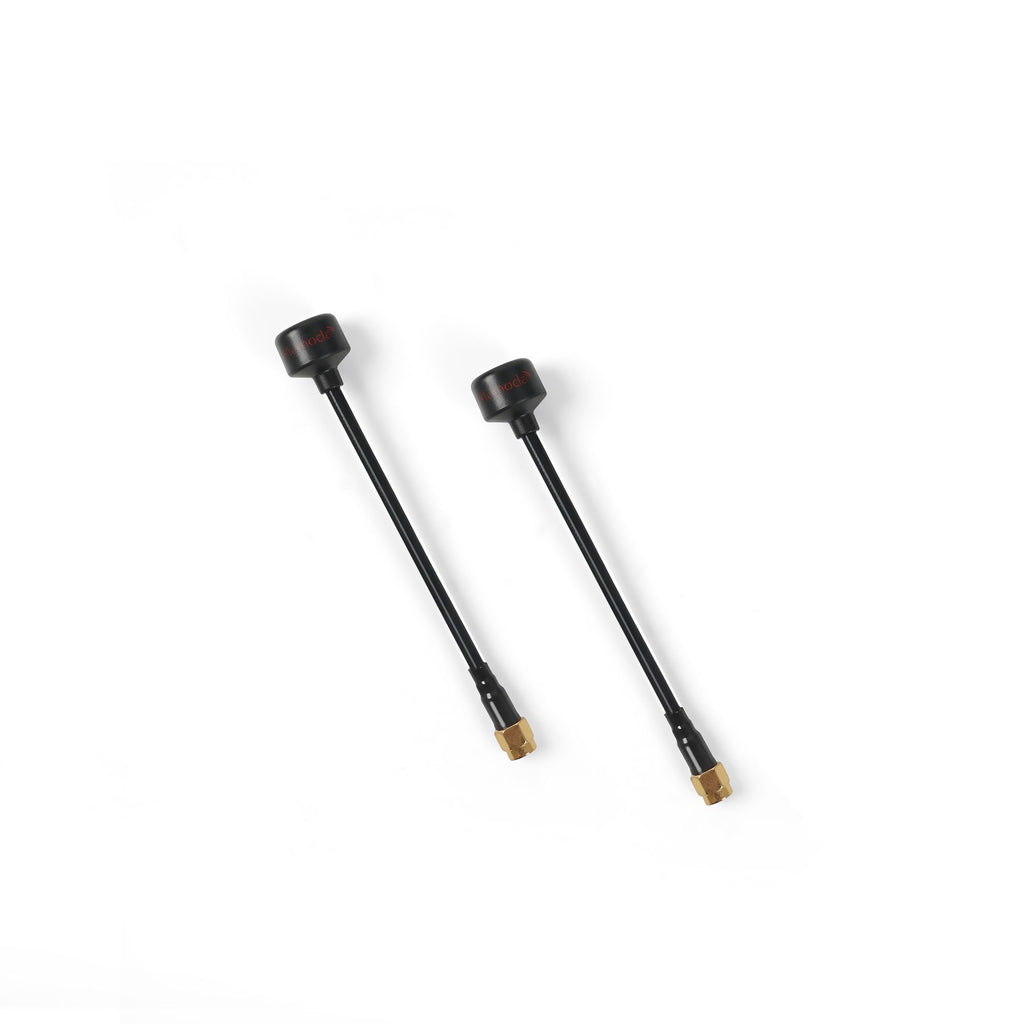

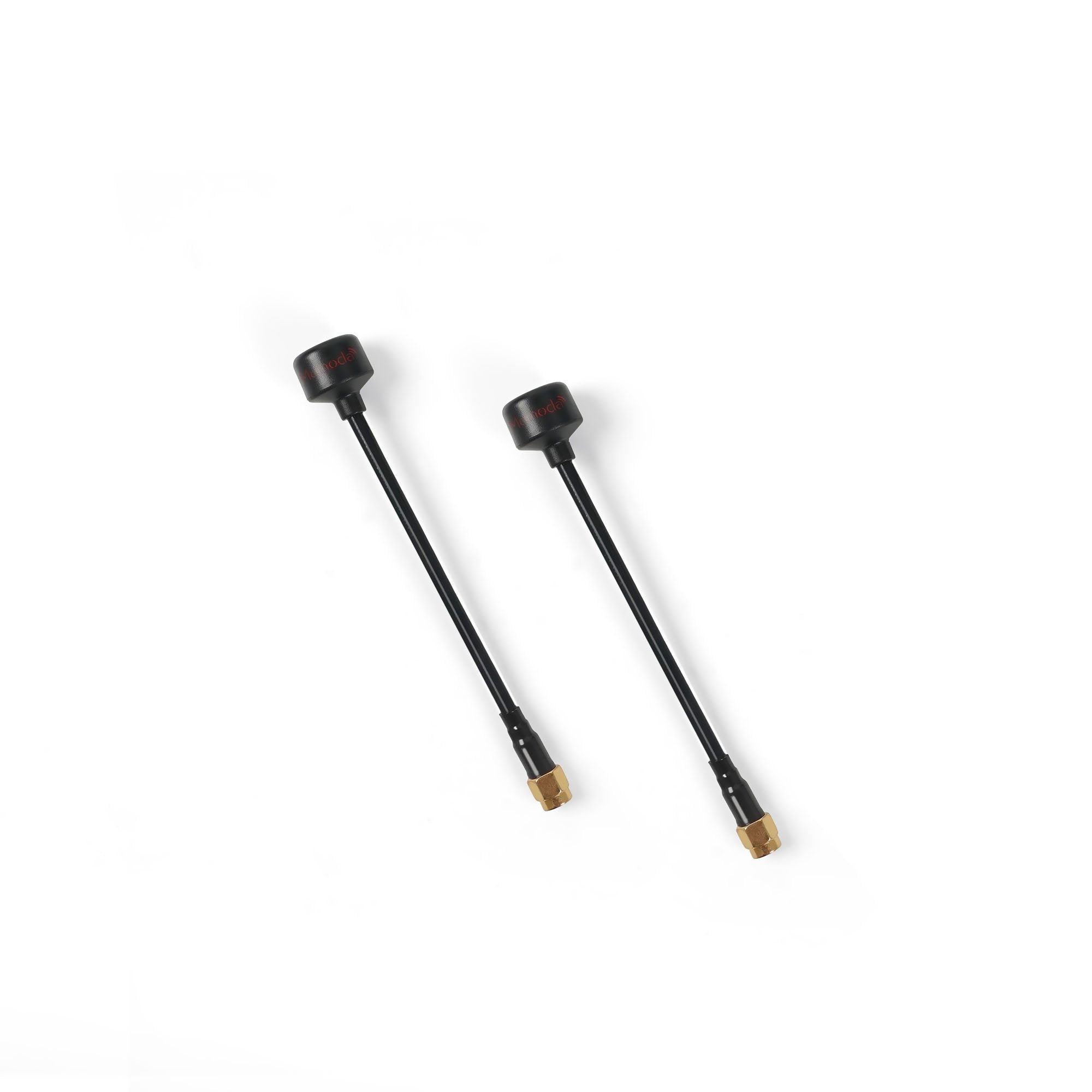

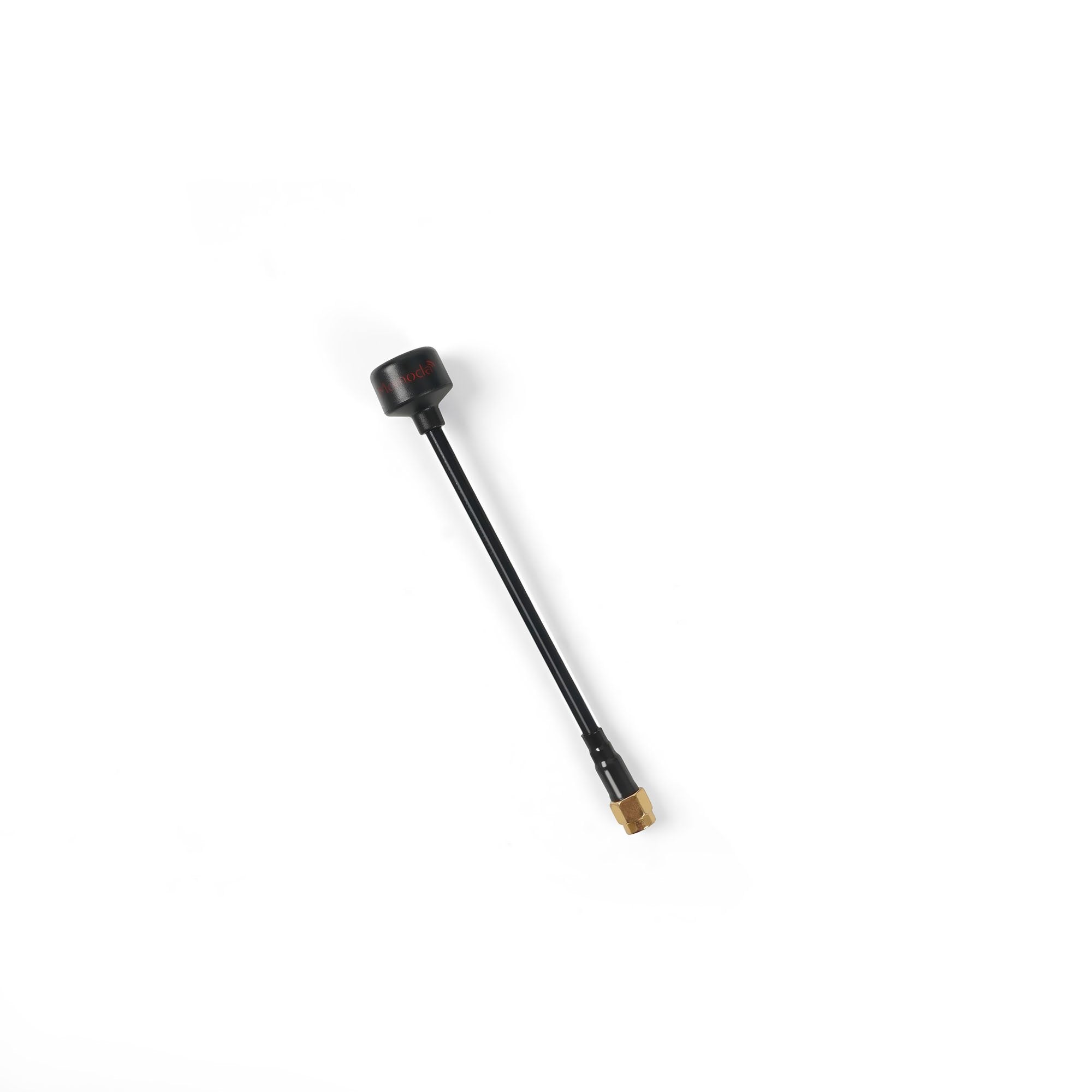

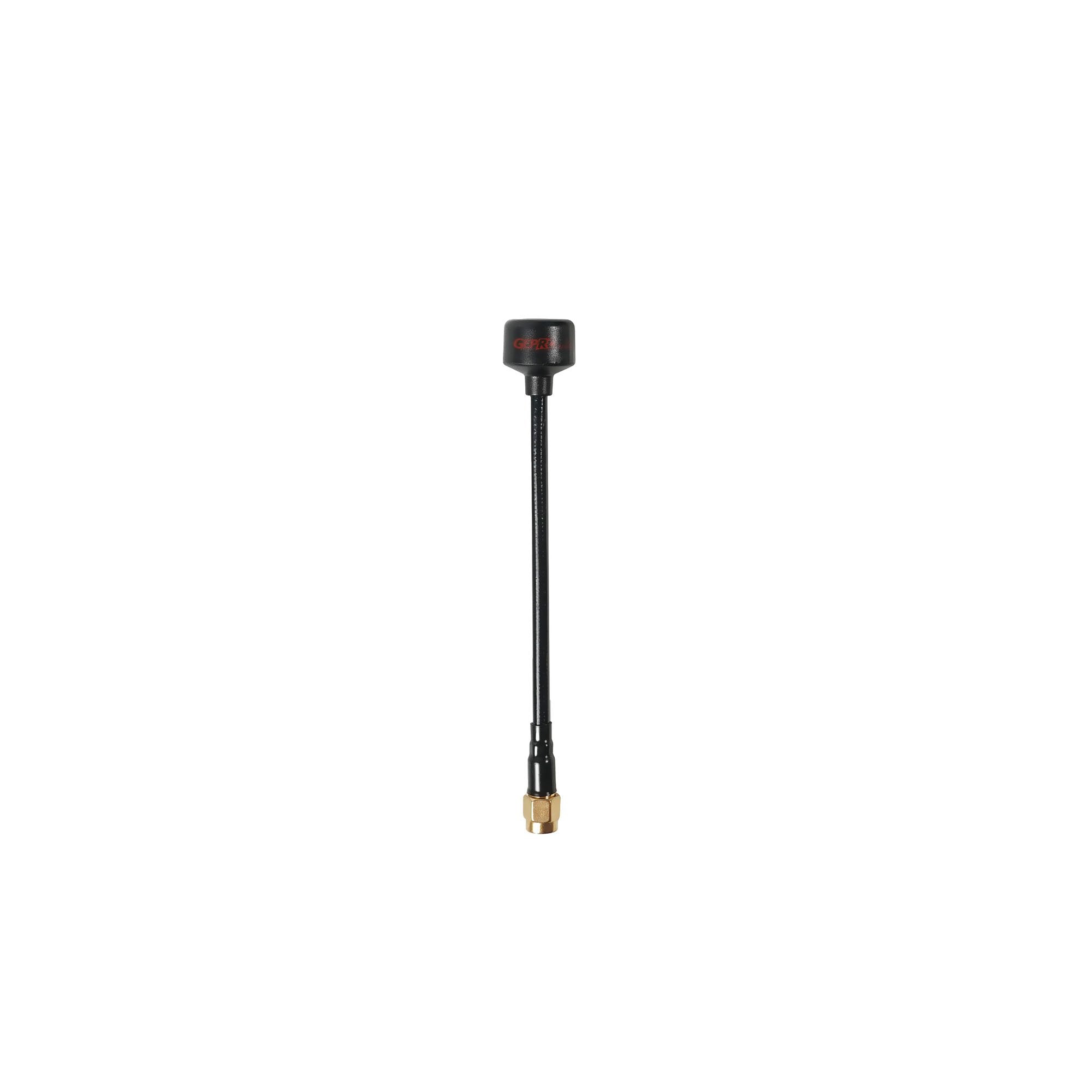

GEPRC Momoda 5.8G RP-SMA 120mm Antenna｜FPV 天線

GEPRC Momoda 5.8G RP-SMA 120mm Antenna｜FPV 天線

GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

GEPRC Momoda antenna is a 5.8G optimized antenna for quad. The antenna has good gain performance and is very compact. Working frequency range is 5600-5950 Ghz, with LHCP and RHCP options for multi-player competition. Momoda 5.8G also has a variety of interface options. Every antenna has been tested strictly before leaving the factory to ensure good performance.

Features

Very compact and light-weight design, high quality ABS case for good protection and nice appearance.

Options of LHCP and RHCP.

Manufactured and tested to highest standards

Easy to install, multiple interfaces and length options.

Specifications

Frequency range: 5600-5950MHz

Polarization: LHCP/RHCP

Gain: 2.0 dBi

SWR: ≤1.5

Input Impedance: 50Ω

Radiation Efficiency: 98%

Connector: RP-SMA

Weight: 10g

Height: 120mm

Radome material: ABS

Radome color: Black

Includes

2 x GEPRC Momoda 5.8G RP-SMA 120mm Antenna
