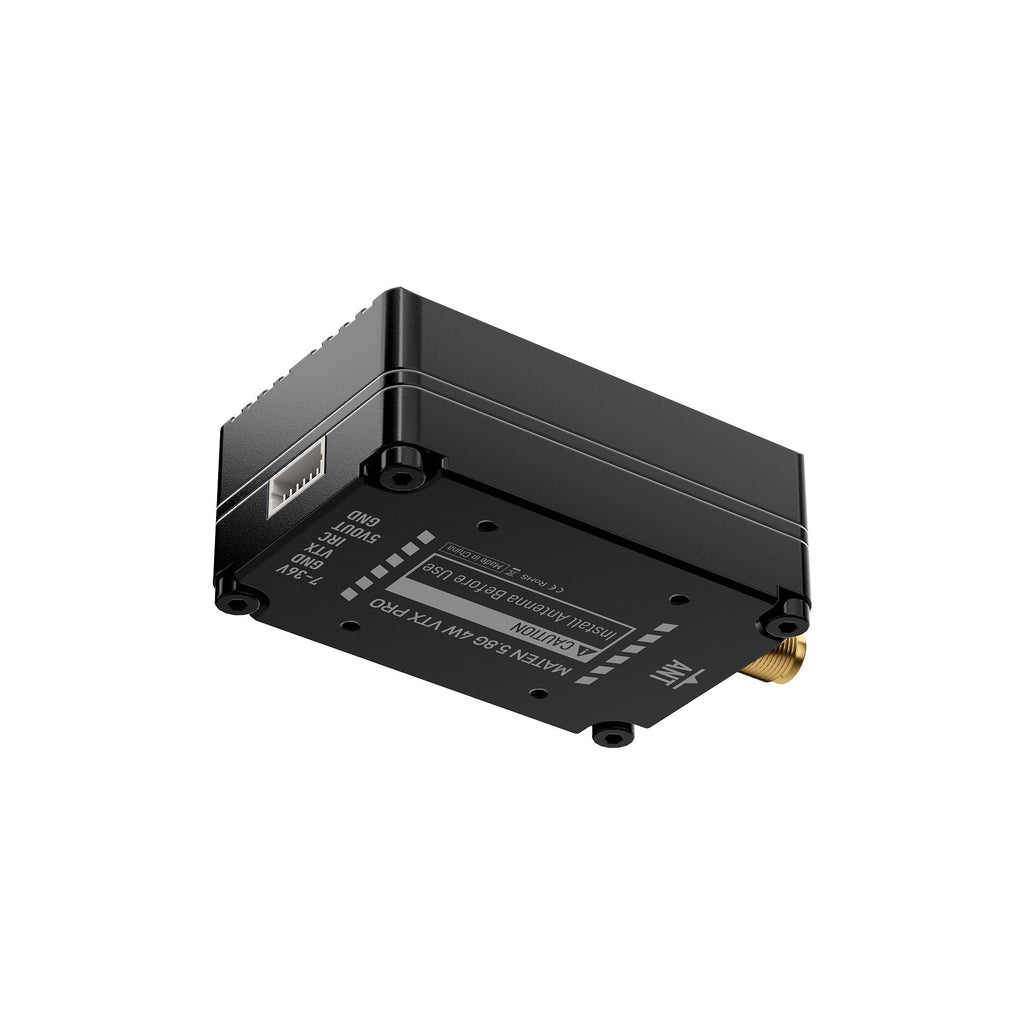

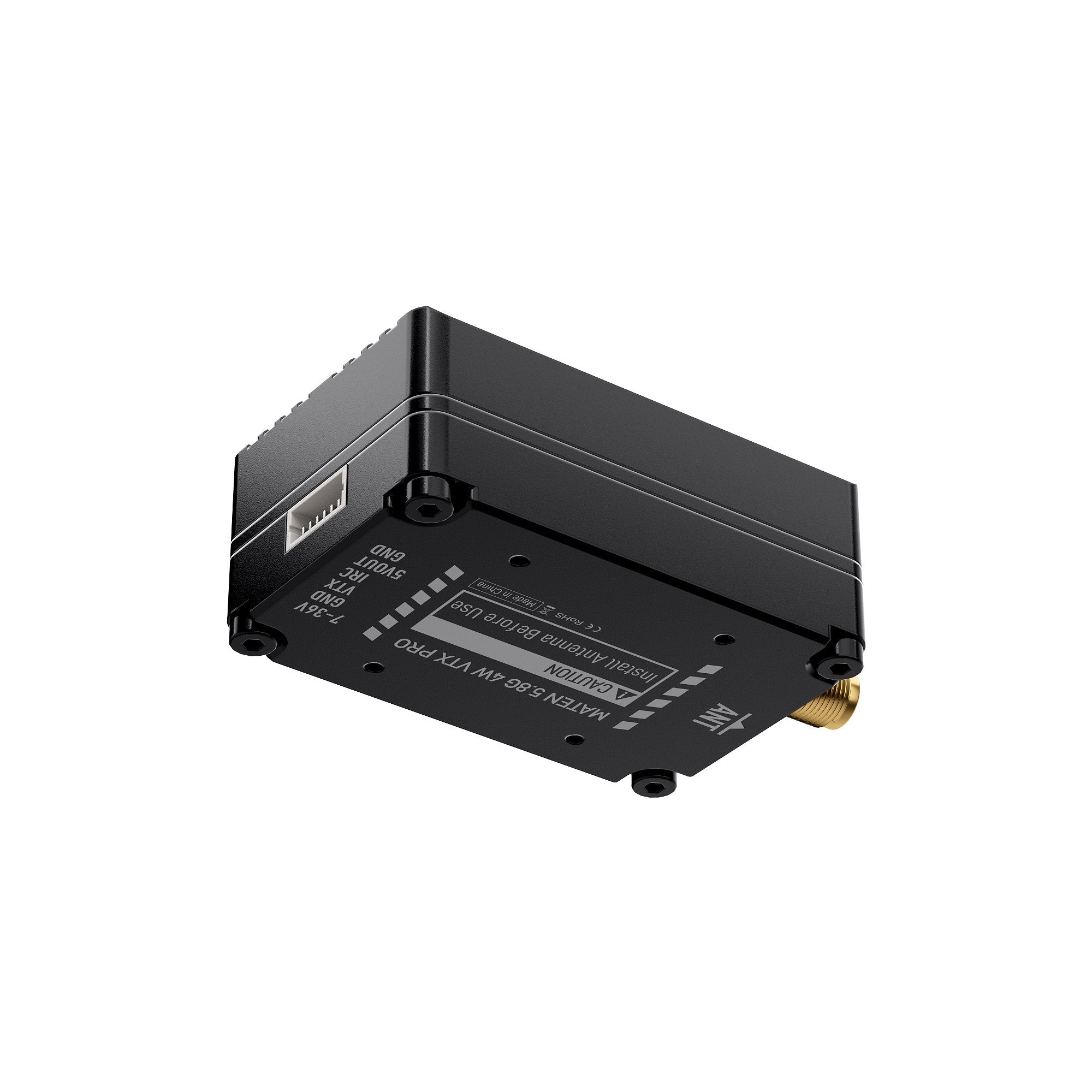

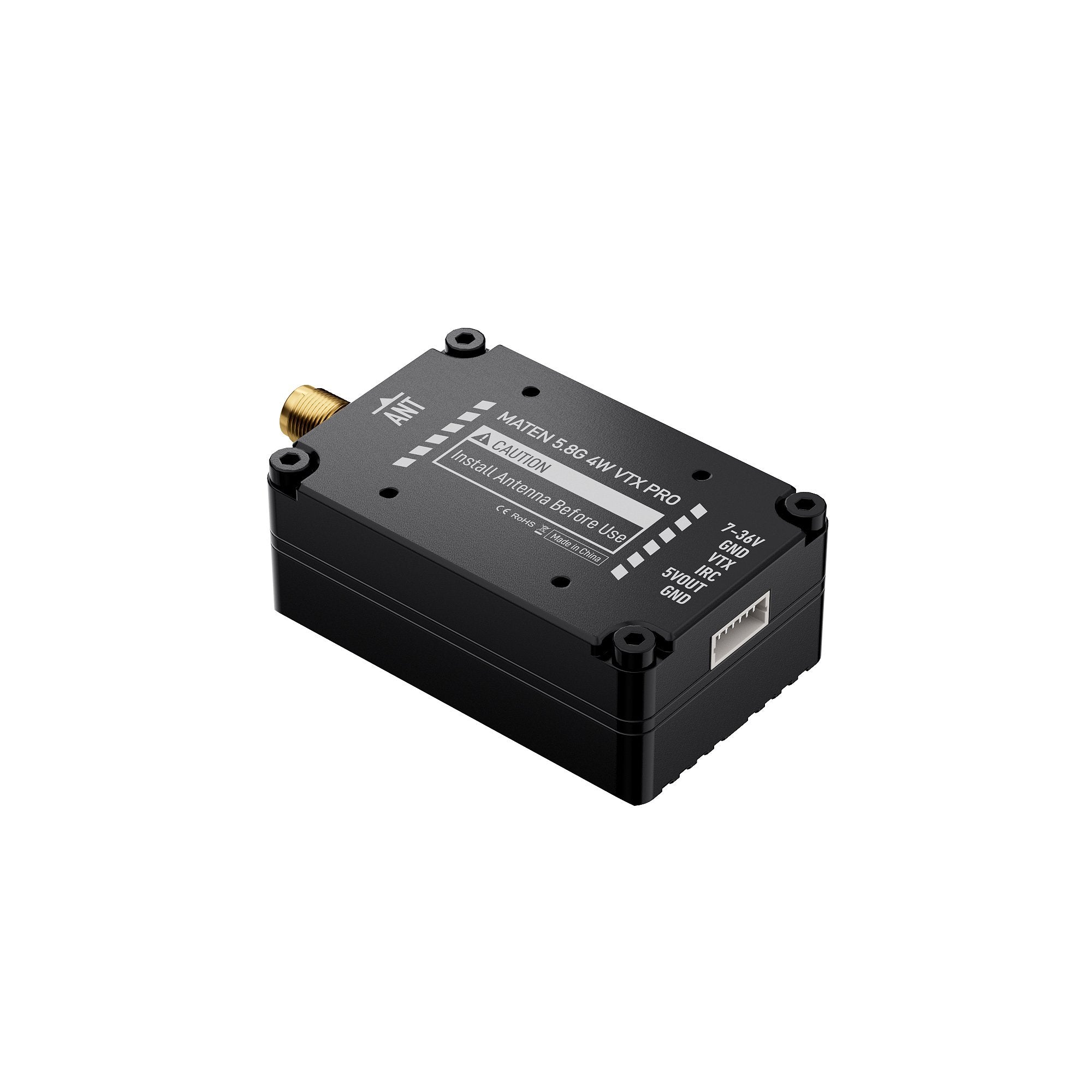

GEPRC MATEN 5.8G 4W VTX PRO｜FPV 圖傳設備

GEPRC MATEN 5.8G 4W VTX PRO｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The MATEN 5.8G 4W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With four adjustable power options, it delivers up to 4000mW of power.The frequency range is 4800-6200MHz, and it supports direct frequency input by the configurator, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 4W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.

With a 7–36V wide-range input, the VTX is equipped with thermal protection to prevent damage from overheating. It supports 104 channels and a 20x20mm (M2) mounting pattern.

Features

Four adjustable power levels, up to 4W, ideal for long-range flights

High-strength CNC aluminum alloy housing for enhanced heat dissipation

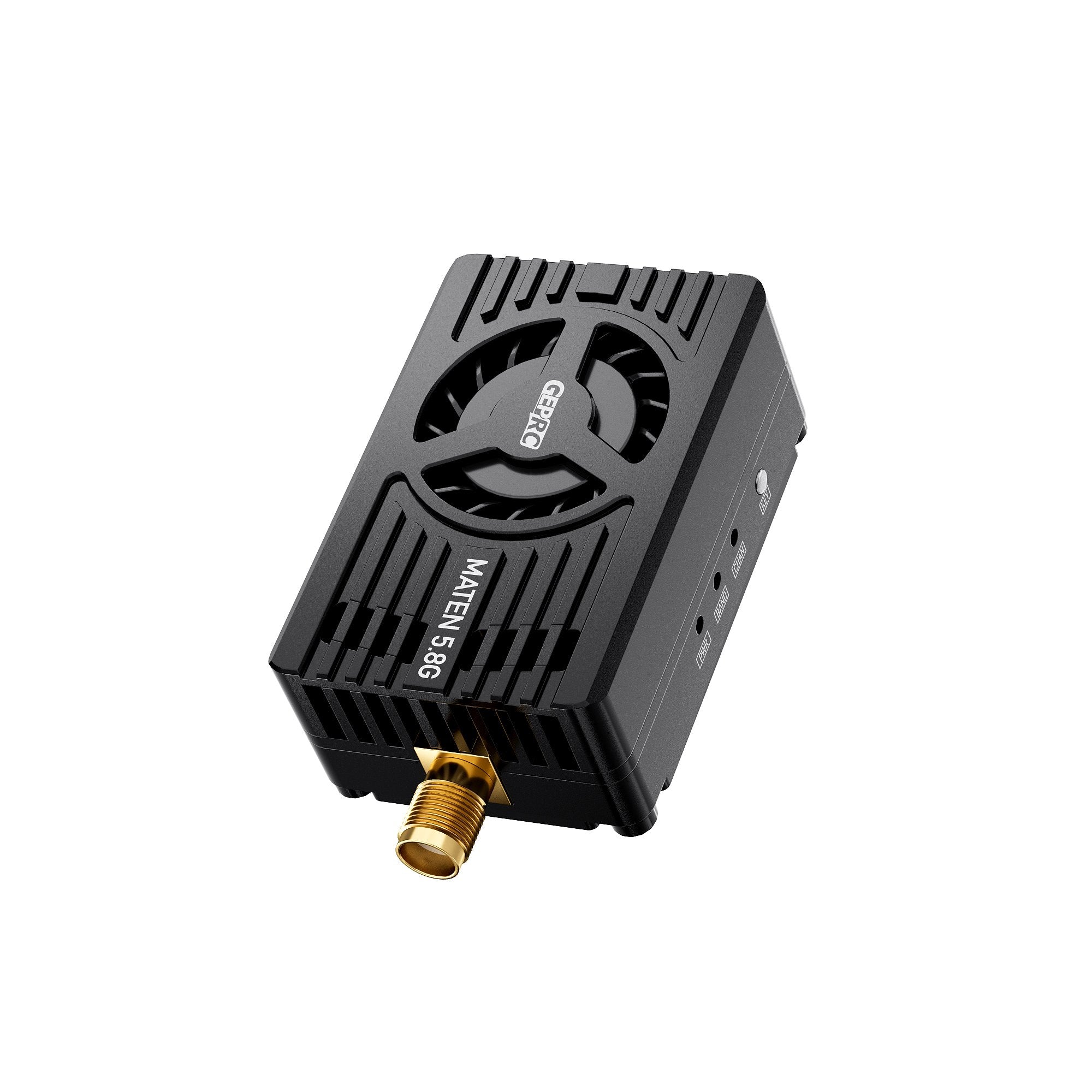

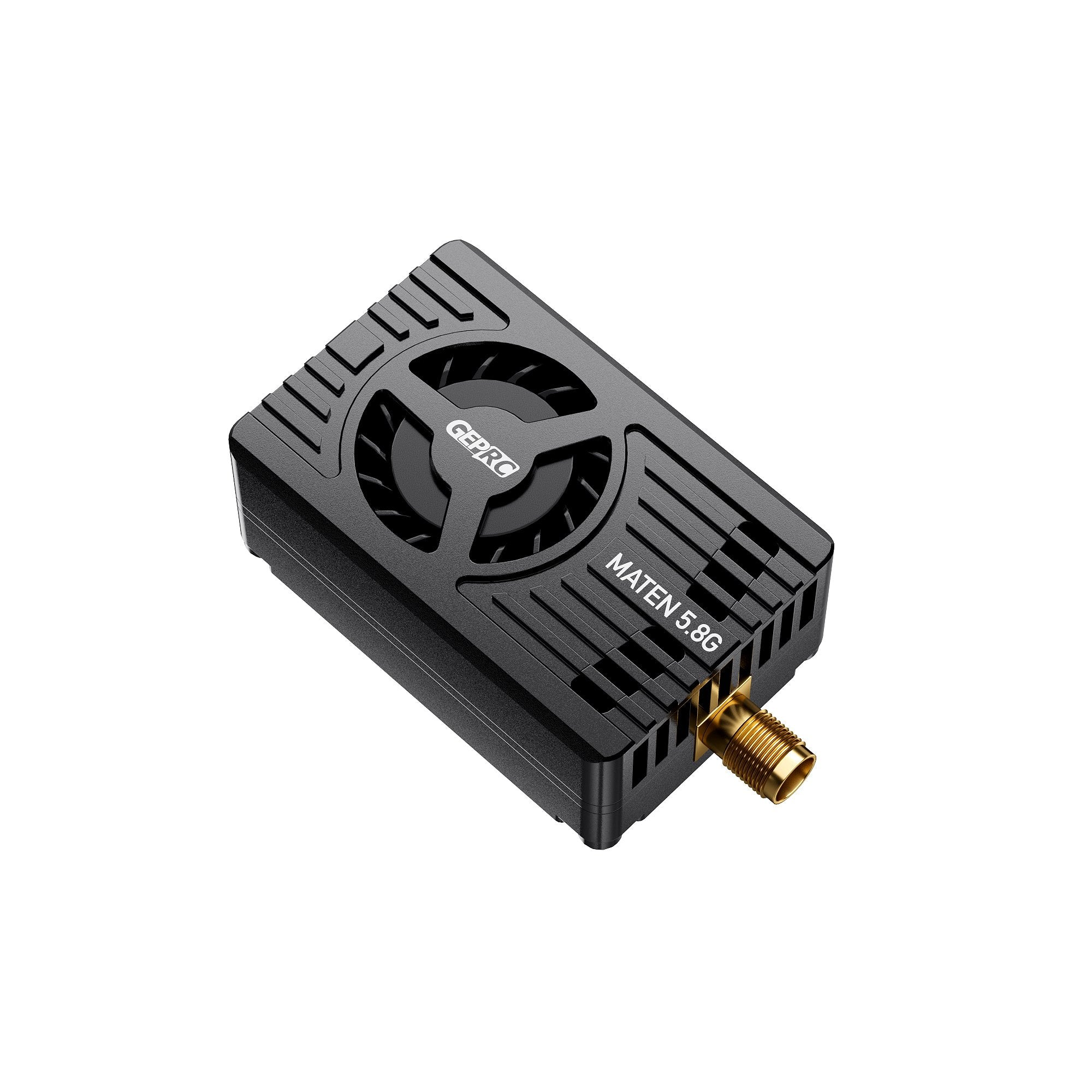

Built-in micro turbine fan for active cooling

Wide voltage input, supports 7–36V

One function button + three indicator LEDs for quick and easy operation

IRC Tramp protocol, supports OSD configuration

Thermal protection to prevent damage from excessive heat

Supports 104 channels

Supports direct frequency input from ground stations

Supports 20x20mm (M2) mounting holes

Specifications

Model: GEPRC MATEN 5.8G 4W VTX PRO

Dimension: 53.5x29x17.2mm

Mounting Hole Size: 20x20mm(M2)

Output Power: 25mW/200mW/1600mW/4000mW/Pit mode

Frequency: 4800-6200MHz

Channels: 104CH

Enter Frequency Directly: Support

Input Voltage: DC7-36V（2-8S Battery）

Output Voltage: 5V@600mA

Protocol: IRC Tramp

Antenna Connector: SMA

Cable Connector: sh1.0 6pin

Weight: 28.8g (VTX only)

Noted

Install the antenna before powering on.

The VTX will activate thermal protection and automatically reduce output power if overheated. Ensure good airflow and cooling during use. If airflow is limited, consider adding an additional cooling fan.

The 5V output is for the camera only. Do NOT connect the main power input to the 5V output port, or the VTX will be damaged.

Includes

1 x MATEN 5.8G 4W VTX PRO VTX

1 x sh1.0 6P connection cable

1 x User manual
