GEPRC MATEN 5.8G 3W VTX PRO｜FPV 圖傳設備

GEPRC MATEN 5.8G 3W VTX PRO｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

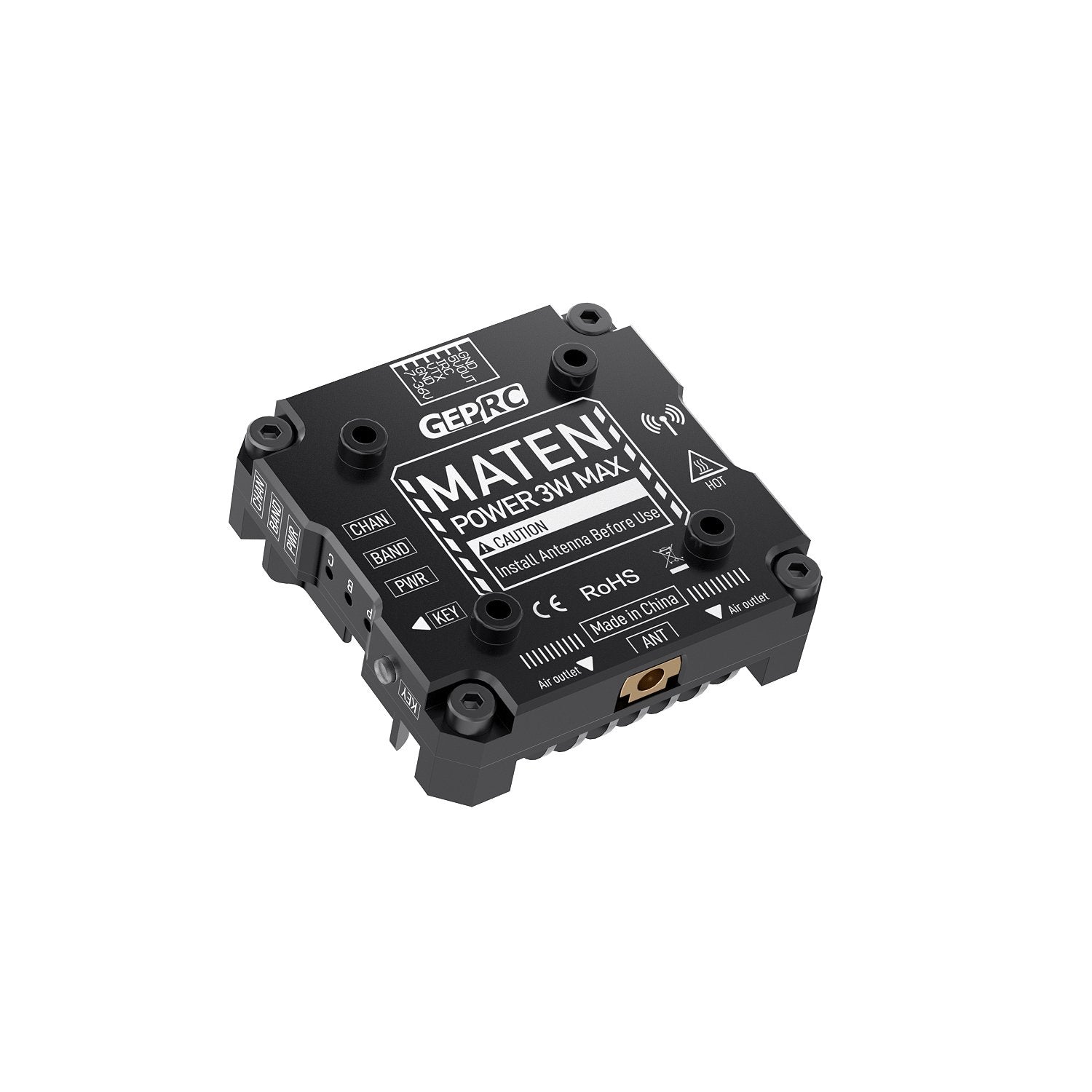

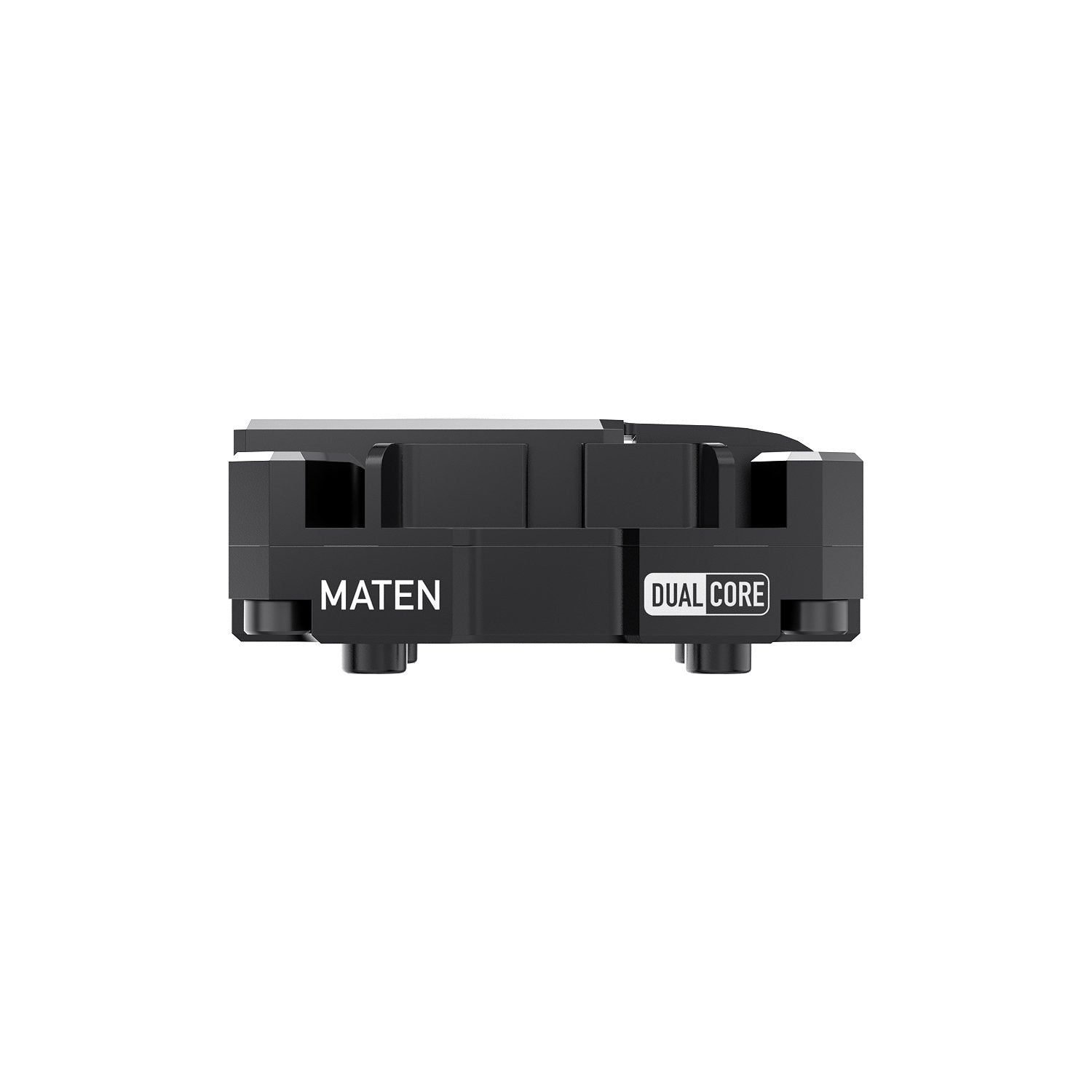

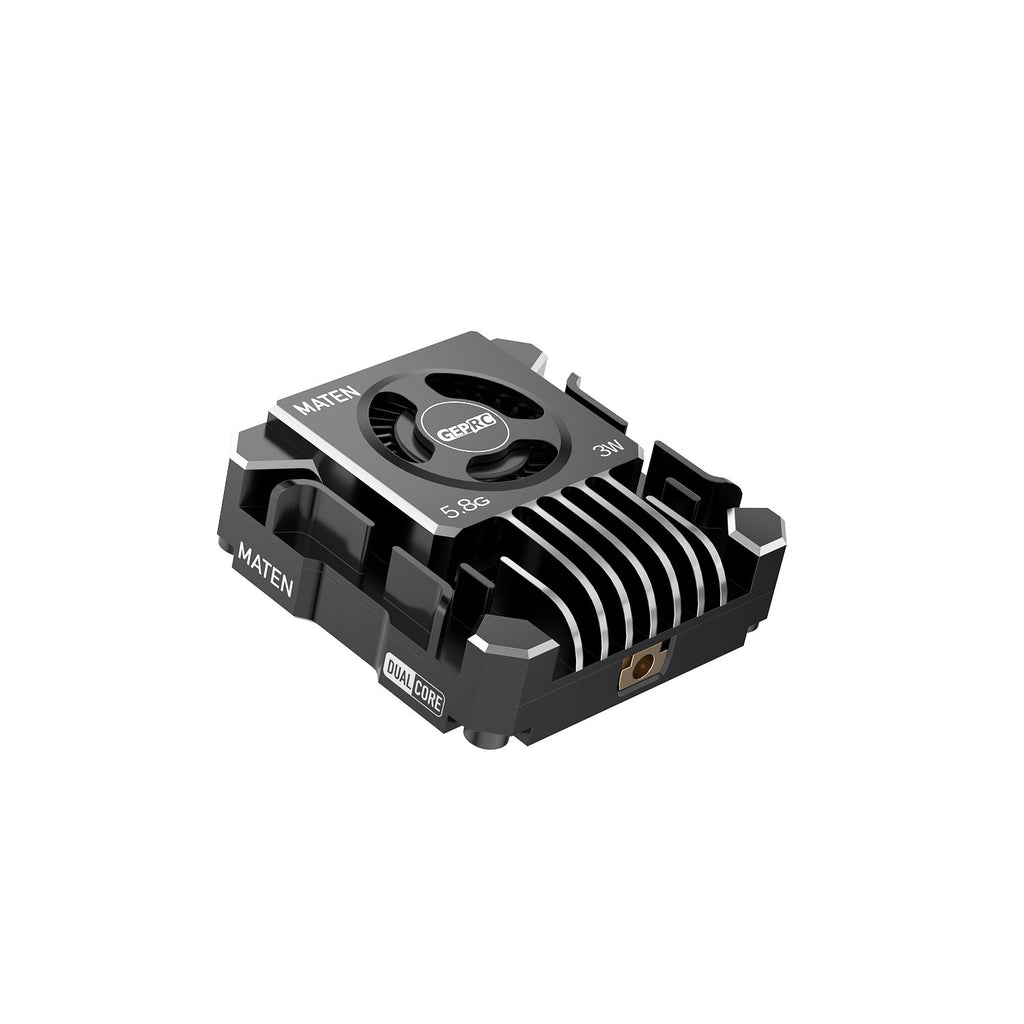

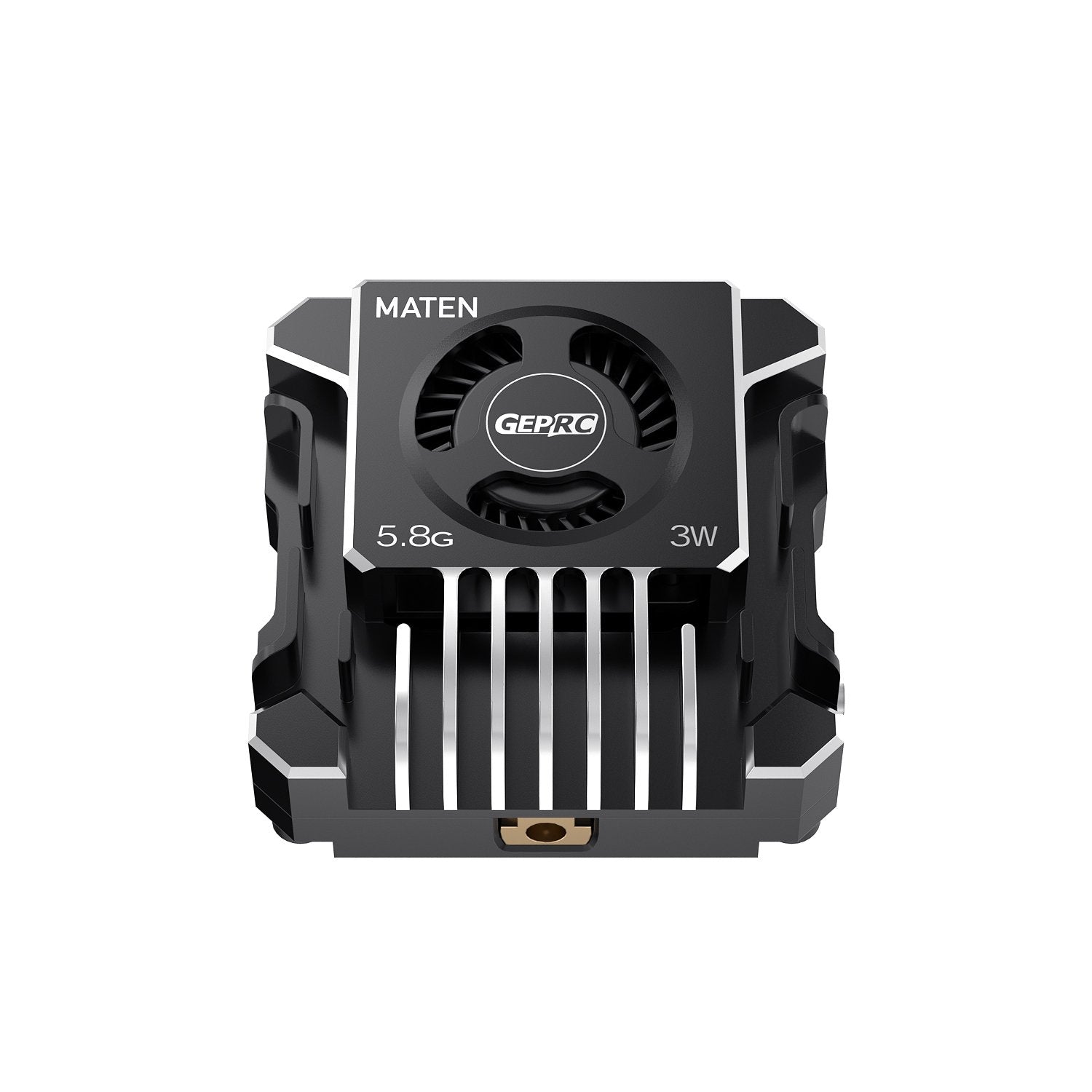

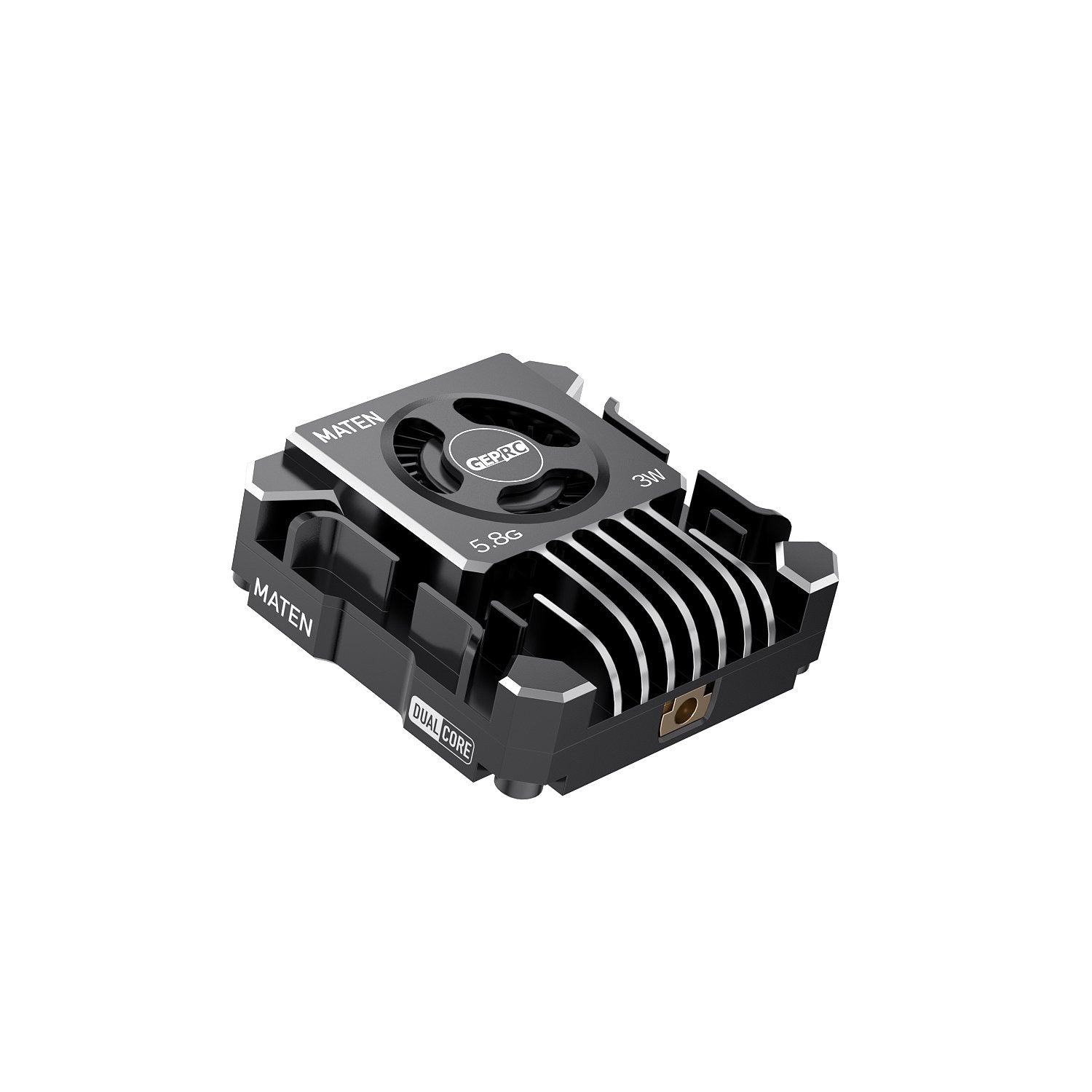

The MATEN 5.8G 3W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options and a dual-core design, it delivers up to 3000mW of power, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 3W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.

Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD. It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 30.5×30.5mm (M2), it’s the perfect VTX for any build.

Feature

Dual-core design, up to 3000mW, suitable for long range flight

The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation

The built-in micro turbofan dissipates heat actively

Wide voltage input supports 7V-36V voltage input

One function adjustment buttons, three indicator lights, easy to operate.

VTX control protocol IRC Tramp supports OSD parameter adjustment.

Temperature control protection function prevent overheat

VTX built in microphone,real-time transmission of sounds.

Supports 80 transmission channels

Support 20x20mm(M2) and 30.5×30.5mm(M2) two different mounting hole sizes

Specifications

Model: GEPRC MATEN 5.8G 3W VTX PRO

Dimension: 36.3×36.3×15.1mm

Mounting Hole Size：20x20mm(M2),30.5×30.5mm(M2)

Output power: 25mW/200mW/600mW/1600mW/3000mW/Pit mode

Frequency：4.9G-5.8G

Channels: 80CH

Input voltage: DC7-36V（2-8S Battery）

Output Voltage: 5V@600mA

Protocol: IRC Tramp

Antenna Connector: MMCX

Cable Connector: SH1.0 6pin

Video Format: PAL/NTSC

Microphone: Built-in microphone

Weight: 21.1g

Notes

Installing antenna before use.

Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.

The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Includes

1 x MATEN 5.8G 3W VTX PRO VT

1 x MMCX Elbow Copper Tube antenna

1 x MMCX to SMA (center hole) Adapter Connector

1 x SH1.0 6P VTX Connection Cable

6 x M2*5 Screws

6 x M2*12 Screws
