GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

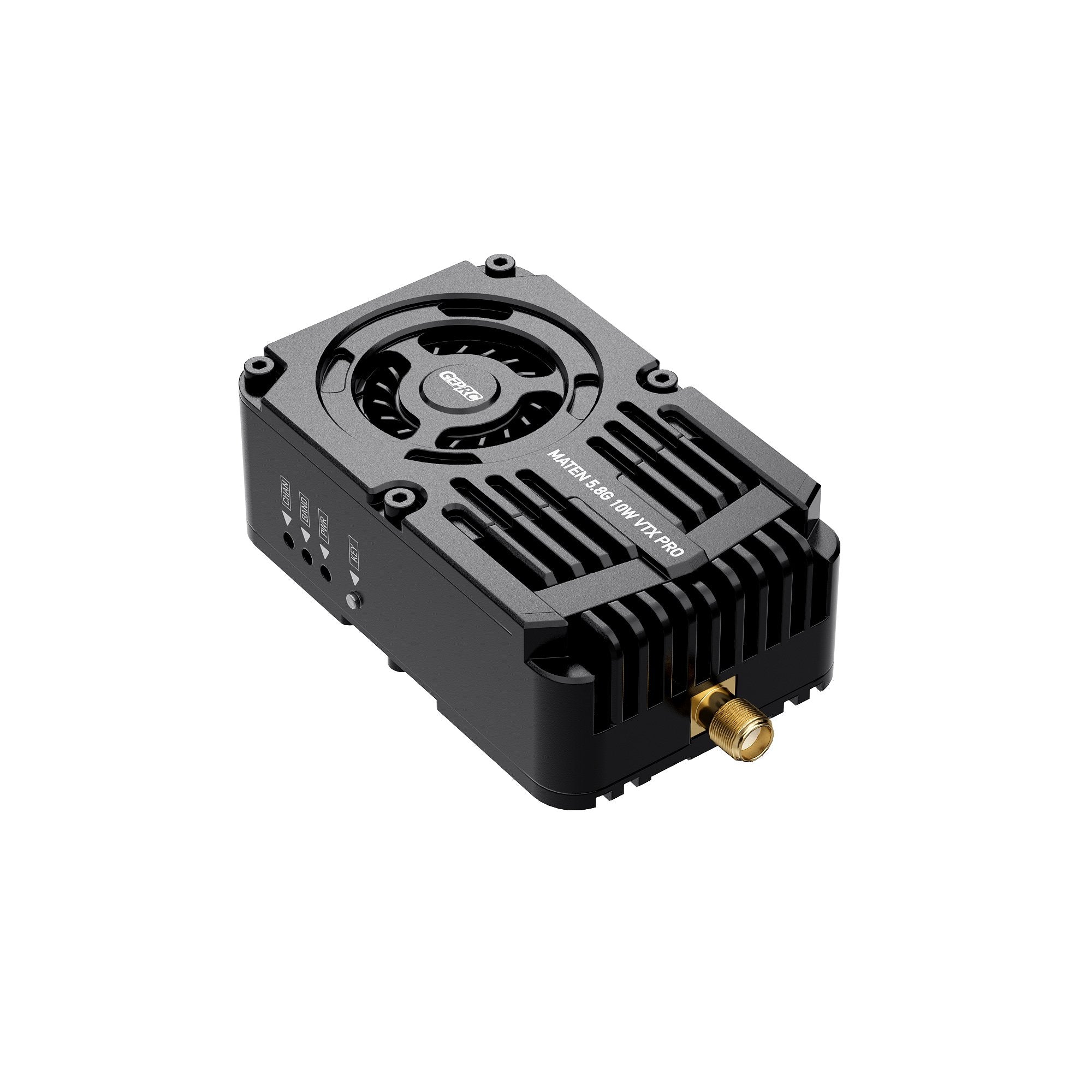

The MATEN 5.8G 10W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With four adjustable power options, it delivers up to 10W of power. The frequency range is 4884-6184MHz, and it supports direct frequency input by the configurator, ensuring stable signal transmission and excellent penetration.

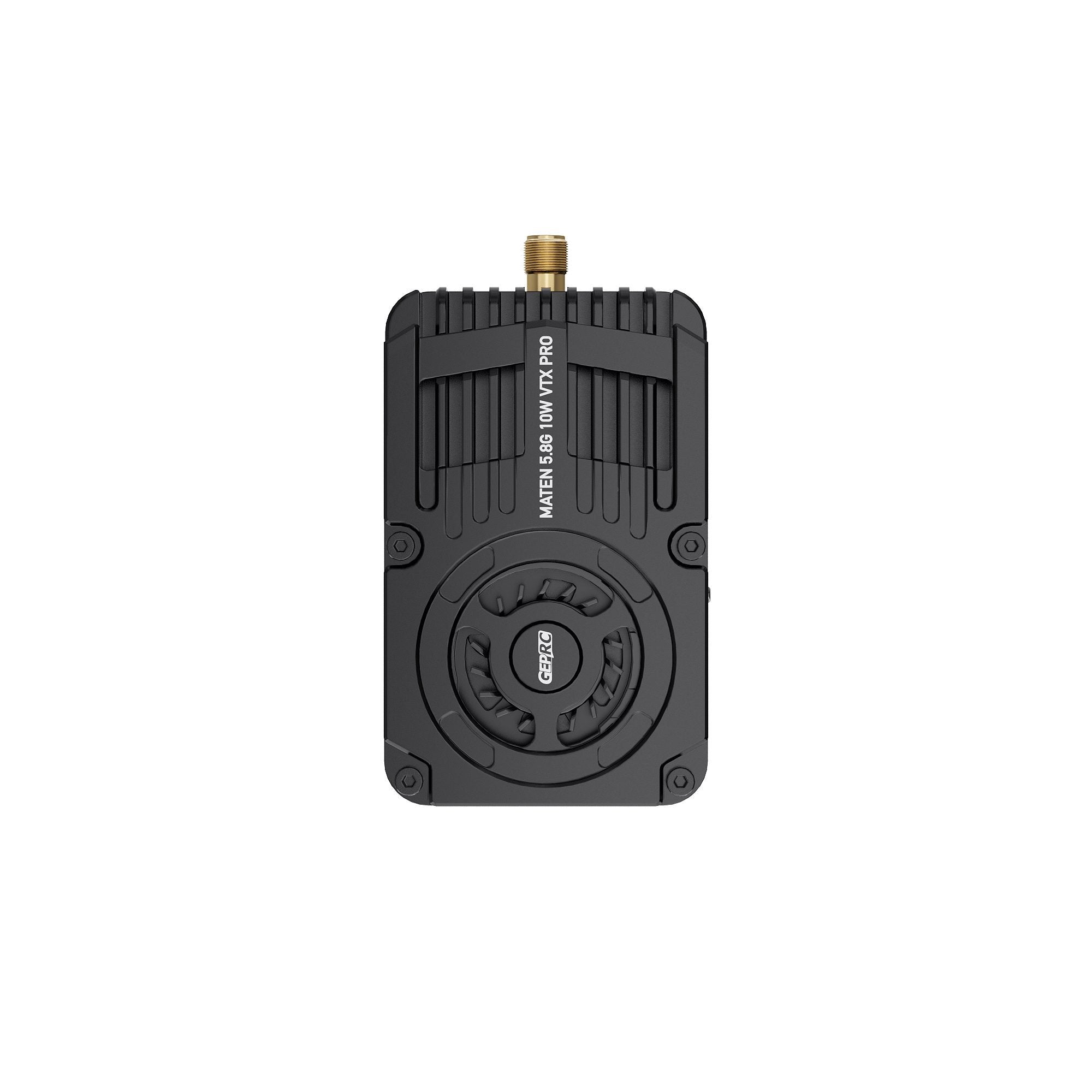

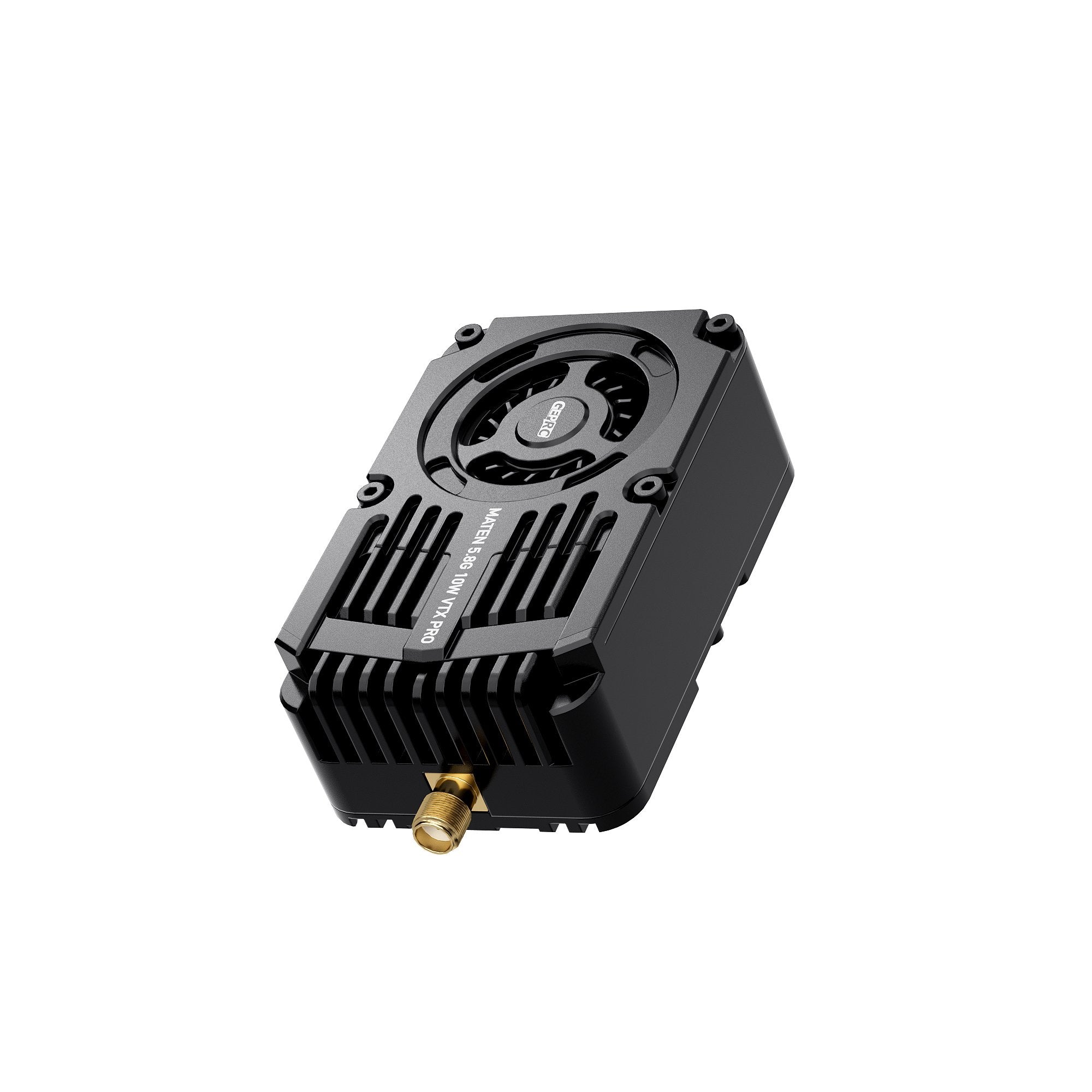

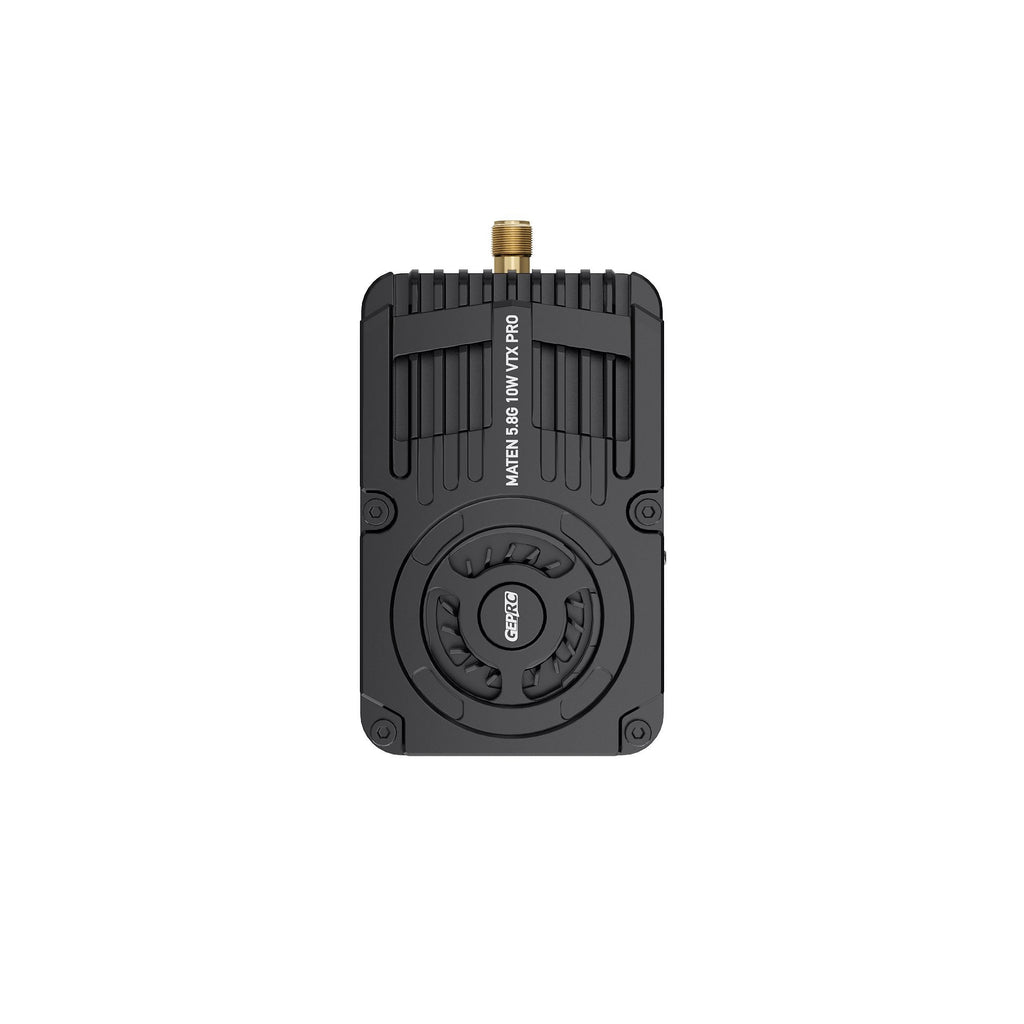

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 10W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.

It operates within a voltage range of 12-36V and includes temperature protection to prevent overheating and damage. With 104 transmission channels and two mounting options, 20x20mm (M2) and 30.5×30.5mm (M3), it’s the perfect VTX for any build.

Feature

Four adjustable power levels, up to 10W, ideal for long-range flights.

The high-strength CNC aluminum alloy shell aids in heat dissipation.

The built-in micro turbofan actively dissipates heat.

Wide voltage input range, supporting 12V-36V.

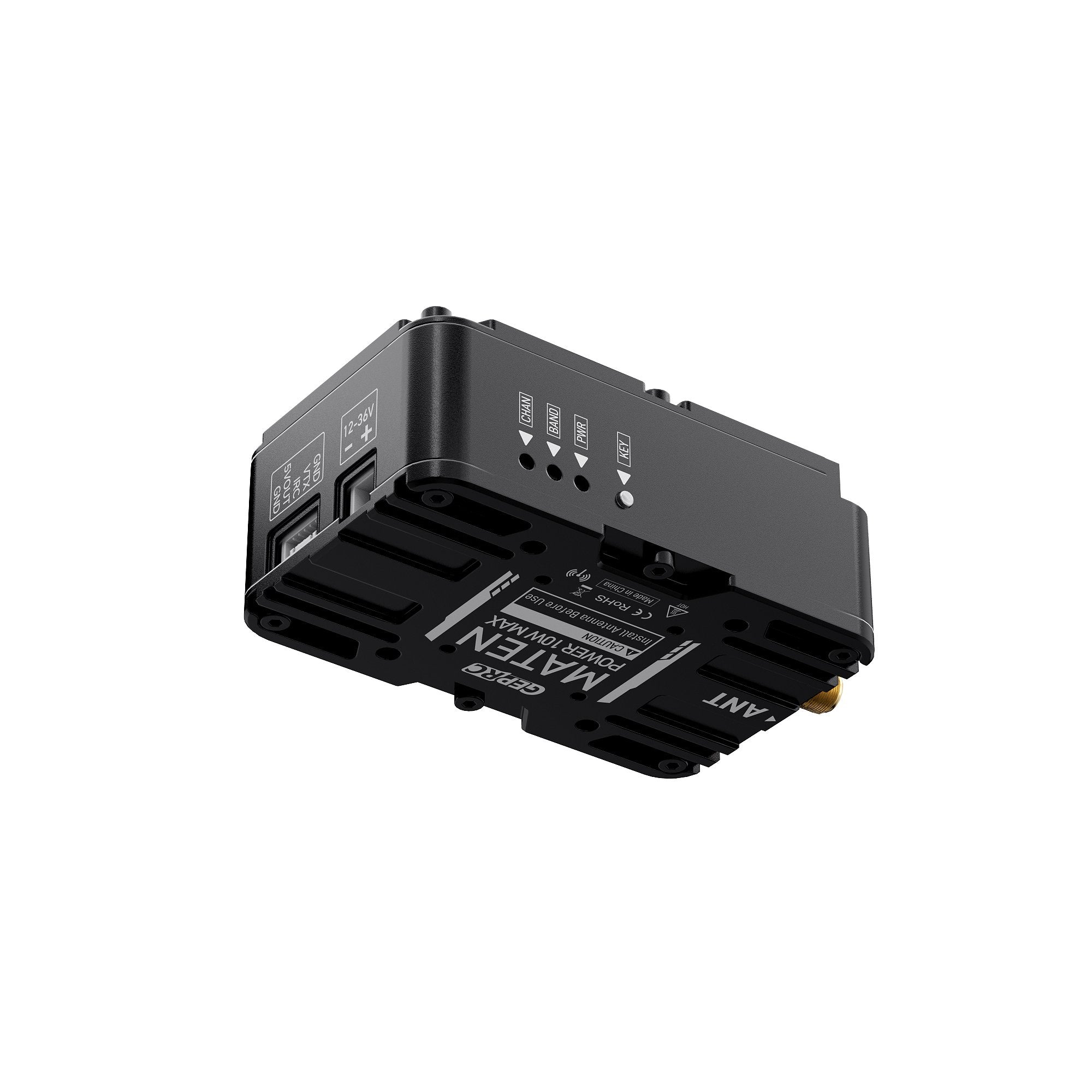

One function adjustment button and three indicator lights for easy operation.

Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.

Temperature protection function prevents overheating.

Supports 104 transmission channels.

Supports enter frequency directly in the configurator.

Compatible with 20x20mm (M2) and 30.5×30.5mm(M3) mounting hole sizes.

Specifications

Model: GEPRC MATEN 5.8G 10W VTX PRO

Dimension: 78.5×43.6×25.3mm

Mounting Hole Size:20x20mm(M2),30.5×30.5mm(M3)

Output Power: 25mW/2.5W/5W/10W/Pit mode

Frequency：4884-6184MHz

Channels: 104CH

Enter Frequency Directly: Support

Protocol: IRC Tramp

Input Voltage: DC12-36V（3-8S Battery）

Peak Operating Current：3.5A

Output Voltage: 5V@600mA

Antenna Connector: SMA

Cable Connector:PH2.0 2pin,GH1.25 5pin

Weight: 110g（VTX only）

Notes

Installing antenna before use.

Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.

The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Includes

1 x MATEN 5.8G 10W VTX PRO

1 x Power cable(PH1.25 2pin 150mm)

1 x FC cable(GH1.25 5pin 150mm)

6 x M2*5 screw

6 x M3*5 screw

1 x Manual
