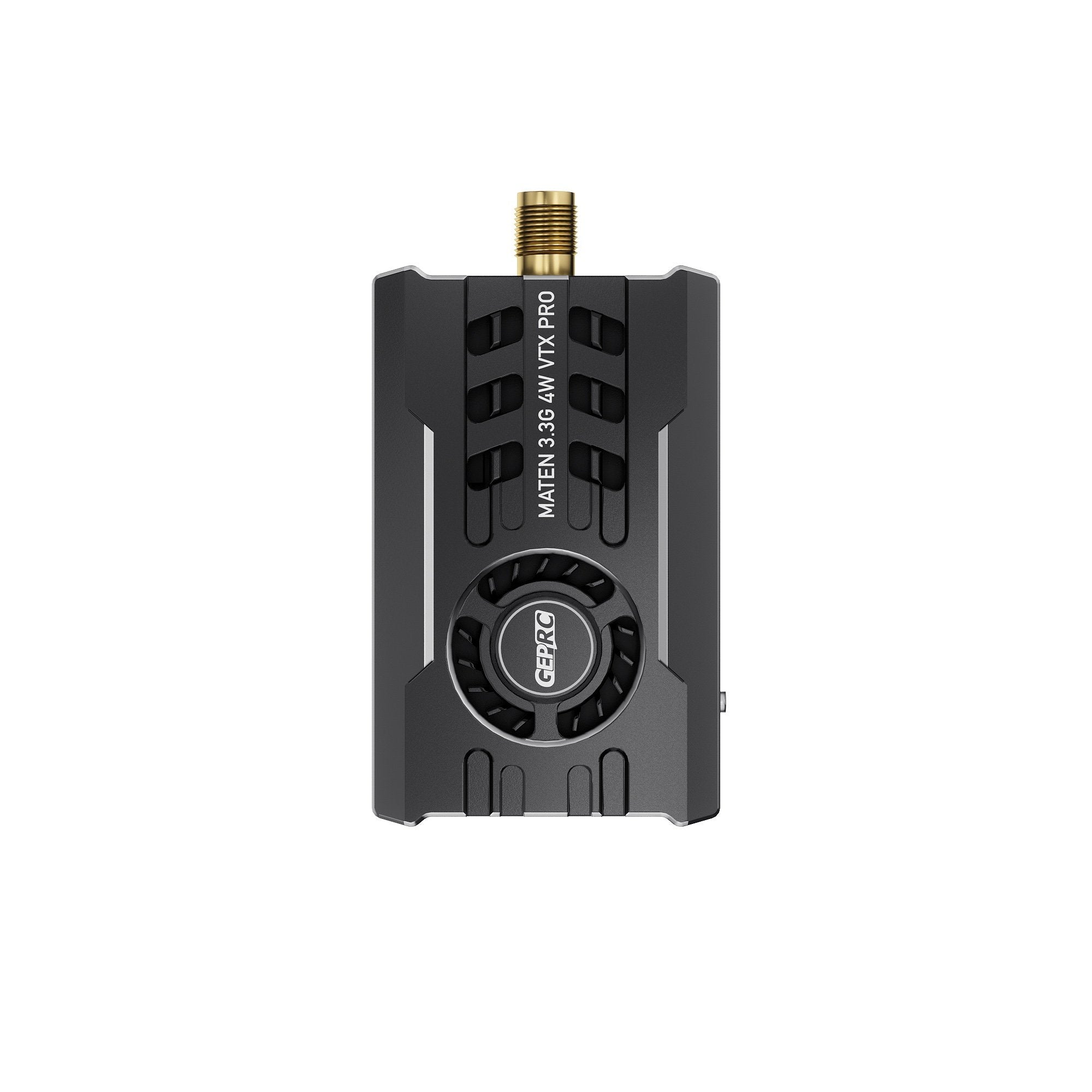

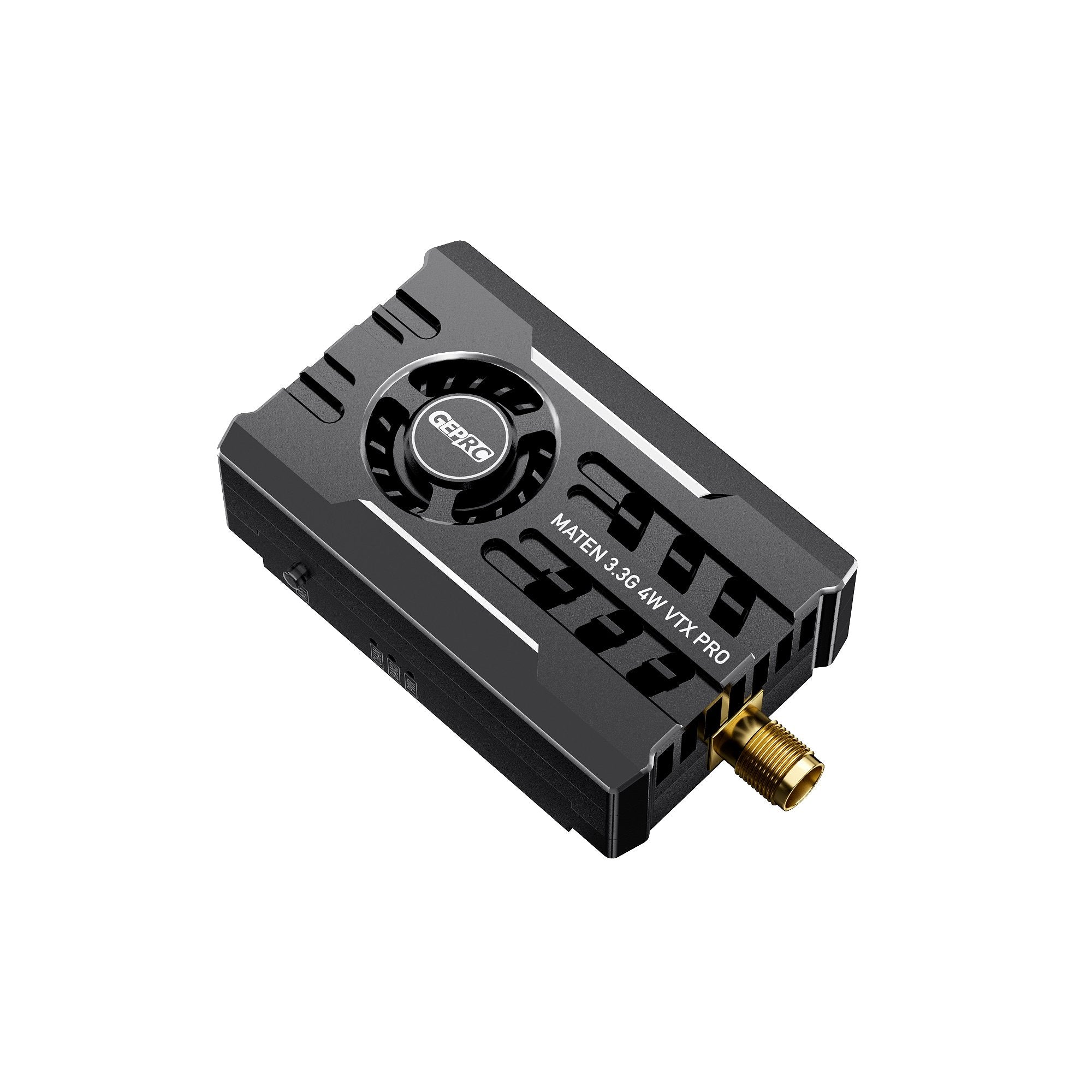

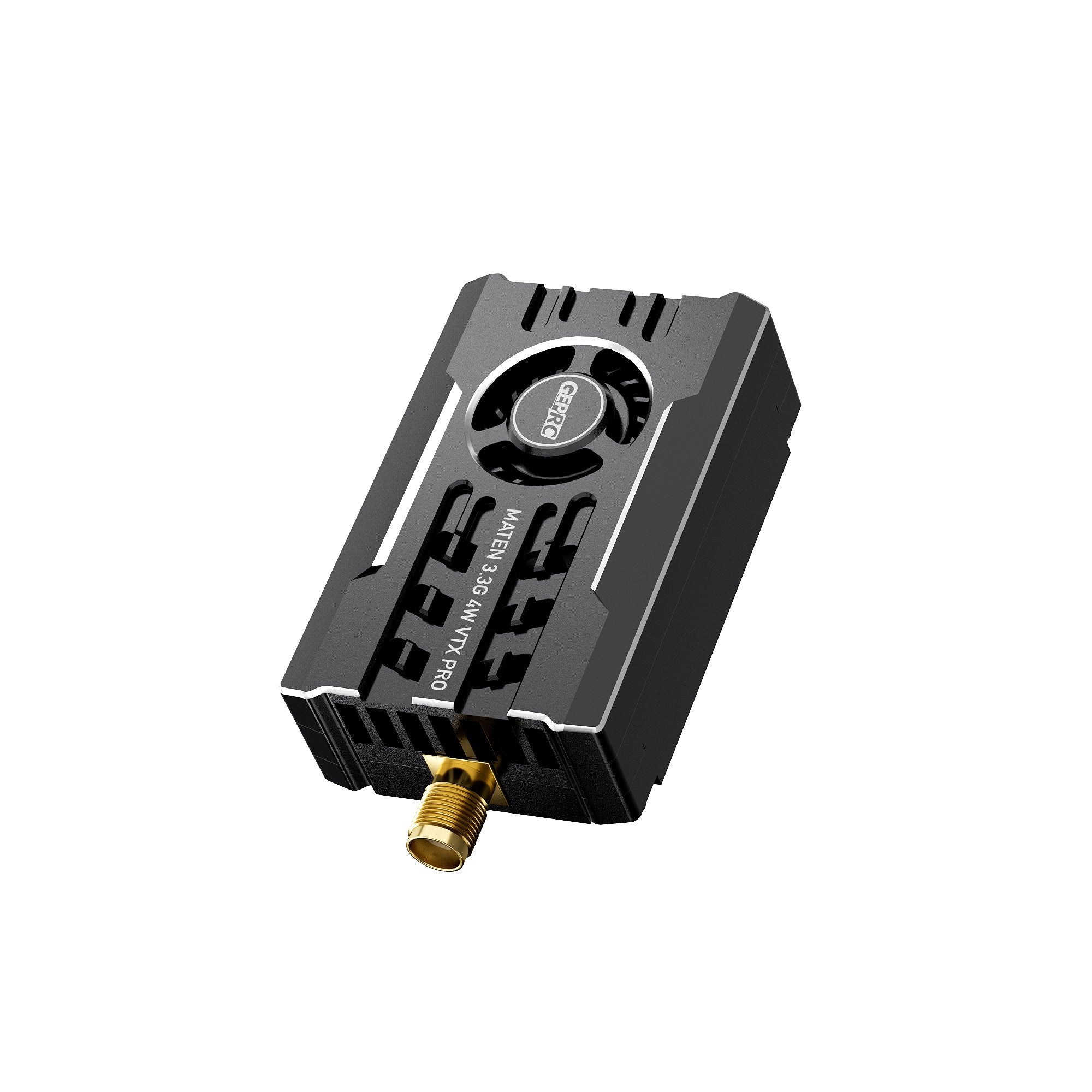

GEPRC MATEN 3.3G 4W VTX PRO｜FPV 圖傳設備

GEPRC MATEN 3.3G 4W VTX PRO｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features

Operates in the 3.3GHz frequency, up to 4000mW, suitable for long range flight

The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation

The built-in micro turbofan dissipates heat actively

Wide voltage input supports 12-36V input

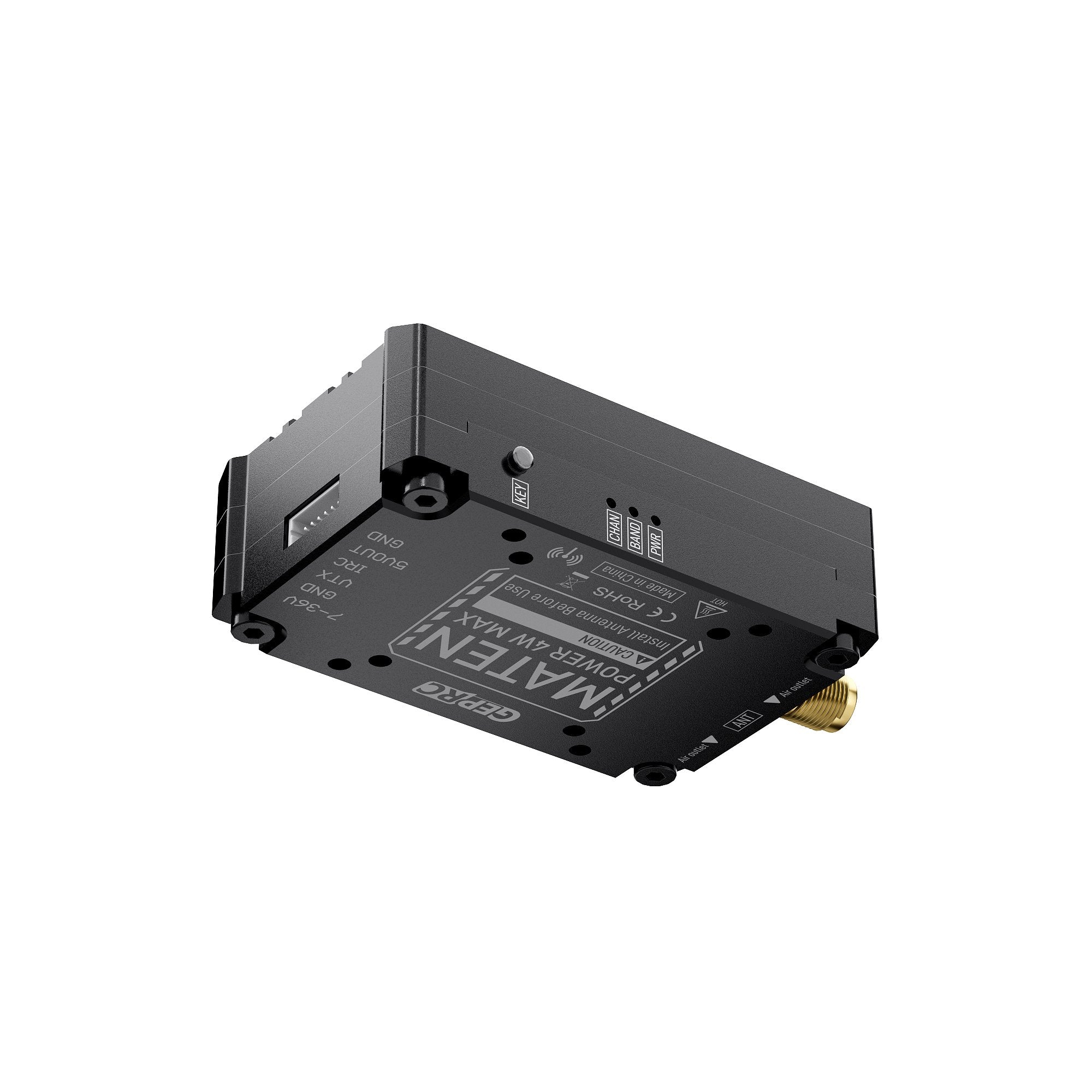

One function adjustment buttons, three indicator lights, easy to operate.

VTX control protocol IRC Tramp supports OSD parameter adjustment.

Temperature control protection function prevent overheat

Supports 48 transmission channels

Support 20x20mm(M2) and 25.5×25.5mm(M2) two different mounting hole sizes

Supports enter frequency directly in the configurator.

Specifications

Model: GEPRC MATEN 3.3G 4W VTX PRO

Size: 57×31.5×17.5mm

Mounting hole: 20x20mm(M2),25.5×25.5mm(M2)

Output power: 25mW/200mW/1600mW/4000mW/Pit mode

Frequency: 3000-3500MHz

Channel: 48CH

Enter Frequency Directly: Support

Input voltage: DC12-36V（3-8S Battery）

Output voltage: 5V@600mA

Protocol: IRC Tramp

Antenna interface: SMA

Cable interface: SH1.0 6pin

Weight: 36g

Frequency Bands

A:3083，3114，3145，3176，3207，3238，3269，3300

B:3215，3235，3255，3275，3295，3315，3335，3355

C:3170，3190，3210，3230，3250，3270，3290，3310

D:3320，3345，3370，3395，3420，3445，3470，3495

E:3310，3330，3355，3380，3405，3430，3455，3480

F:3330，3350，3370，3390，3410，3430，3450，3470

Noted

Installing antenna before use.

Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.

The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Includes

1 x MATEN 3.3G 4W VTX PRO

1 x VTX cable(SH1.0 6pin 150mm)

1 x User manual
