GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

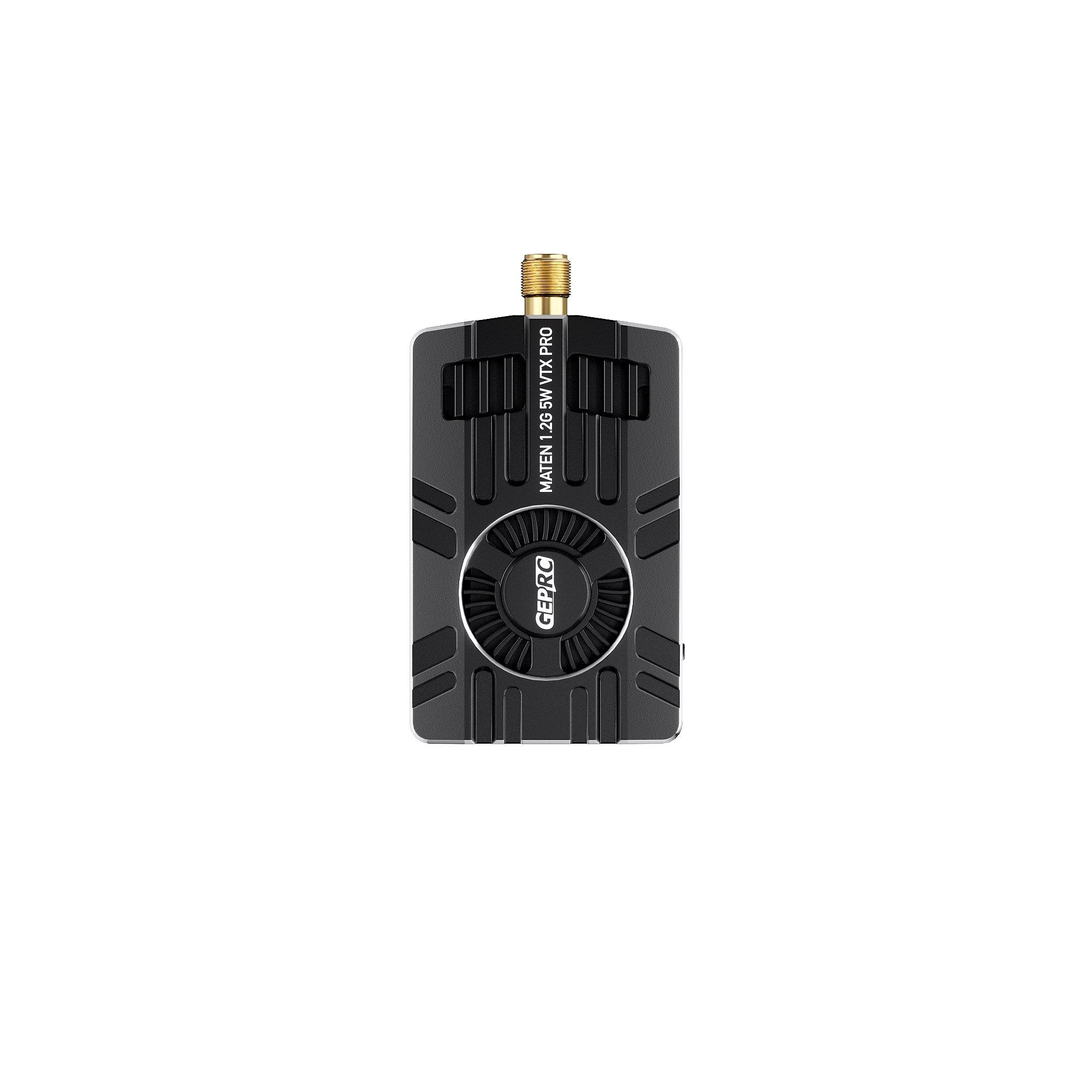

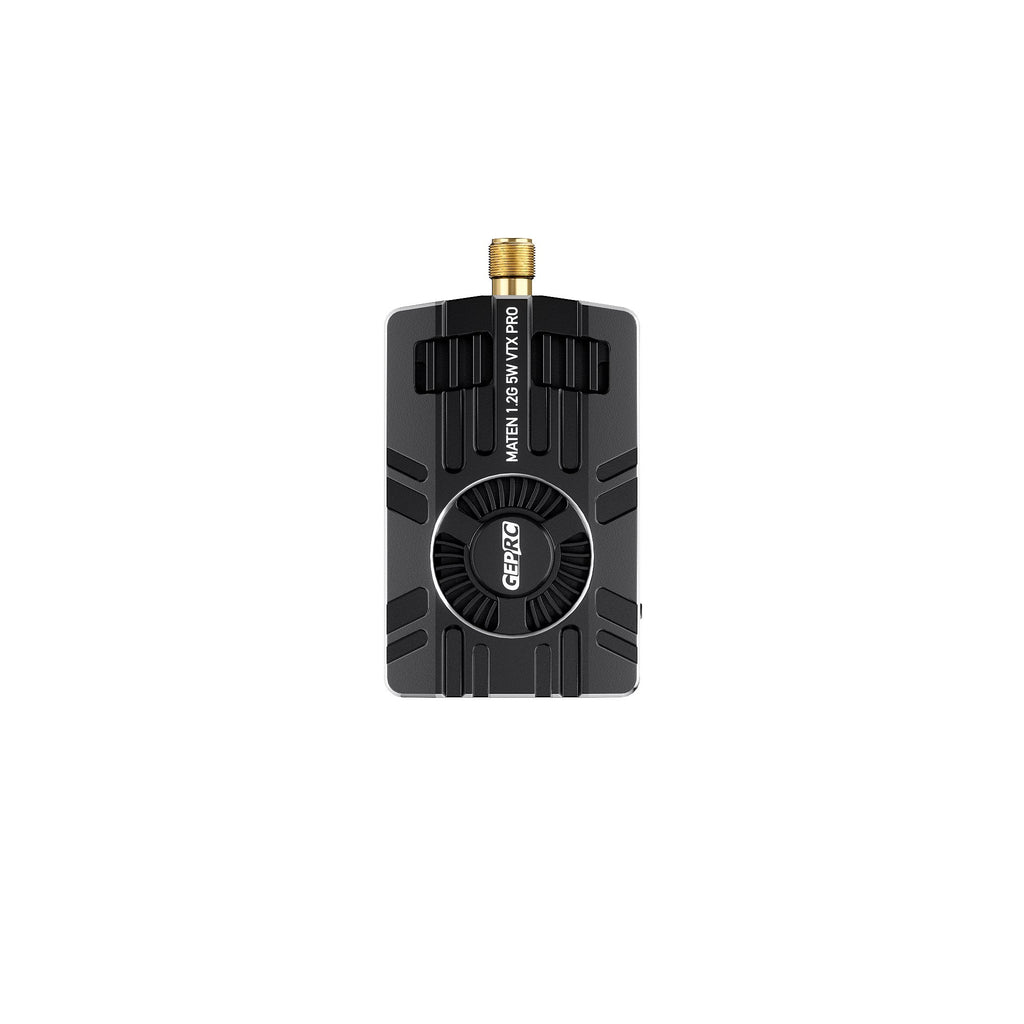

The MATEN 1.2G 5W VTX PRO, developed by the GEPRC team, is now officially released. With four adjustable power levels and a maximum output of 5000mW, it delivers exceptional performance, stable transmission signals, and excellent penetration.

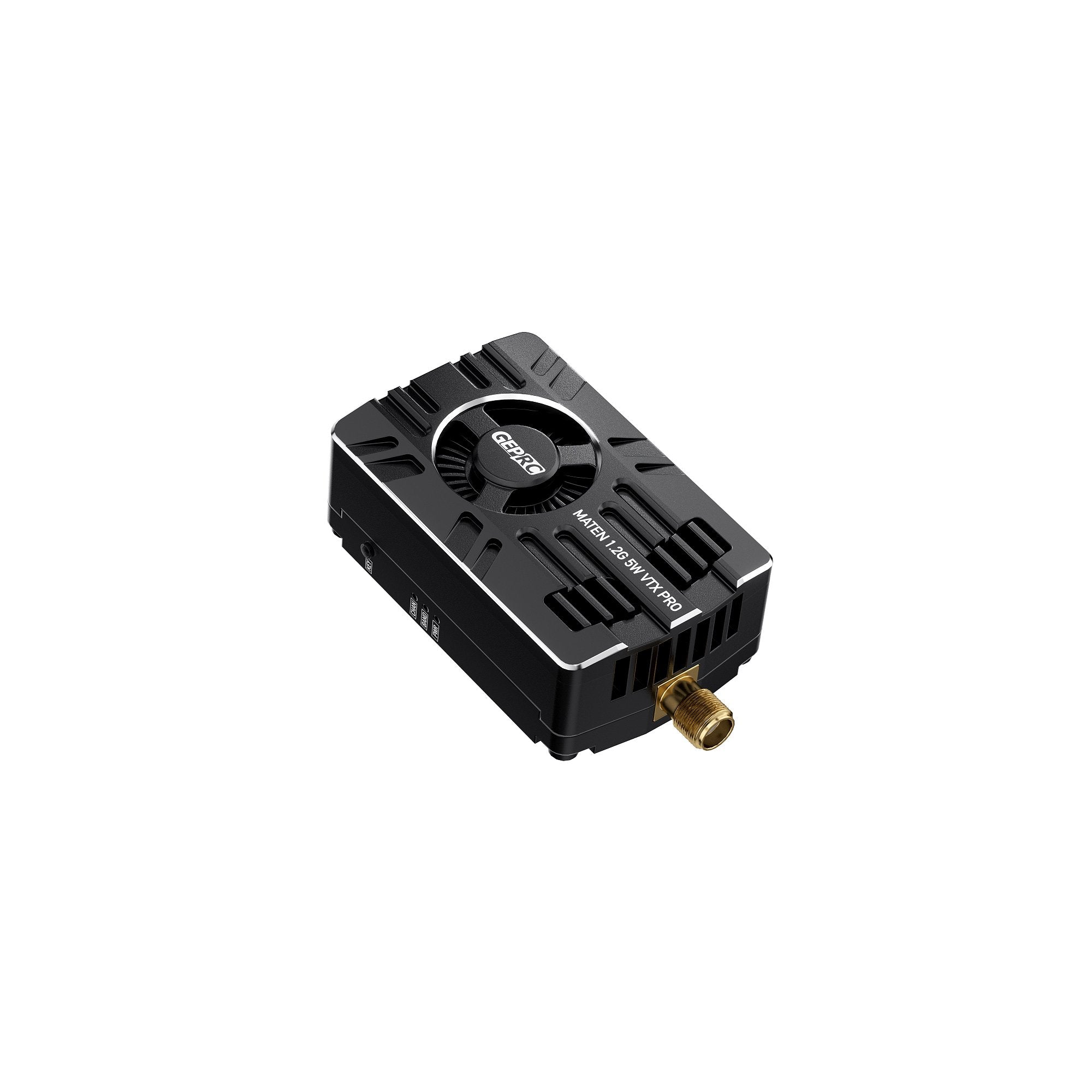

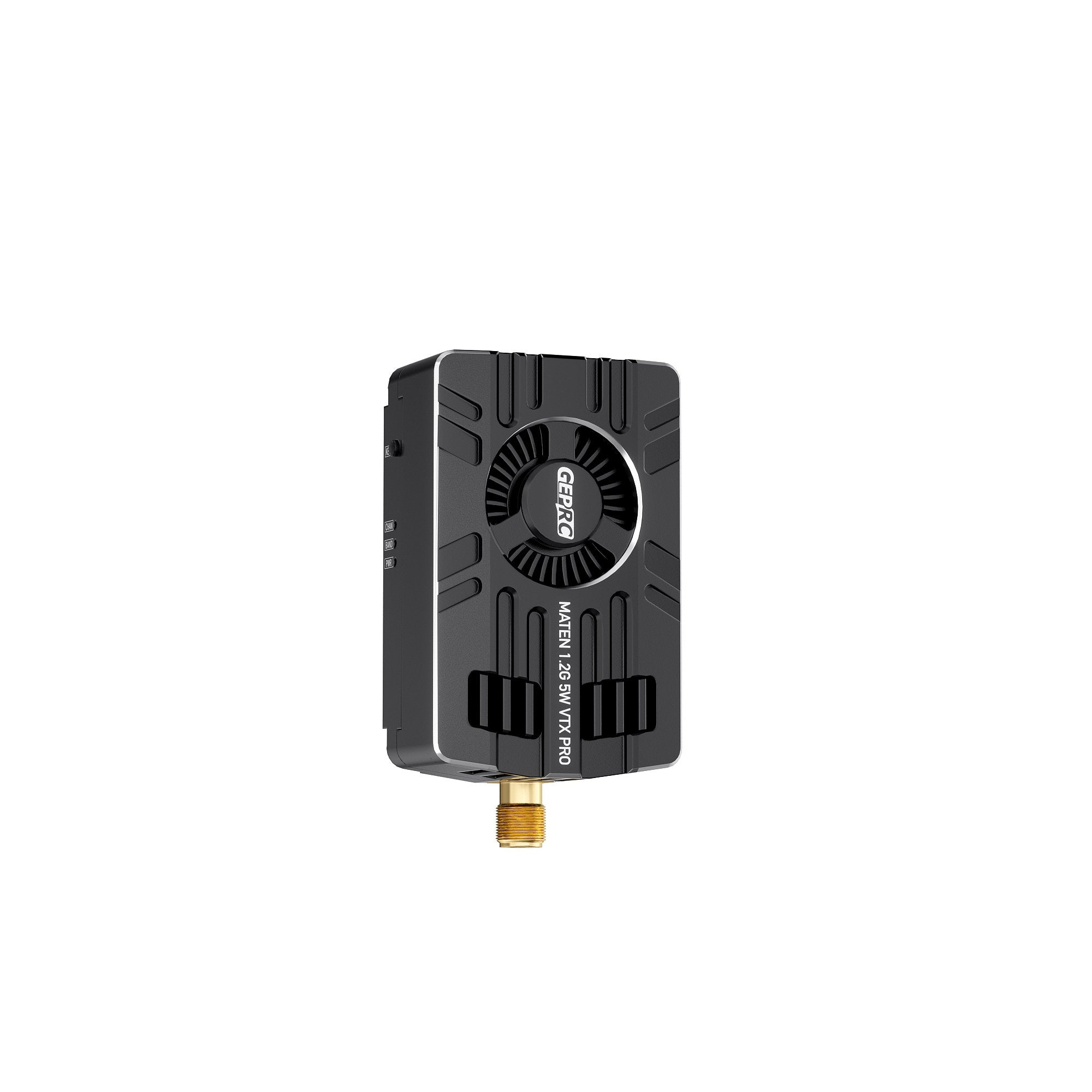

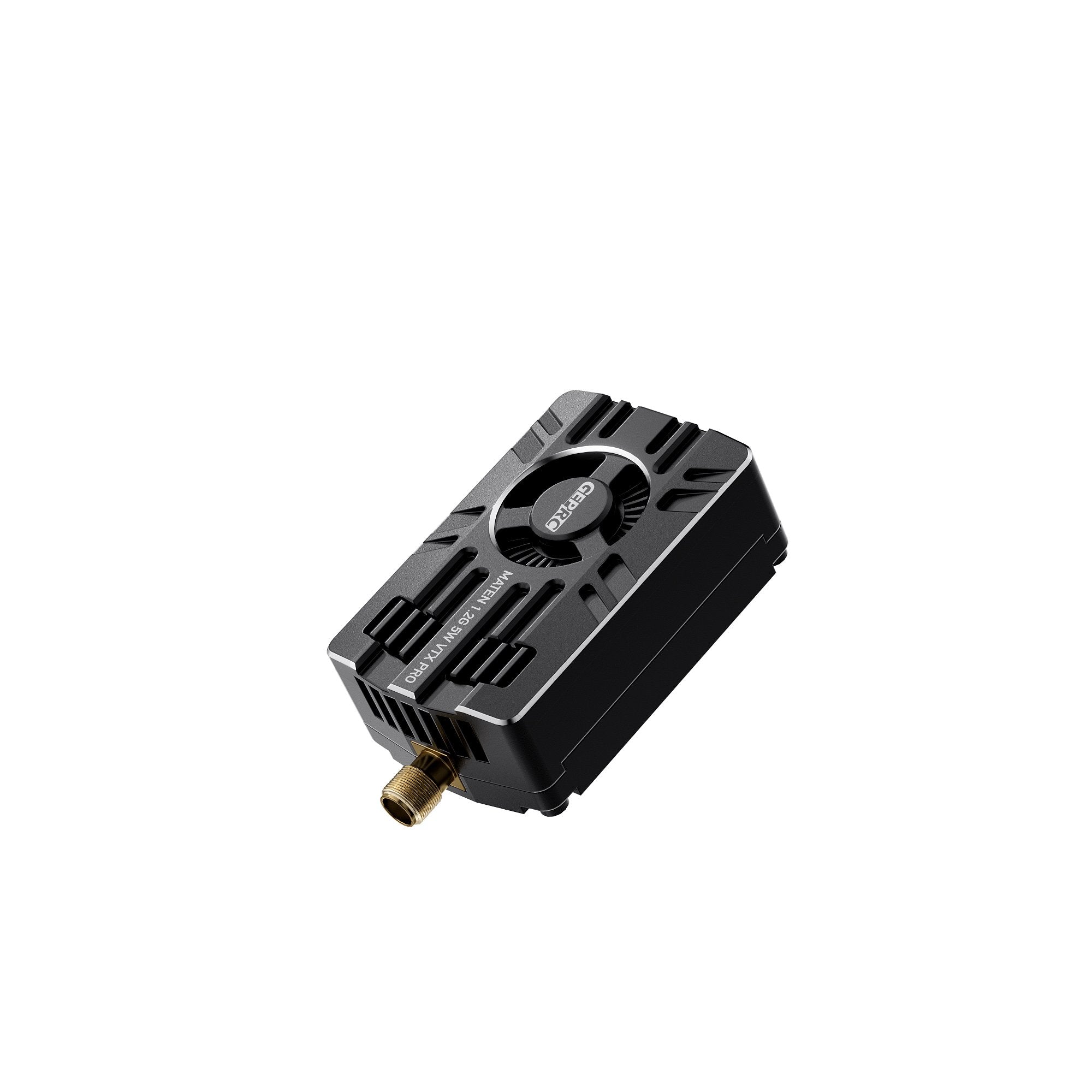

Crafted with a high-strength aluminum alloy CNC shell, it offers superior heat dissipation and enhanced impact resistance with its unique design.

The VTX supports the IRC Tramp protocol, enabling quick parameter adjustments via OSD. It features a wide voltage input range of 7-36V and a temperature control protection function to prevent overheating. Compatible with 20x20mm (M2) and 30.5×30.5mm (M2) mounting options.

Changelog

Sep 9, 2025:

1. Frequency range increased to 1080-1360MHz

2. Modified to 2 frequency groups, 14 frequency points

3. Added free frequency adjustment function

Feature

Four adjustable power levels, up to 5000mW, ideal for long-distance flights.

14 selectable channels for flexible usage.

High-strength aluminum alloy CNC shell for enhanced durability and heat dissipation.

Wide voltage input range, supporting 7-36V.

Single-button operation with three indicator lights for easy control.

IRC Tramp VTX control protocol with OSD parameter adjustment support.

Temperature control protection to prevent overheating.

Compatible with 20x20mm (M2) and 30.5×30.5mm (M2) mounting holes.

Supports enter frequency directly in the configurator.

Specifications

Model: MATEN 1.2G 5W VTX PRO

Dimension: 60×33.2×19.1mm

Mounting Patterns: 20x20mm(M2)，25.5×25.5mm(M2)

Frequency Band: 1080MHz-1360MHz

Channels: 16CH

Frequency: A:1080，1120，1160，1200，1240，1280，1320，1360

B:1200，1220，1240，1258，1280，1300，1320，1340

Enter Frequency Directly: Support

Output Power: 25mW/400mW/800mW/5000mW/Pit mode

Input Voltage: DC7-36V（2-8S Battery）

Output Voltage: 5V@600mA

Protocol: IRC Tramp

Antenna Connector: SMA

Cable Connector: sh1.25 6pin

Weight: 48g（VTX only）

Notes

Install the antenna before use.

Ensure constant airflow and proper ventilation to prevent overheating. Install a cooling fan if used in confined spaces.

The 5V output is for a camera or cooling fan only. Do not connect the power input or battery to the 5V output, as it may cause serious damage to the VTX.

Includes

1 x MATEN 1.2G 5W VTX PRO VTX

1 x SMA(Internal needle) to SMA (Internal hole)connector

1 x sh1.25 6P VTX Connection cable

6 x M2*5 screw

6 x M2*6 screw

1 x product description
