GEPRC MARK5 O4 Pro DC WTFPV Drone|FPV 穿越機
此選項為一次支付商品全額。完成付款後,我們將依商品庫存及訂單順序安排出貨。
此選項為支付商品總價三分之一作為訂金。庫存補充後,我們將通知您支付剩餘尾款,完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準;如遇缺貨或價格異常,我們將主動聯絡並提供退款或取消訂單。

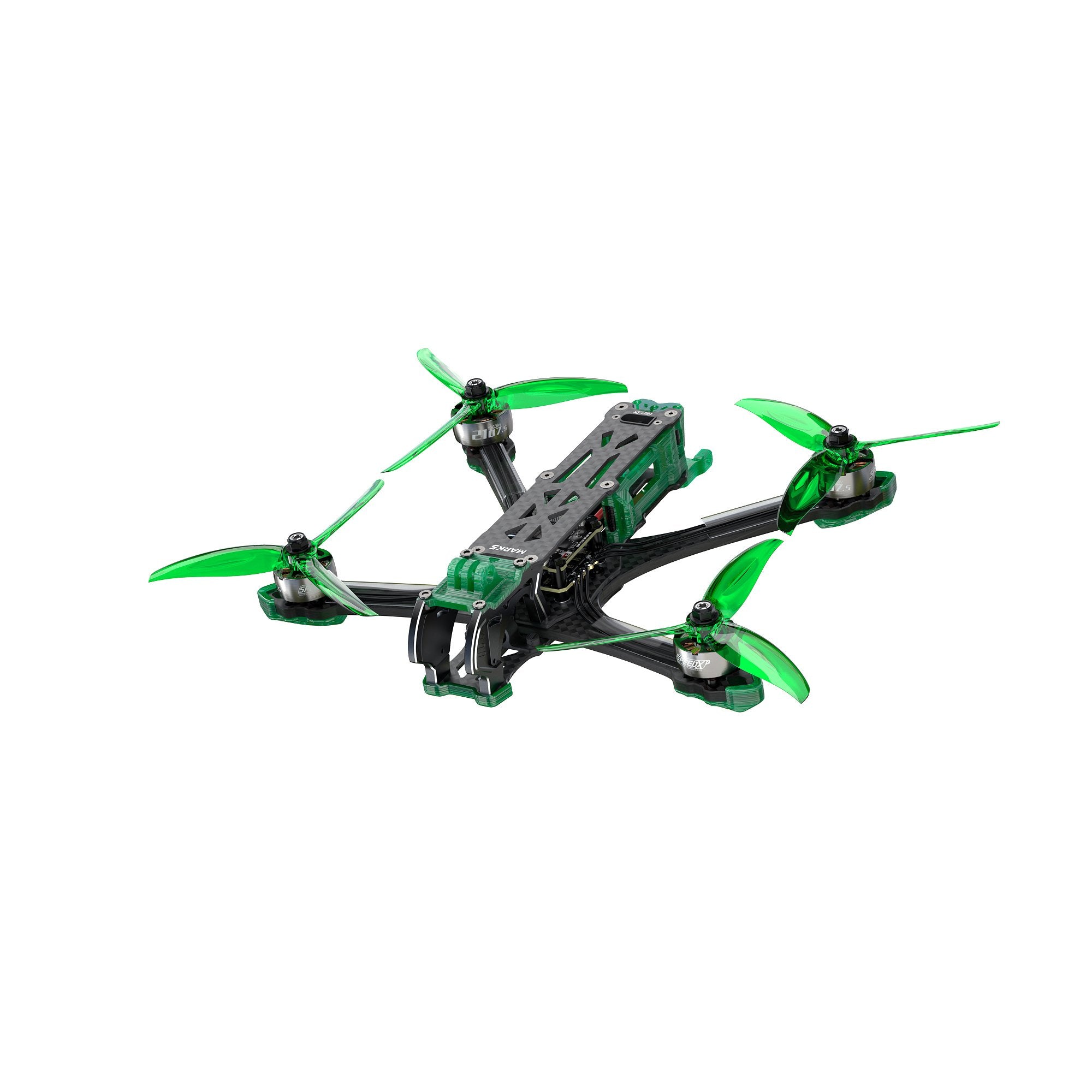

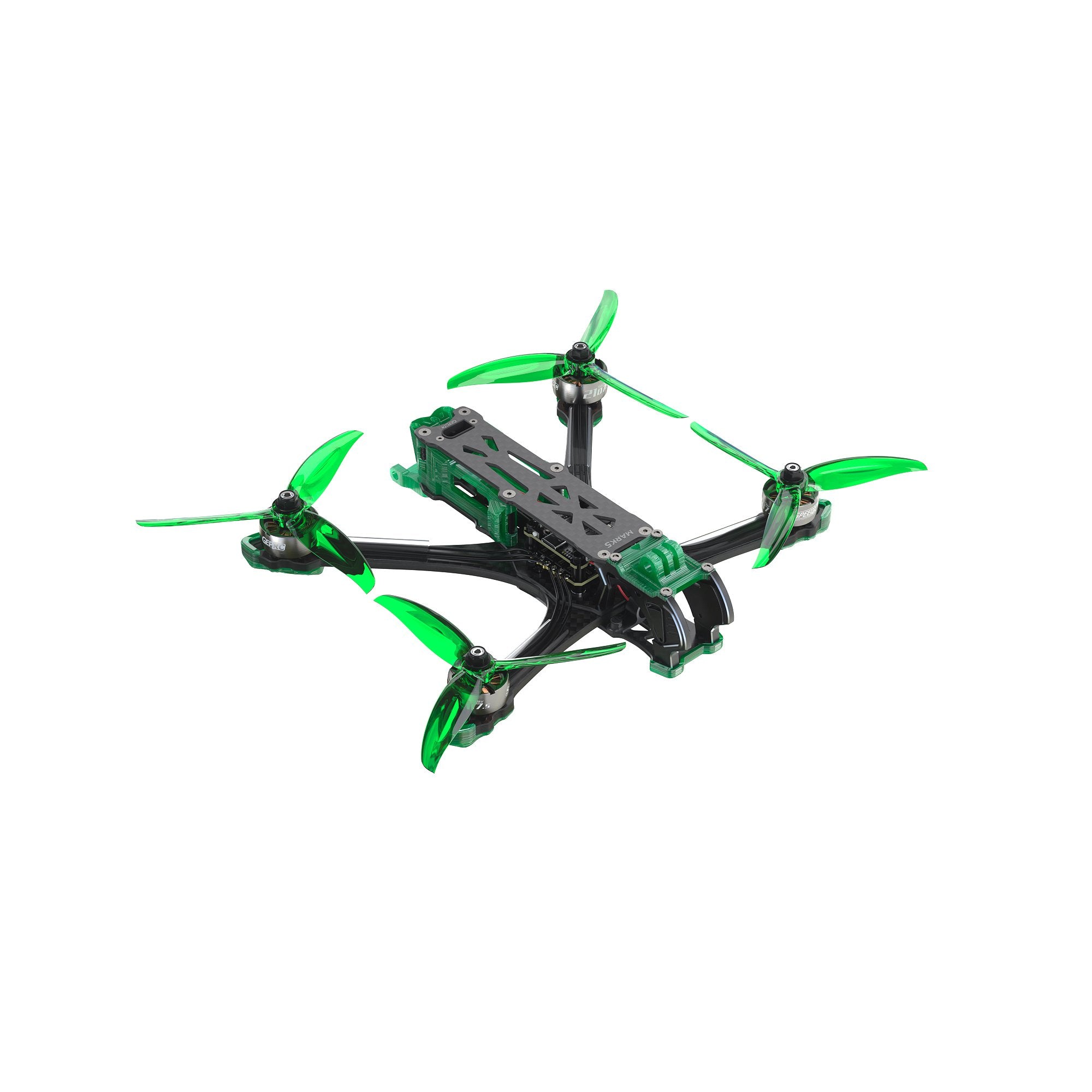

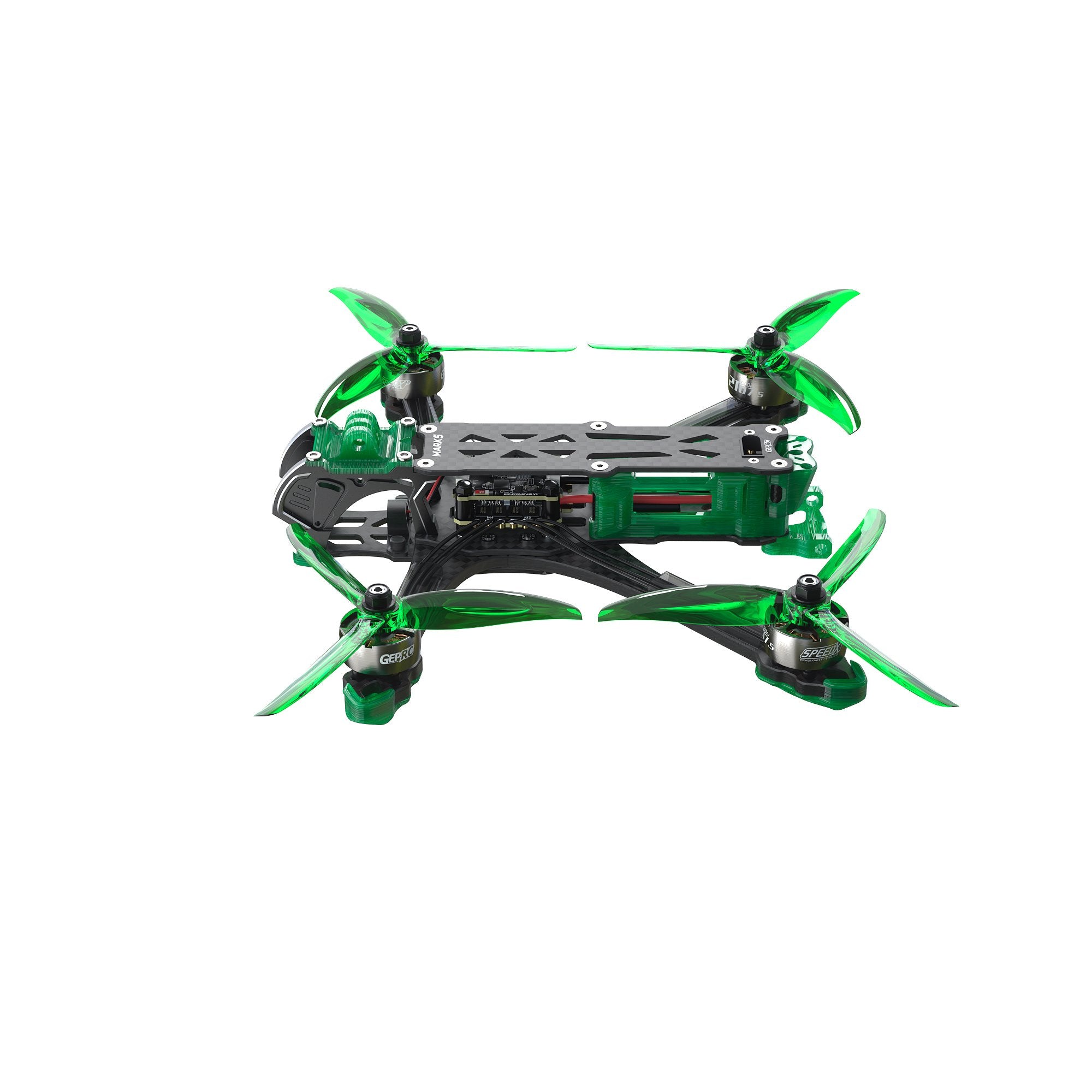

GEPRC MARK5 O4 Pro DC WTFPV Drone|FPV 穿越機
GEPRC 官方FPV 穿越機,已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。
Summary
The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminum mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations.These upgrades ensure stable, smooth footage while effectively minimizing the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.
Feature
1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.
2. DC and wide X frames, fit for a variety of flying situations.
3. Two TPU camera mounts, compatible with all action cameras.
4. Quick-release arms with just two screws for easy swapping.
5. 3K carbon fiber frame that is lighter, stronger, and more durable.
6. Separate capacitor and buzzer compartment for stable, jitter-free operation.
7. Vibration-dampening frame for stable electronics performance.
Specfication
Model: MARK5 O4 Pro DC WTFPV FPV
Wheelbase: 230mm
Weight: 392.8g ± 5g
VTX: None
Camera: None
Antenna: None
Motor:
SPEEDX2 2107.5 1960KV
Prop: Genfan 5136
FC:
GEP-F722-BT-HD V3
MCU: STM32F722
IMU: ICM42688-P(SPI)
OSD: BetaFlight OSD w / AT7456E chip
ESC
: GEP-BL32 50A 96K 4IN1 ESC
Power Connector: XT60
Receiver: PNP / ELRS 2.4G / TBS NanoRX
Recommended Battery: LiPo 6S 1050mAh-1550mAh
Printouts Color: emerald green/coral orange
Include
1 x GEPRC MARK5 O4 Pro WTFPV FPV
1 x Gemfan 5136 (2CW 2CCW)
1 x 15*250mm Straps
2 x 20*250mm Straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare Screw Pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench
Spare Screws Include:
1 x M5 flanged nylon nut
2 x M2 stainless rivet nut
1 x M5*25 Stainless round-head hex screw
4 x M3*10 button-head hex socket screw
4 x M3*8 button-head hex socket screw
2 x m3*8 countersunk hex socket screw
2 x m3*5 countersunk hex socket screw
