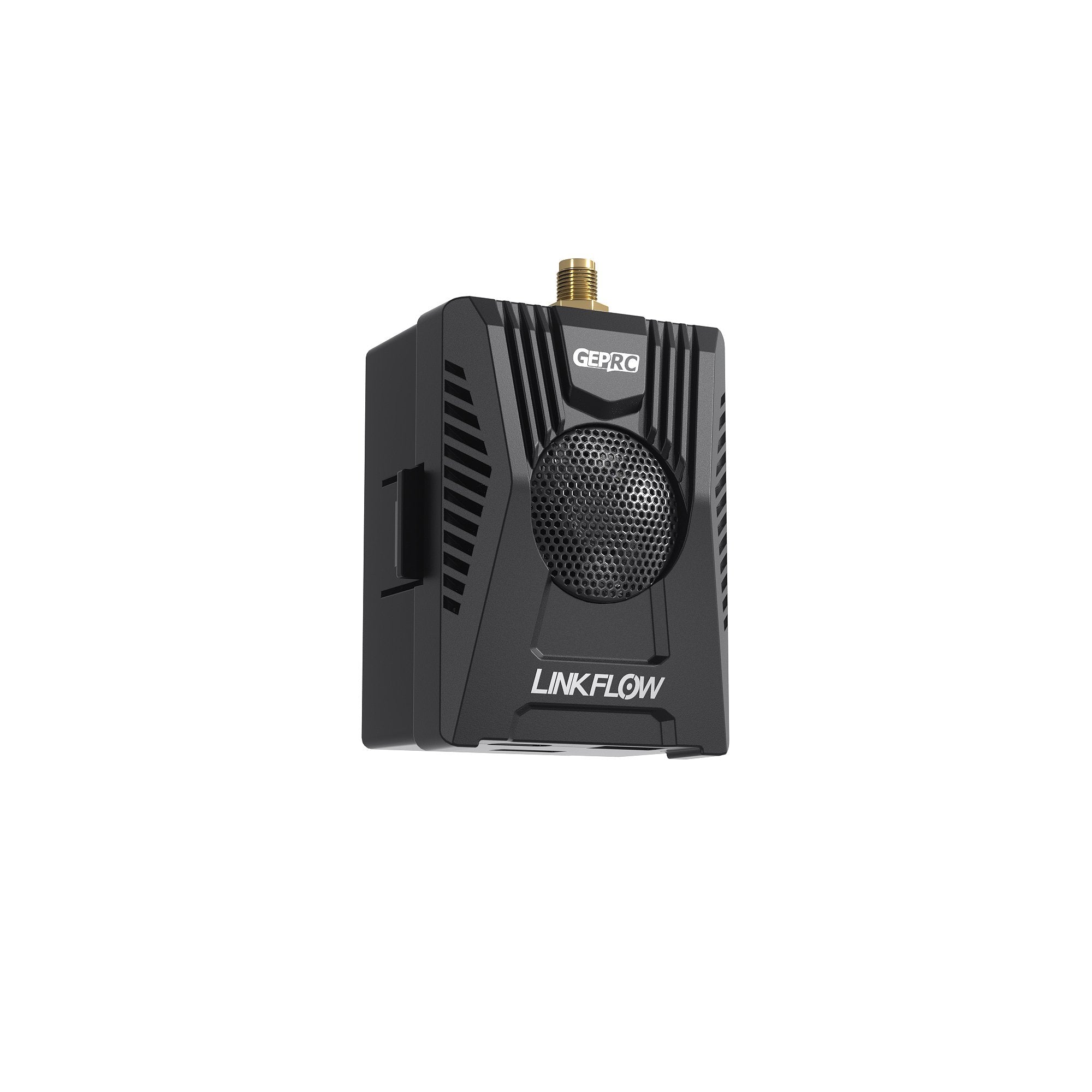

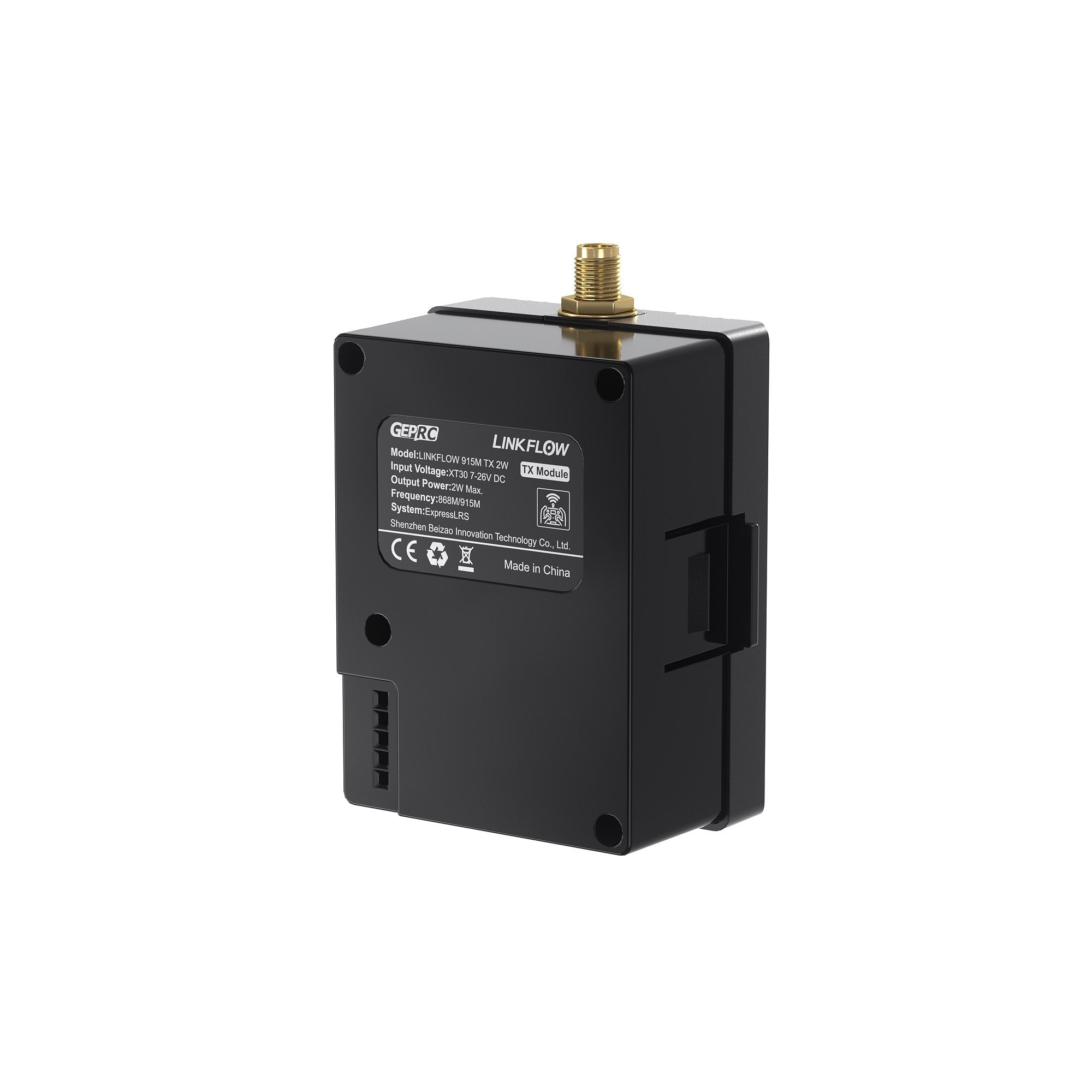

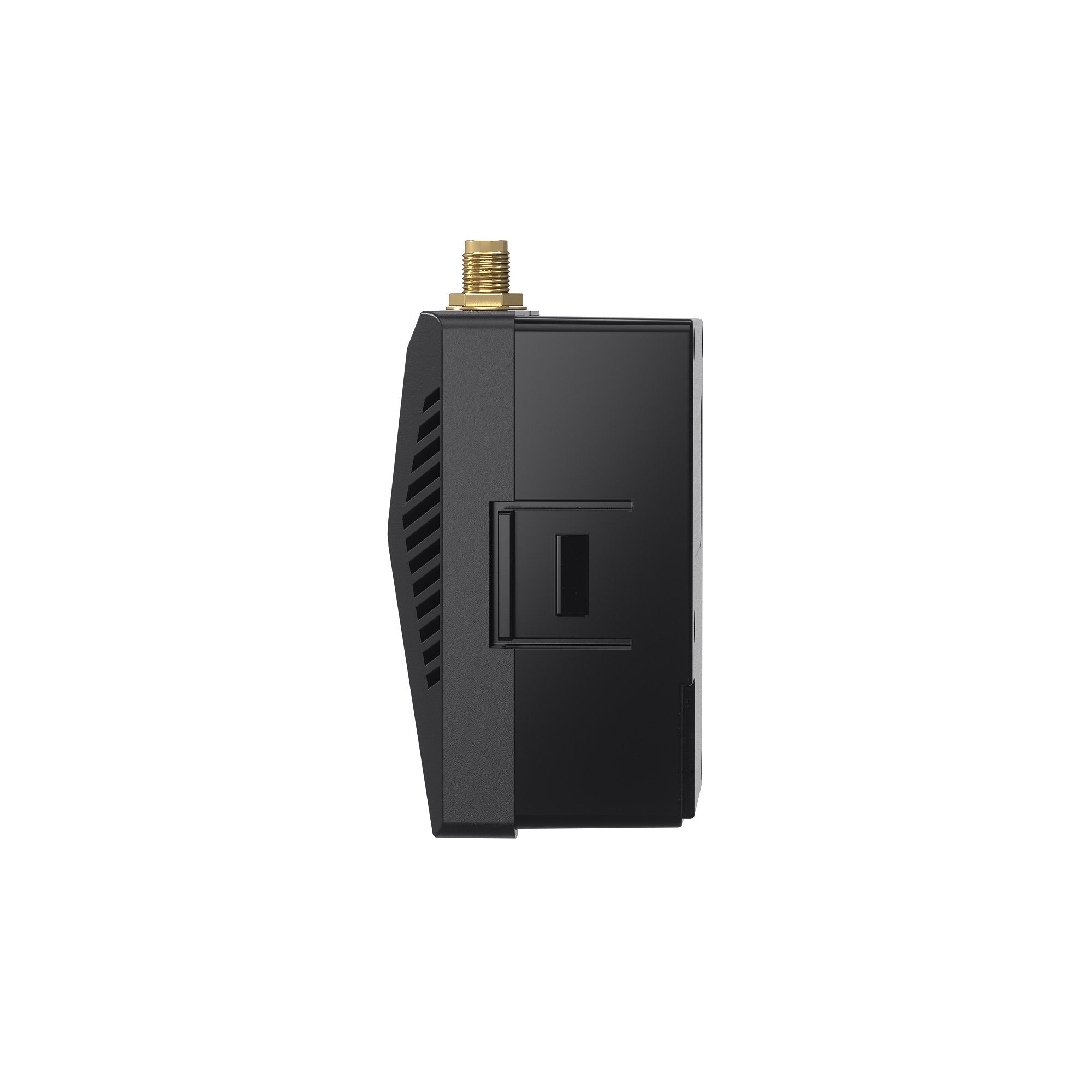

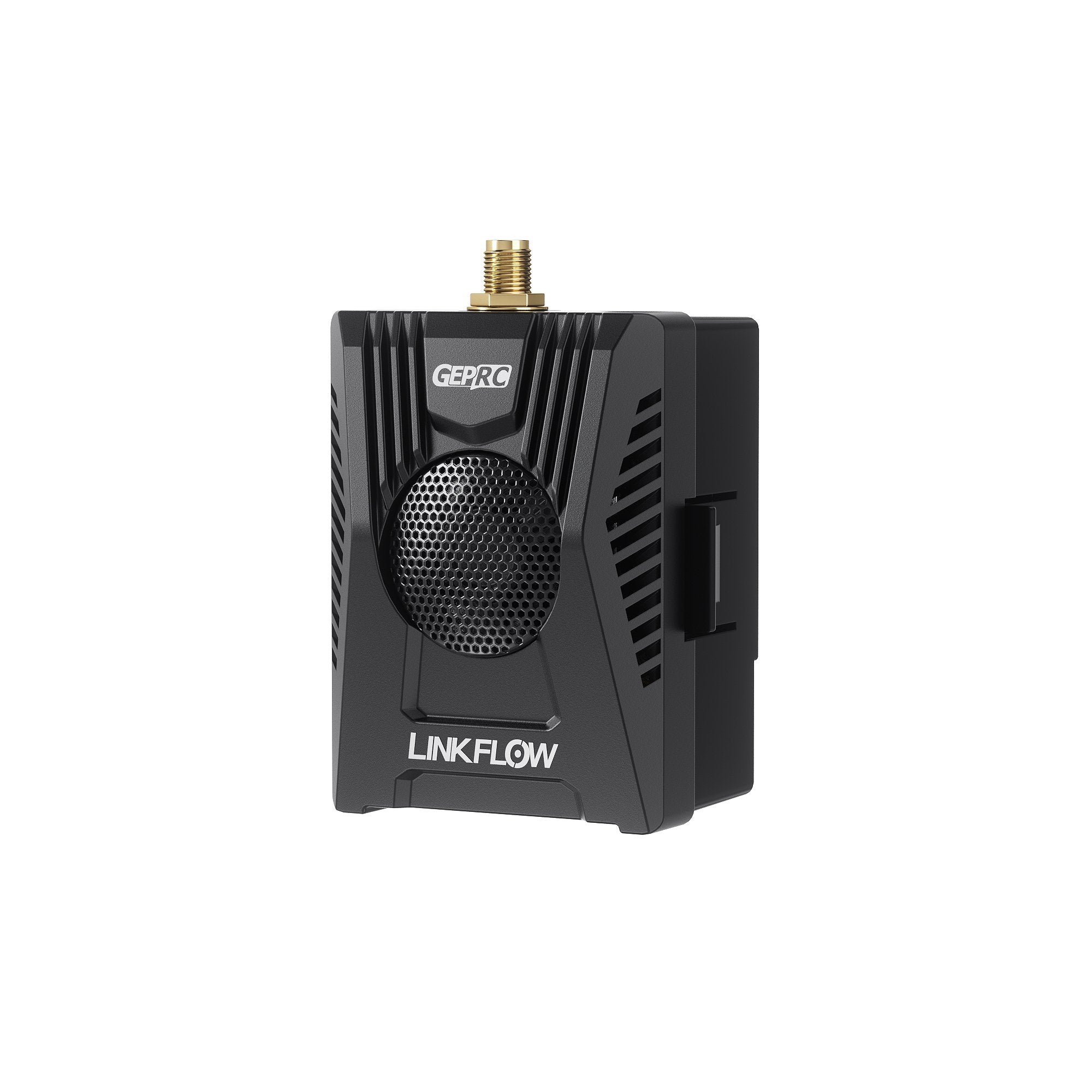

GEPRC LINKFLOW 915M 2W ELRS TX Module｜FPV 配件

$627.00

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEPRC LINKFLOW 915M 2W ELRS TX Module｜FPV 配件

GEPRC 官方FPV 配件，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The LINKFLOW 915M TX Module is GEPRC’s next-gen product based on the ExpressLRS open-source project. Built on ExpressLRS 3.5 with a standard JR-bay design, it operates on the 868/915MHz frequency band and offers up to 2000mW output power. The built-in fan provides active cooling to lower the operating temperature. A TCXO (temperature-compensated crystal oscillator) ensures stable performance despite temperature fluctuations.

The custom high-gain Moxon antenna improves signal transmission, while the integrated backpack chip enables seamless peripheral connectivity. It also features a UART port for relay or high-power receiver setups.

The LINKFLOW 915M TX Module comes with an RGB status indicator, an XT30 connector for 2-6S battery power, and supports USB and WiFi firmware updates.

Features

1. Next-gen ExpressLRS TX module that features a standard JR bay design

2. Supports 868/915MHz with up to 2000mW output power

3. Active cooling with a built-in high-speed fan

4. Equipped with a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures

5. Custom Moxon antenna for enhanced signal transmission

6. Integrated backpack chip enables direct peripheral connectivity

7. Dedicated UART port for relay setups or high-power receivers

8. Runs on external 2-6S power

9. RGB status indicator

10. Easy firmware updates via USB or WiFi
