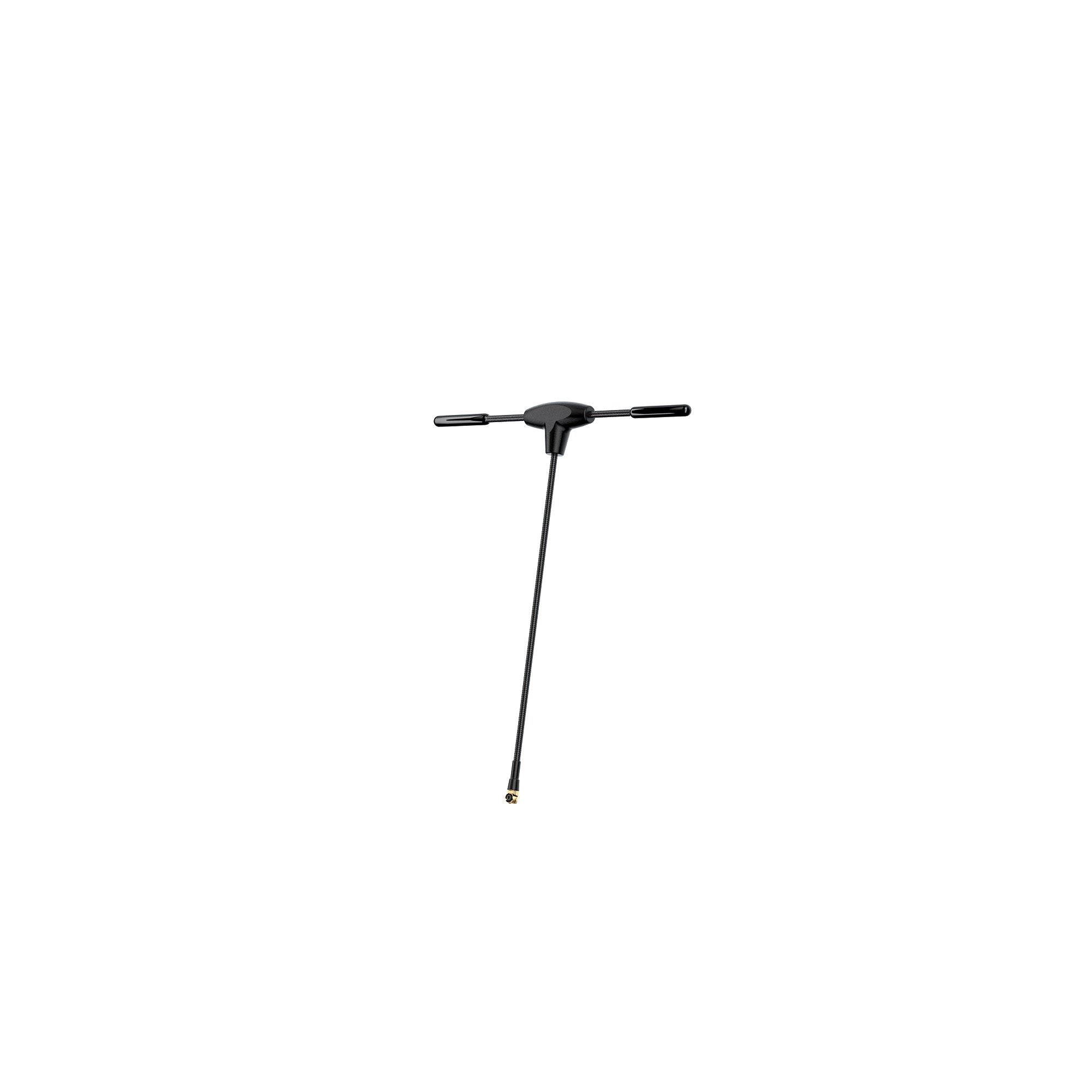

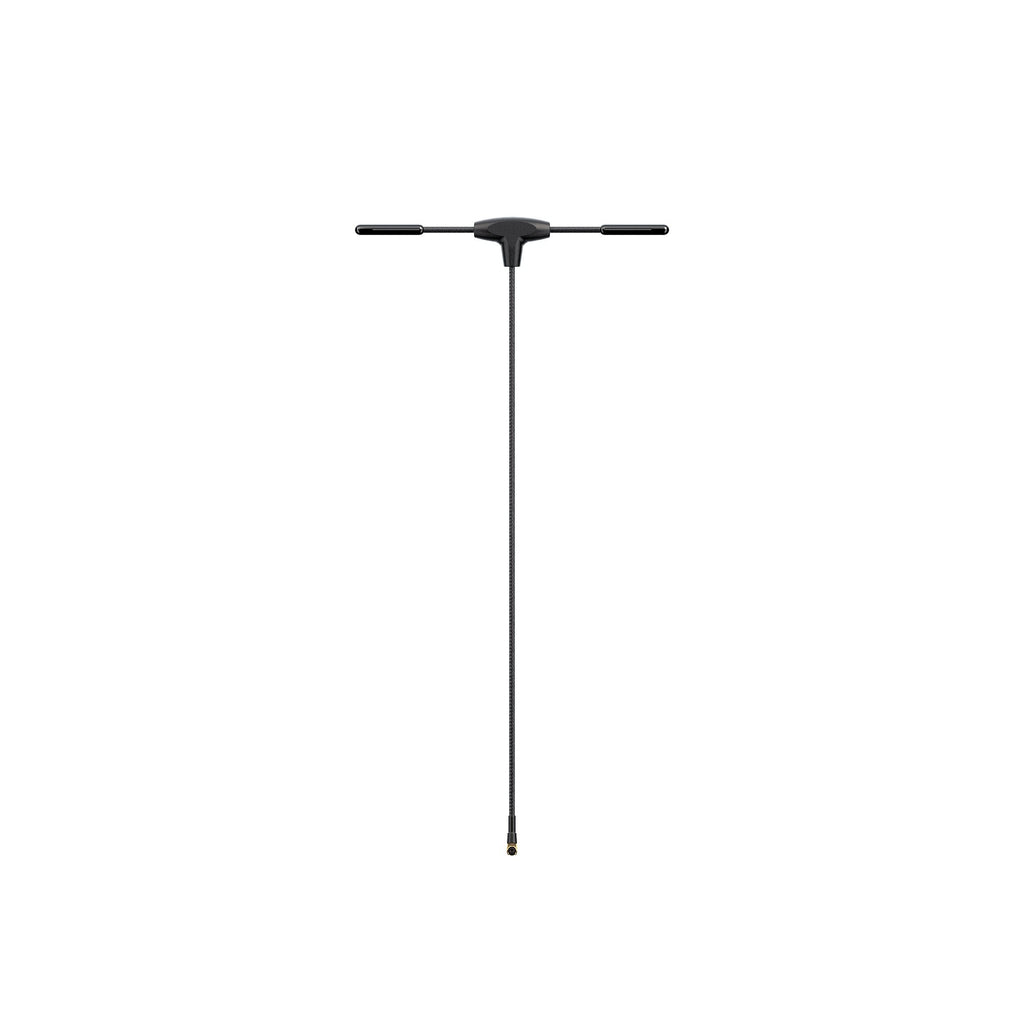

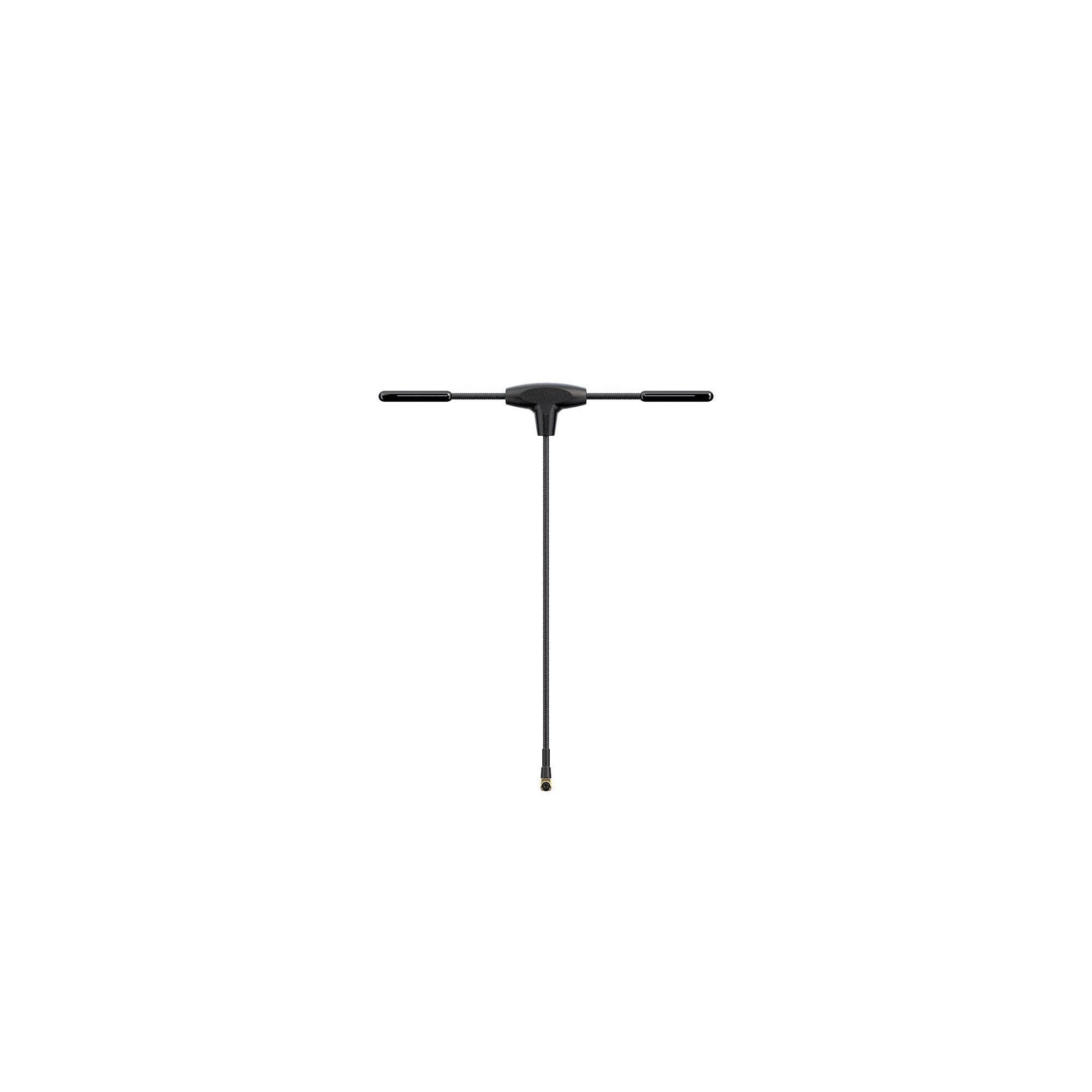

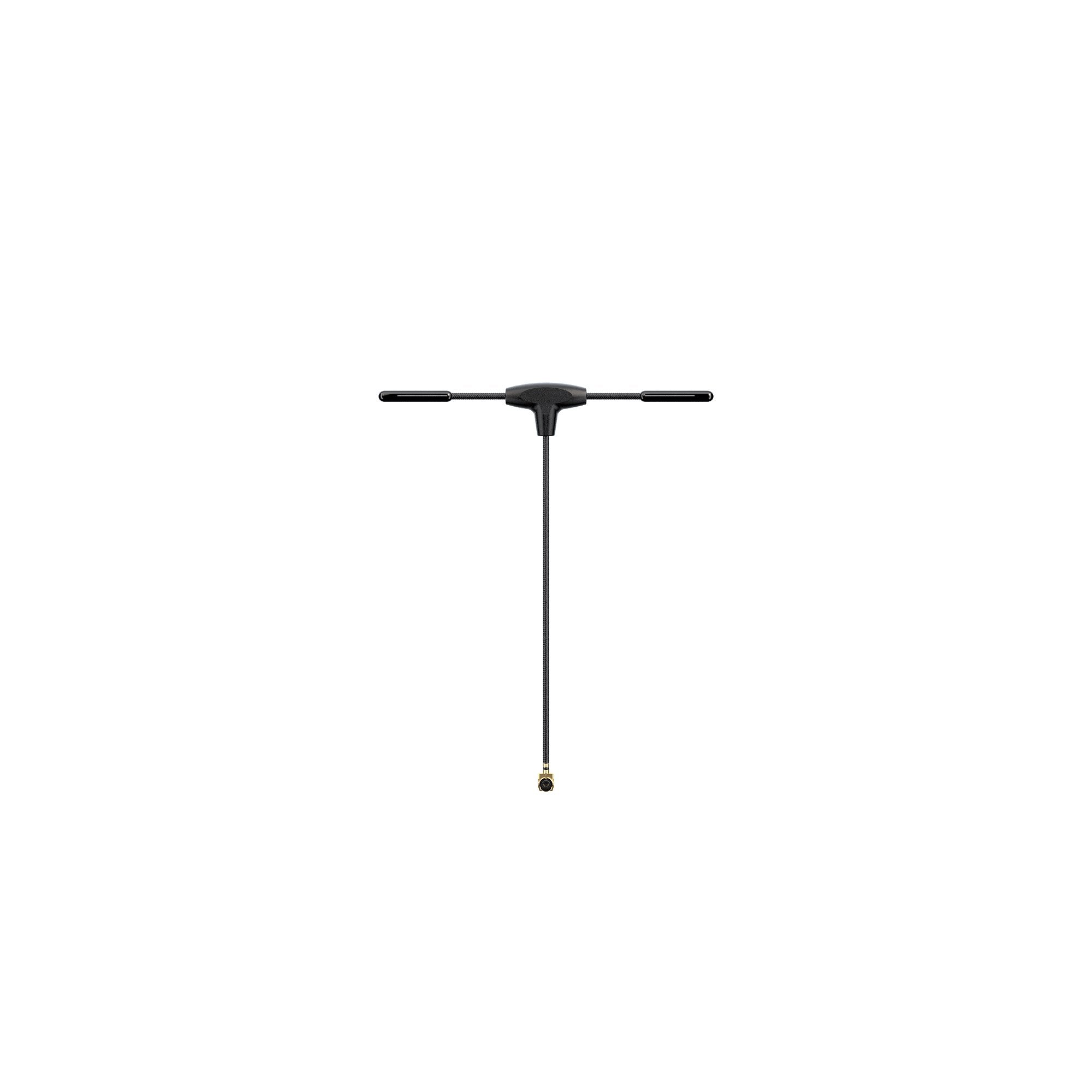

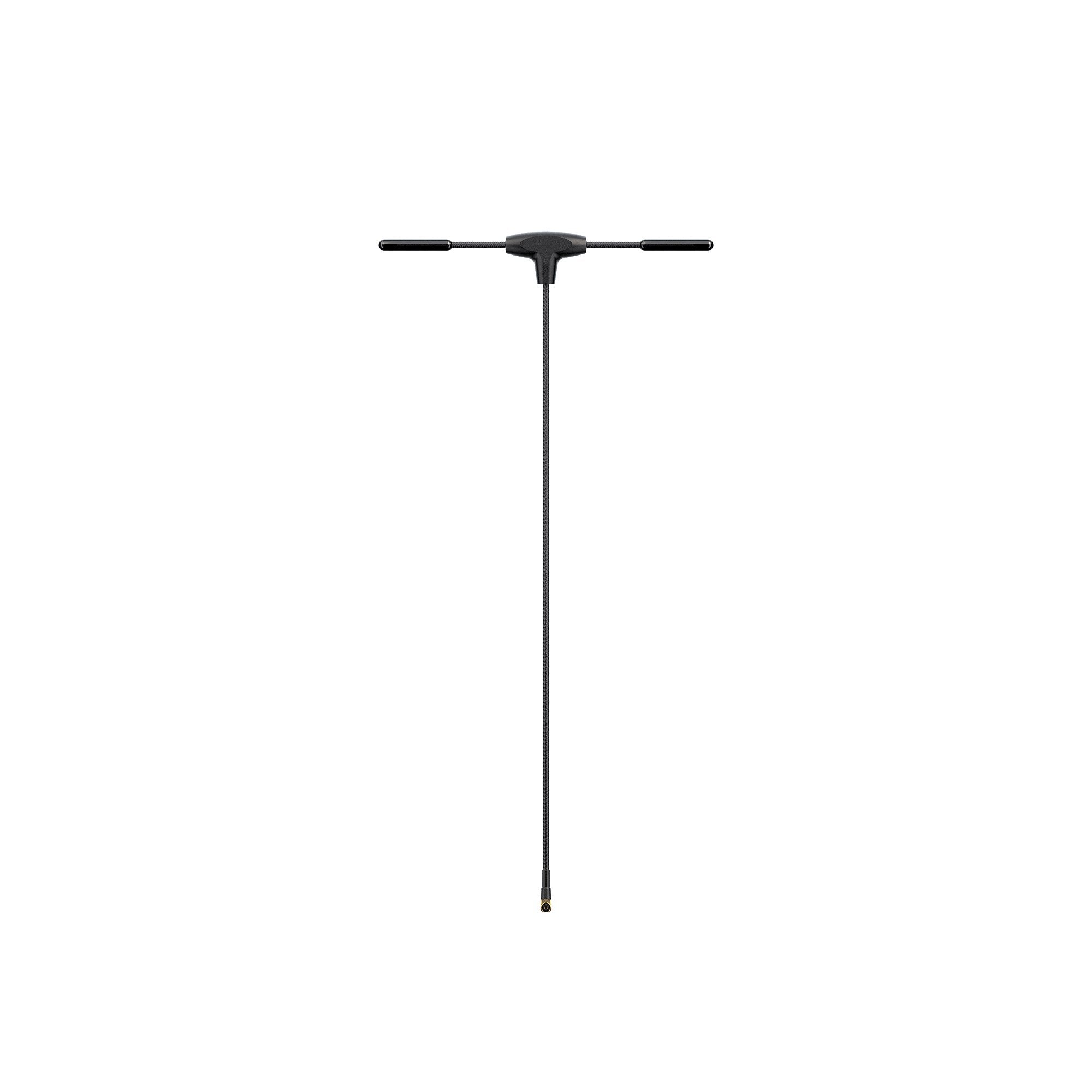

GEPRC IPEX T Antenna(5pcs)

GEPRC IPEX T Antenna(5pcs)｜FPV 天線

GEPRC IPEX T Antenna(5pcs)｜FPV 天線

$134.00

規格 connector: IPEX4／frequency: 2.4GHz／length: 55mm connector: IPEX1／frequency: 915MHz／length: 55mm connector: IPEX1／frequency: 2.4GHz／length: 55mm connector: IPEX4／frequency: 2.4GHz／length: 100mm

付款方式全額付款訂金預購

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEPRC IPEX T Antenna(5pcs)｜FPV 天線

GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Feature

High-quality IPEX4 connector for better efficiency and lower impedance

Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards

Stronger signal compared to similar models

Specifications

2.4GHz Version

Model: GEPRC IPEX4 2.4G T Antenna (Upgraded)

Center Frequency: 2.4GHz

Bandwidth: 2400MHz – 2500MHz

Polarization: Omnidirectional

Average Gain: 3.23dBi

Average VSWR: 1.23

RF Cable: Steel wire+PCB

Cable Length: 55/100mm

Connector:IPEX1/IPEX4

915MHz Version

Model: GEPRC IPEX1 915MHz T Antenna (Upgraded)

Center Frequency: 915MHz

Bandwidth: 900MHZ-930MHZ

Polarization: Omnidirectional

Average Gain: 3.4dBi

Average VSWR: 1.25

RF Cable: Steel wire + PCB

Cable Length: 55mm

Connector:IPEX1
