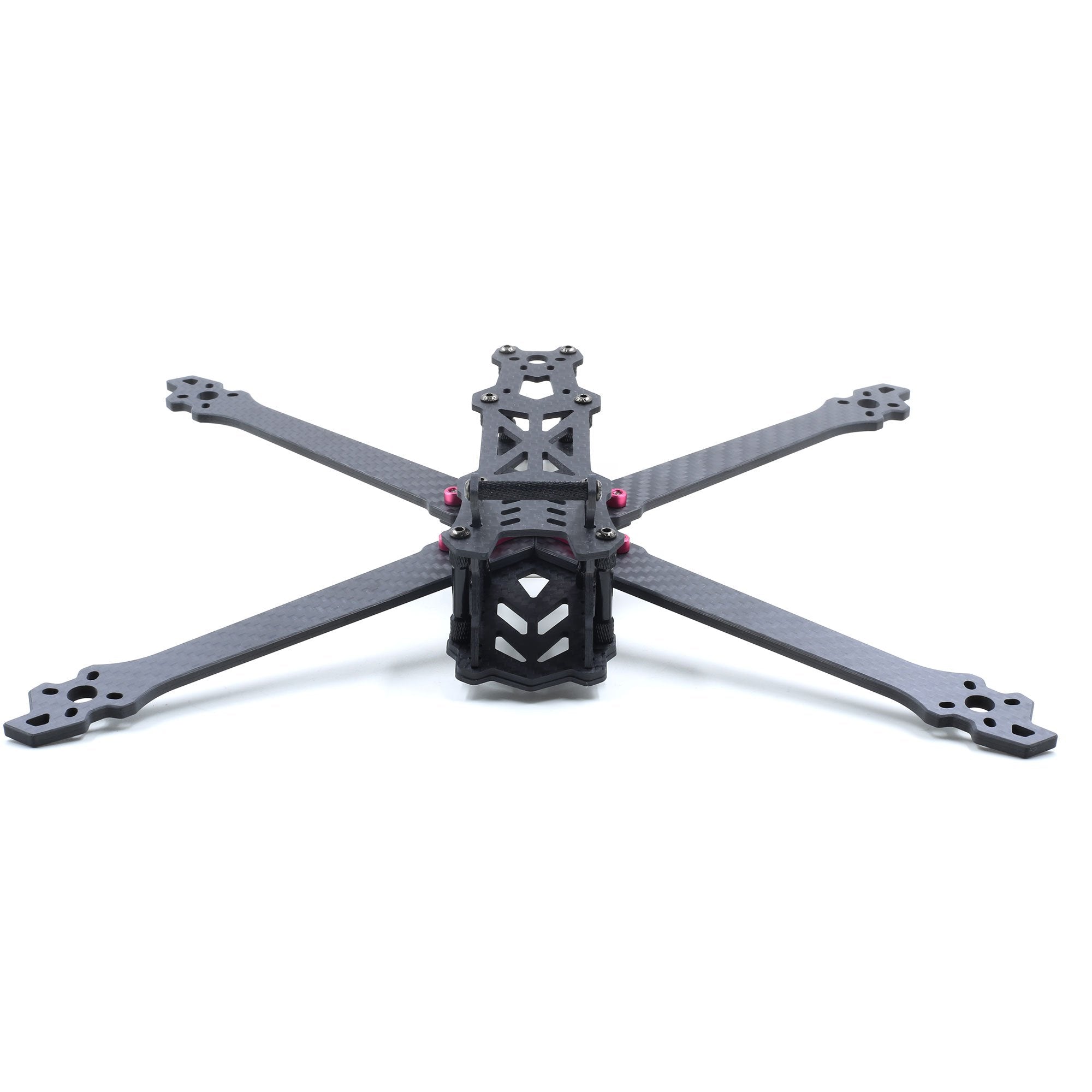

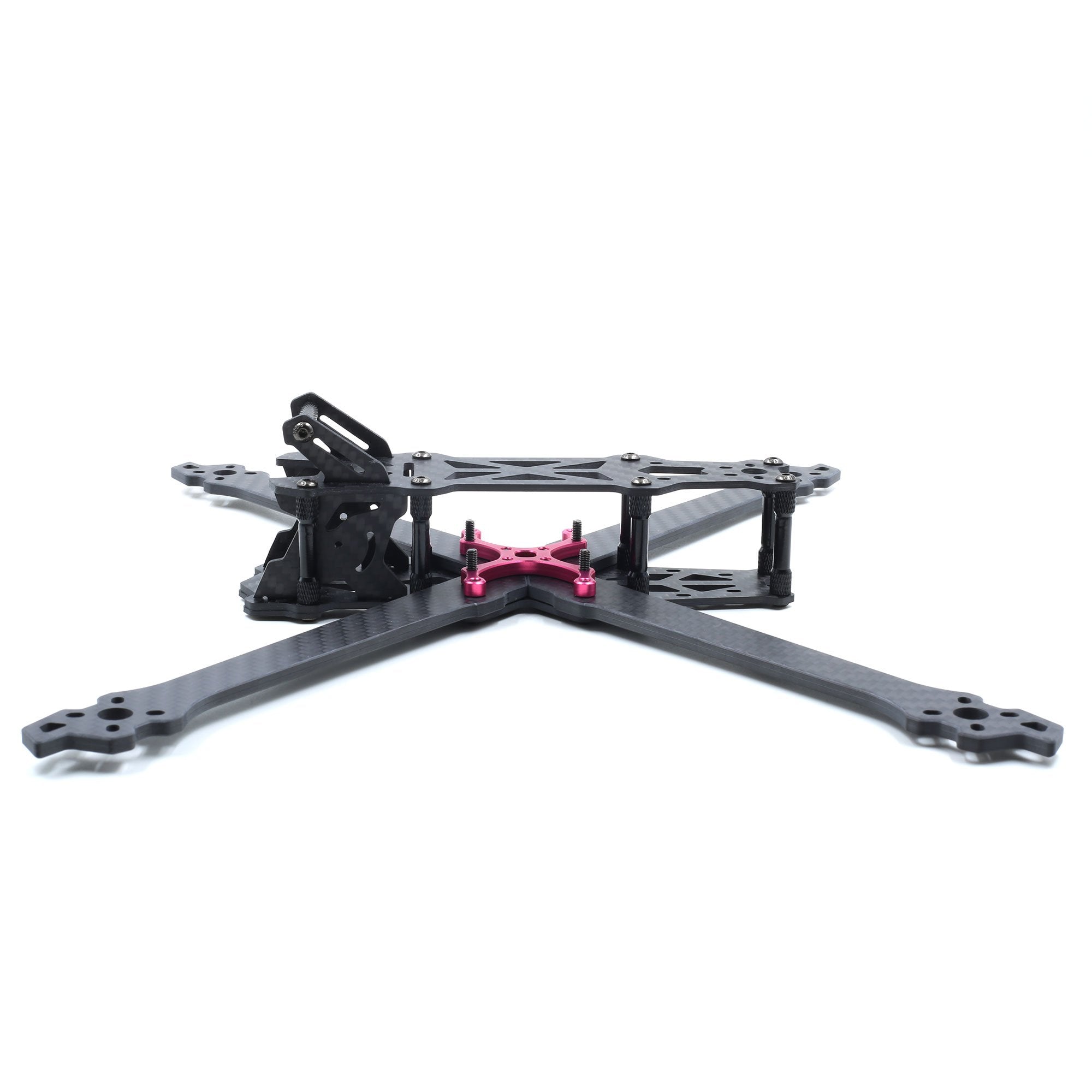

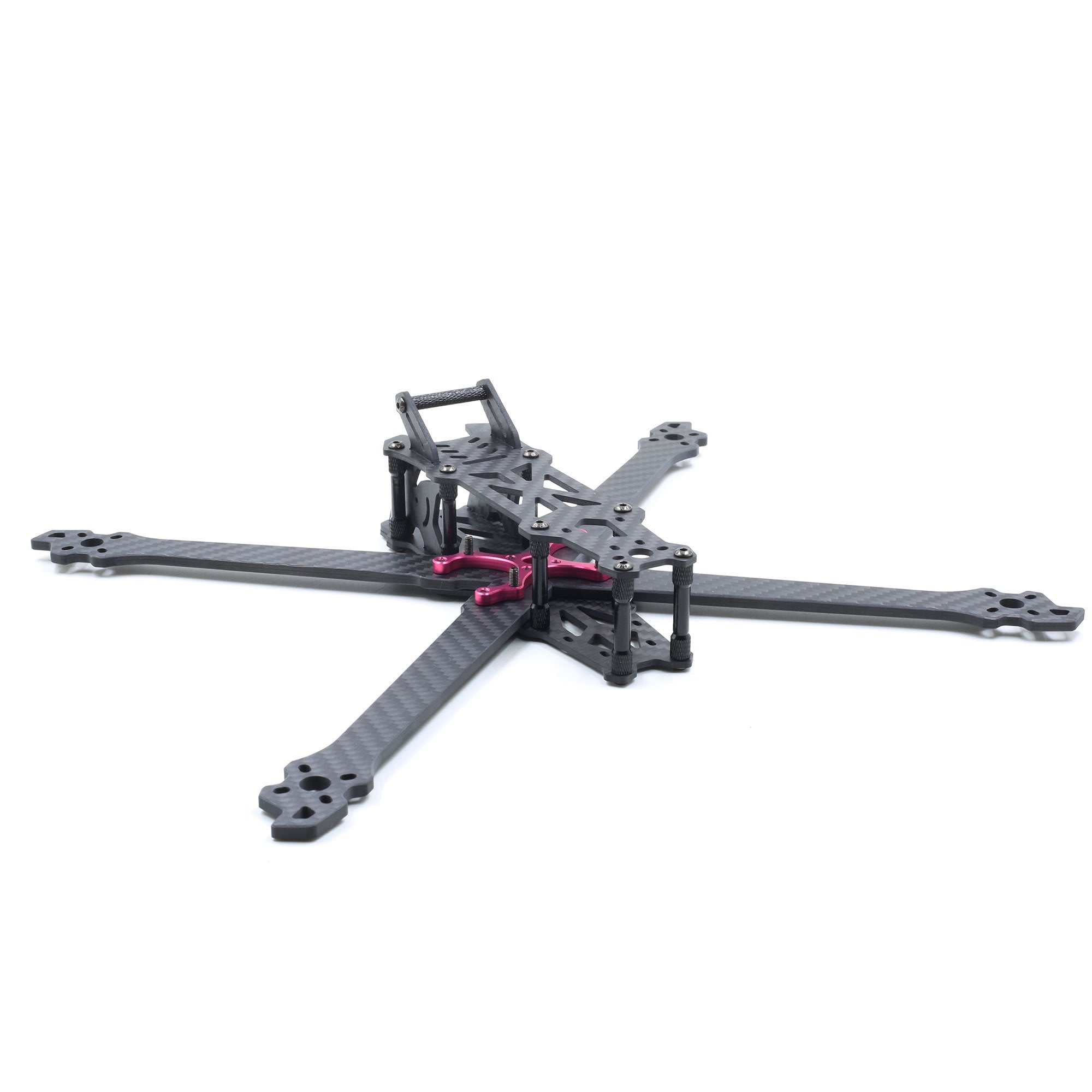

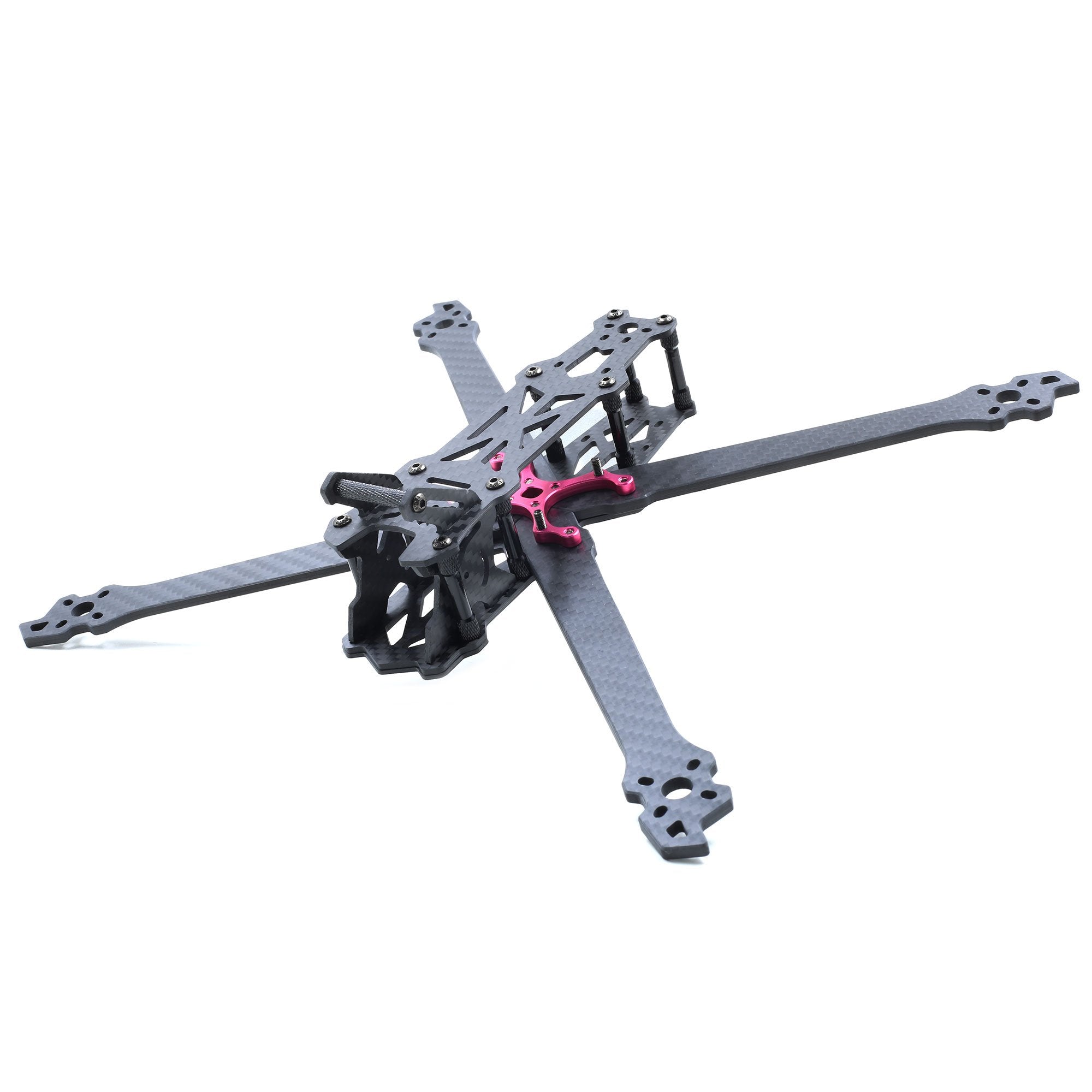

GEPRC GEP-Mark2-7 Frame｜FPV 機架

GEPRC GEP-Mark2-7 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

This is a frame designed for Freestyle, called “Mark2”. After repeated design adjustment and testing, finally finished, let us present to you.

Although Mark2 is a regular rectangular frame, it still wants you to know its design features. A lot of mechanical shapes are added to the design, and the whole is very sexy and science fiction. The four arm and aluminum alloy parts are fixed, easy to replace the new machine arm, and the fixed performance is good. The camera position can be very good to protect the camera from damage

High-precision CNC aluminum alloy fixed parts, 3K full carbon fiber, 12.9 level YFS screw, give Mark2 to maintain strength advantage.

Enjoy long range FPV.

Specifications：

Name：GEP-Mark2-7

Weight：136~138g

Wheelbase：300mm

Props Size:

7inch

Size：265*230mm

Arms board:4mm

Base board:2mm

Bumper board:1.5mm

Recommended：

Flight Controller：Kiss/F4/F3/Naze32/ CC3D

Motors： 2206/2207/2305/2306/2407

ESC：35A-50A

Propeller：7inch

Battery: 4S 1500mAh ~ 6S 1800mAh

Features:

1.Designed for the design of Freestyle, exquisite design

2.The battery is mounted on top, balanced

3.Two kinds of video camera fixed mode, easy installation

4.High quality 3K full carbon fiber board, high precision CNC aluminum alloy parts, simple structure and strong

5.30mm height makes the frame more stable

6.The arm is at the narrowest point of 13.5 mm, the wind resistance is smaller, but more commuted arm, easy to maintain

7.1.5mm protection bar, ensure the flight control and other parts of the fuselage are not damaged during collision and landing

8.YFS screw, 12.9 hardness

9.With a PDB board, integrated XT60, with BEC(5/12v output)

Includes:
