GEPRC 官方GPS 定位模組，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

Hello FPV fans, GEPRC team has developed a GPS module to upgrade the user experience.

GEP-M8U GPS module features as small size, light weight, fast positioning and stable connection. Suitable for FPV, fixed-wing and other products.

Specifications

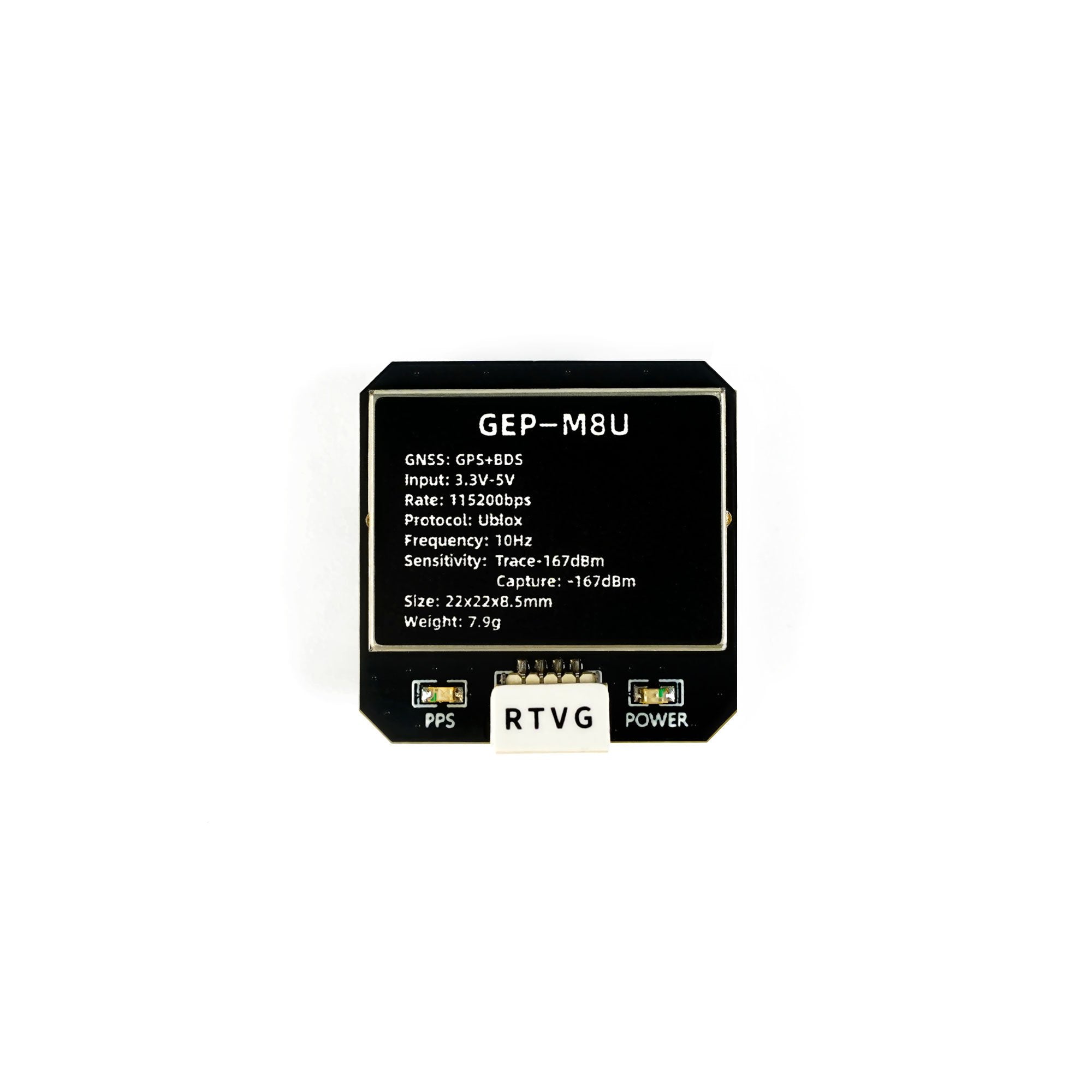

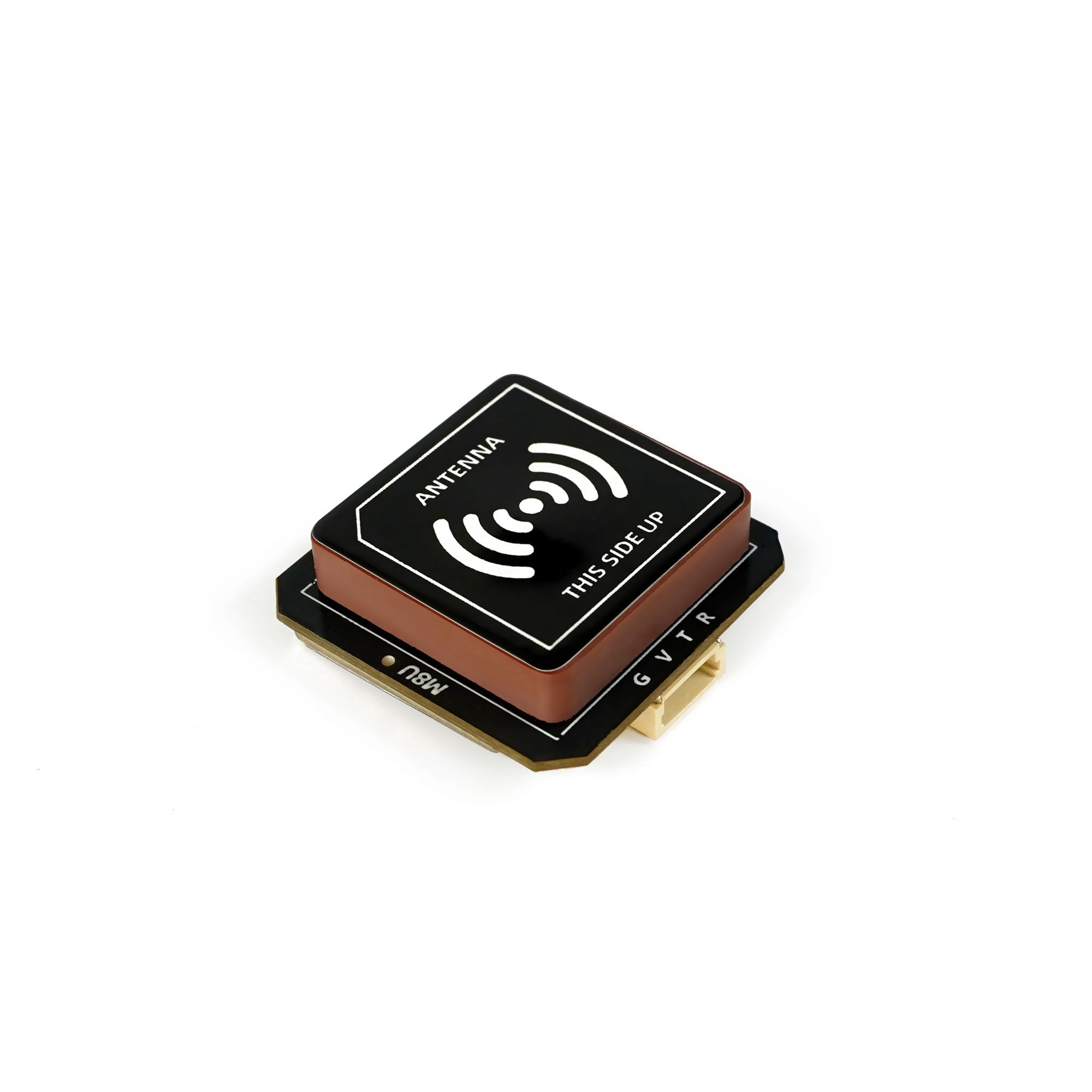

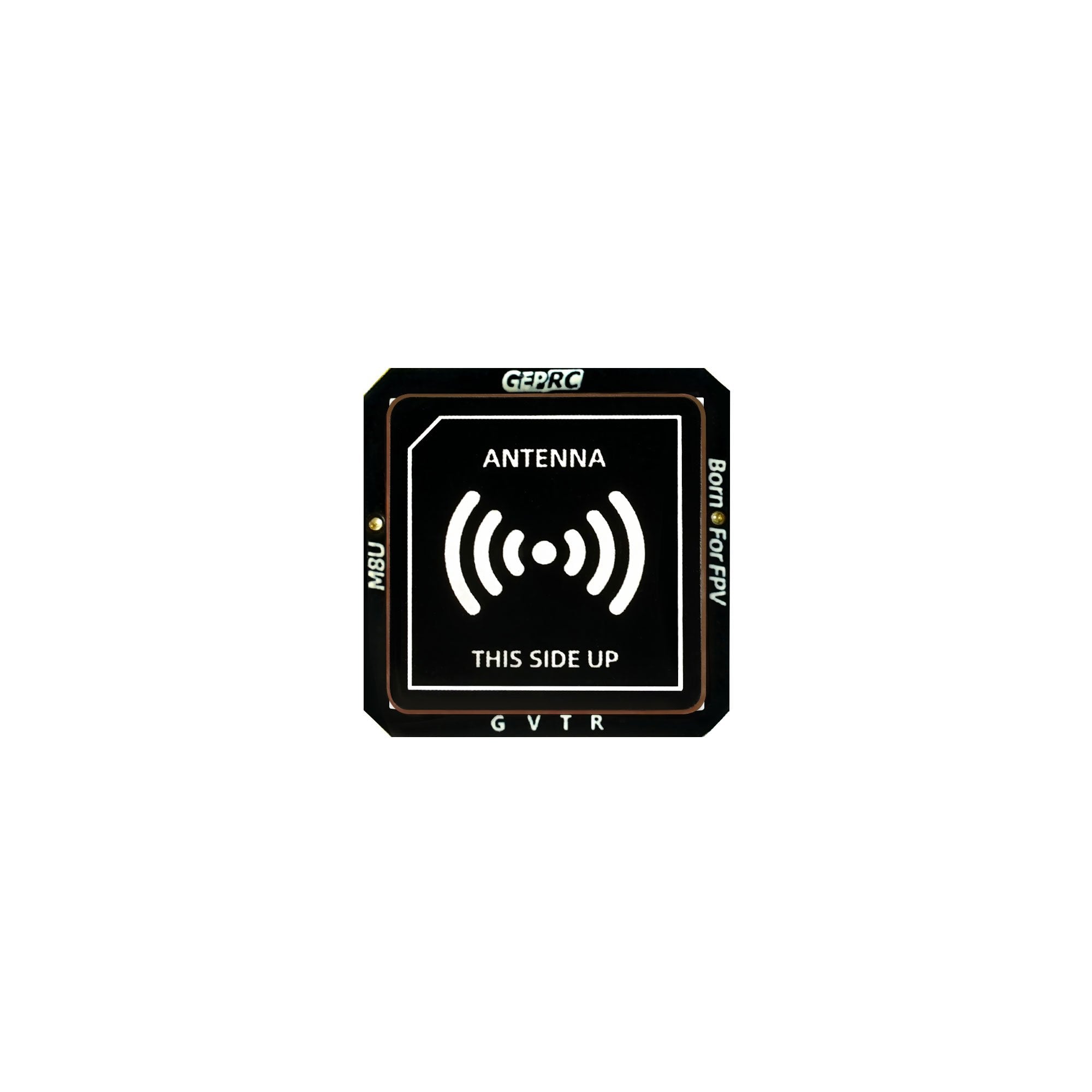

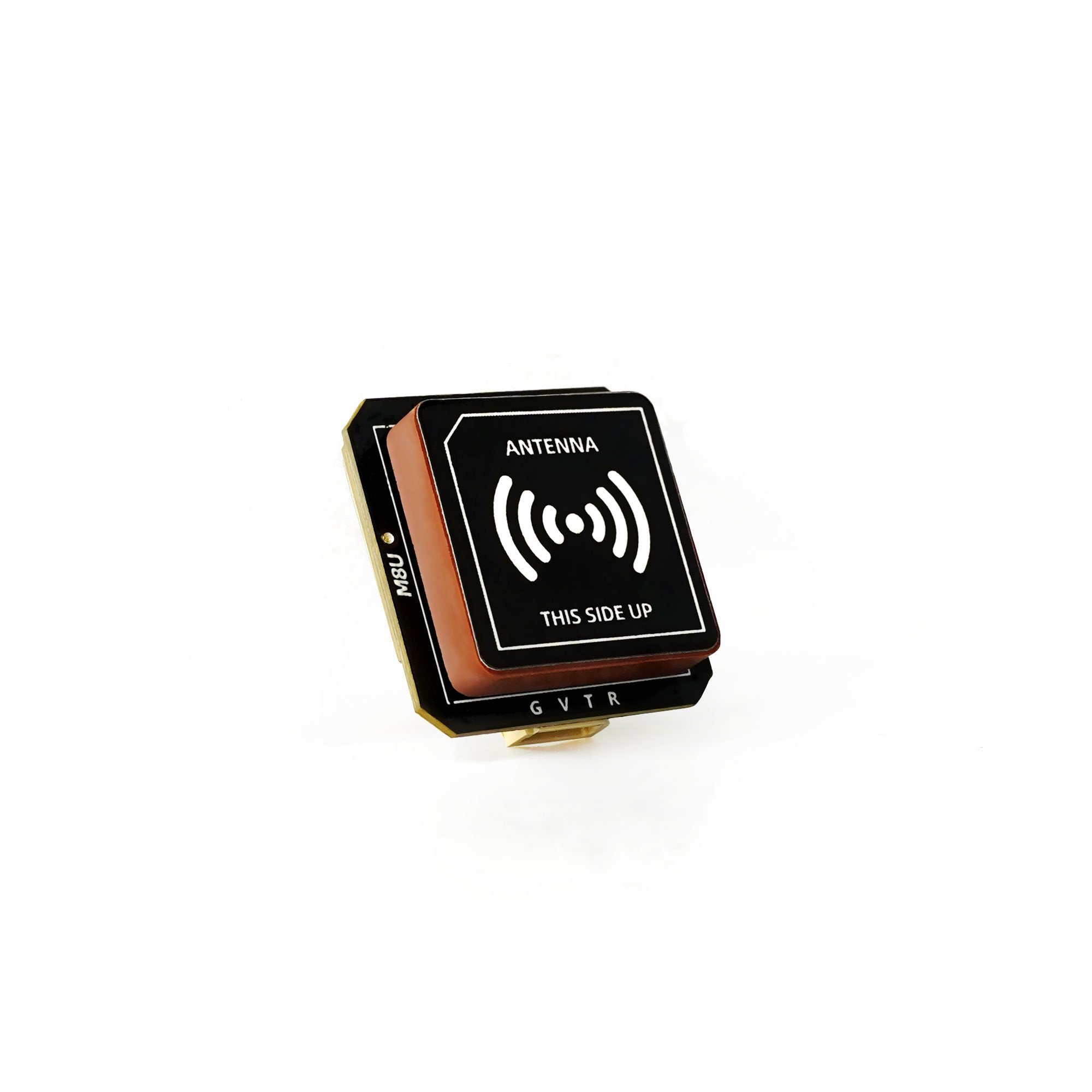

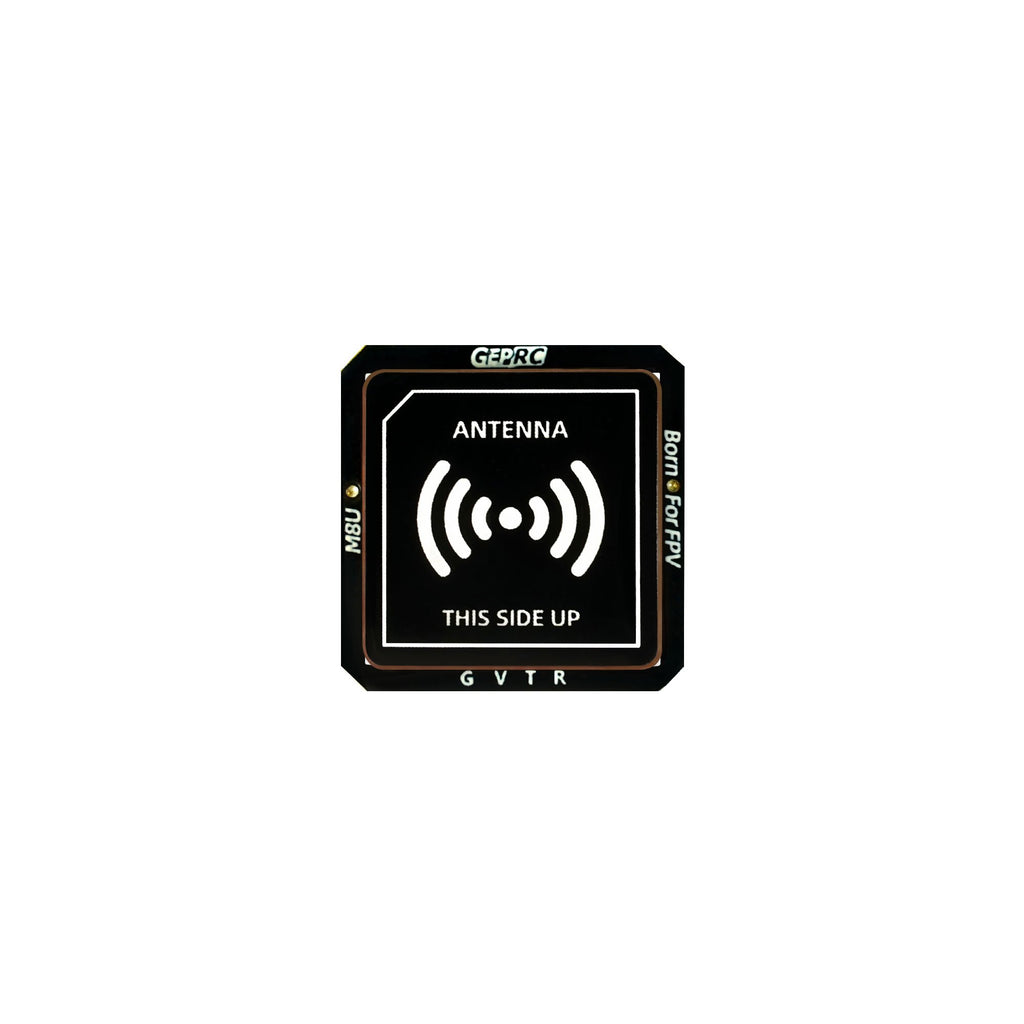

Model: GEP-M8U GPS module

Input Voltage: 3.3V-5V

Receiving Format: GPS, GLONASS, BDS(Choose GLONASS or BDS)

Channel: 72ch

Compass: None

Baud Rate: 115200bps

Output Connector: SH1.0-4P

Communication Protocol: UART

Output Protocol: UBLOX

Output Frequency: 10Hz

Speed Accuracy: 0.05 m / s

Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M

Timing Accuracy: 30 ns

Receiving Sensitivity: Trace -162dBm, Capture-160dBm

Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s

Max Acceleration: 4G

Size: 22mm x 22mm x 8mm

Weight: 7.9g

Feature

1. Fast positioning speed

2. Stable connection

3. Unique appearance design

4. Small size and light weight

5. SH1.0-4Pin terminal design, no soldering required.

6. On-board PPS positioning and power indicator, easy to use.

Includes

1 x GEP-M8U GPS module

1 x SH1.0-4Pin terminal cable

1 x GPS user manual
