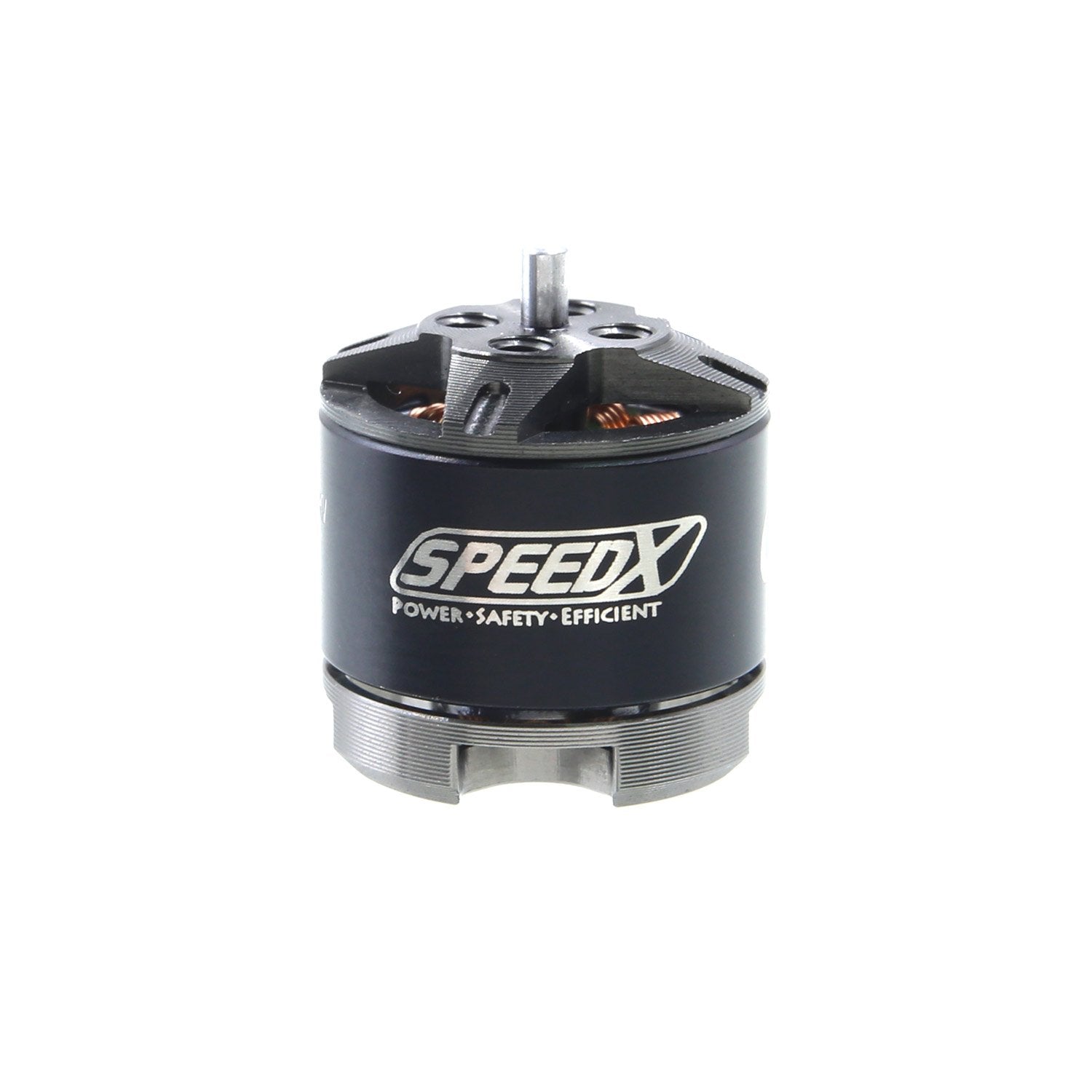

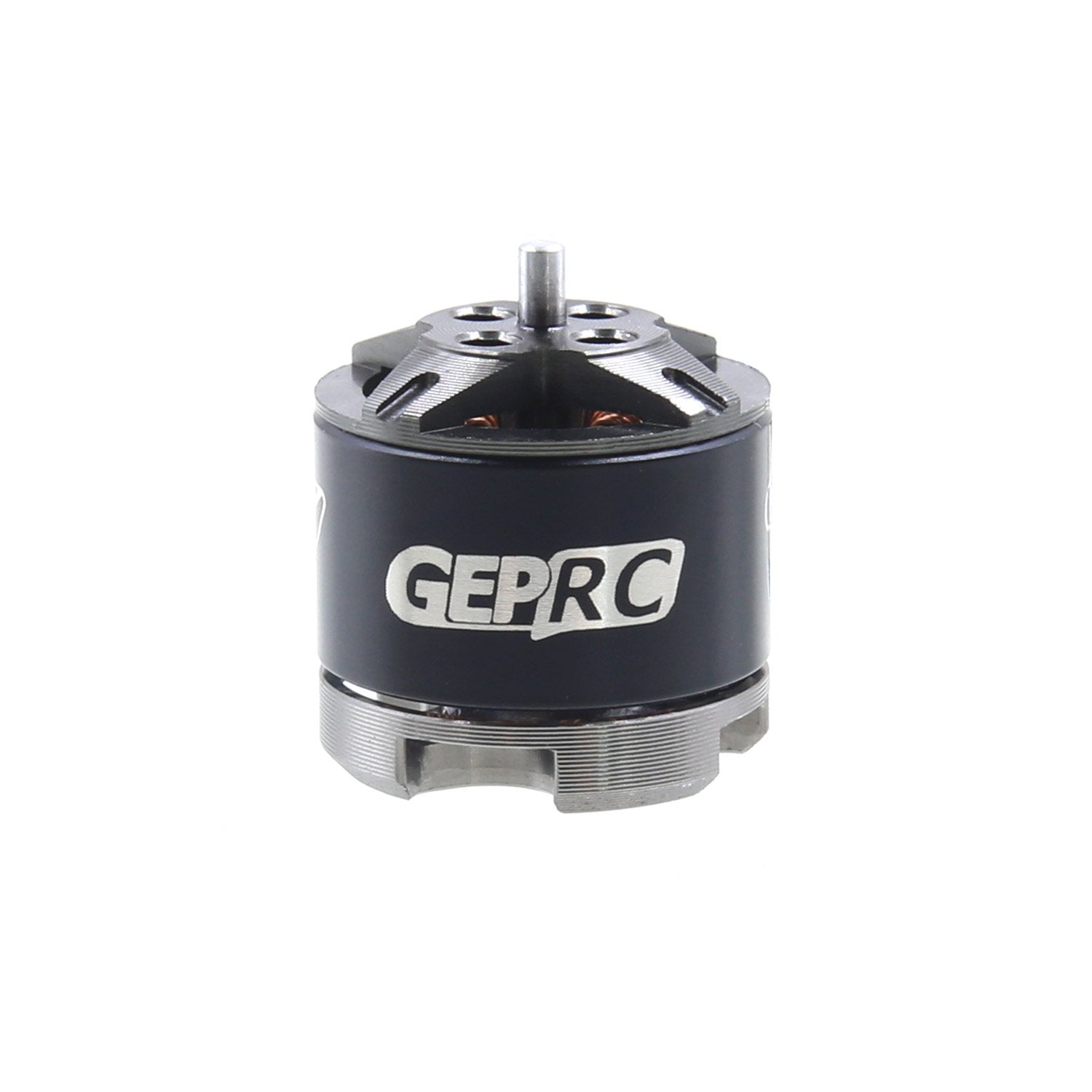

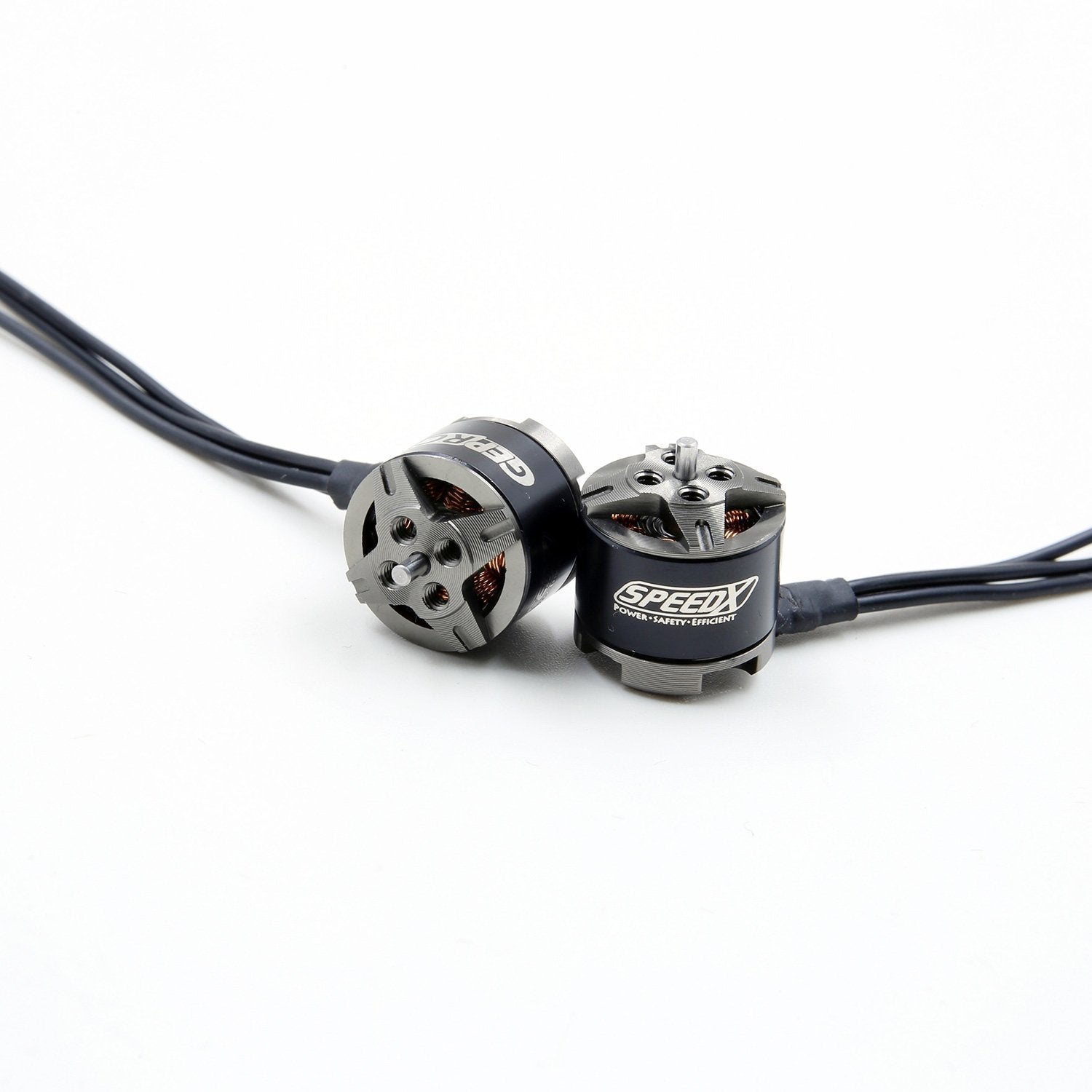

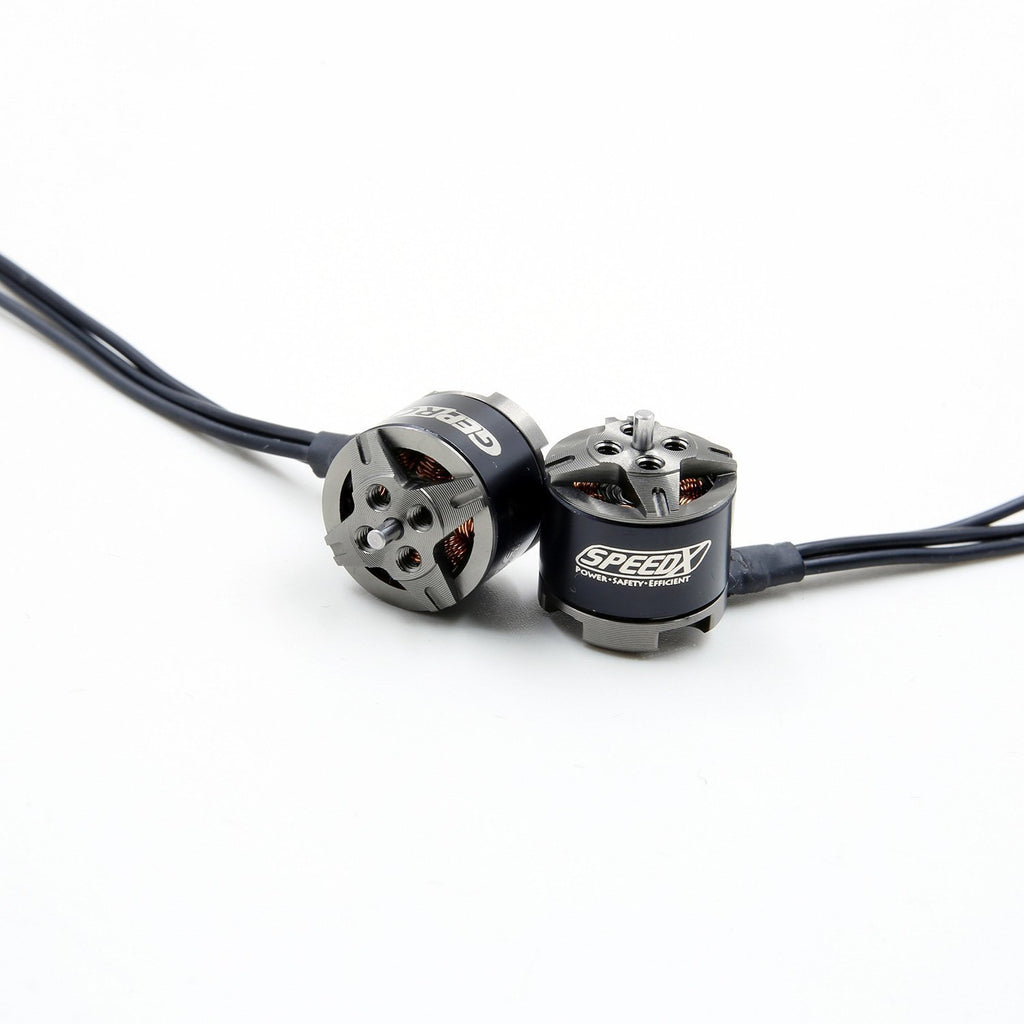

GEPRC GEP-GR1106 4500kv Motor｜無刷馬達

GEPRC GEP-GR1106 4500kv Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

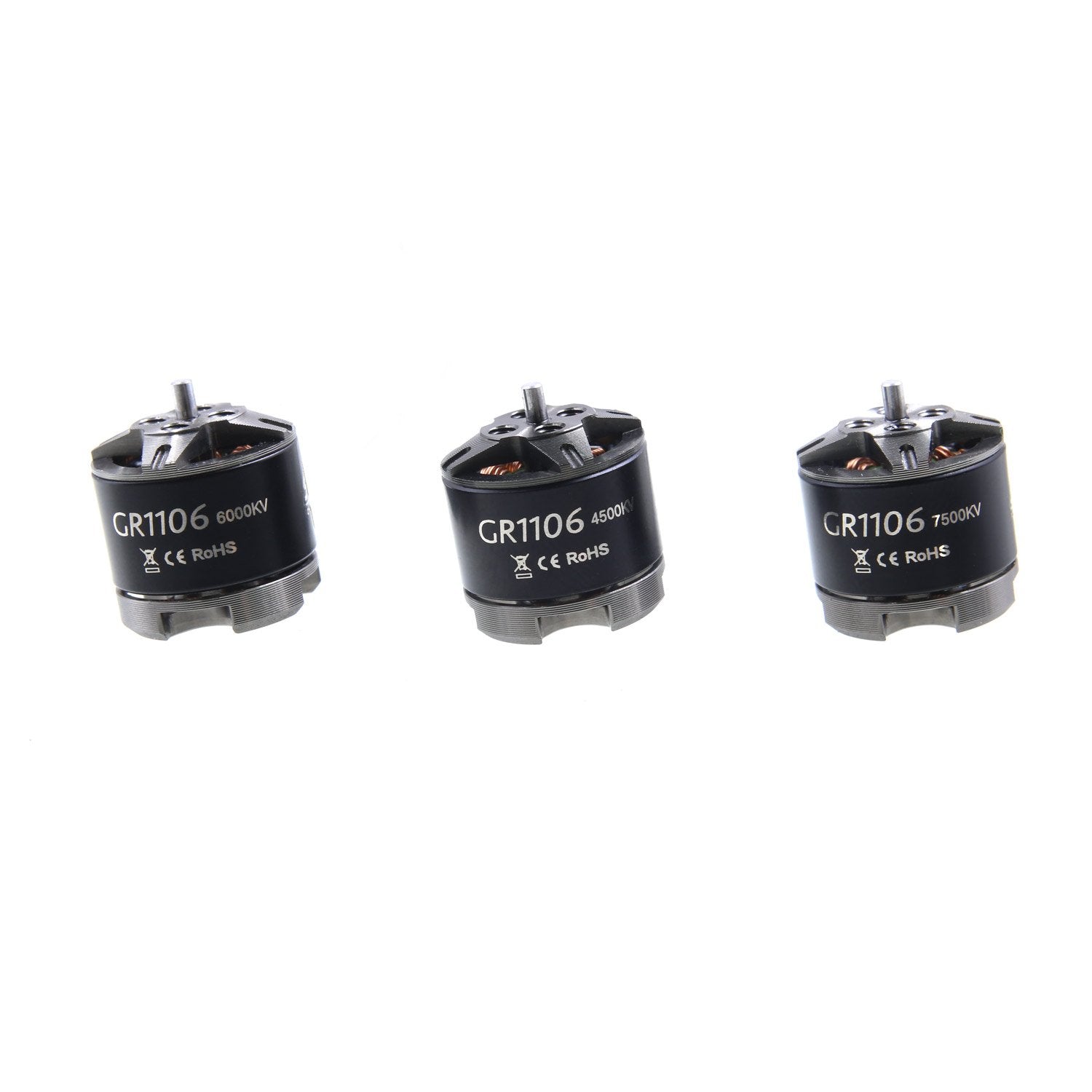

GEP-GR1106 is a small motor designed by our GEPRC team for interior design, which have three kv choice. It’s 4500kv, 6000kv, 7500kv. Each KV has its own usage and collocation.4500kv is recommended to use 2-3 inch propeller, 3-4s battery.6000kv is recommends 2-2.5 inch propeller, 2-3s battery.7500kv is recommends 1.9-2.5 inch propeller, 2s battery.

Specifications

：

KV: 7500 / 3750 / 4500

CONFIGURATION: 9N12P

STATOR DIAMTER: 11mm

STATOR LENGTH: 6mm

SHAFT DIAMETER: 1.5mm

MOTOR DIMENSION(DIA.*LEN): Φ14.2*14mm

IDLE CURRENT (A): ≤

[email protected]

/ ≤

[email protected]

/ ≤

[email protected]

NO.OF CELLS(LIPO): 2~3S / 2~3S / 3~4S

MAX CONTINUOUS POWER: 94w / 183w /153w

INTERNAL RESISTANCE: 120mΩ / 170 mΩ / 266 mΩ

MAX CURRENT(180S): 11.72A / 15.27A / 9.59A

MAX EFFCIENCY CURRENT: 3.5 / 3.57 / 3.8

ROTOR: N50SH arc magnets

BEARINGS: NSK

BASE CASING: Al6061

WIRE AWG: 28AWG

WEIGHT: 7.1g

Features:

Full-body high precision CNC machining, high accuracy, high strength

The N50SH magnetic material is adopted to ensure the torsion and high temperature

The maximum pulling force through 340g+

Japan NSK bearing, ensure the smooth running of the motor

Weight only 6.8g (excluding wire)
