GEPRC Fettec G4 Alpha GF50A STACK

GEPRC Fettec G4 Alpha GF50A STACK|飛控電變飛塔

訂金預購
$1,734.00
跳到商品資訊
GEPRC Fettec G4 Alpha GF50A STACK

GEPRC Fettec G4 Alpha GF50A STACK|飛控電變飛塔

$1,734.00
付款方式

商品價格與庫存以實際確認為準;如遇缺貨或價格異常,我們將主動聯絡並提供退款或取消訂單。

GEPRC Fettec G4 Alpha GF50A STACK|飛控電變飛塔

GEPRC 官方飛控電變飛塔,已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

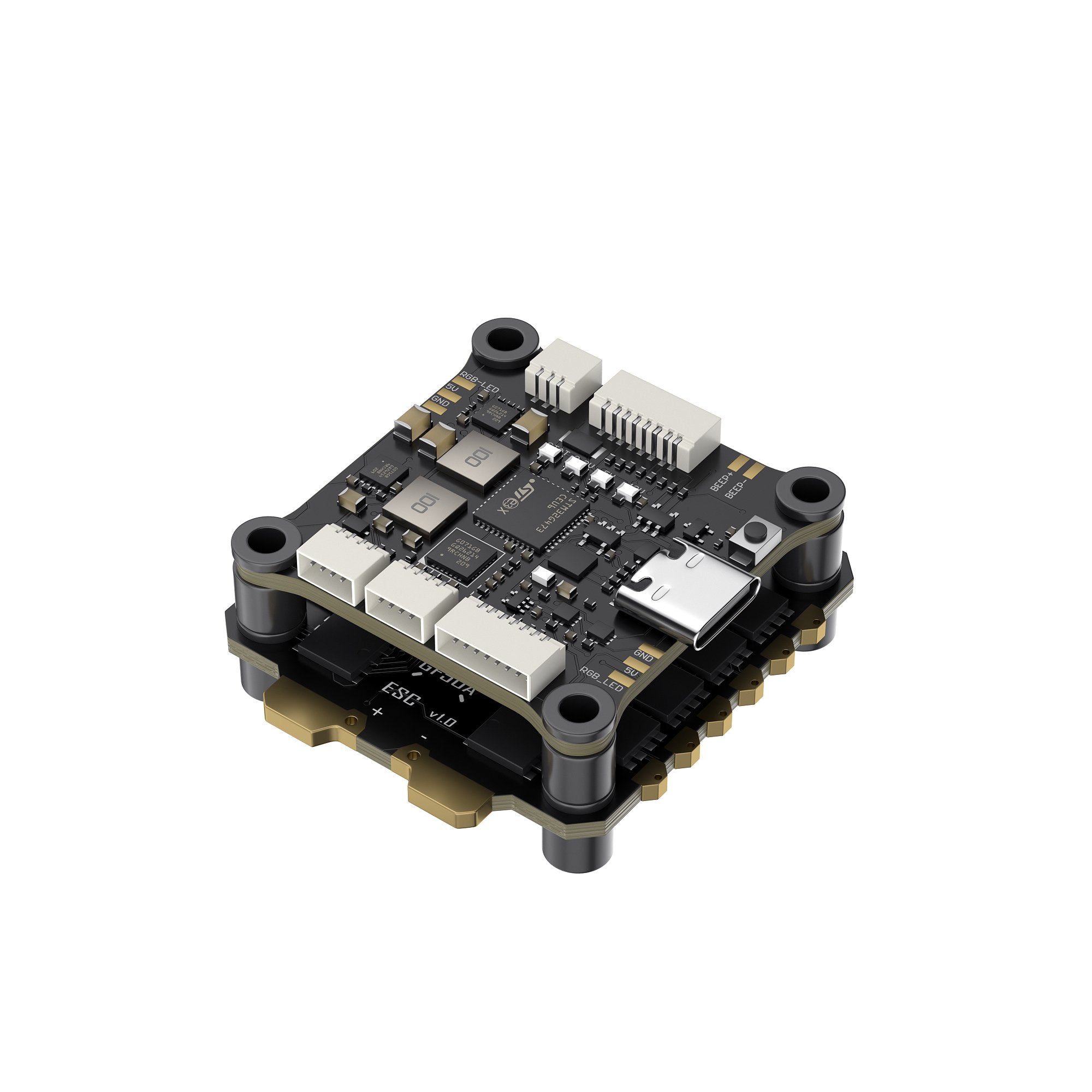

The co-branded GEPRC Fettec G4 Alpha GF50A stack by GEPRC and FETTEC has been released. The FC features a G473 main controller, built-in FETTEC Alpha firmware, and S2M or Dshot2400 high-speed protocol with GF50A ESC to achieve exceptional stability and lightning-fast responsiveness. Additionally, the powerful FETTEC closed-source firmware and feature-rich software will elevate your FPV flight experience to new levels.

Feature

The flight controller uses FETTEC Alpah firmware, the ESC uses FETTEC firmware, and supports high-speed protocols such as S2M and Dshot2400.

All flight control function interfaces support SH1.0 cable connection, which makes assembly without soldering wires more convenient.

High-definition analog two-in-one socket, supporting DJI digital image transmission and analog image transmission

The FC features high robustness to handle challenging situations, such as bent propellers caused by crashes, under harsh flight conditions.

Specifications

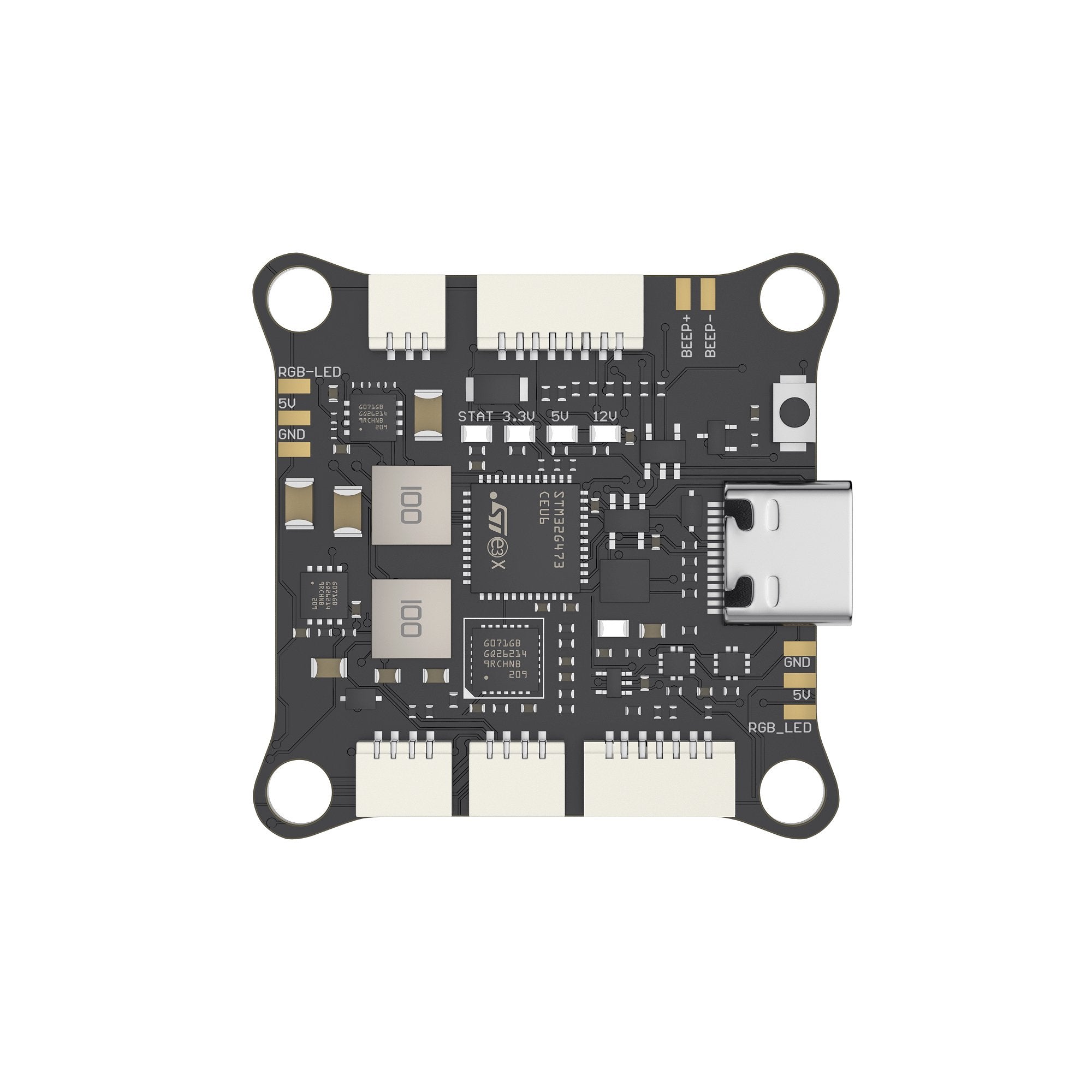

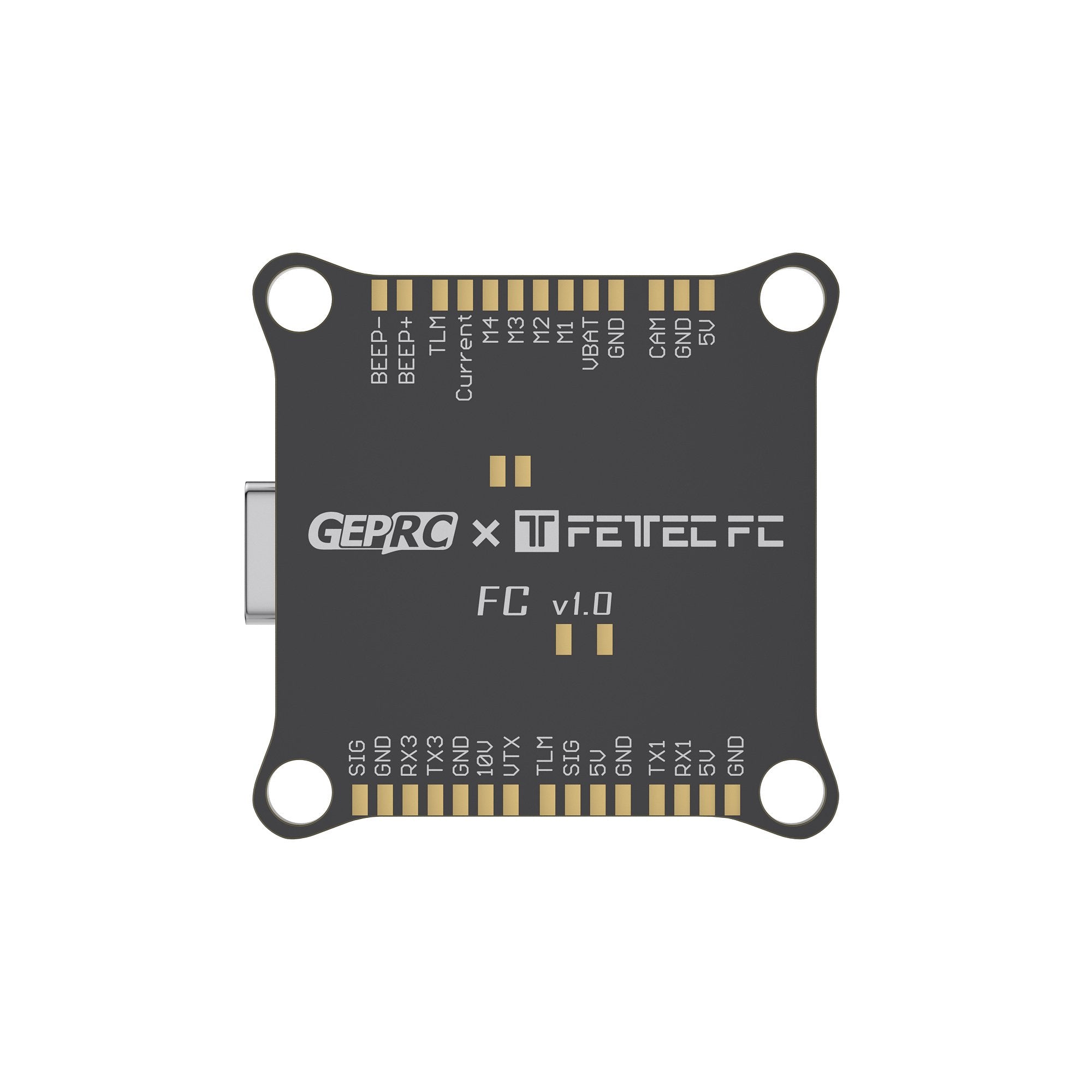

Model:GEPRC Fettec G4 Alpha

MCU:STM32G473CEU6

IMU:llM 42602

Firmware:FETTEC ALPHA

OSD:FETTEC OSD

External buzzer:YES

External LED :YES

USB Interface:TYPE-C

BEC Output:9v@2A MAX 2.5A 5V@2A MAX 2.5A

Weight:6.6g

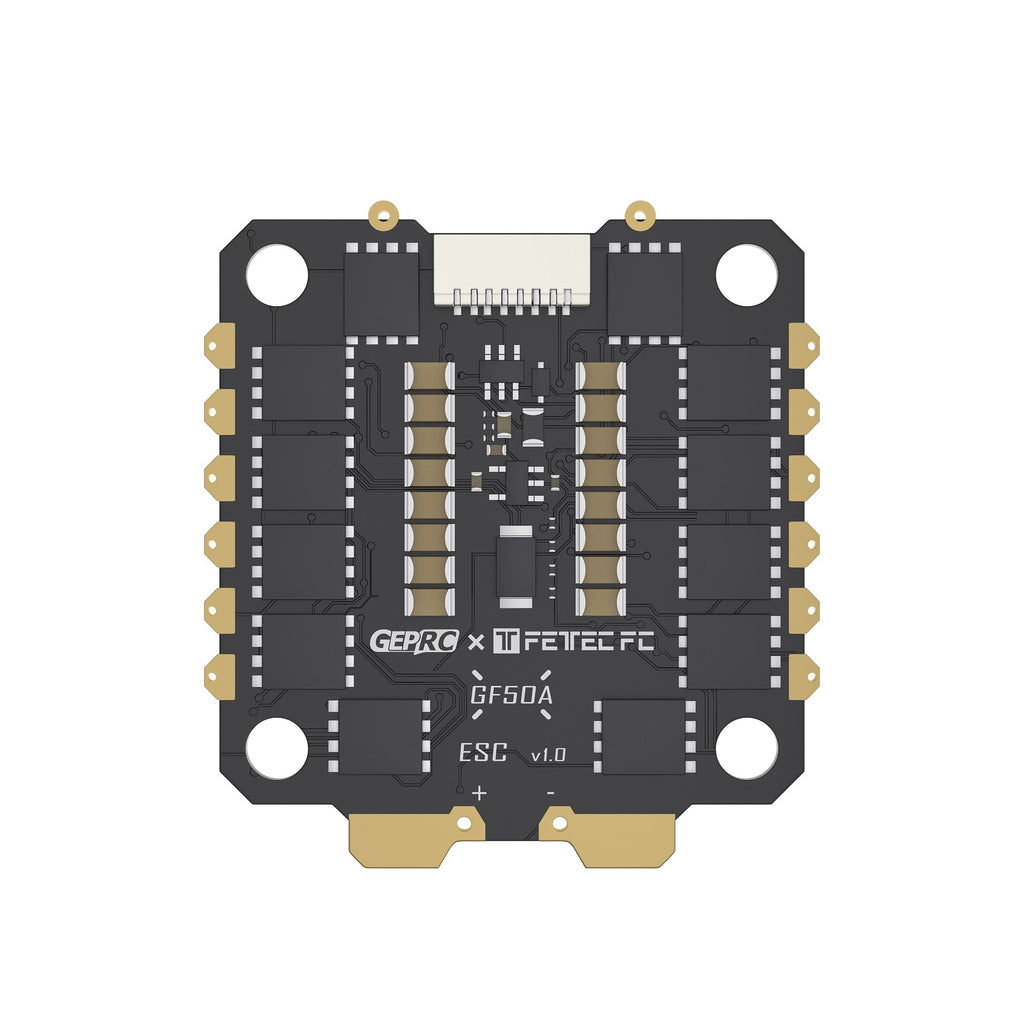

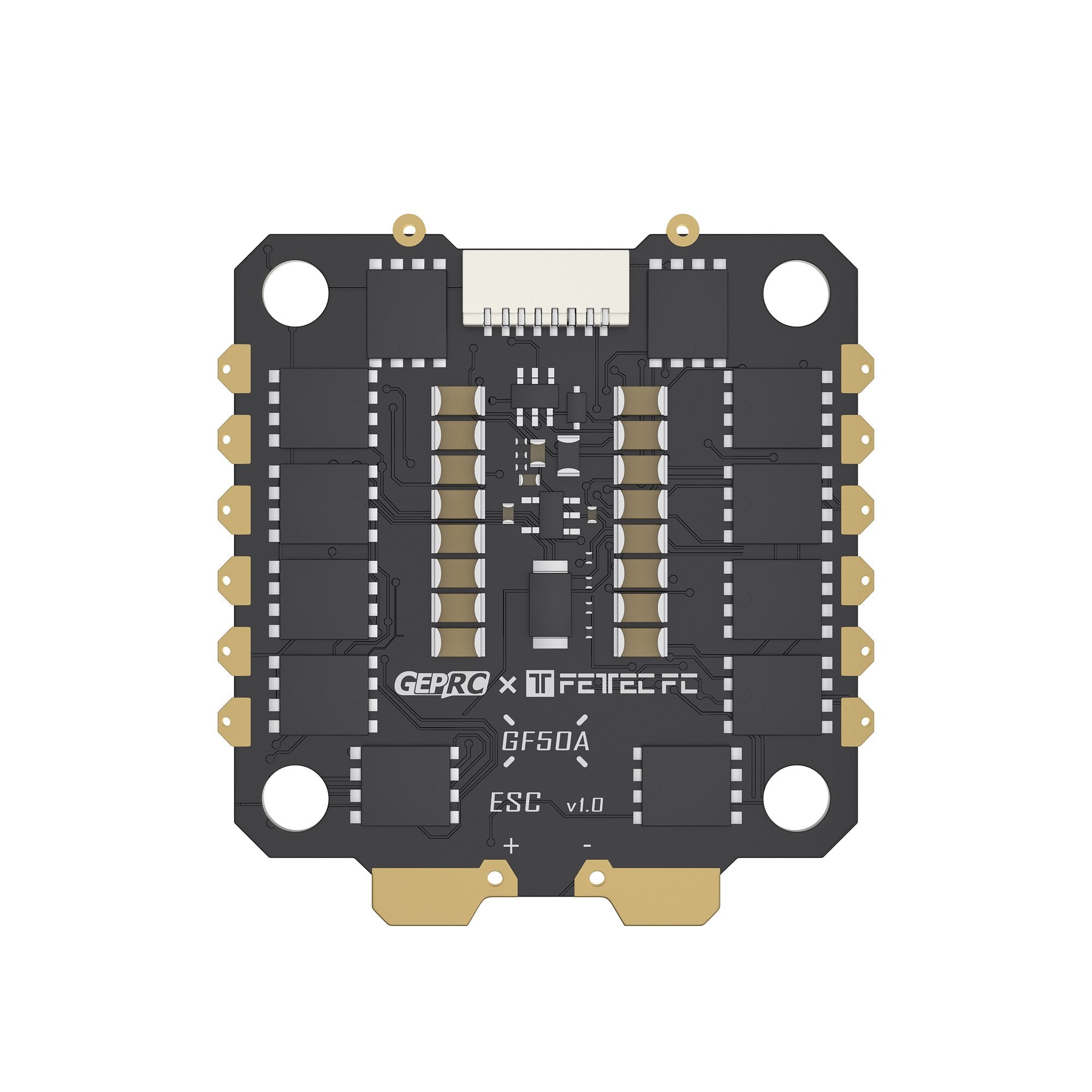

Model:GEPRC Fettec GF50A 4IN1 DShot2400 ESC

MCU: STM32G071

Continuous current: 50A

Peak current: 55A

Input: 2~6S (LIPO Battery)

Protocol: S2M+OW, S2M, Dshot300-2400

Galvanometer: YES

Firmware: FETTEC

Dimension: 32x32mm Board

Installation hole position: 30.5mmx30.5mm M4

Weight: 13g

Includes

1 x GEPRC Fettec GF50A 4IN1 DShot2400 ESC

1 x GEPRC Fettec G4 Alpha FC

2 x SH1.0-4Pin 100mm silicone wire

1 x SH1.0-6P to SH1.0-7Pin silicone cable 60mm

1 x SH1.0 8Pin 30mm silicone cable

1 x SH1.0 7pin to 6pin 80MM silicone cable

1 x XT60 power cable 110MM

1 x 35v 1000uf capacitor

4 x Hexagon socket screw M3*24

4 x Transparent color M3 nylon nut

10 x M3*8 damping ball

1 x Product manual
