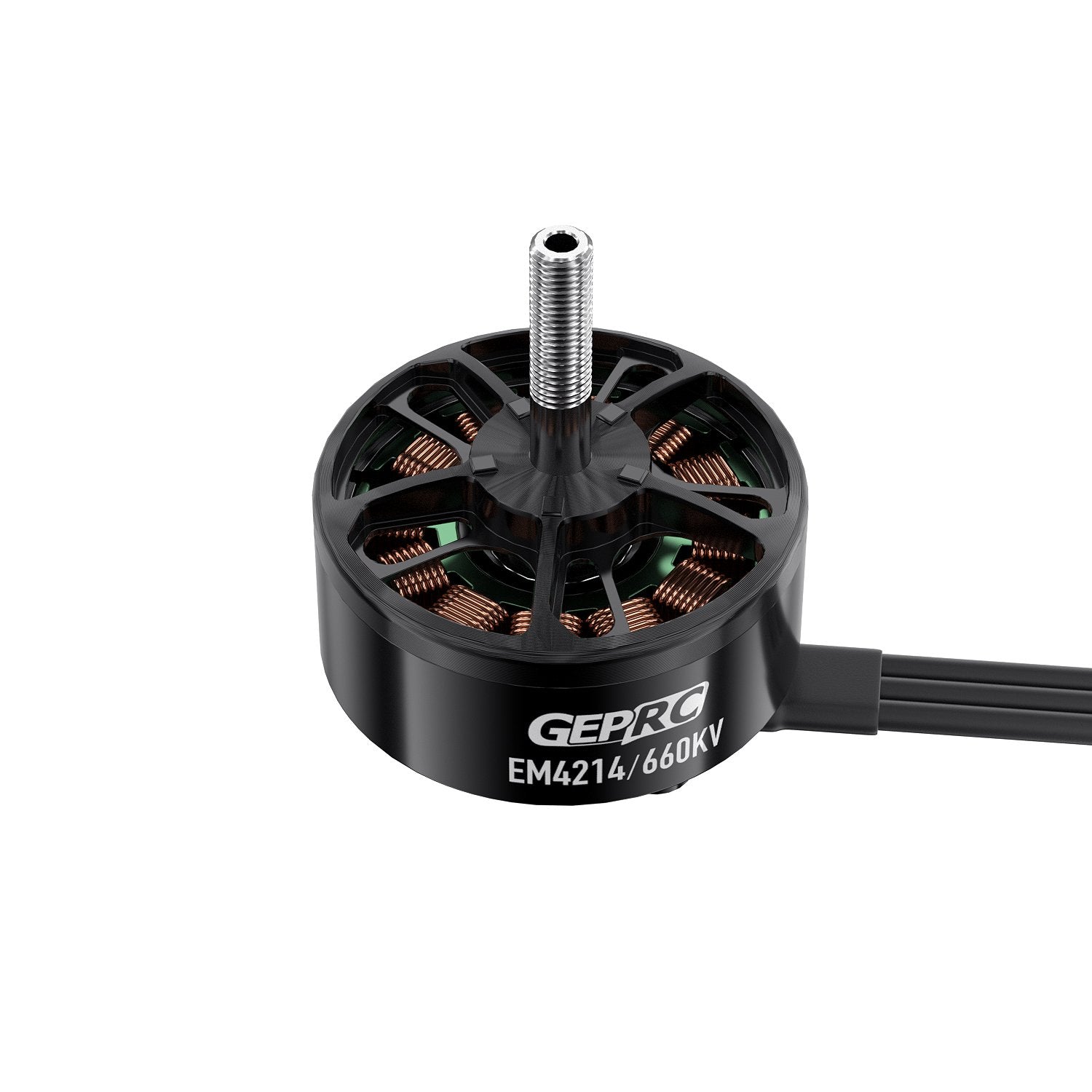

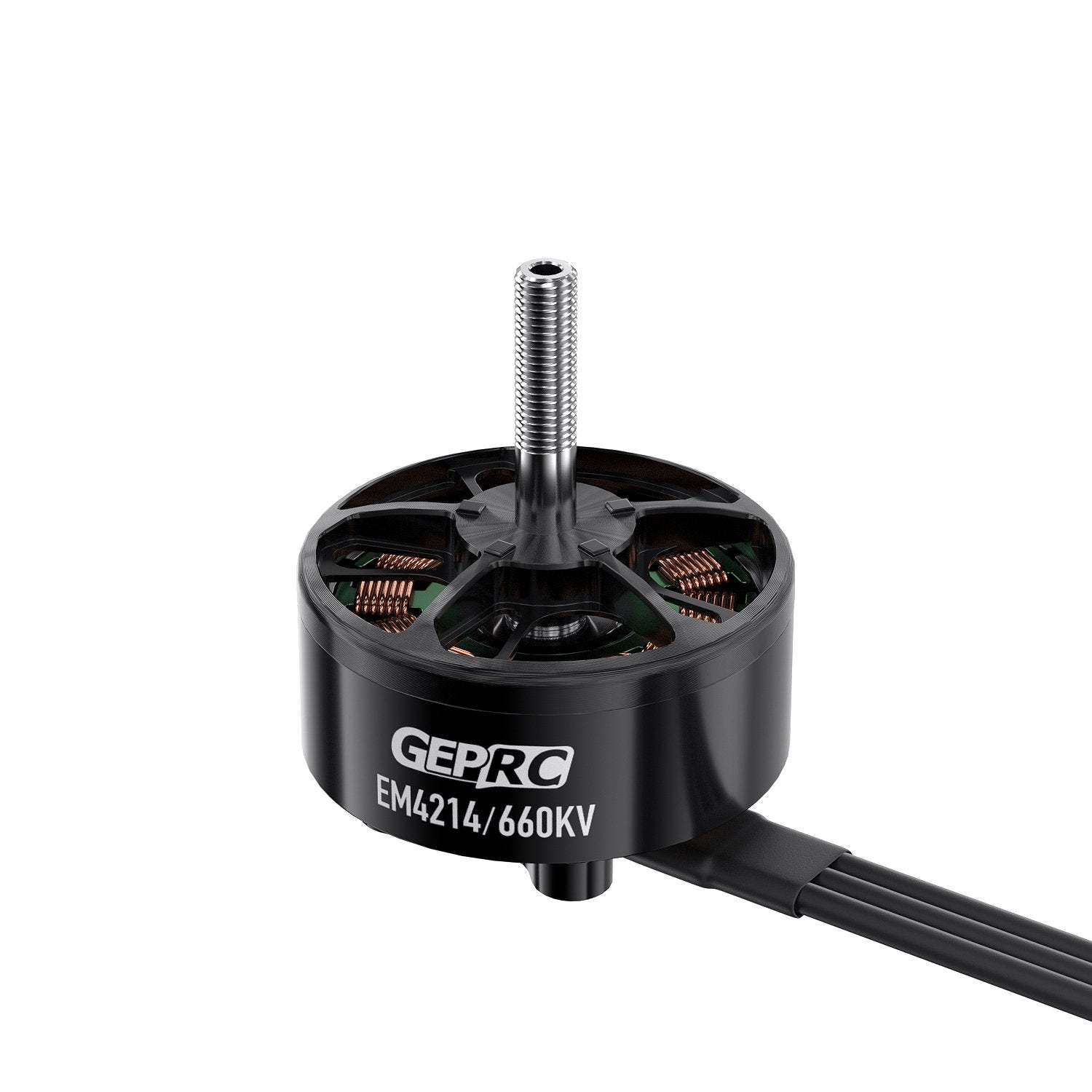

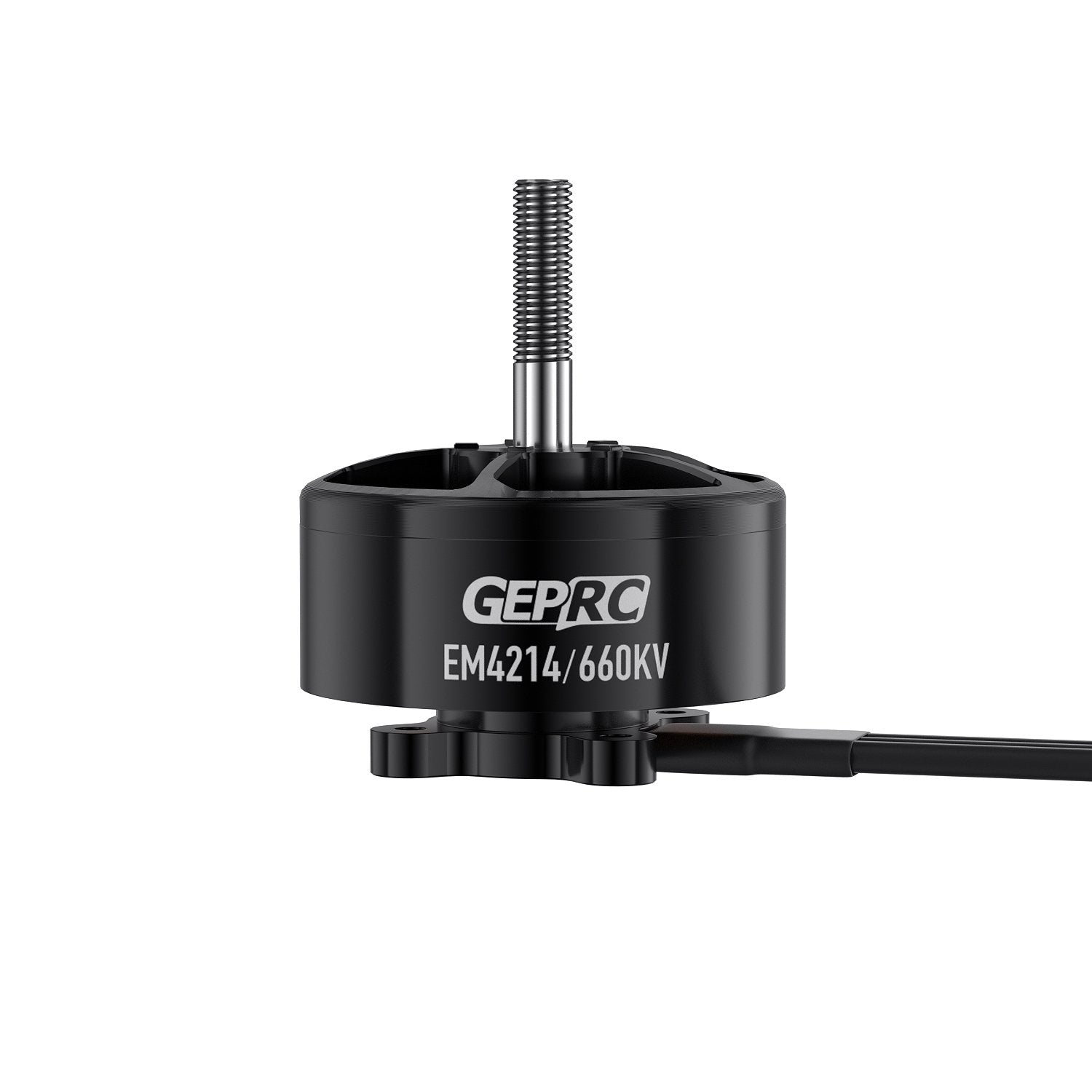

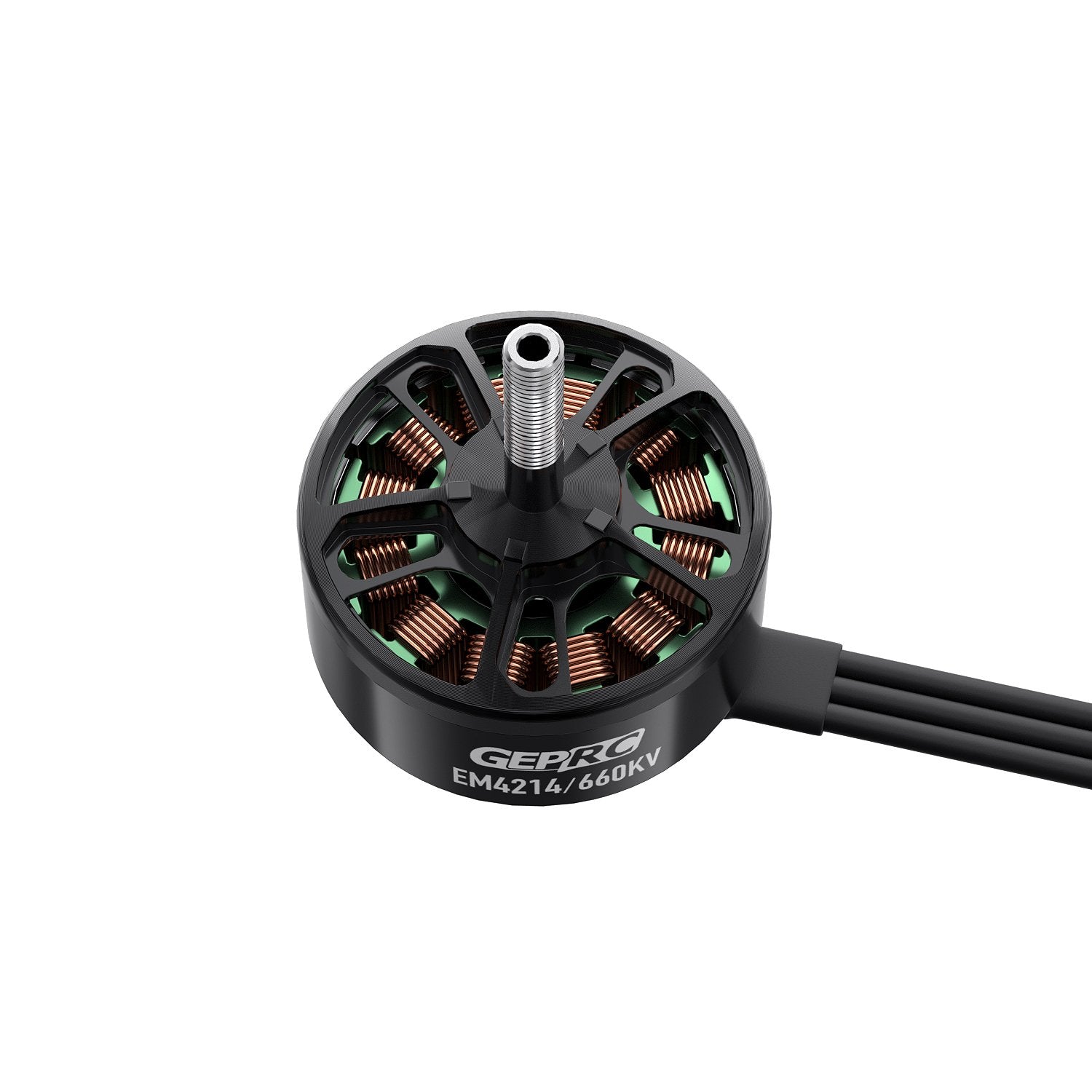

GEPRC EM4214 660KV Motor｜無刷馬達

GEPRC EM4214 660KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Feature

New EM series motors designed for long-range FPV

High-strength M6 steel shaft

High torque magnetic circuit design

Specifications

Model: EM4214 660KV Motor

KV: 660KV

Max Watt: 2120W

Peak Current: 90A

Interphase Resistance: 25mΩ

Propeller: 12-14inch Propeller

Magnet: N52H

Bearing Type: NMB

Configuration: 12N14P

Dimension: φ49mmx32.5mm

Shaft Diameter: φ6mm

Shaft Protruding Length: 25.5mm

Mounting holes: 30mmx30mm

Lead: 800mm/14AWG

Compatible ESC: 80A-100A

Input Volts: 25.2V(6S LiPo)

Winding: Single-strand copper winding

Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)

Weight: 246g(included wire)

Compatible Models: 12-14 inch long-range FPV

Includes

1 x EM4214 motor

4 x M4*12 round head screws

1 x M6 anti-slip nut
