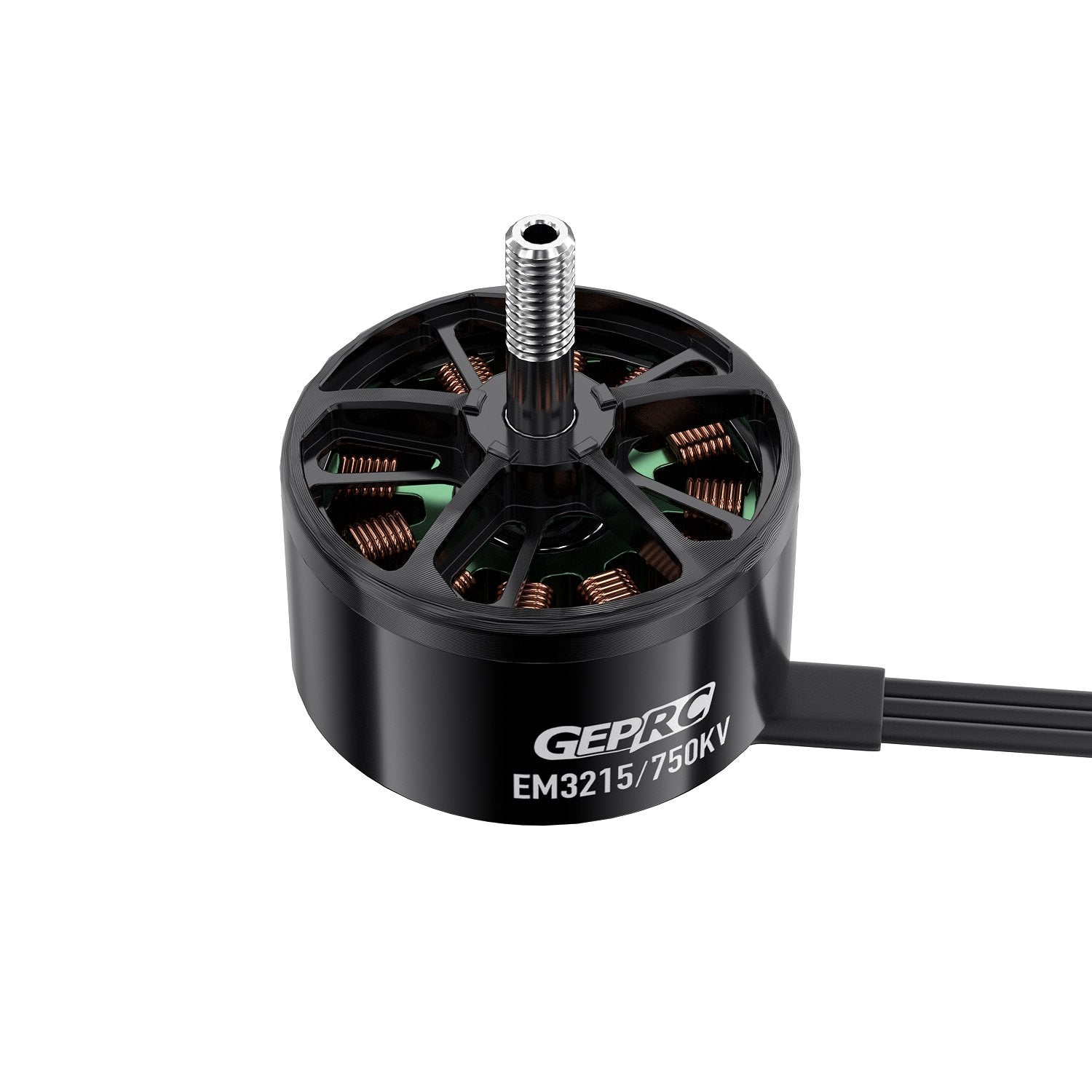

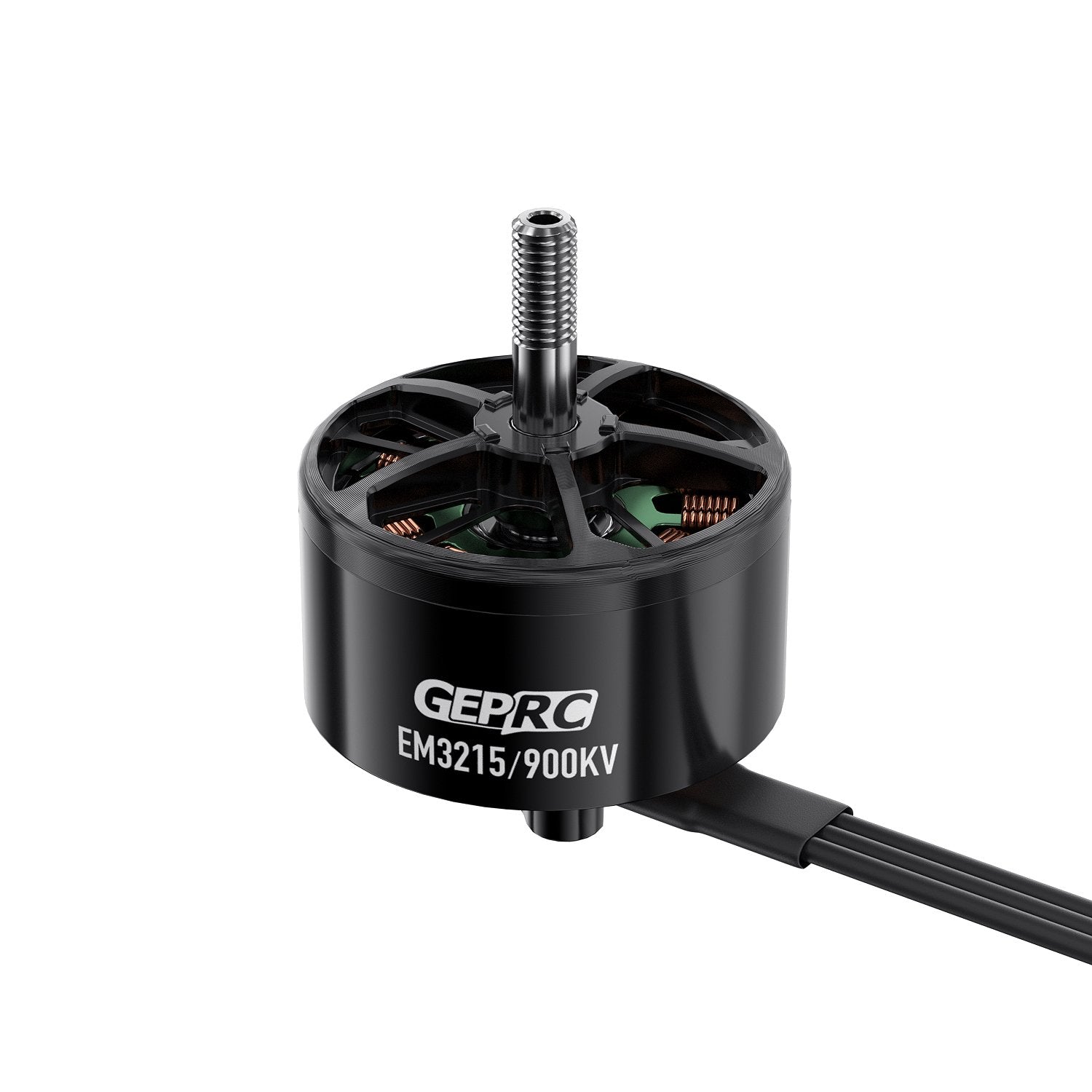

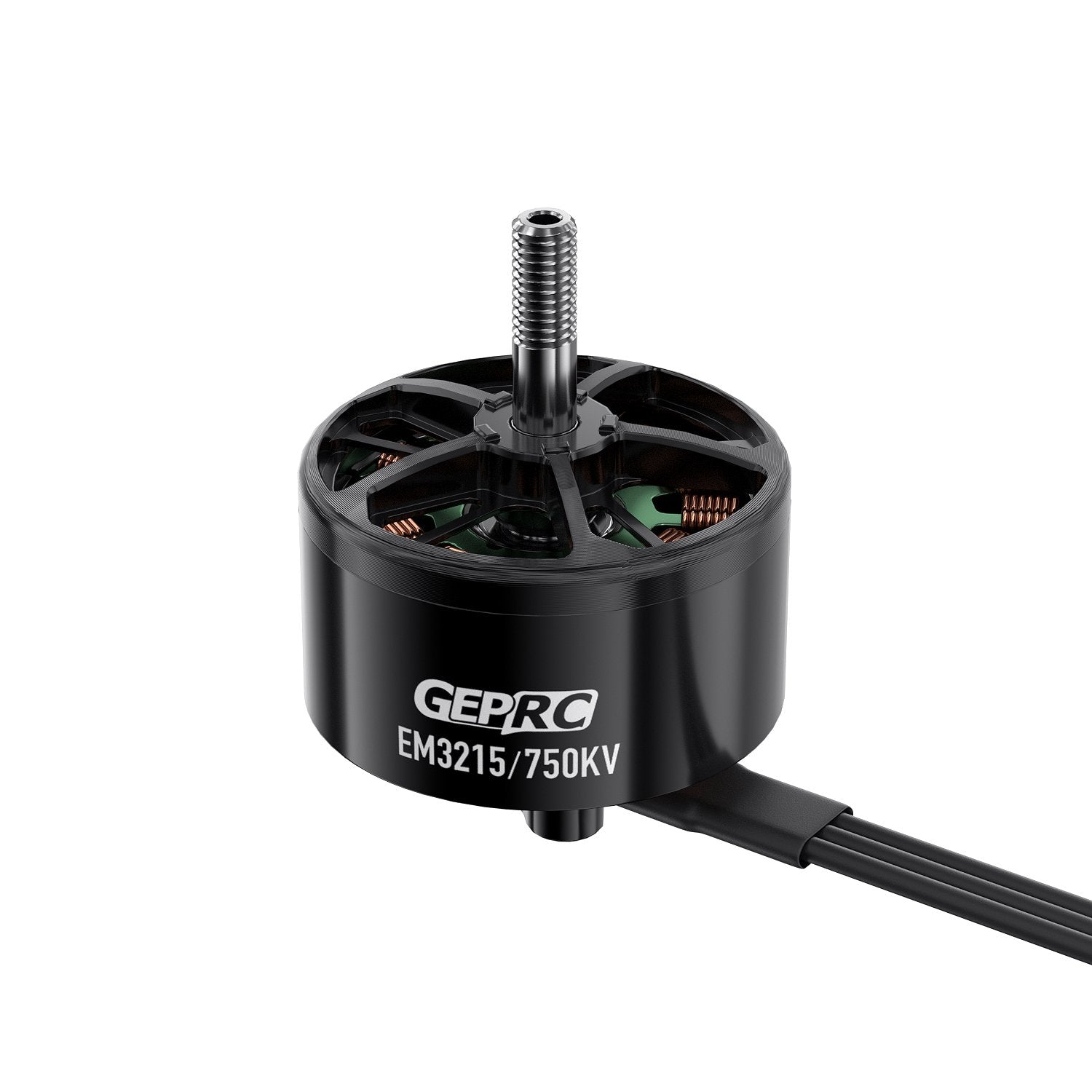

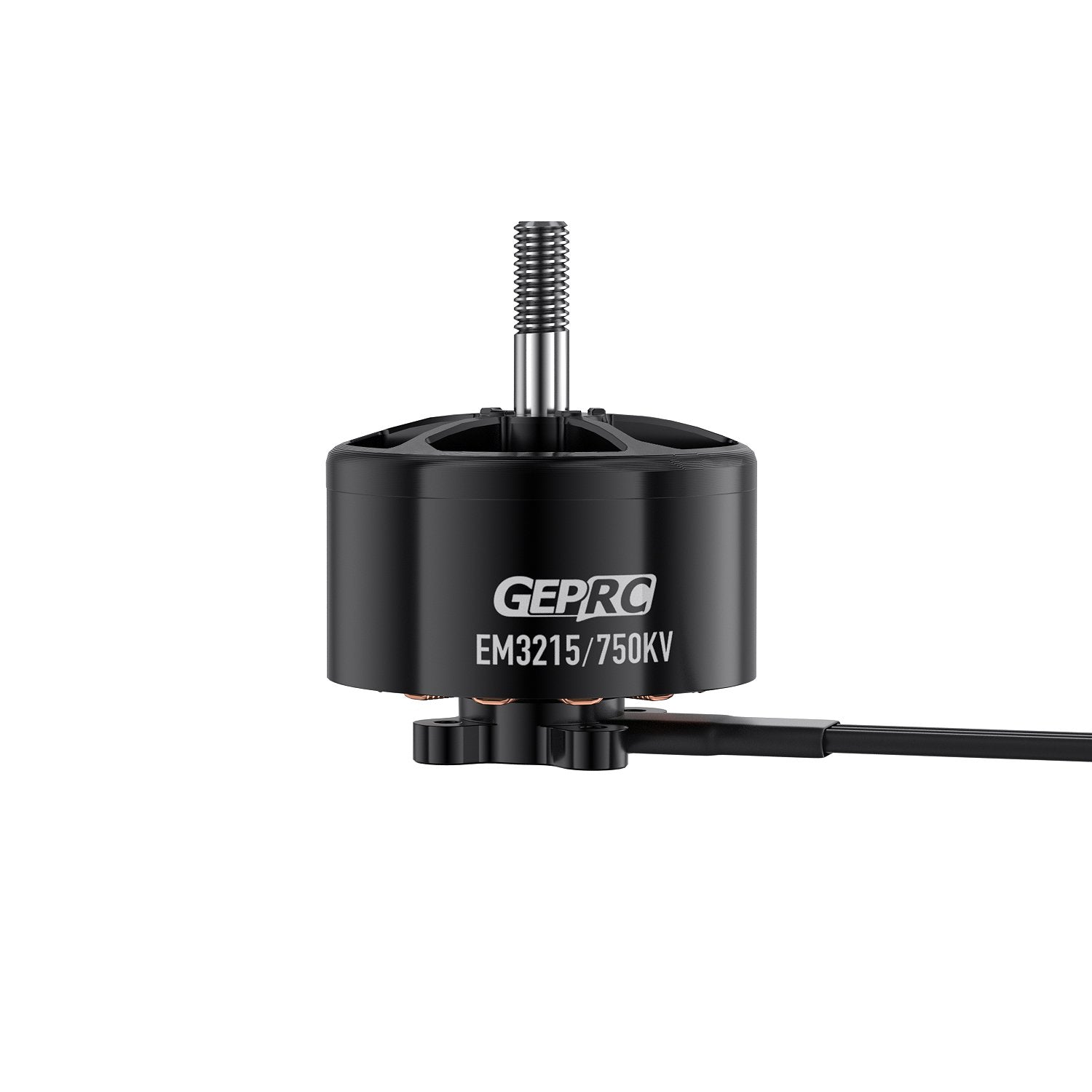

GEPRC EM3215 900KV/750KV Motor｜無刷馬達

GEPRC EM3215 900KV/750KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Feature

New EM series motors, designed for long-range FPV

High-strength M5 steel shaft

High-torque magnetic circuit design

19mmx19mm base

Specifications

ITEM:EM3215 900KV

Model: EM3215 900KV Motor

KV：900KV

Max Watt: 1780W

Peak Current: 75A

Interphase Resistance: 33mΩ

Propeller: 9-10inch Propeller

Magnet: N52H

Bearing Type: NMB

Configuration: 12N14P

Dimension: φ38.6mmx30.7mm

Shaft Diameter: φ5mm

Shaft Protruding Length: 17.2mm

Mounting Hole Size: 19mmx19mm

Lead: 300mm/18AWG

ESC: 60A-80A

Input Volts: 25.2V（6S LiPo)

Winding: Single-strand copper winding

Screws Included: Round head M3*8 (4PCS) / M5 flange nut (1PCS)

Weight: 122g(included wire)

Compatible Models: 9-10 inch long range FPV

ITEM:EM3215 750KV

Model: EM3215 750KV Motor

KV: 750KV

Max Watt: 1450W

Peak current: 61A

Interphase Resistance: 43mΩ

Propeller: 10-inch Propeller

Magnet: N52H

Bearing Type: NMB

Configuration: 12N14P

Dimension: φ38.6mmx30.7mm

Shaft Diameter：φ5mm

Shaft Protruding Length: 17.2mm

Mounting Hole Size: 19mmx19mm

Lead: 300mm/18AWG

ESC: 60A-80A

Input Volts: 25.2V（6S LiPo)

Winding: Multiple-strand copper winding

Screws Included：Round head M3*8 (4PCS) / M5 flange nut (1PCS)

Weight (with wire)：122g

Compatible models: 10-inch long-range FPV

Includes

1 x EM3215 motor

4 x M3*8 round head screws

1 x M5 anti-slip nut
