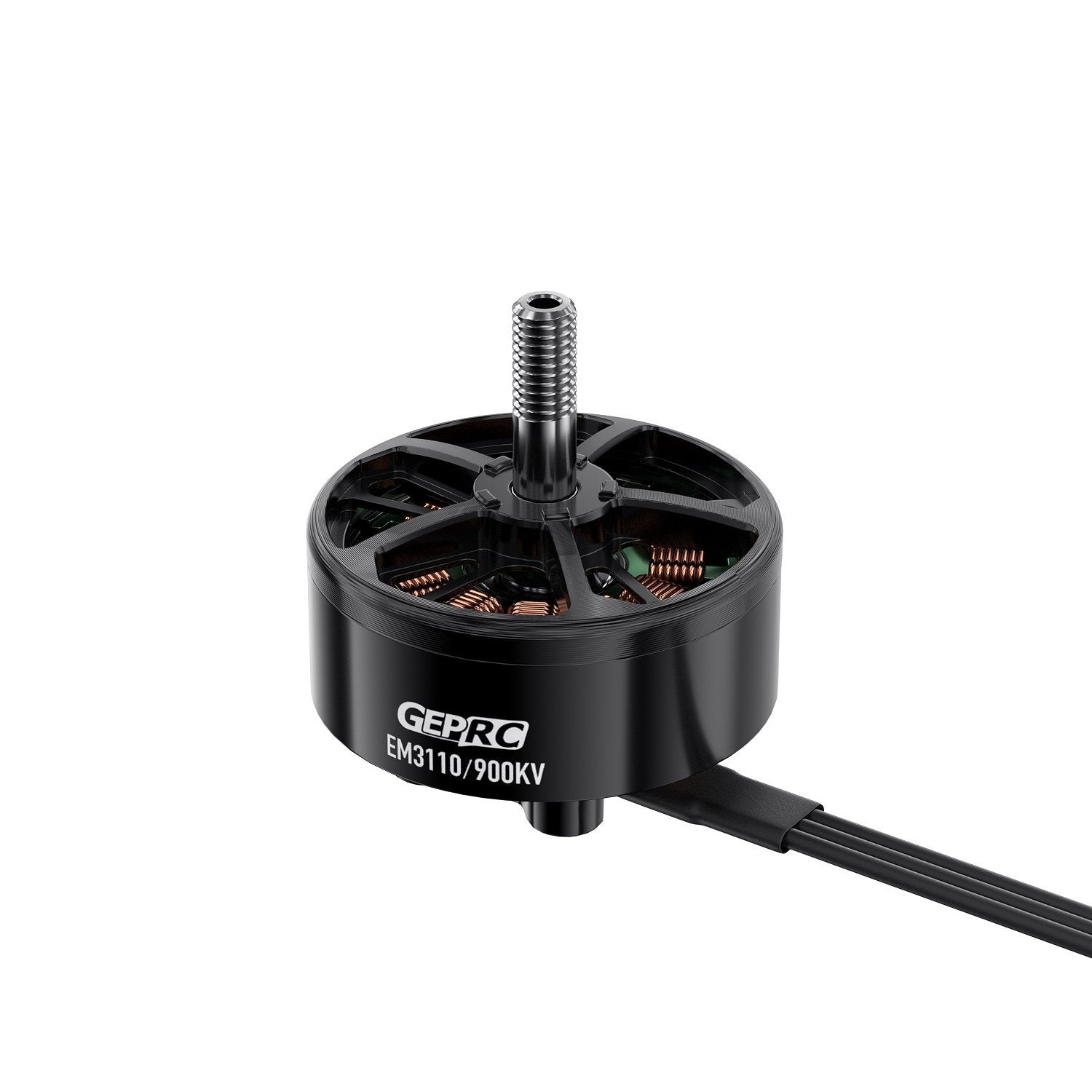

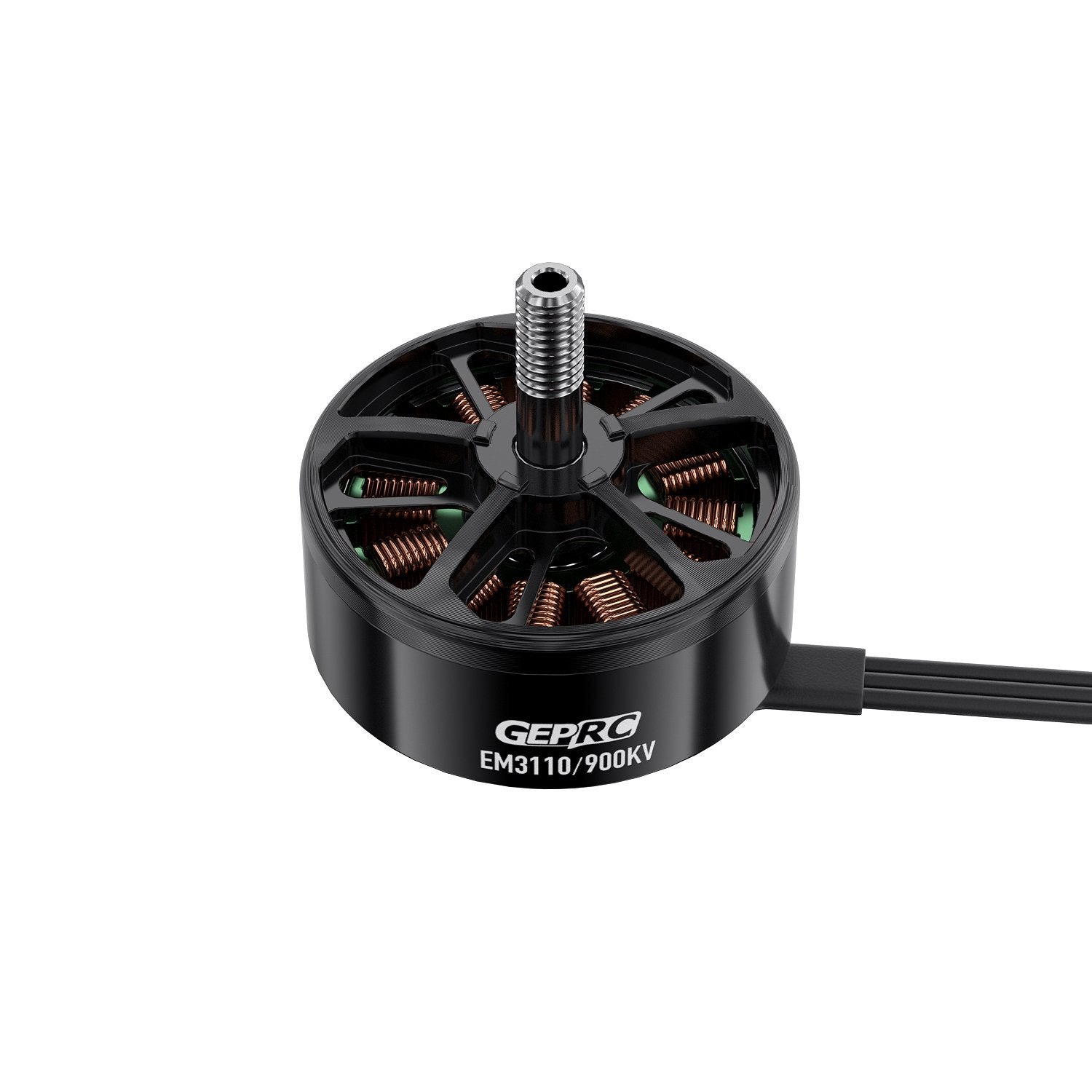

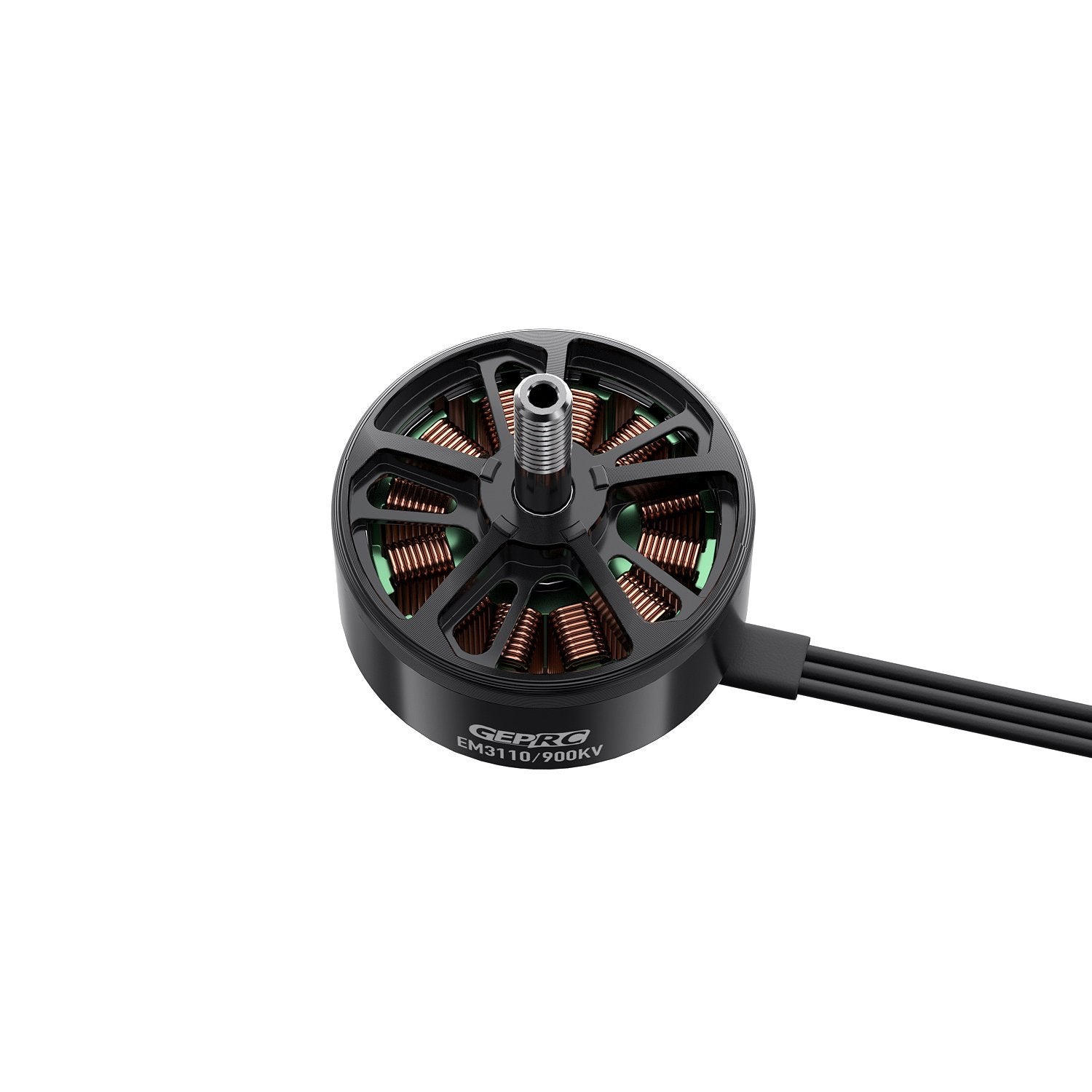

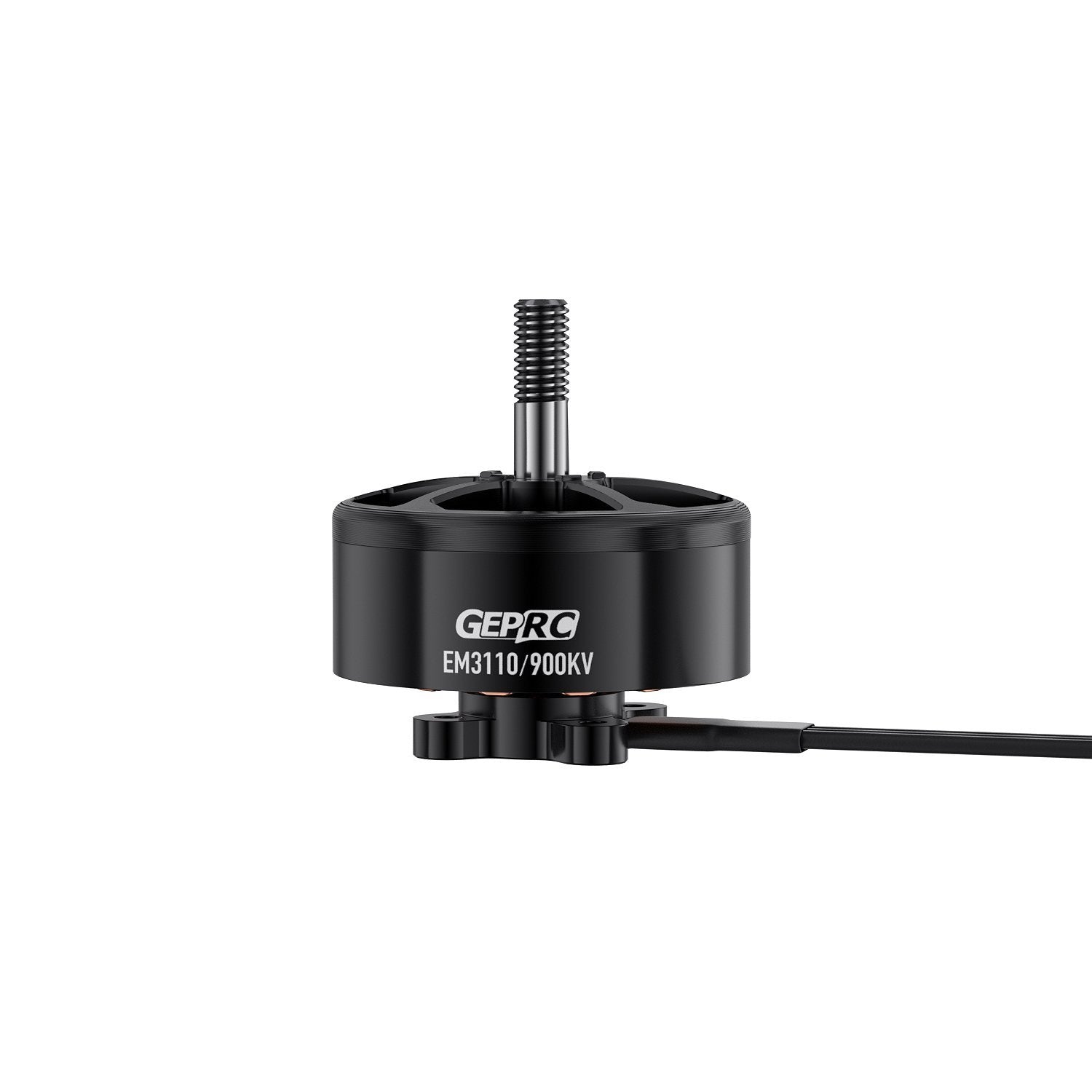

GEPRC EM3110 900KV Motor｜無刷馬達

GEPRC EM3110 900KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Feature

New EM series motors，mainly designed for long range FPV.

High-strength M5 steel shaft

High torque magnetic circuit design

19mmx19mm base

Specifications

Model: EM3110 900KV Motor

Max Watt: 1480W

Peak current: 57A

Interphase resistance: 74mΩ

Propeller: 8-10inch Propeller

Magnet: N52H

Bearing type: NSK/NMB

Configuration: 12N14P

Dimension: φ33mmx26.1mm

Shaft Diameter: φ5mm

Shaft Protruding Length: 16mm

Mounting holes: 19mmx19mm

Lead: 310mm/18AWG

ESC: 60A-80A

Input Volts: 25.2V（6S LiPo)

Winding: Single strand copper winding

Weight: 87.5g(included wire)

Suitable for :8-10 inch long range FPV

Includes

1 x EM3110 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut
