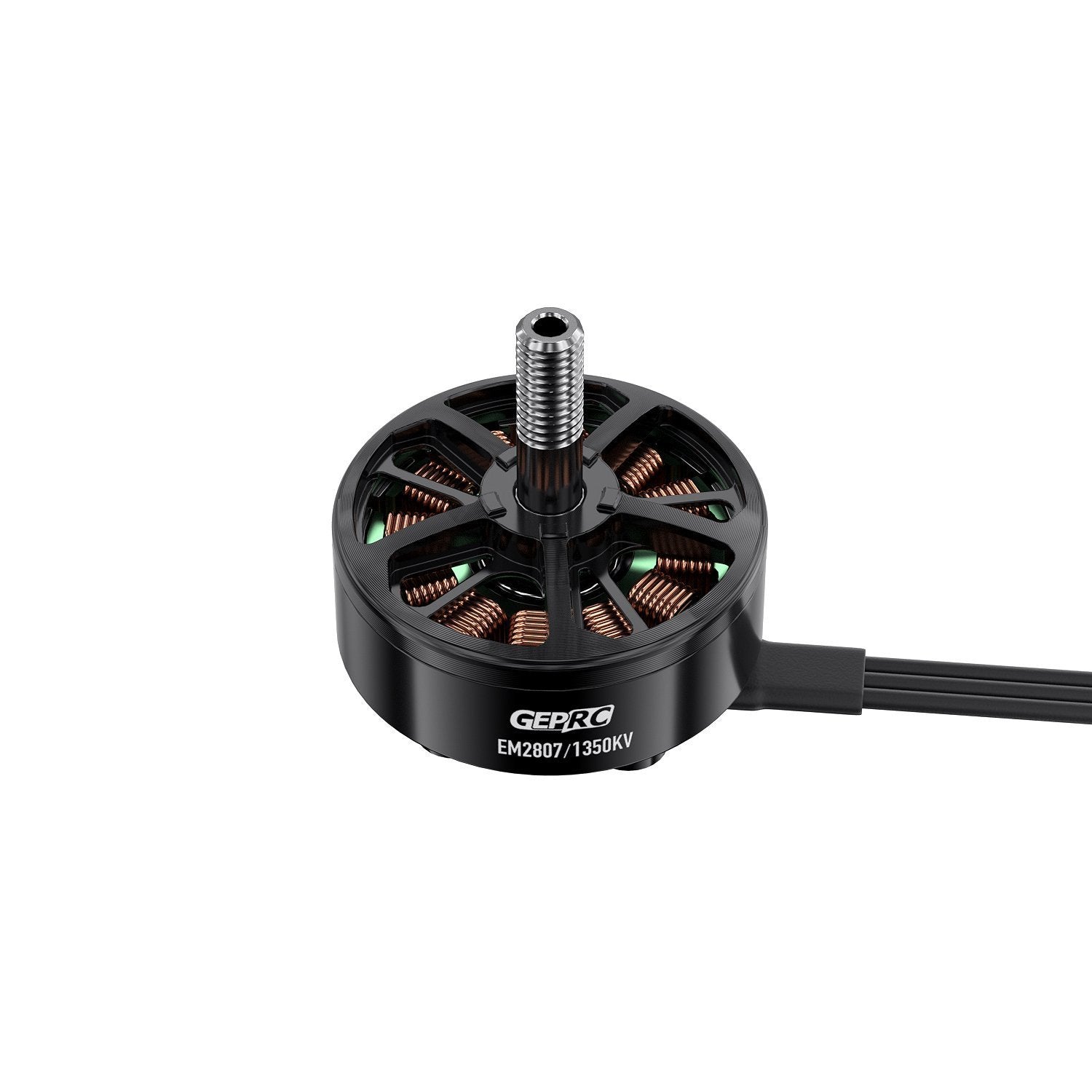

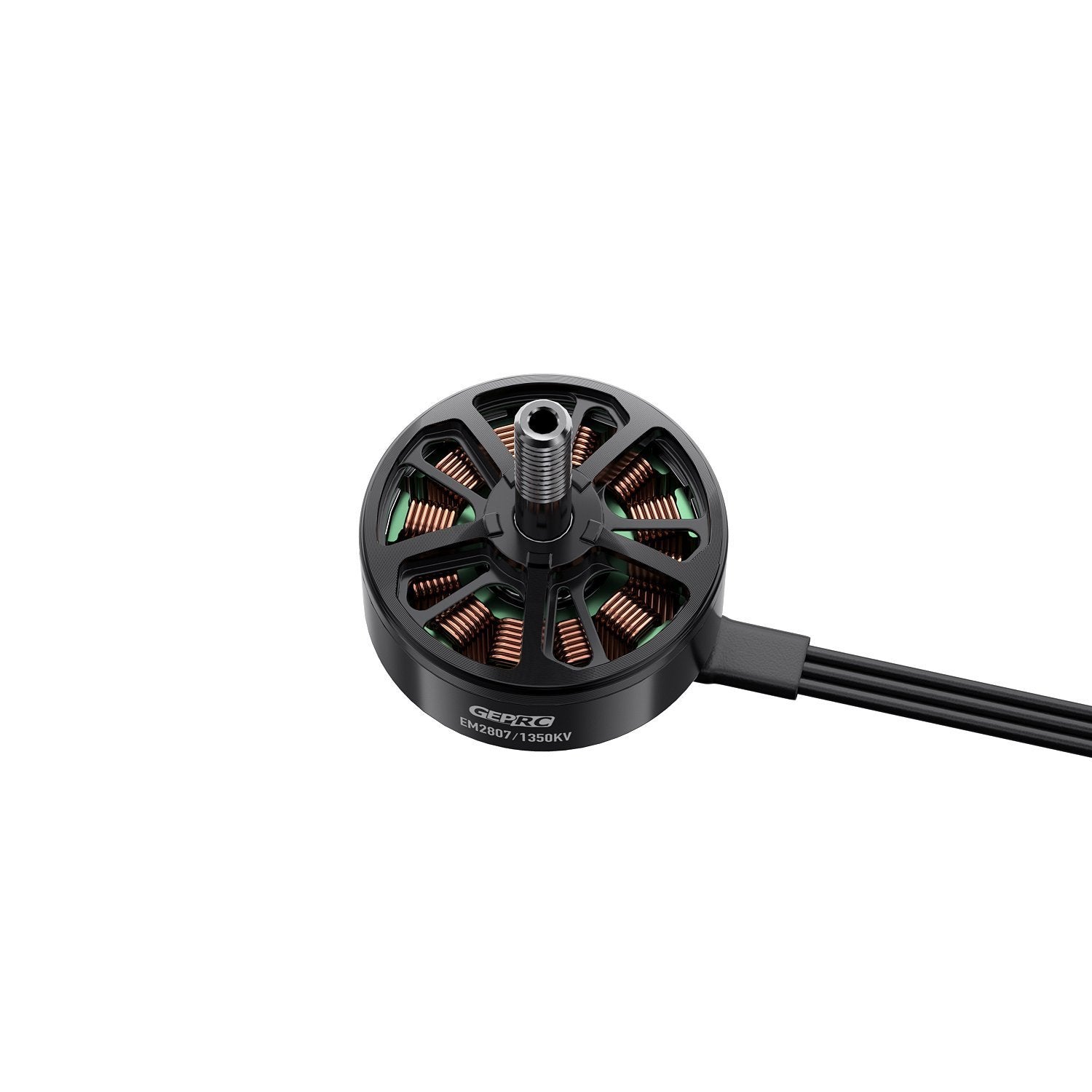

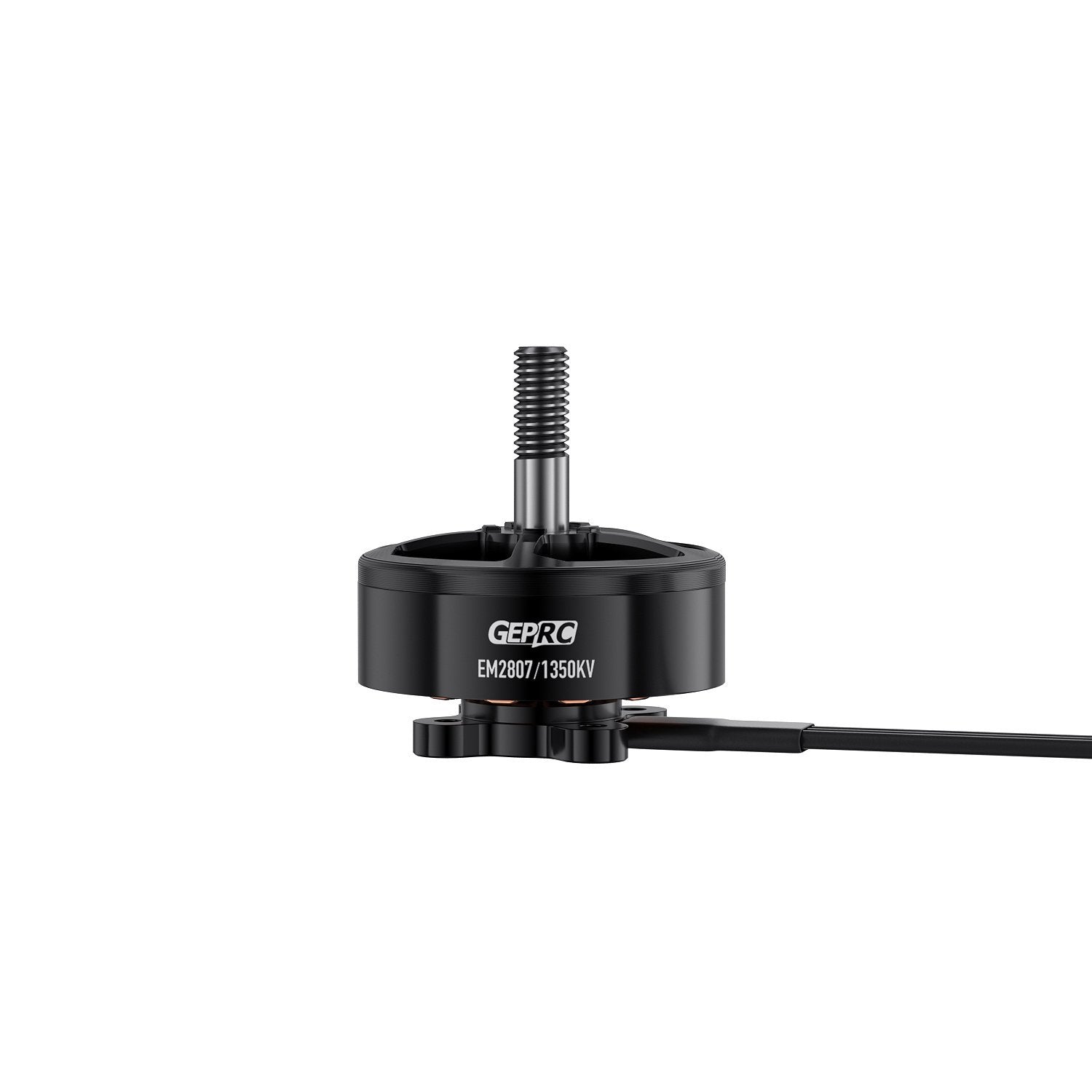

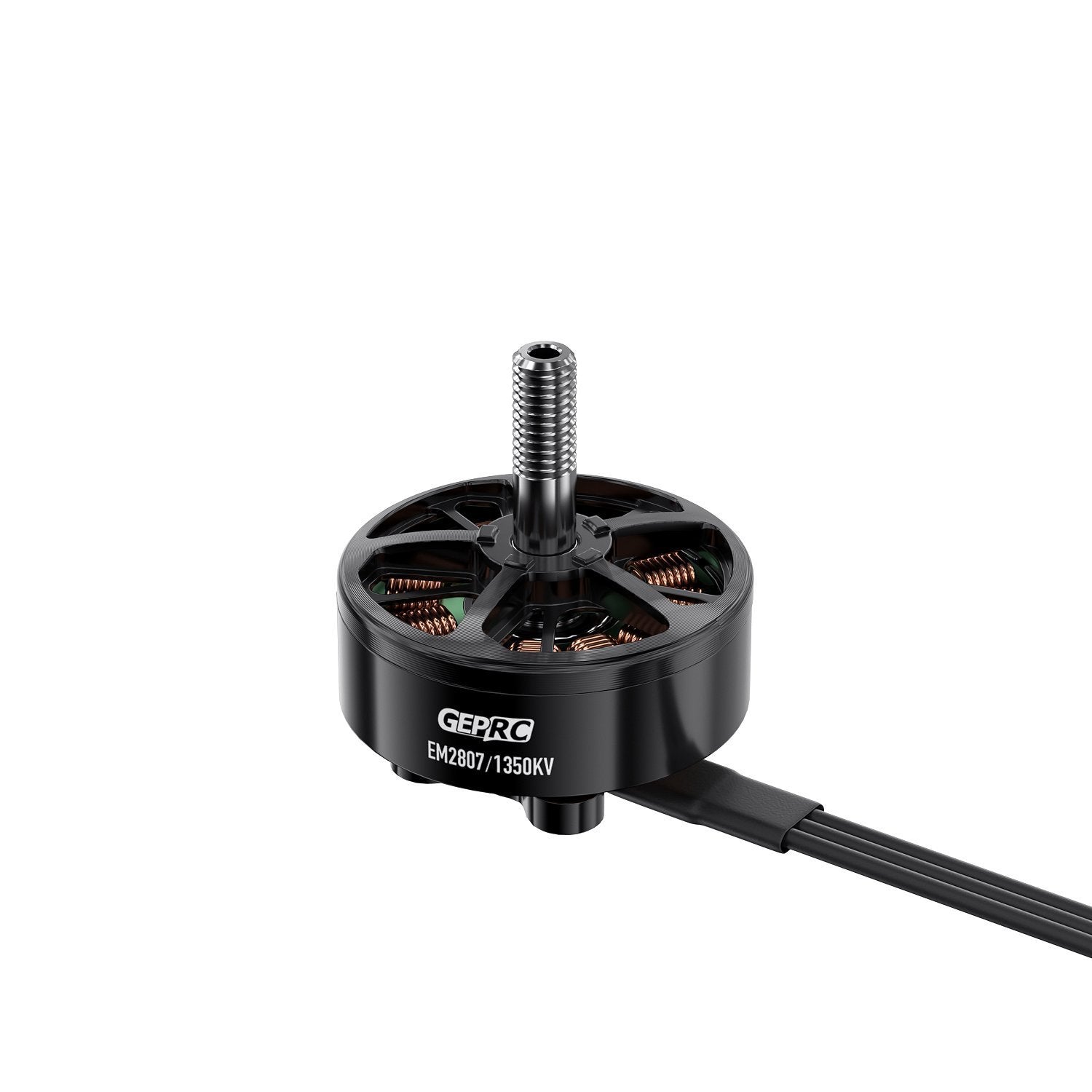

GEPRC EM2807 1350KV Motor｜無刷馬達

GEPRC EM2807 1350KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Feature

New EM series motors，mainly designed for long range FPV.

High-strength M5 steel shaft

High torque magnetic circuit design

19mmx19mm base

Specifications

Model: EM2807 1350KV Motor

Max Watt: 1080W

Peak current: 47A

Interphase resistance: 45mΩ

Propeller: 6-8inch Propeller

Magnet: N52H

Bearing type: NSK/NMB

Configuration: 12N14P

Dimension: φ33mmx20.1mm

Shaft Diameter: φ5mm

Shaft Protruding Length: 16mm

Mounting holes: 19mmx19mm

Lead: 260mm/18AWG

ESC: 50A-60A

Input Volts: 25.2V（6S LiPo)

Winding: Single strand copper winding

Weight: 57g(included wire)

Suitable for :7-8 inch long range FPV

Includes

1x EM2807 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut
