GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver｜FPV 圖傳設備

$280.00

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

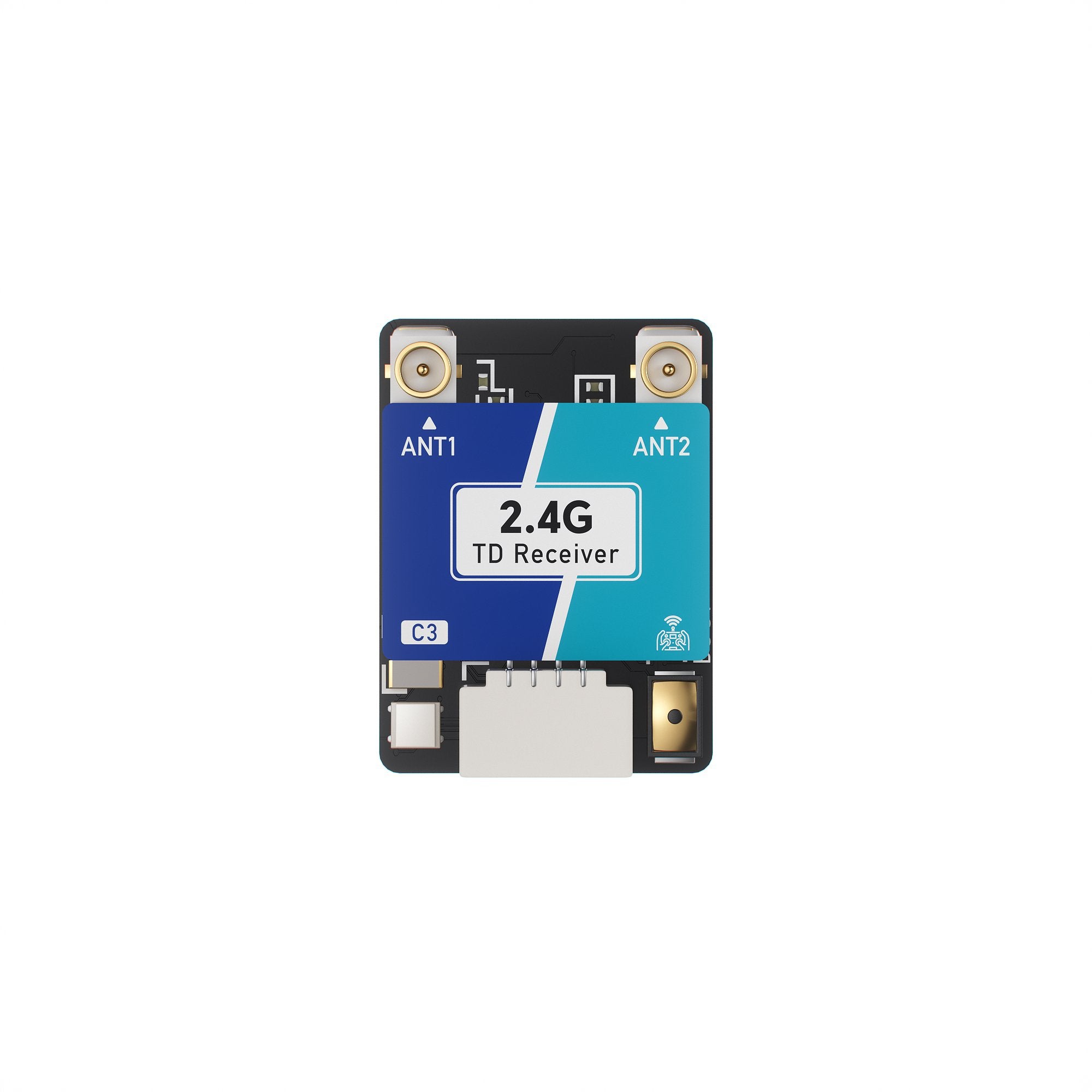

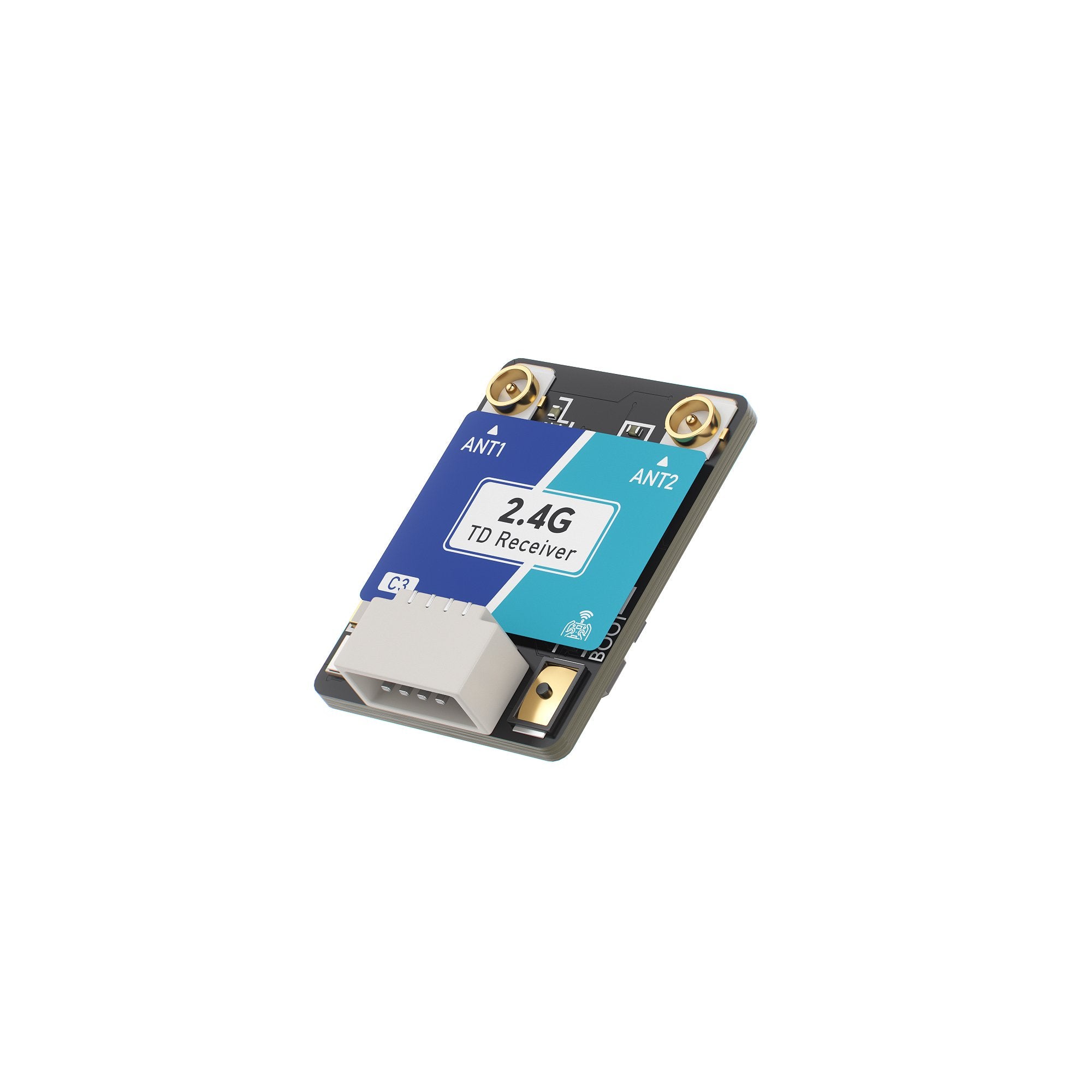

GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

The ELRS Nano DUAL 2.4G True Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes.

Feature

The size is small, weighing only 1.1g

WIFI Upgrade firmware

ELRS open source project, remote control

Maximum refresh rate of 1000Hz

Two independent RF receiving links, true diversity receiver

The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance

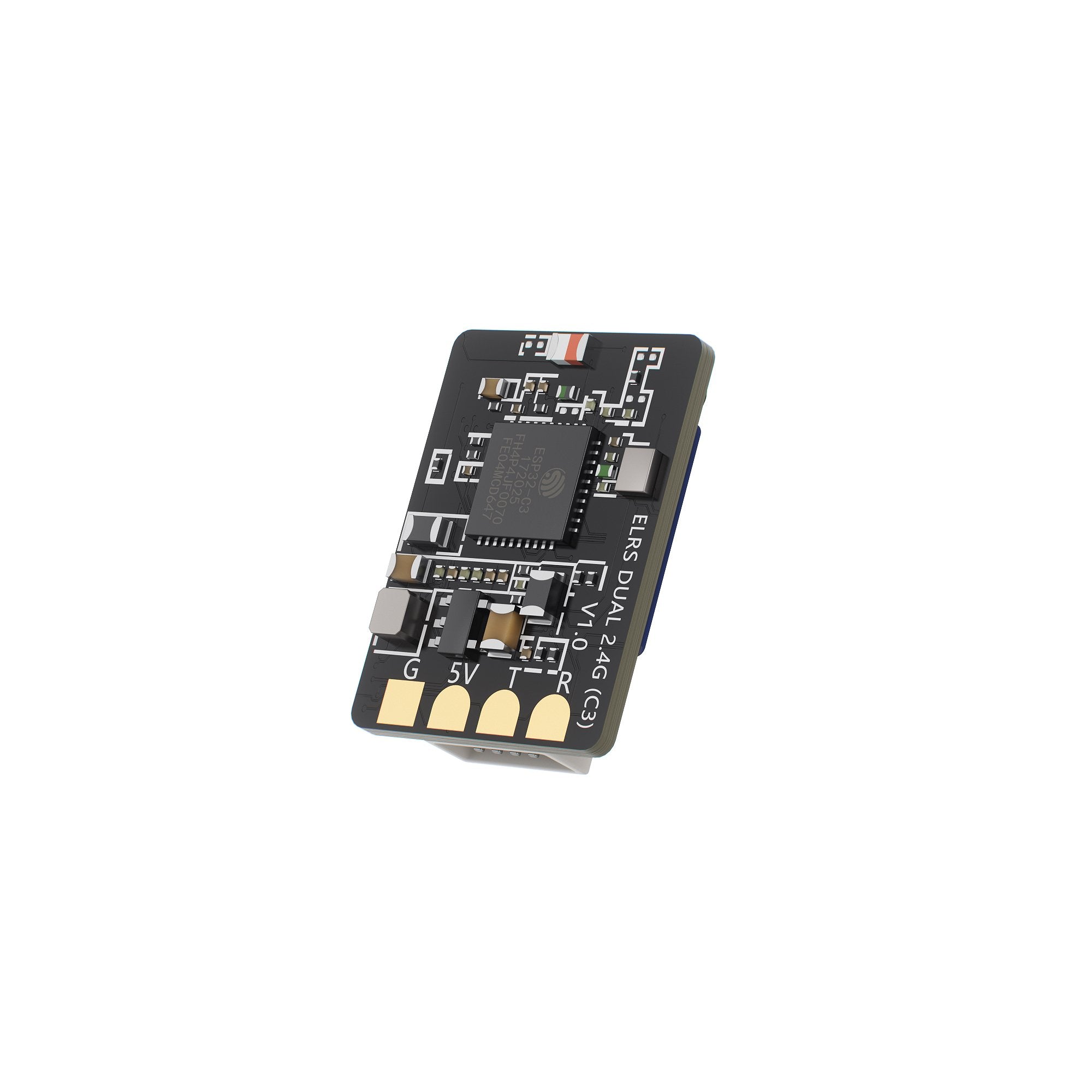

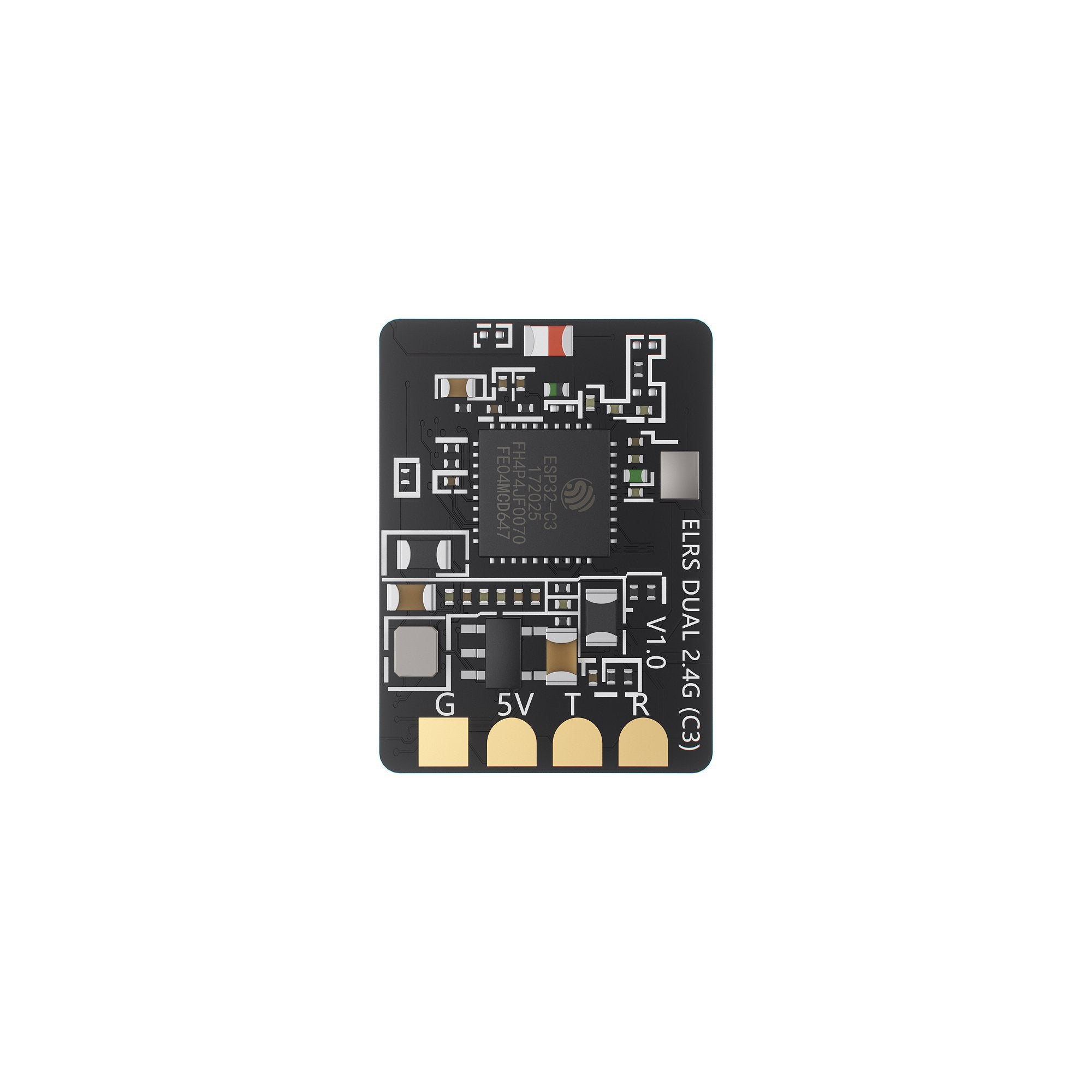

SX1281,ESP32-C3 High-performance Chip

Specifications

Model: GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver

Size: 17*13mm

Weight: 1.1g (RX only)
