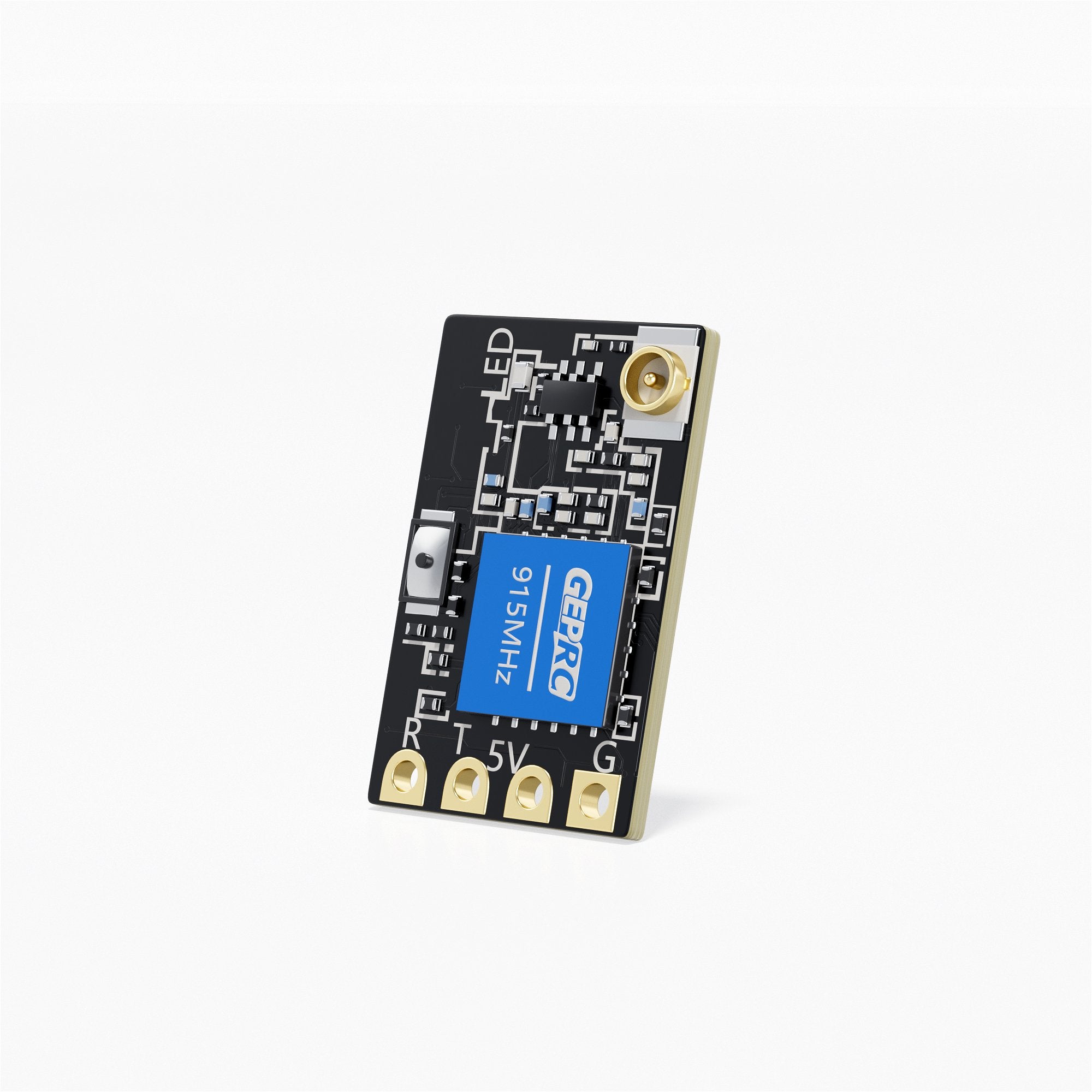

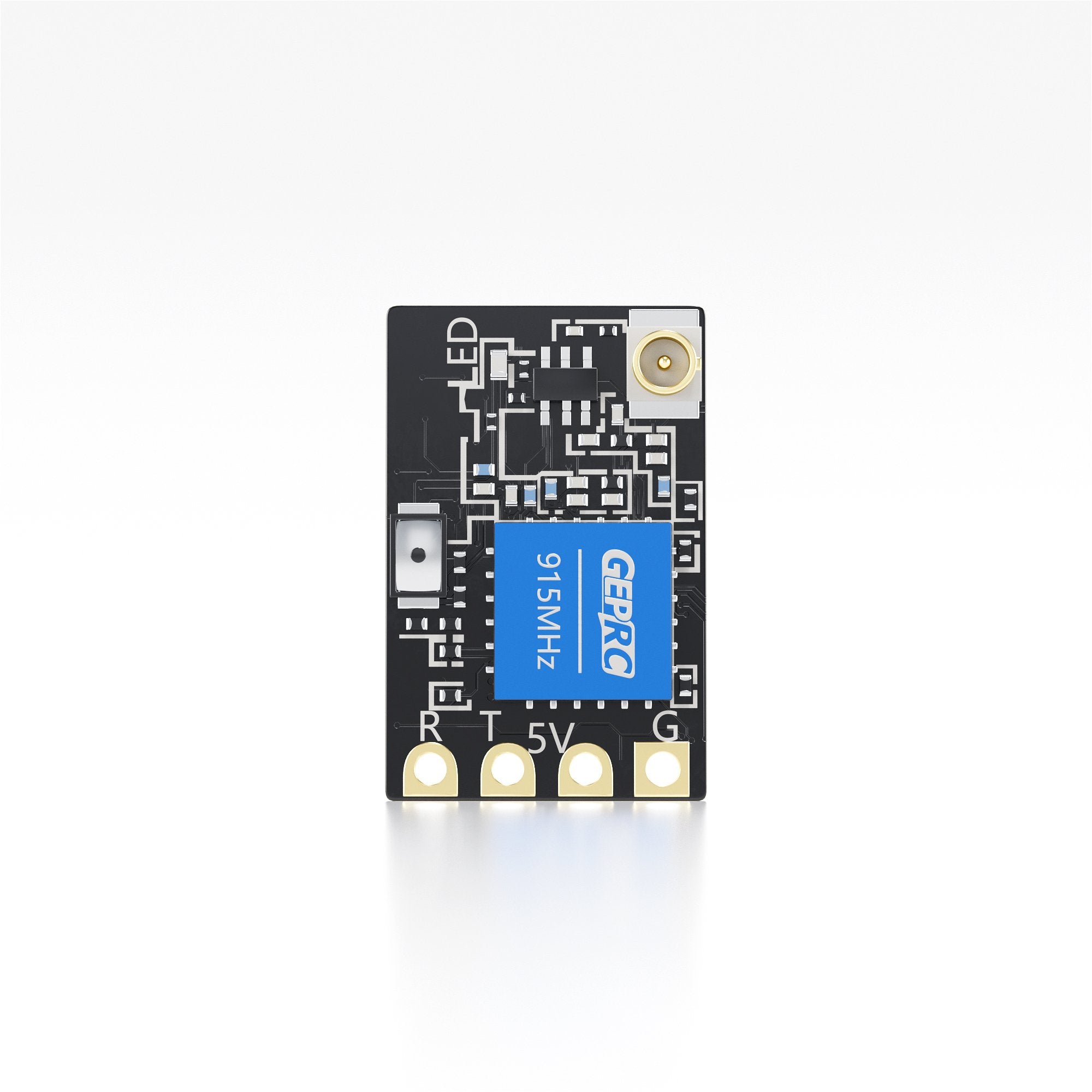

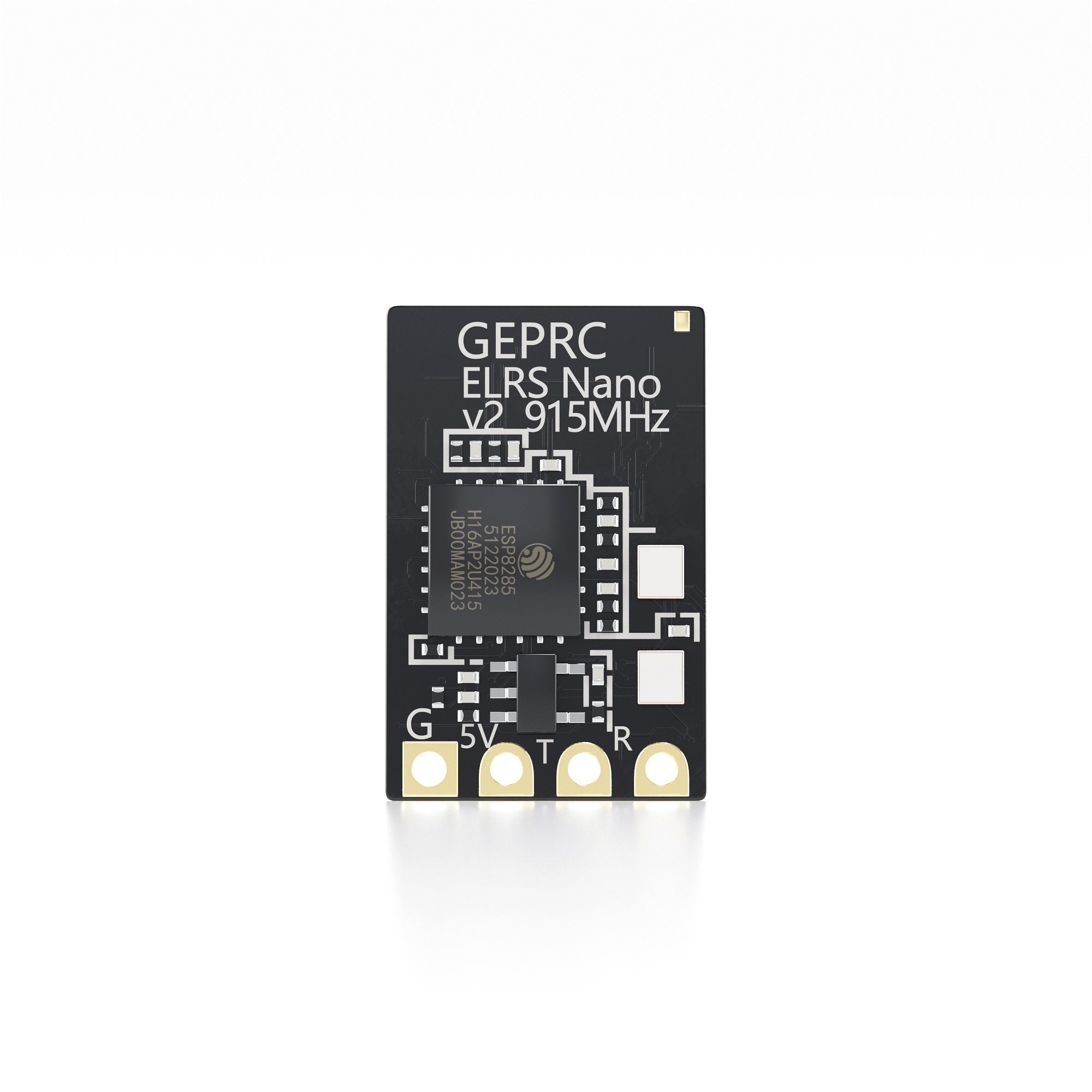

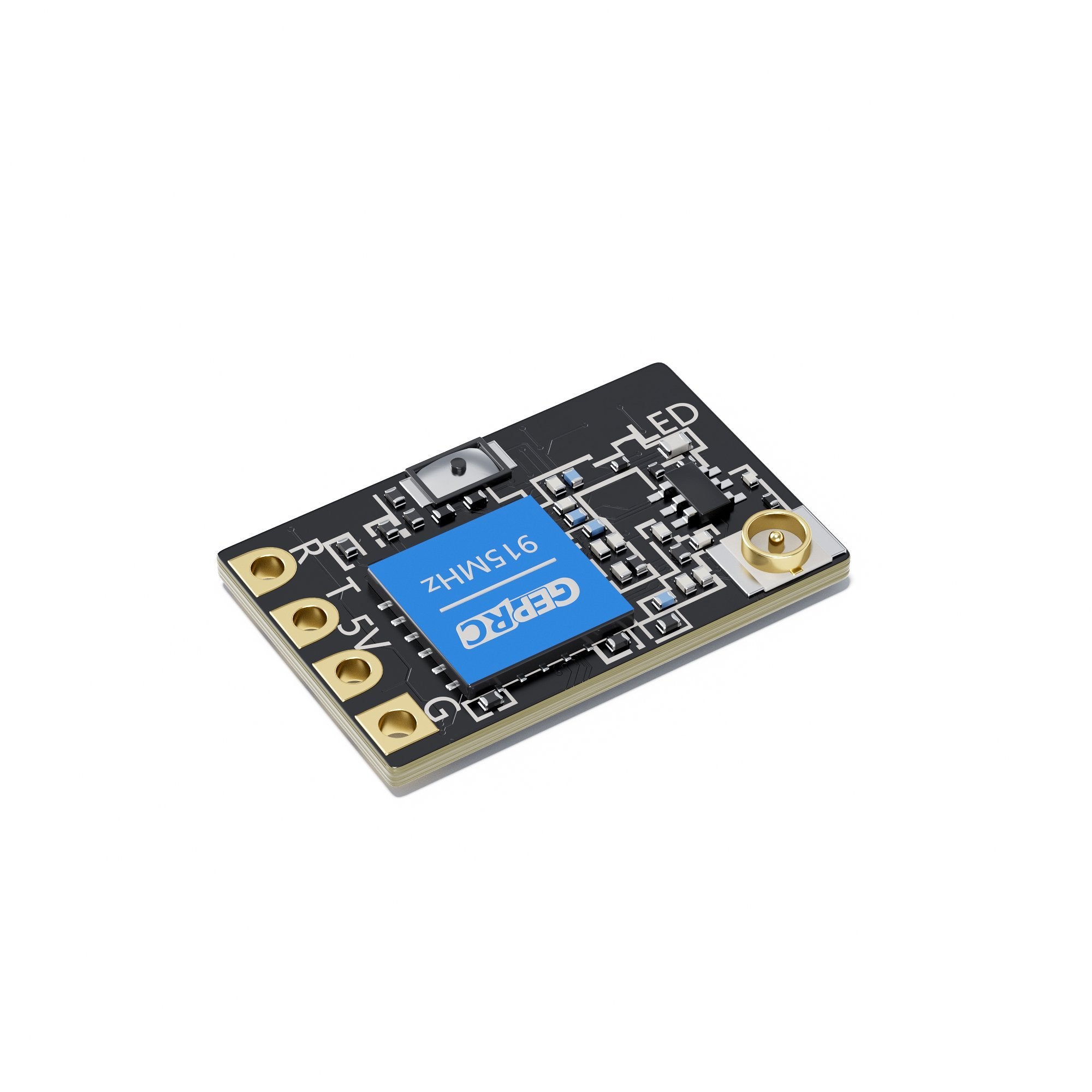

GEPRC ELRS Nano 915M V2 Receiver｜FPV 圖傳設備

$227.00

規格 frequency-bands: 915MHz(FCC)／antenna: T Antenna frequency-bands: 915MHz(FCC)／antenna: Mini T Antenna frequency-bands: 868MHz(EU)／antenna: T Antenna frequency-bands: 868MHz(EU)／antenna: Mini T Antenna

付款方式全額付款訂金預購

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEPRC ELRS Nano 915M V2 Receiver｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

GEPRC ELRS Nano 915M V2 Receiver is a new generation receiver system based on ExpressLRS open source project.ExpressLRS features long range operation, low latency, and low price.

The ELRS Nano 915M V2 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes;the telemetry power is up to 50mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.

Feature

17x11mm Small size

0.7g weight

WIFI Upgrade firmware

ELRS open source project, remote control

Maximum refresh rate of 200Hz

The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control

up to 50mW telemetry power

Specifications

Size: 17x11mm

Weight: 0.7g (RX only)

Chips: ESP8285, SX1276

Crystal Oscillator: TCXO

Frequency Band: 915MHz FCC /868MHz EU

Refresh Rate: 25Hz-200Hz

Input Voltage: 5V

Antenna Connector: ipex1

TLM Power: 50mW

Firmware：GEPRC Nano 900MHz RX
