GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

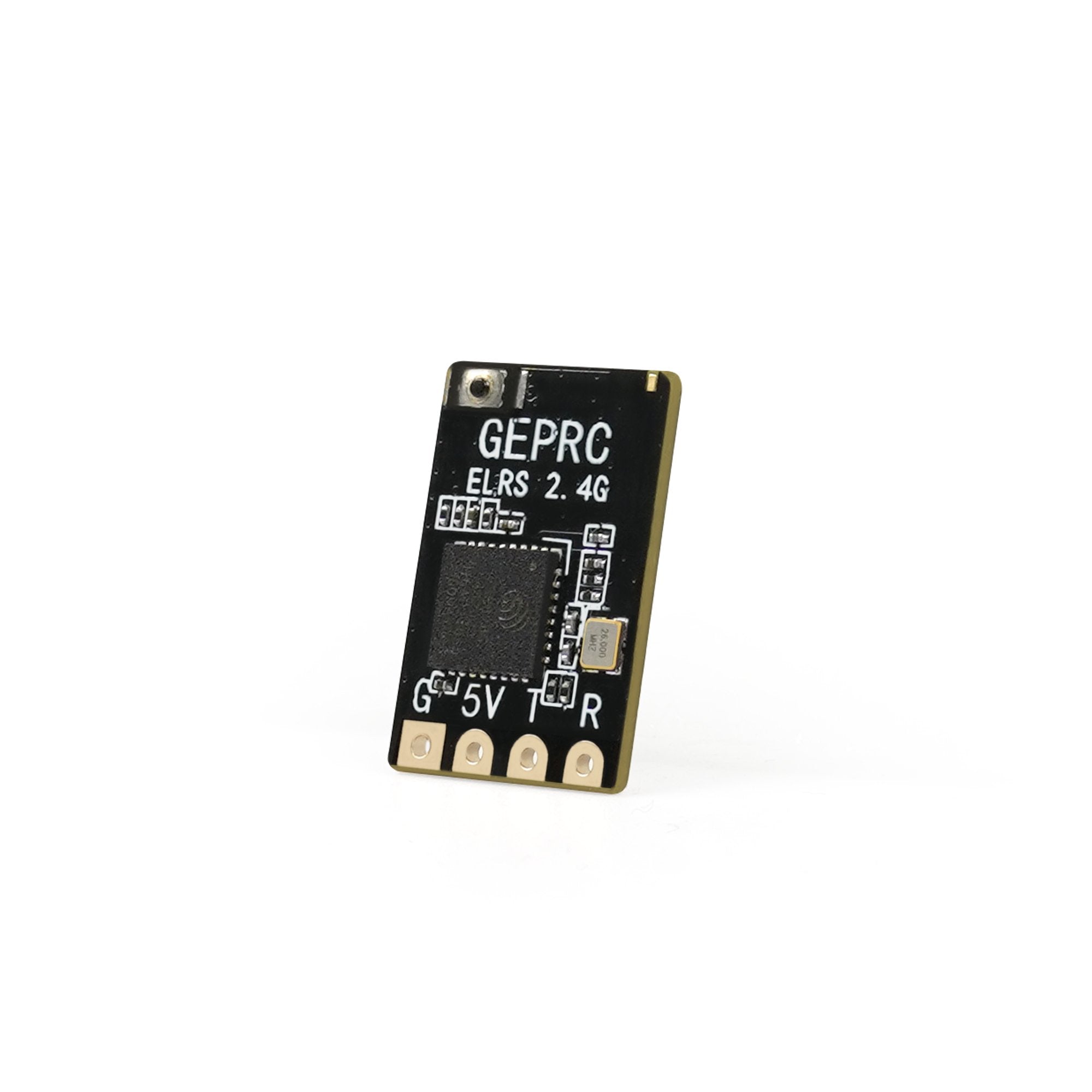

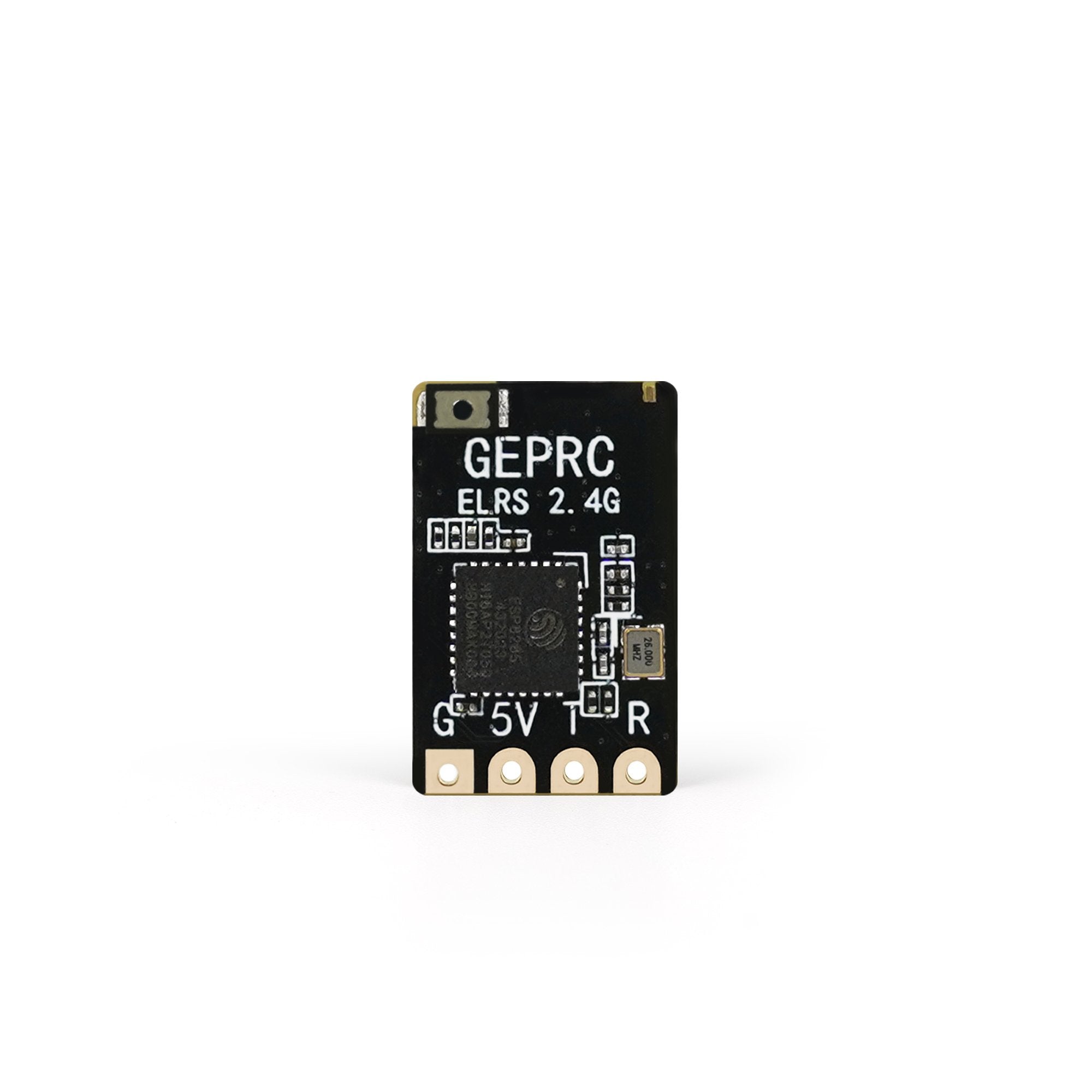

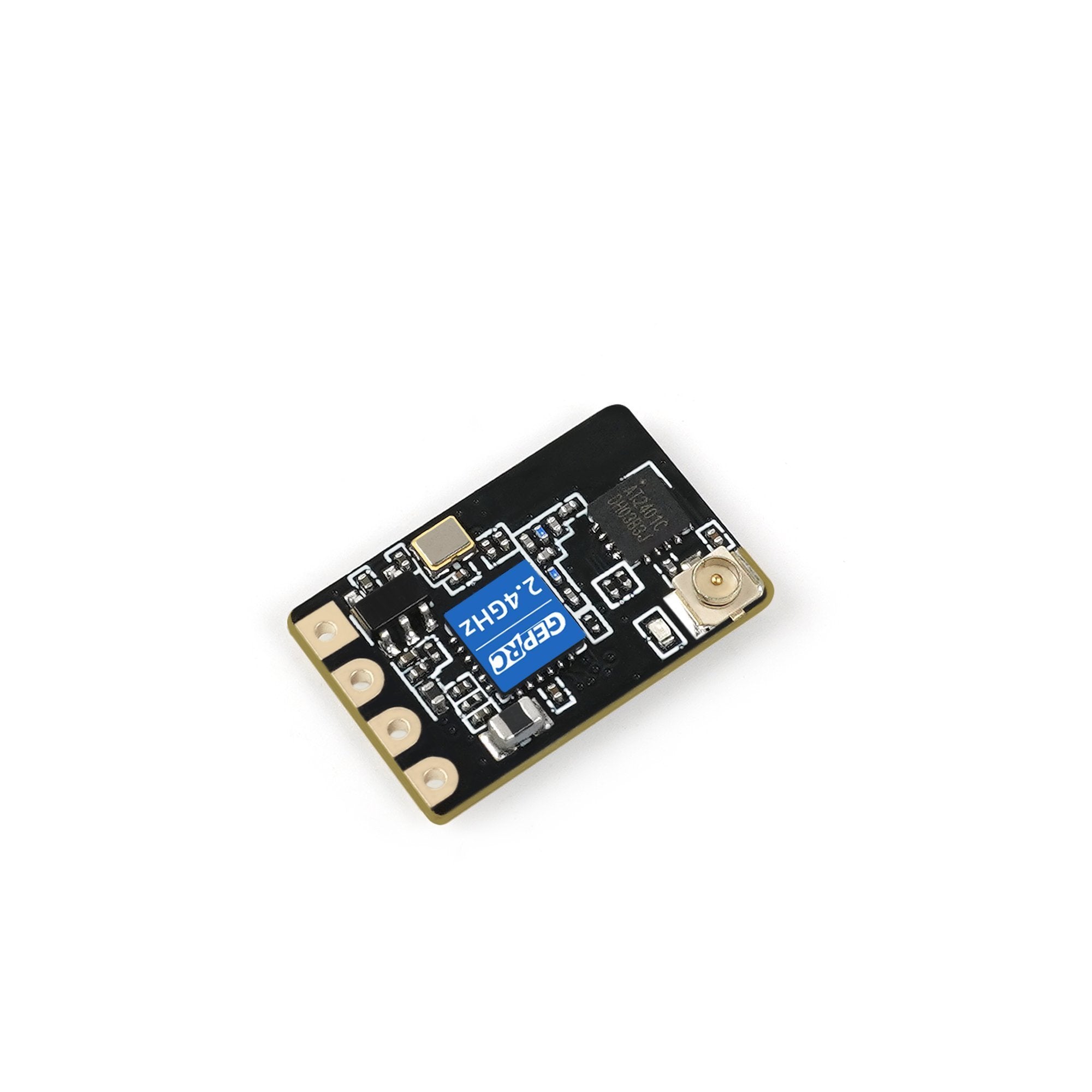

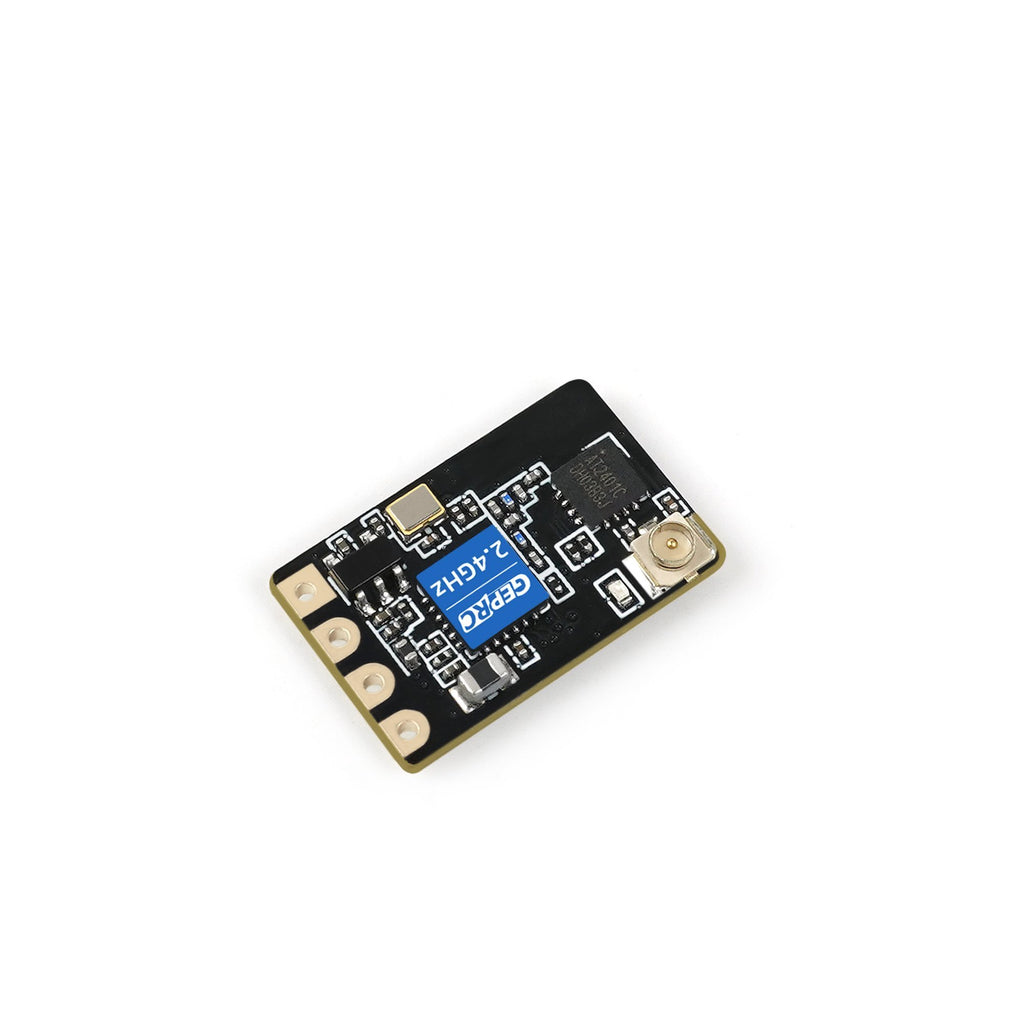

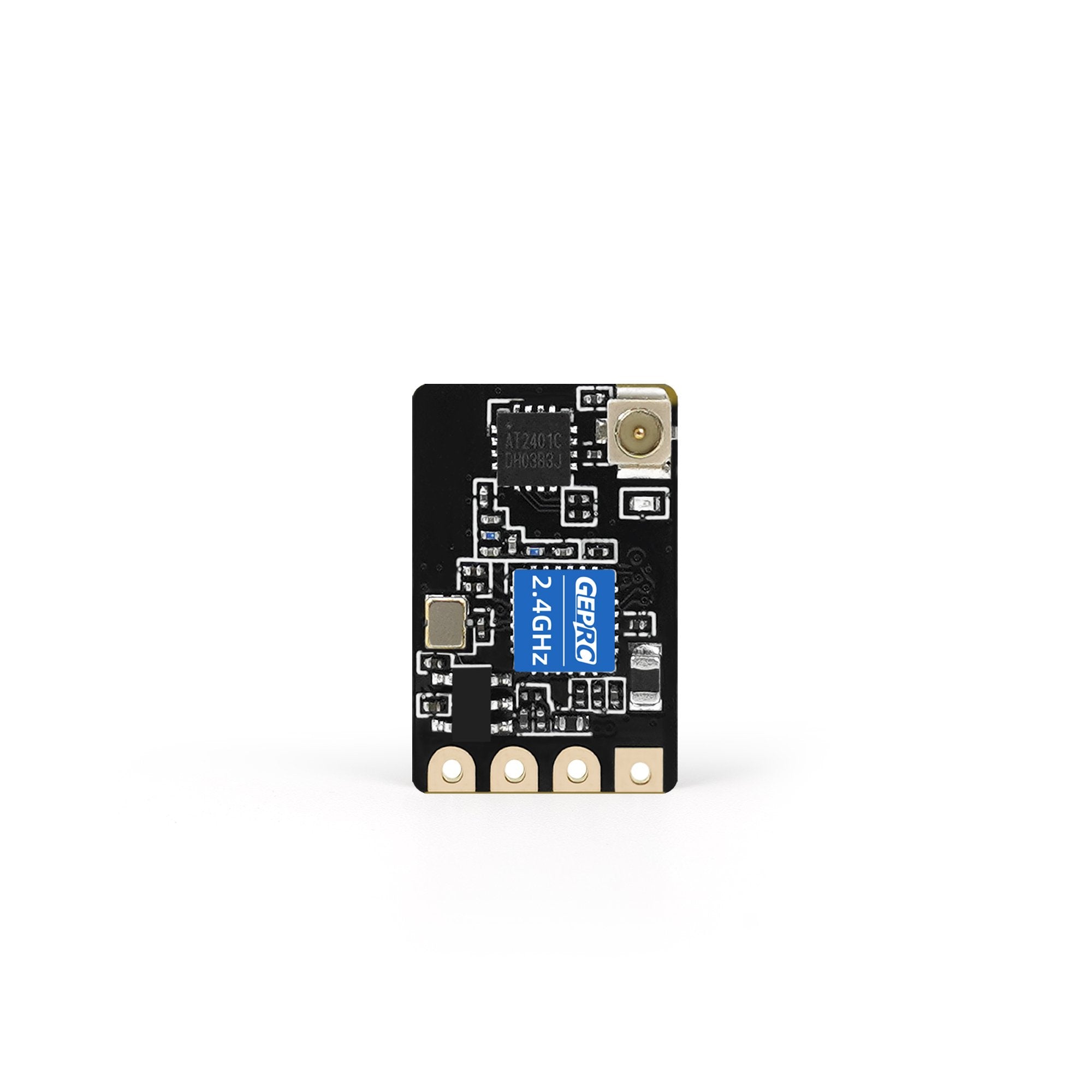

GEPRC ELRS Nano 2.4G PA100 Receiver is a new generation of 2.4G receiver system based on ExpressLRS open source project.ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

The ELRS Nano 2.4G PA100 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes;Integrated PA+LNA,the telemetry power is up to 100mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.

Feature

17x11mm Small size

0.7g weight

WIFI Upgrade firmware

ELRS open source project, remote control

Maximum refresh rate of 1000Hz

The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control

Built-in PA + LNA, up to 100mW telemetry power

Specifications

Size: 17x11mm

Weight: 0.7g (RX only)

Chips: ESP8285, SX1281

Crystal Oscillator: TCXO

Frequency Band: 2.4GHz ISM

Refresh Rate: 25Hz-1000Hz

Input Voltage: 5V

Antenna Connector: ipex1

TLM Power: 100mW

Firmware：GEPRC Nano 2.4GHz PA100 RX

Includes

1 x ELRS Nano 2.4G PA100 Receiver

1 x Antenna

1 x Heat shrink tube

4 x Silicone cable

1 x Pin (4pin)

1 x Instruction manual
