GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

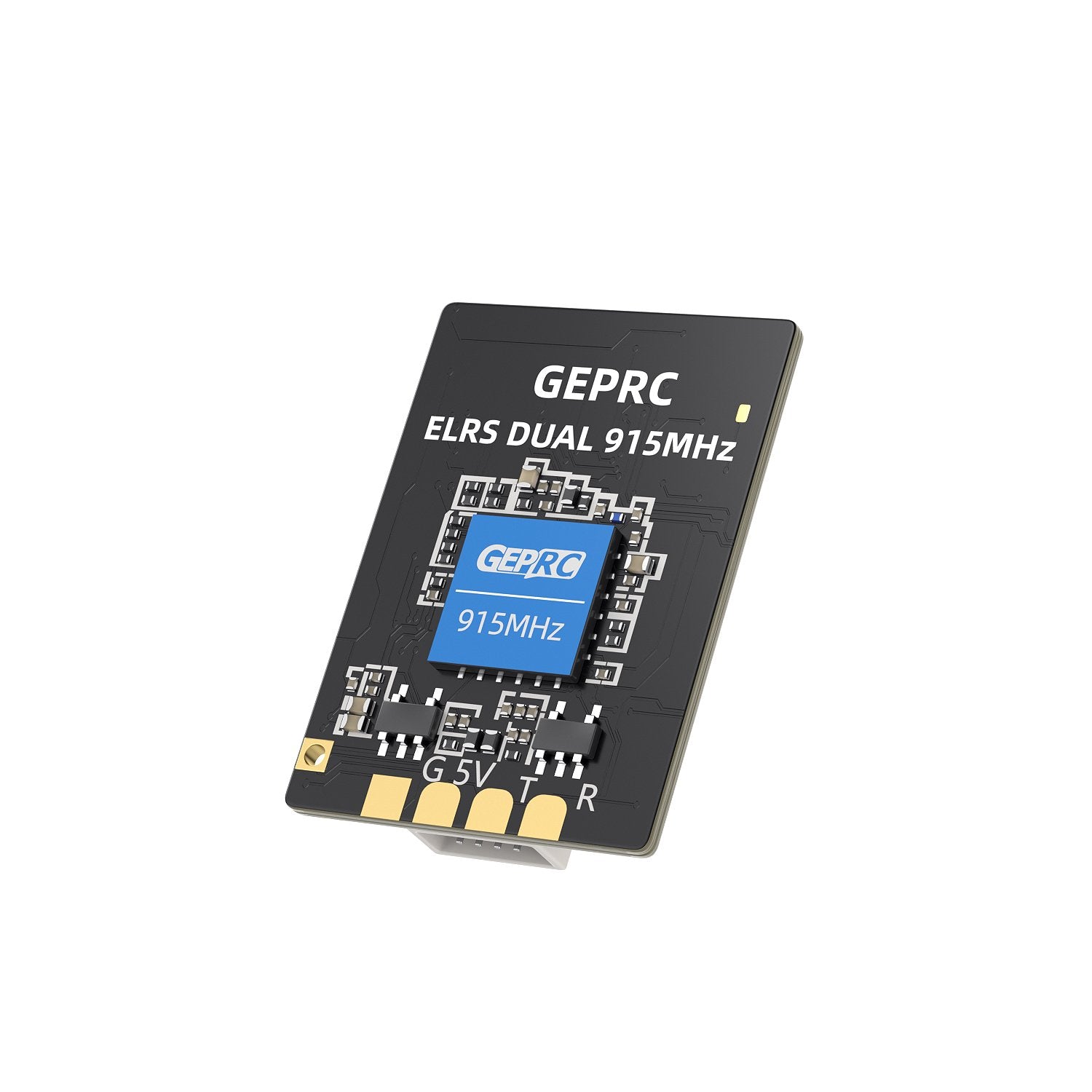

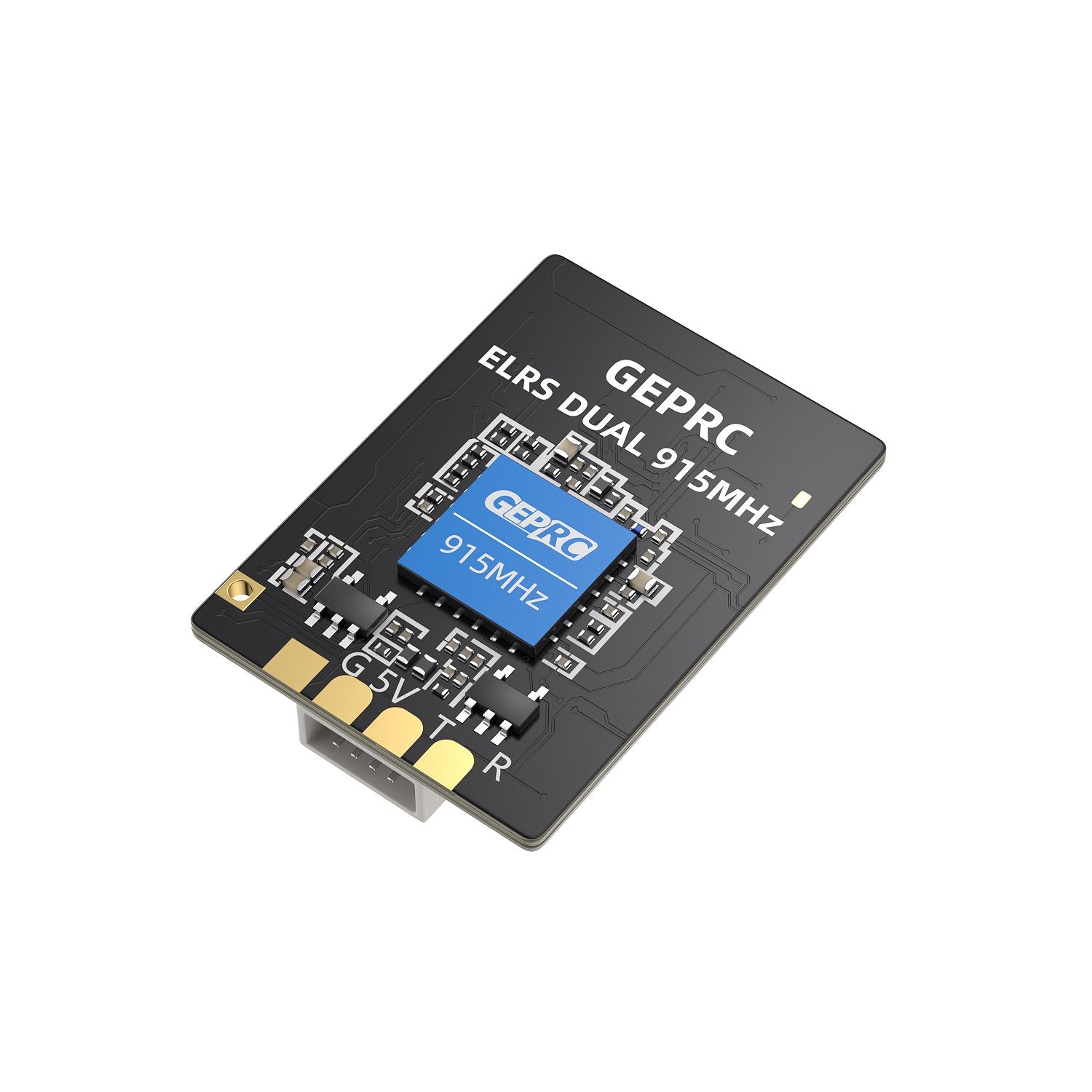

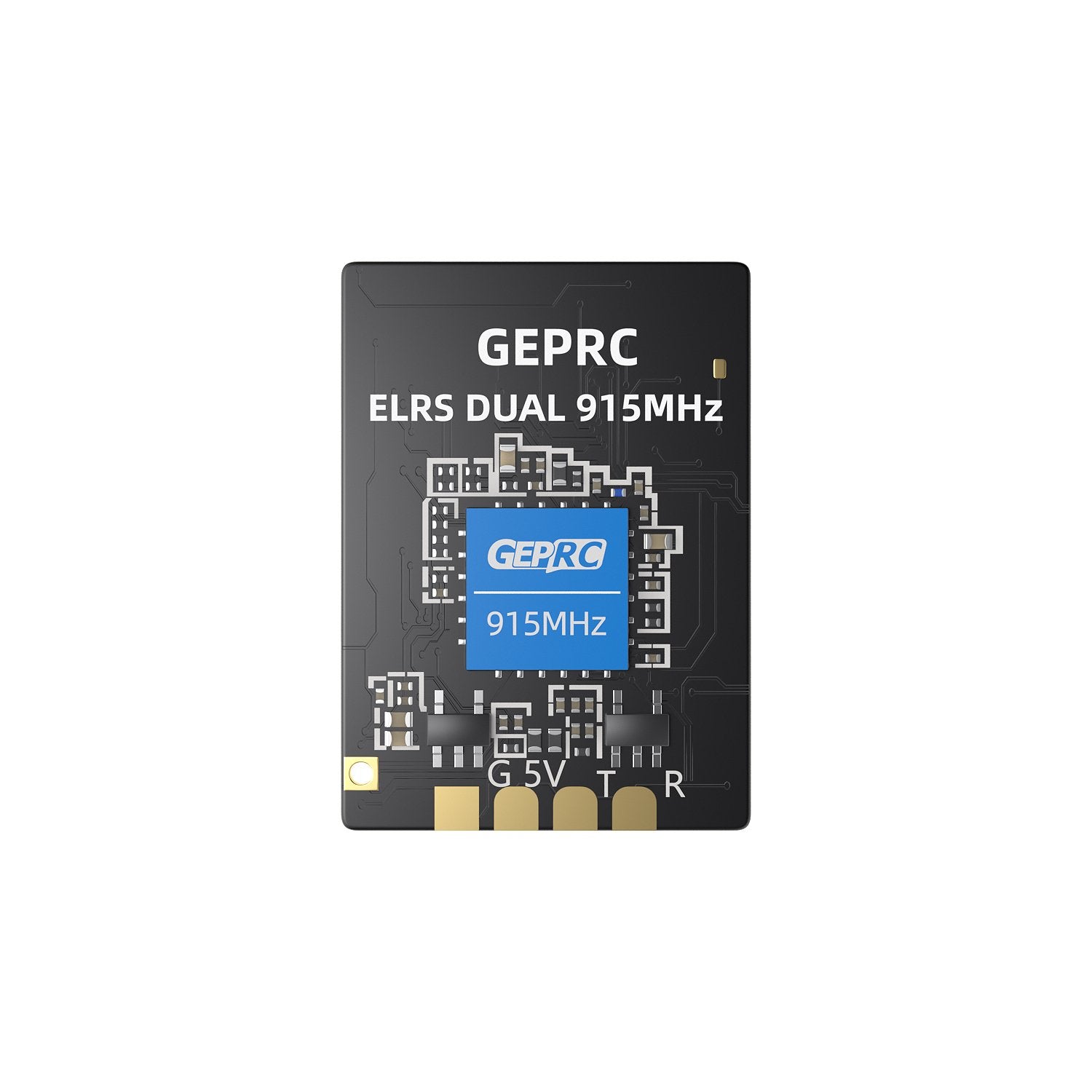

GEPRC ELRS DUAL 915M Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 200Hz refresh rate, and low price.

The ELRS DUAL 915M Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes and the telemetry power is up to 50mW.Built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Features

Compact size of 18x25x5.5mm

Weighing only 1.7g

WIFI firmware upgrade

ELRS open-source project, long-range remote control

Maximum refresh rate of 200Hz

Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations

Equipped with an sh1.0 connector for easy installation

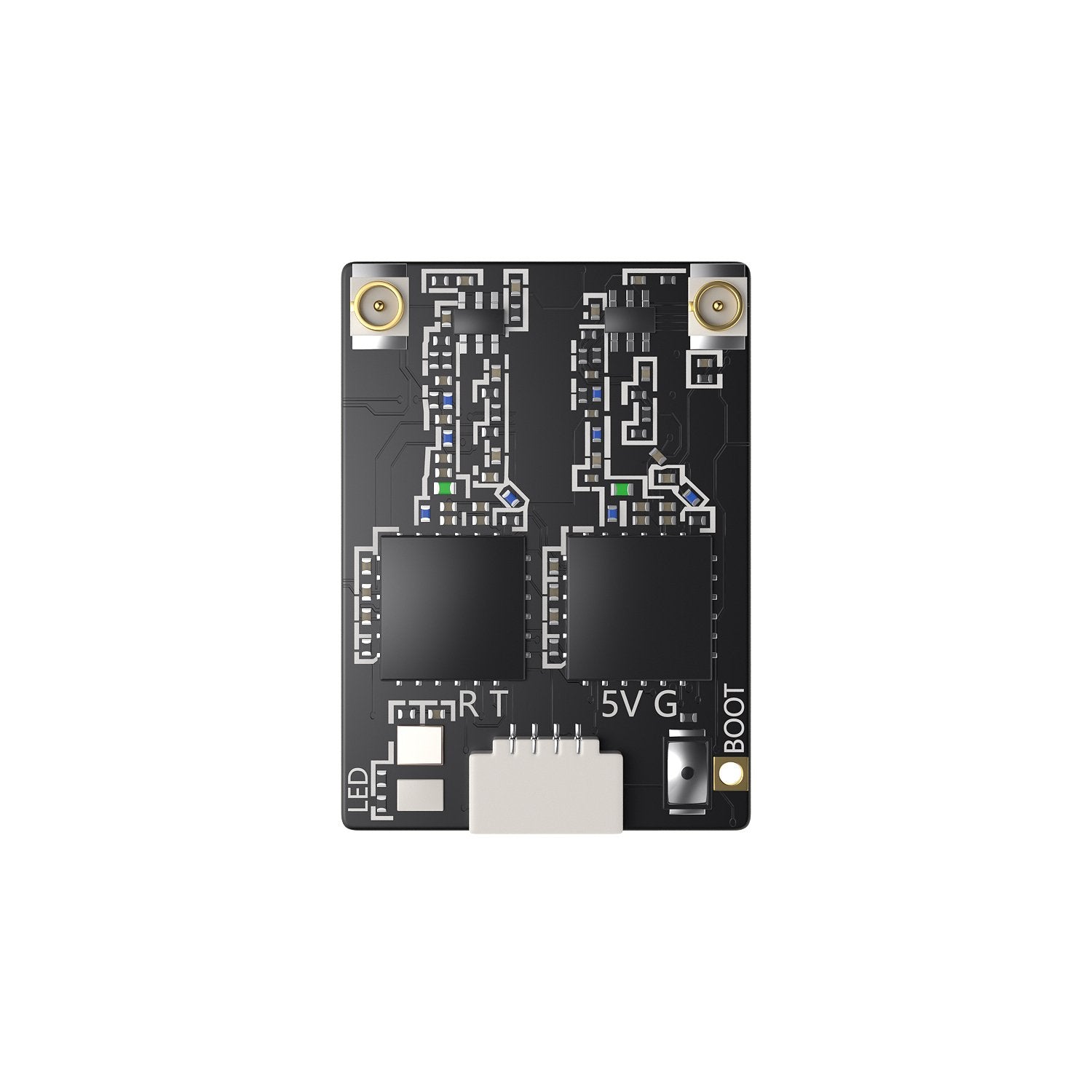

Two independent RF receiving links, true diversity receiver

Specifications

Model: GEPRC ELRS DUAL 915M Diversity Receiver

Dimension: 18x25x5.5mm

Weight: 1.7g (RX only)

Chips: ESP32-PICO-D4, SX1276

Crystal Oscillator: TCXO

Frequency Band: 915MHz FCC/868MHz EU

Refresh Rate: 25Hz-200Hz

Operating Voltage: 5V

Antenna Connector: ipex1

TLM Power: 50mW

Firmware: GEPRC True Diversity 900MHz RX

Includes

1 x ELRS Receiver

2 x Antenna

1 x Heat shrink tube

1 x 4pin silicone cable

1 x User manual
