GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver｜FPV 圖傳設備

$374.00

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

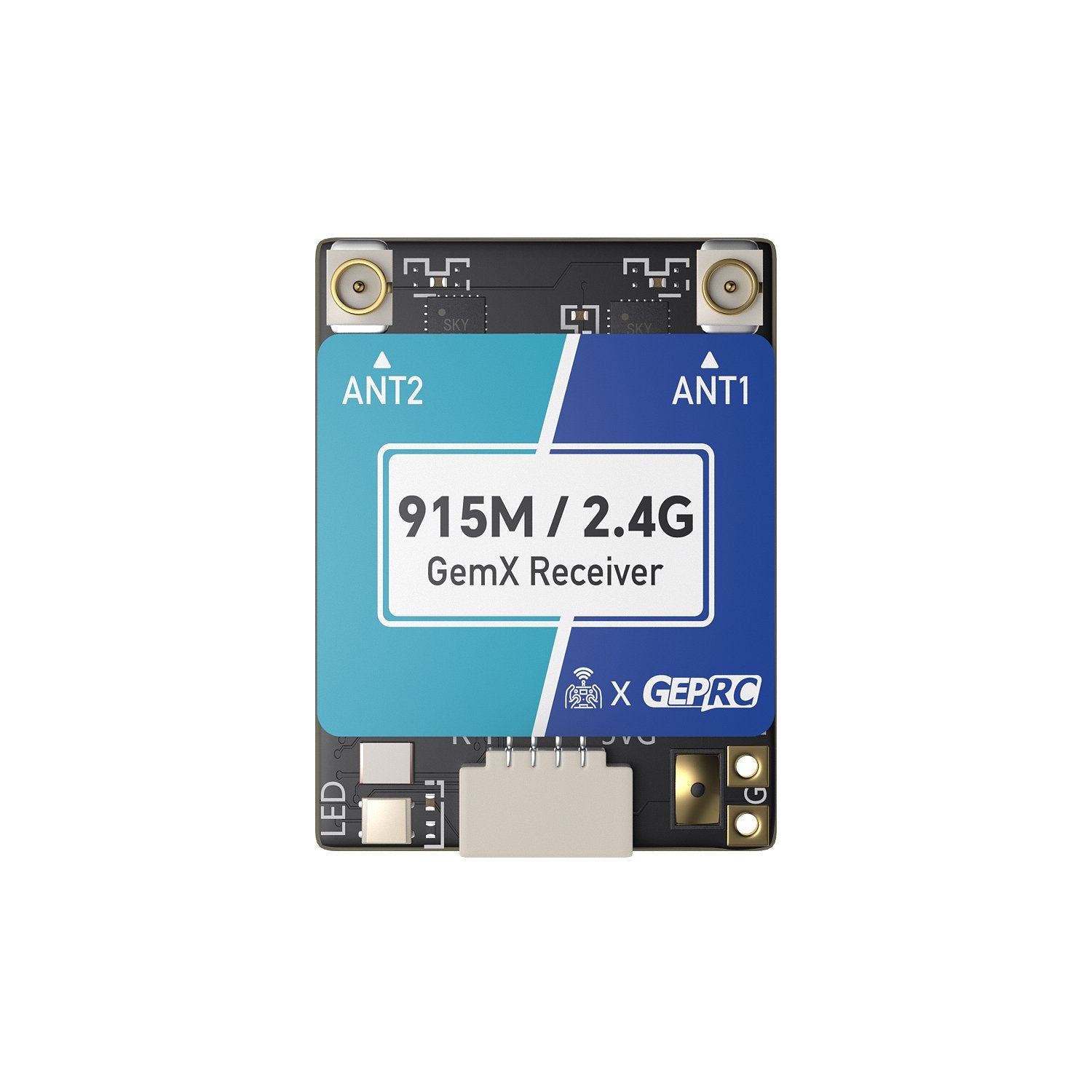

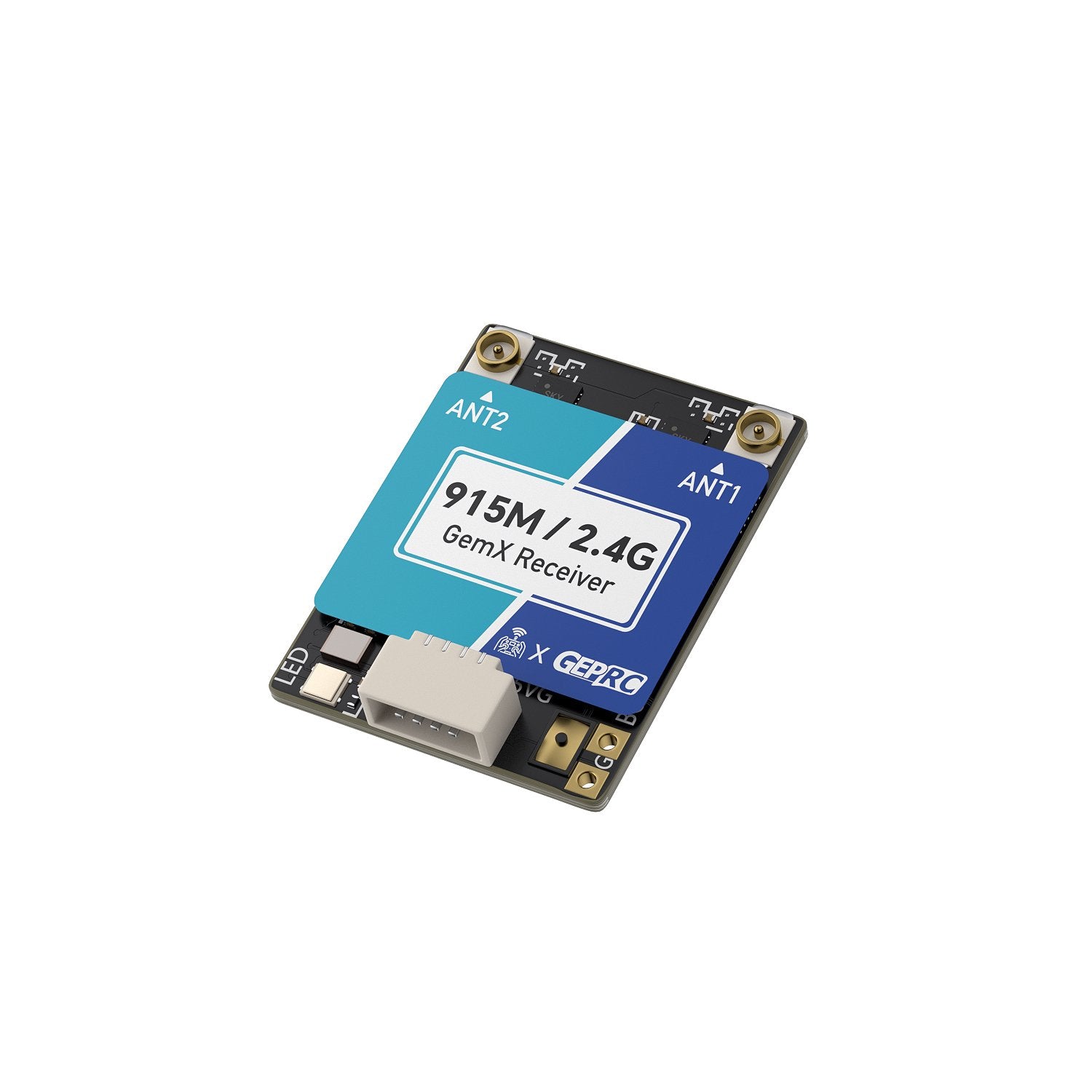

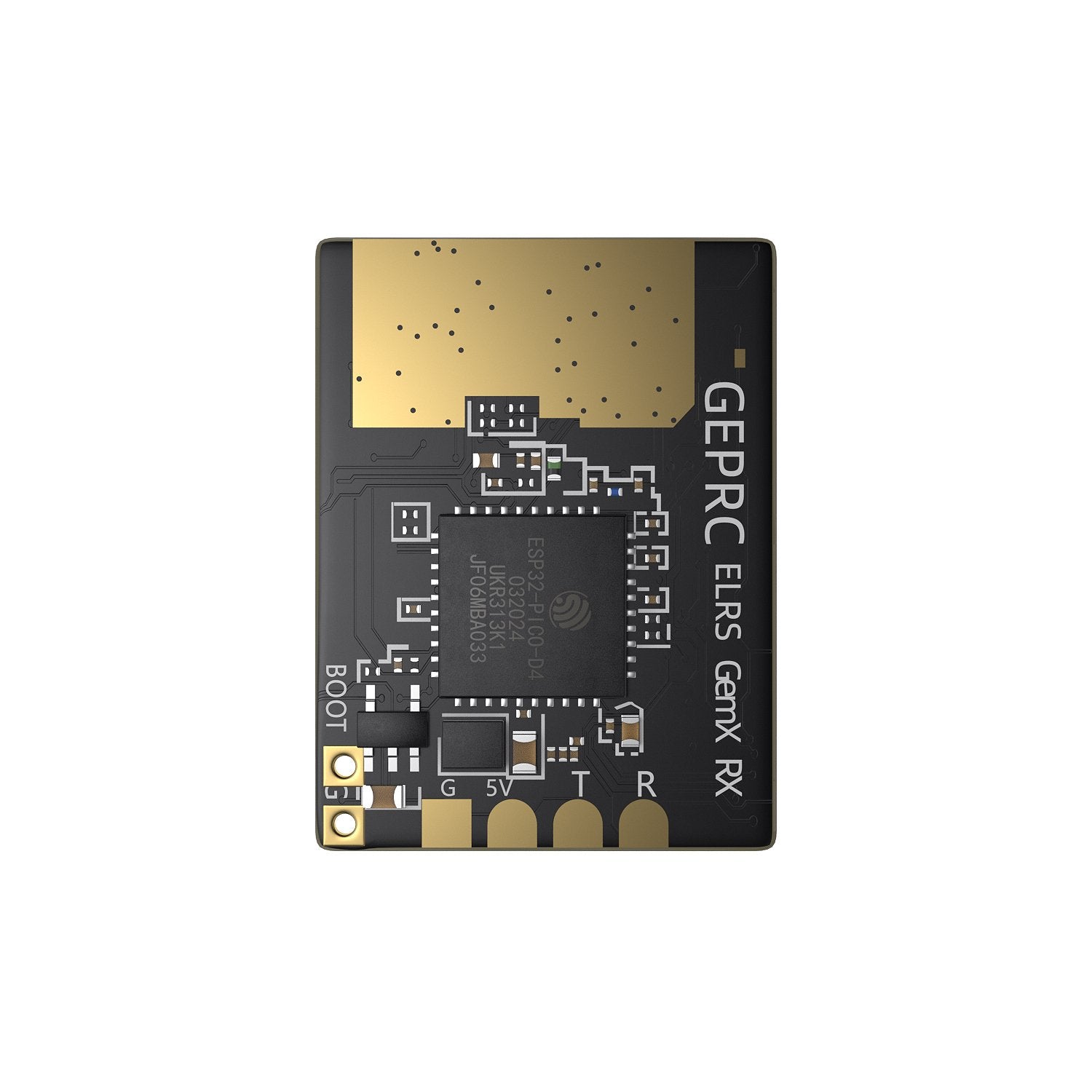

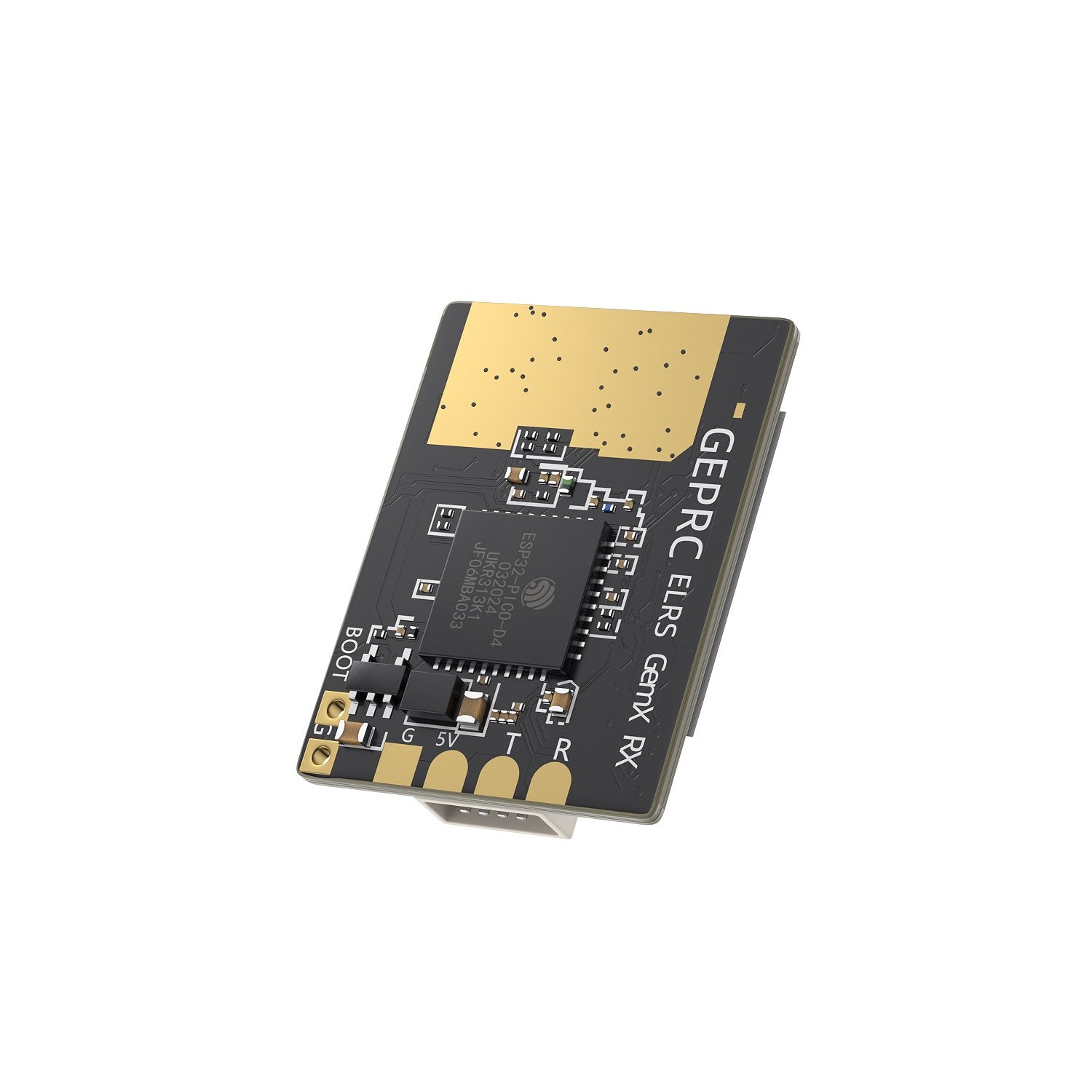

The GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver is a new dual-band system developed from the ExpressLRS open-source project. It is designed based on Semtech’s third-generation LR1121 RF chip, supporting 150 – 960MHz (sub-GHz) and 2.4GHz bands for simultaneous dual-band transmission.

The ELRS 915M/2.4G Gemini Xrossband Receiver features dual LR1121 chips, allowing easy switching between 915M Gemini, 2.4G Gemini, and dual-band 915M+2.4G modes (requires dual-band TX module support) when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.

In dual-frequency mode, it provides enhanced anti-interference and stability. The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.

Feature

Advanced ExpressLRS 915M/2.4G dual-frequency system

Based on Semtech’s third-generation LR1121 RF chip

Compact at 18×23.6×5.7mm and weighing just 1.7g

Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF

Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures

Telemetry power up to 100mW

Refresh rate up to 1000Hz

Supports WiFi firmware updates

Includes an SH1.0 connector for easy installation

Specifications

Model: GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver
