GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver｜FPV 圖傳設備

$347.00

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

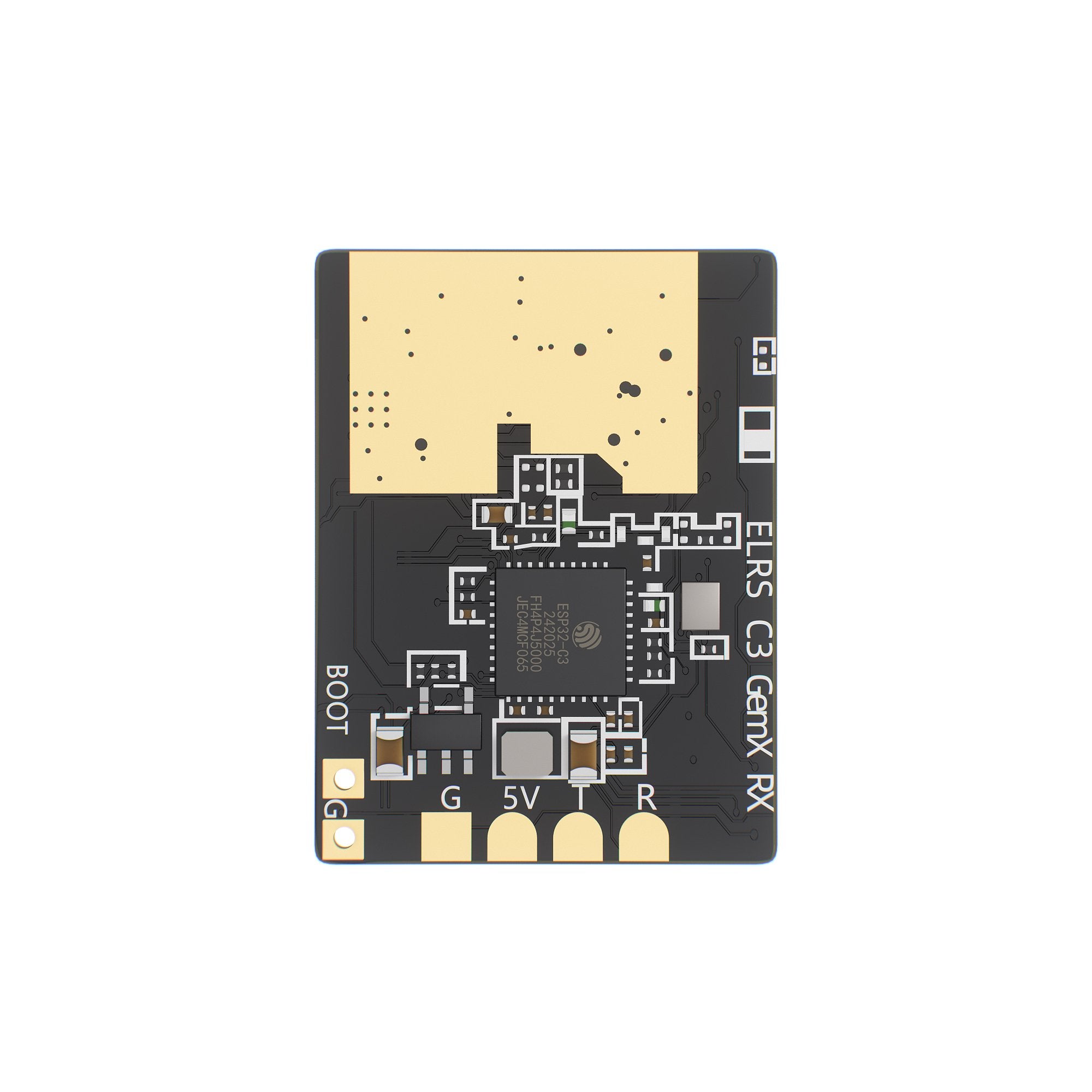

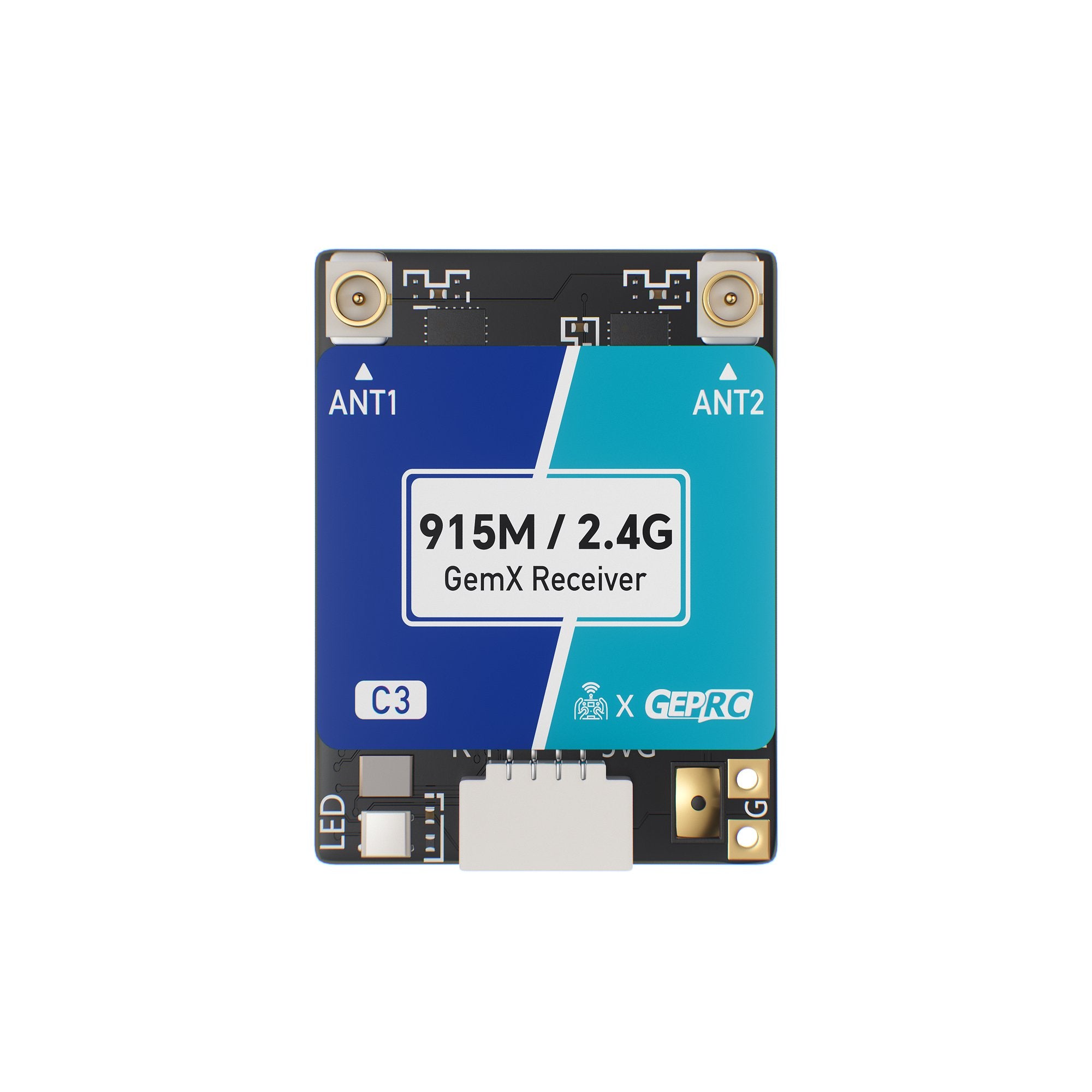

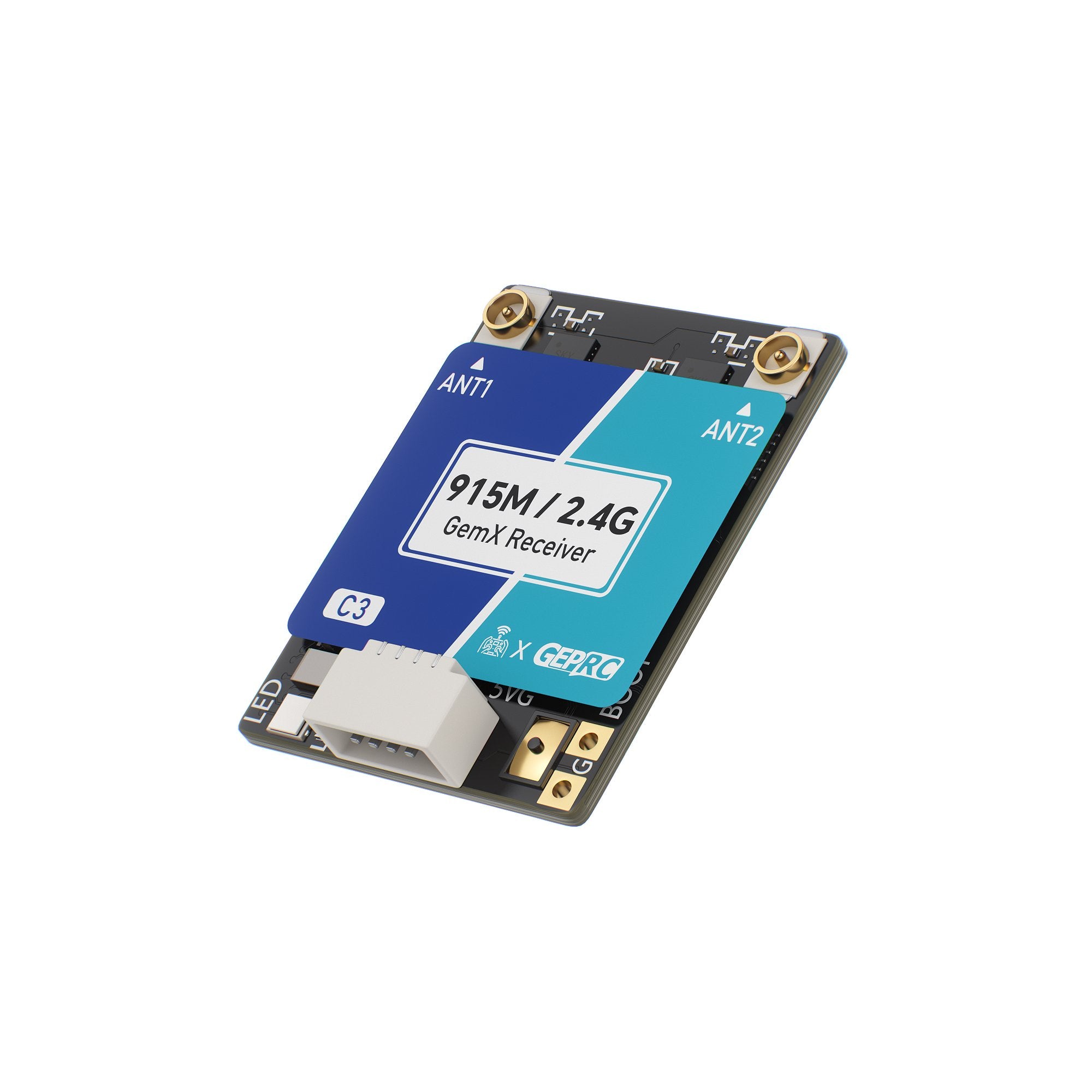

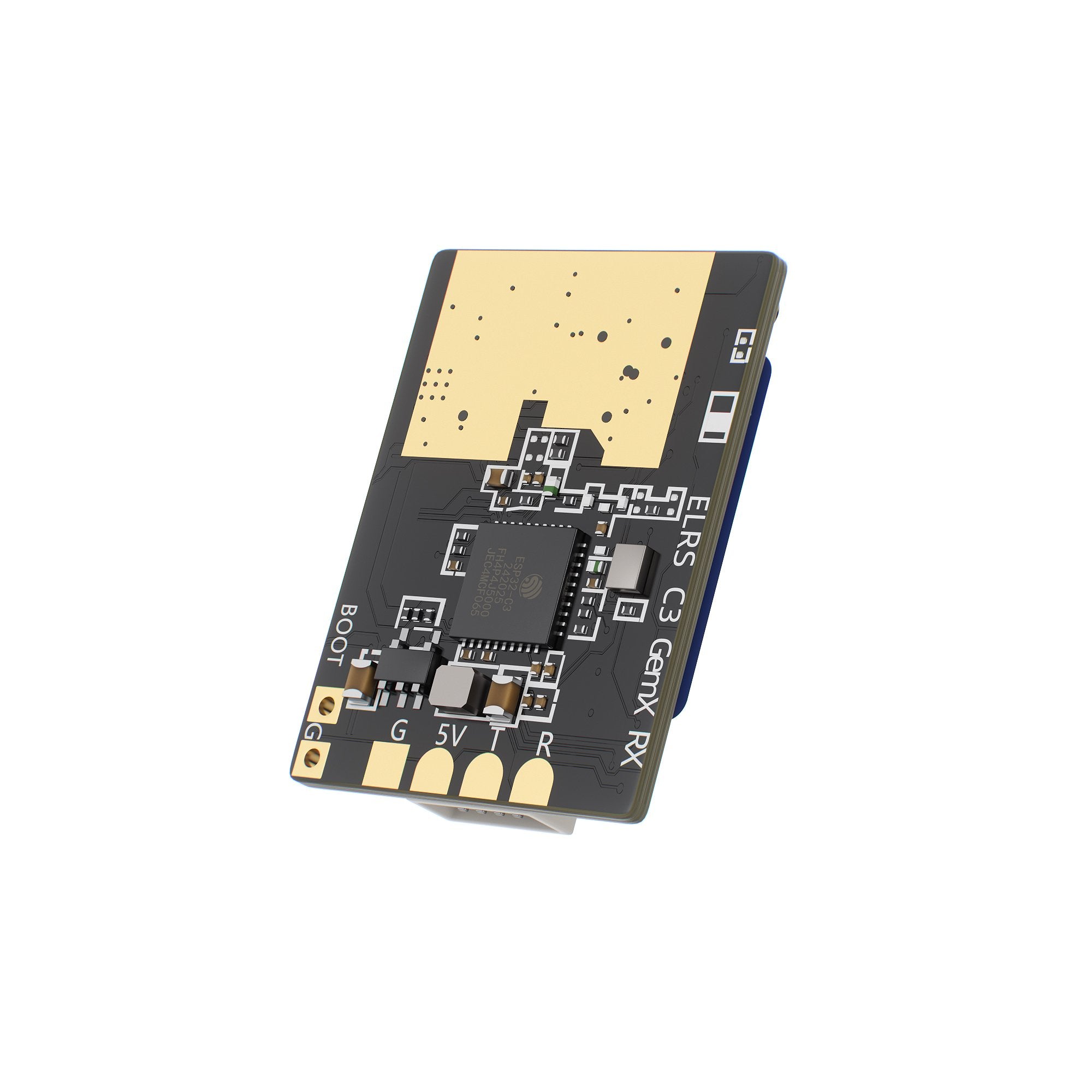

GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

GEPRC ELRS 915M/2.4G C3 GemX Gemini Receiver is a new dual-band receiver system developed based on the ExpressLRS open-source project. It is designed with the Semtech LR1121 (3rd generation RF chip) and ESP32-C3 chip, supporting both 150–960 MHz (sub-GHz) and 2.4 GHz bands, delivering advanced simultaneous dual-band transmission.

It supports up to 1000 Hz (FSK) refresh rate and comes with 915M/2.4G dual-band antennas, allowing flexible switching between 915M Gemini, 2.4G Gemini, and 915M+2.4G Dual-Band modes (It requires the use of GemX TX). When operating in dual-band mode, the system achieves enhanced anti-interference performance and more stable connectivity, ensuring excellent results for both close-range racing and long-range flights. It is also fully compatible with single-band ELRS TX modules, offering outstanding versatility.

Equipped with a TCXO, it maintains frequency stability under varying temperatures. The TLM power reaches up to 100 mW, and the receiver features a built-in WiFi antenna for easy firmware upgrades via WiFi. With the SH1.0 connector, installation is simple and efficient. Additionally, after flashing TX firmware, it can function as a Gemini Xrossband TX module.

Feature

Advanced ExpressLRS 915M/2.4G dual-frequency system

Based on Semtech’s third-generation LR1121 RF chip

Compact at 18×23.6×5.7mm and weighing just 1.6g

Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF

Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures

Telemetry power up to 100mW

Refresh rate up to 1000Hz

Supports WiFi firmware updates

Includes an SH1.0 connector for easy installation

Specifications

Model: GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver
