Summary

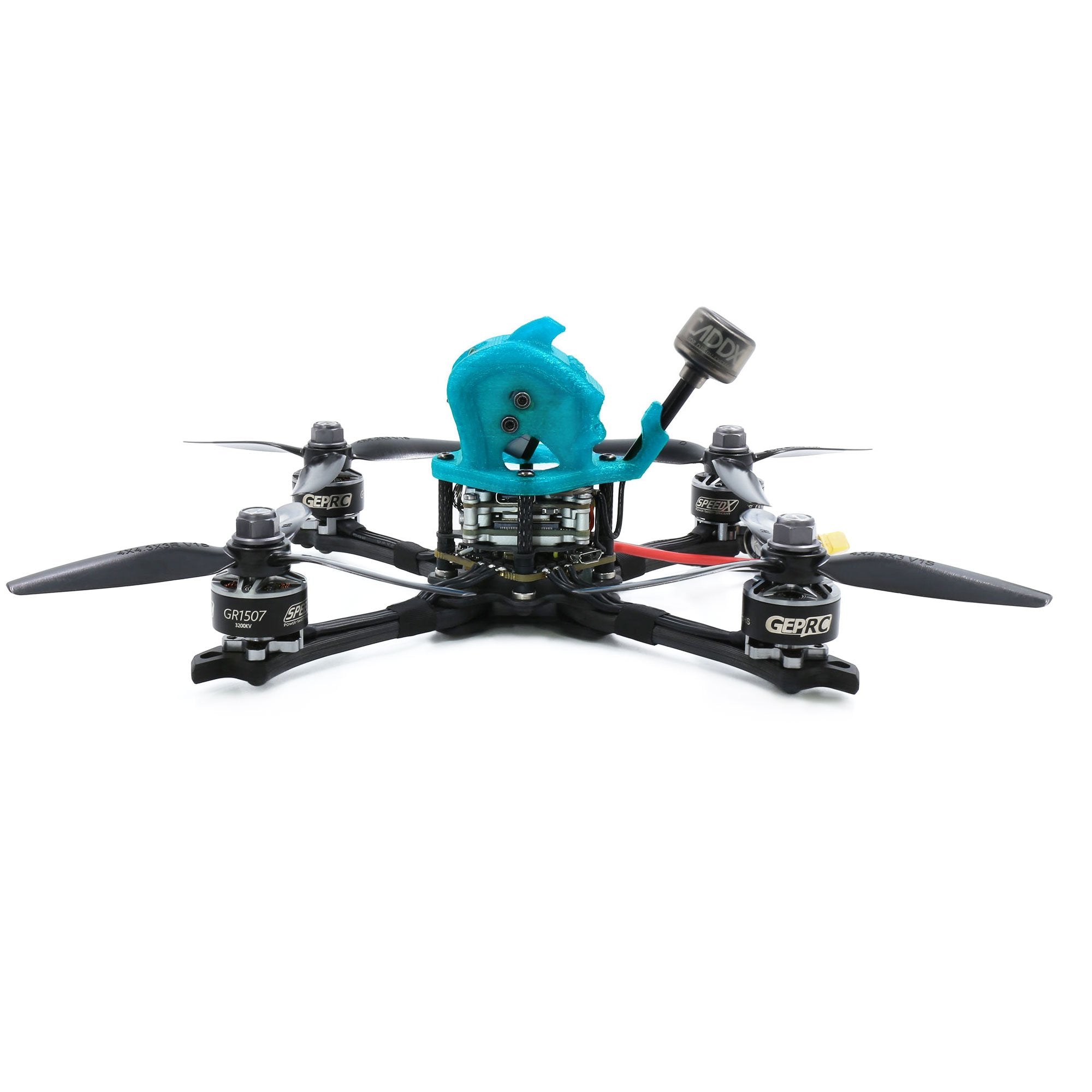

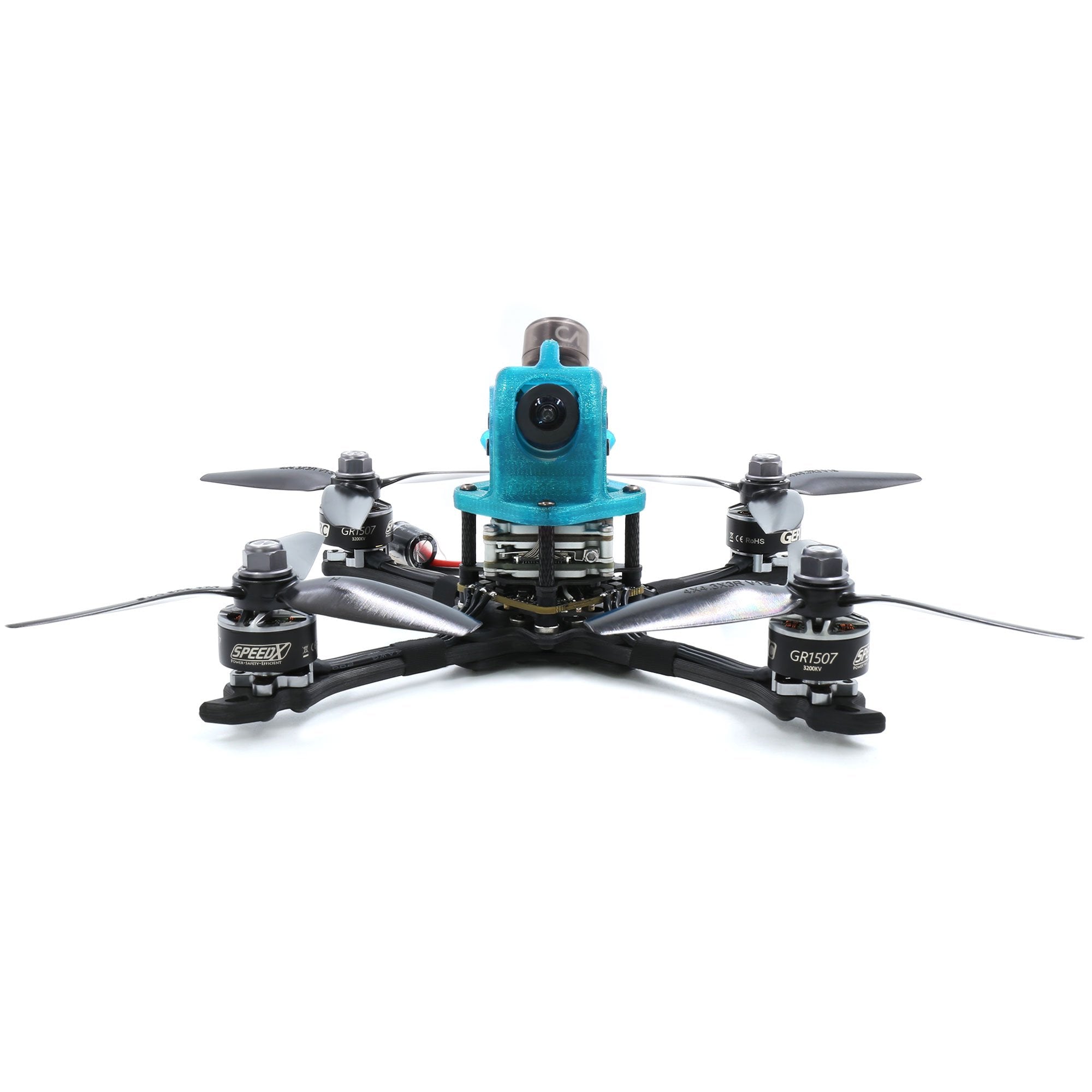

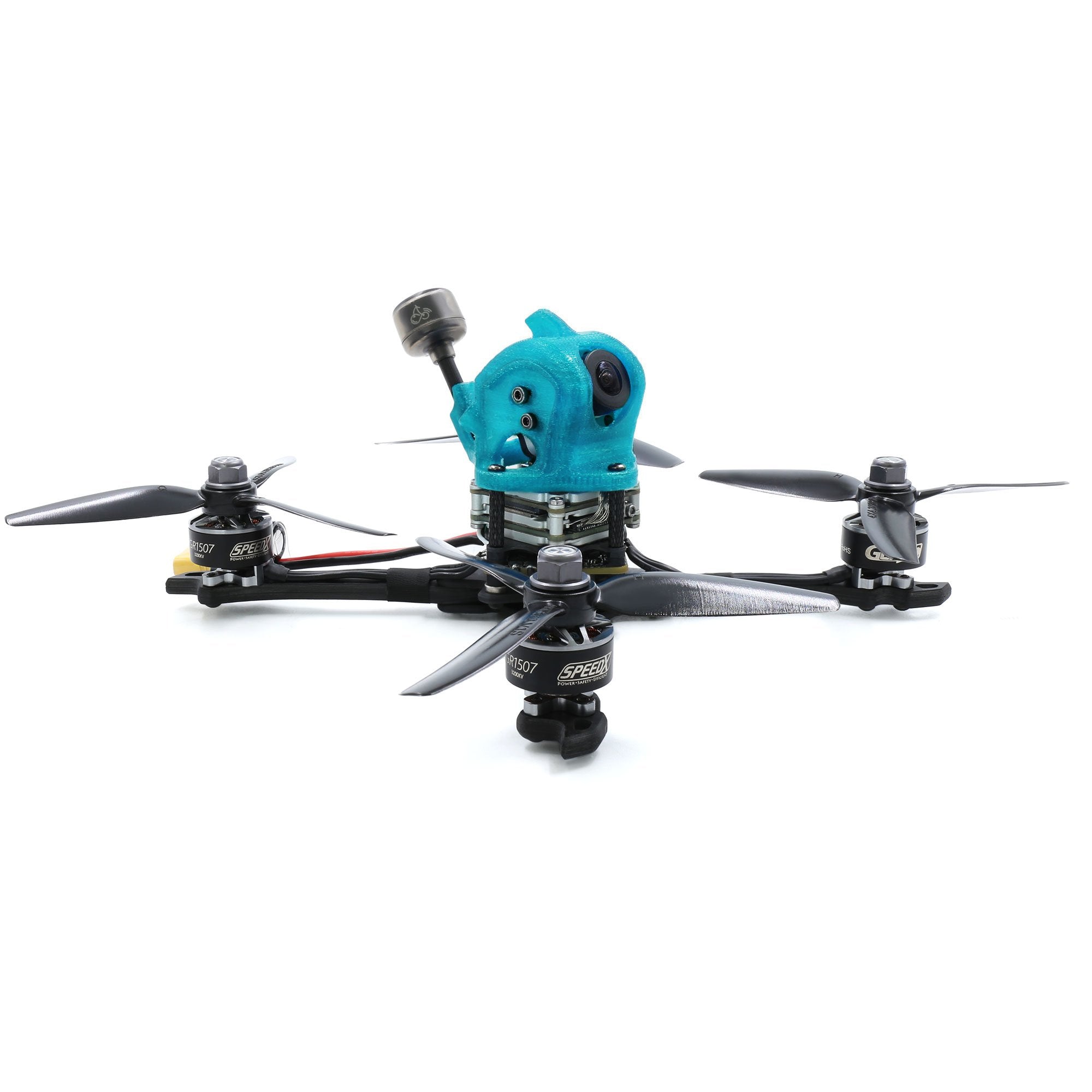

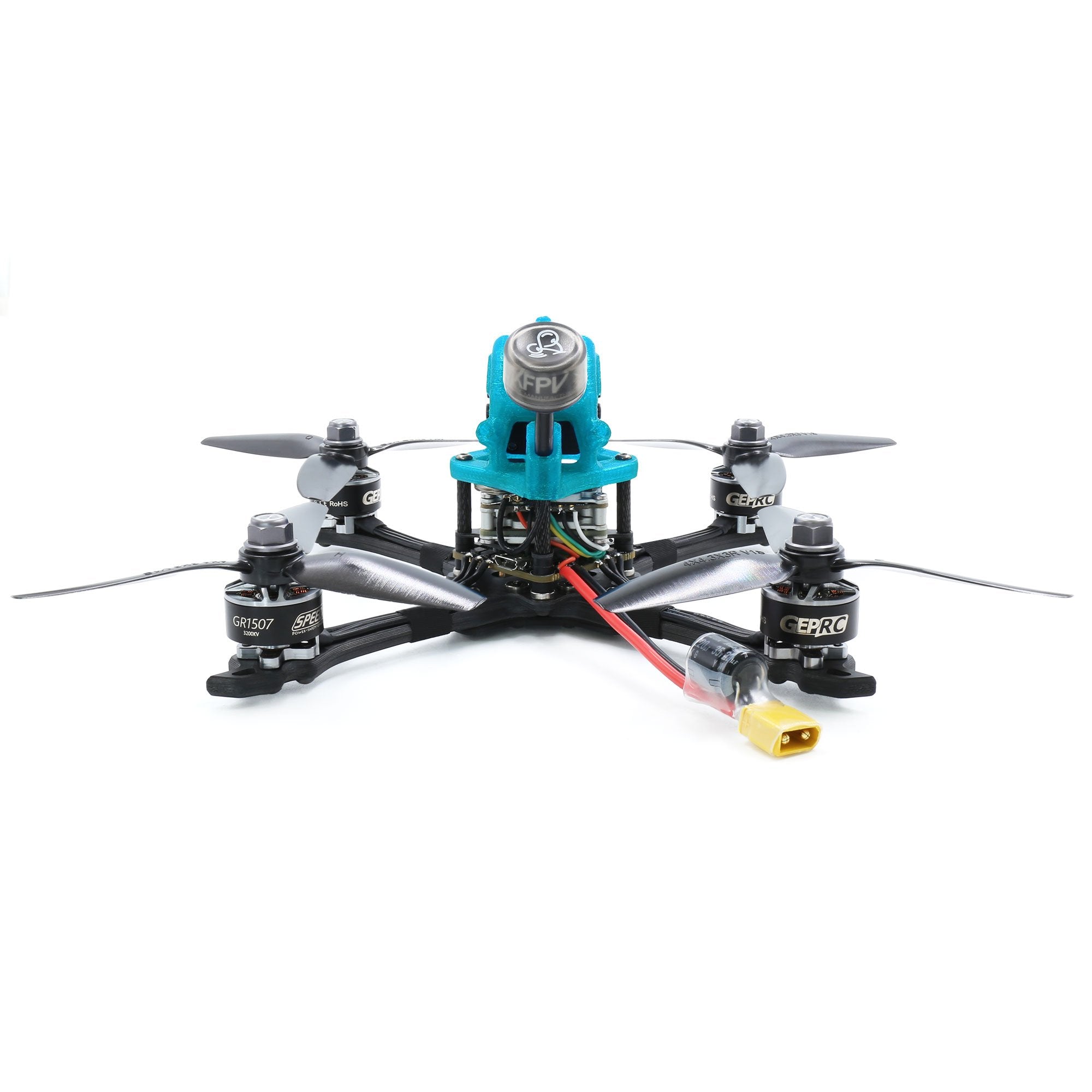

Dolphin HD is an upgraded version of dolphin 4inch, which is equipped with the latest Runcam Link Wasp HD Digital System.It has powerful flight performance and HD

FPV picture quality, so that you can experience the fantastic feeling of flying.

The weight is 160g (without battery), 153mm (motor to motor) , It bring powerful 1507 motor with HQ 4×4.3×3 V1S propeller, sufficient power and ensure efficiency. (4S-650 ~ 850mAh recommended)

Flight controller with powerful GEP-F411-35A AIO, integrated board F4 FC, ESC continuous current reaches 35A, stable and high-performance computing STM32F411 chip to ensure flight stability and very smooth feeling. Firmware is GEPRCF411, built-in Betaflight OSD, integrated LC filter. The flight controller has a silicone grommet,and the optimized PID has a significant noise reduction effect.

The Dolphin had been redesigned through professional assembled and debugged by GEPRC team. This mini Quad has excellent flight performance.

ChangeLog

13th April, 2022: Camera changed from HD Nebula Nano Camera to HD Polar Camera.

December

1st, 2022:

Dolphin ToothPick FPV flight controller changed from GEP-20A-F4 to F411-35A AIO.

Features

Ultra-light 4 inch toothpick frame, 3K carbon fiber bottom structure, True X frame design, split structure

High-Quality TPU 3D printed canopy with exquisite design

166g weight(without battery), ultra light weight, Enjoying fast and Furious flying

Equipped with Caddx Polar camera, the picture quality is better

The flight controller uses STM32F411 and BLheli_S 35A ESC, flexibleand smooth flight

1507 3200KV motor with HQ4x4.3×3 V1S , Fantastic and efficient power extremely matching

The PID is meticulouslytestedby the GEPRC pilot team, it can fly as long as press BIND button with your Radio transmitter right on your hand

Specifications

Brand:GEPRC

Item:Dolphin HD

Flight Controller:

F411-35A AIO

Camera: Polar

Motor to motor:153mm

Propeller:HQ4x4.3×3 V1S(4 pairs)

Antenna:RG137 5.8g RHCP

Motor:

1507 3200KV

Weight:160g without battery

Receiver:Without Receiver(PNP)/Frsky R-XSR / Frsky XM+ / TBS NanoRX

Frame: GEPRC

GEP-DX4

Carbon:Full 3K carbon fiber

Motor to motor: 153mm

Bottom plate: 2mm

Top plate: 2mm

Arms plate: 4mm

Flight Controller:

GEP-F411-35A AIO

MCU: STM32F411

Gyro: 6-Axis

OSD:BetaFlight OSD w/ AT7456E chip

Firmware target: GEPRCF411

ESC: G_H_30 BLS(Dshot/Multishot/OneShot) support 2~6S LiPo

VTX: 5.8GHz (48 Channel IRC Tramp,PIT/25/100/200mW)

Include

1x Dolphin HD FPV Drone BNF/PNP

4x HQ 4×4.3×3 V1S (pairs)

1x Battery pad

2x Battery strap 15*120

1x M8 wrench

1x 1.5mm L screwdriver

2x antenna tubes
