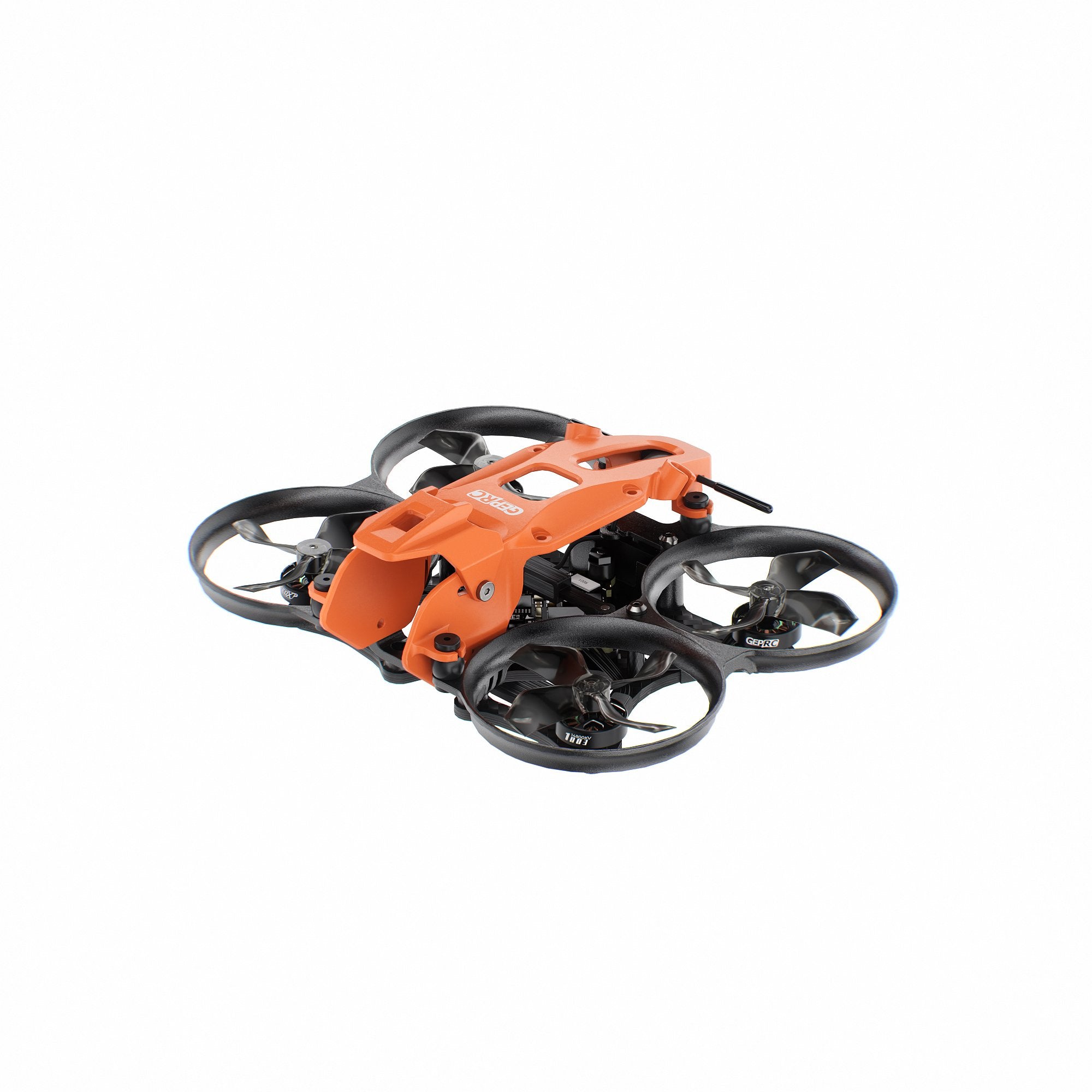

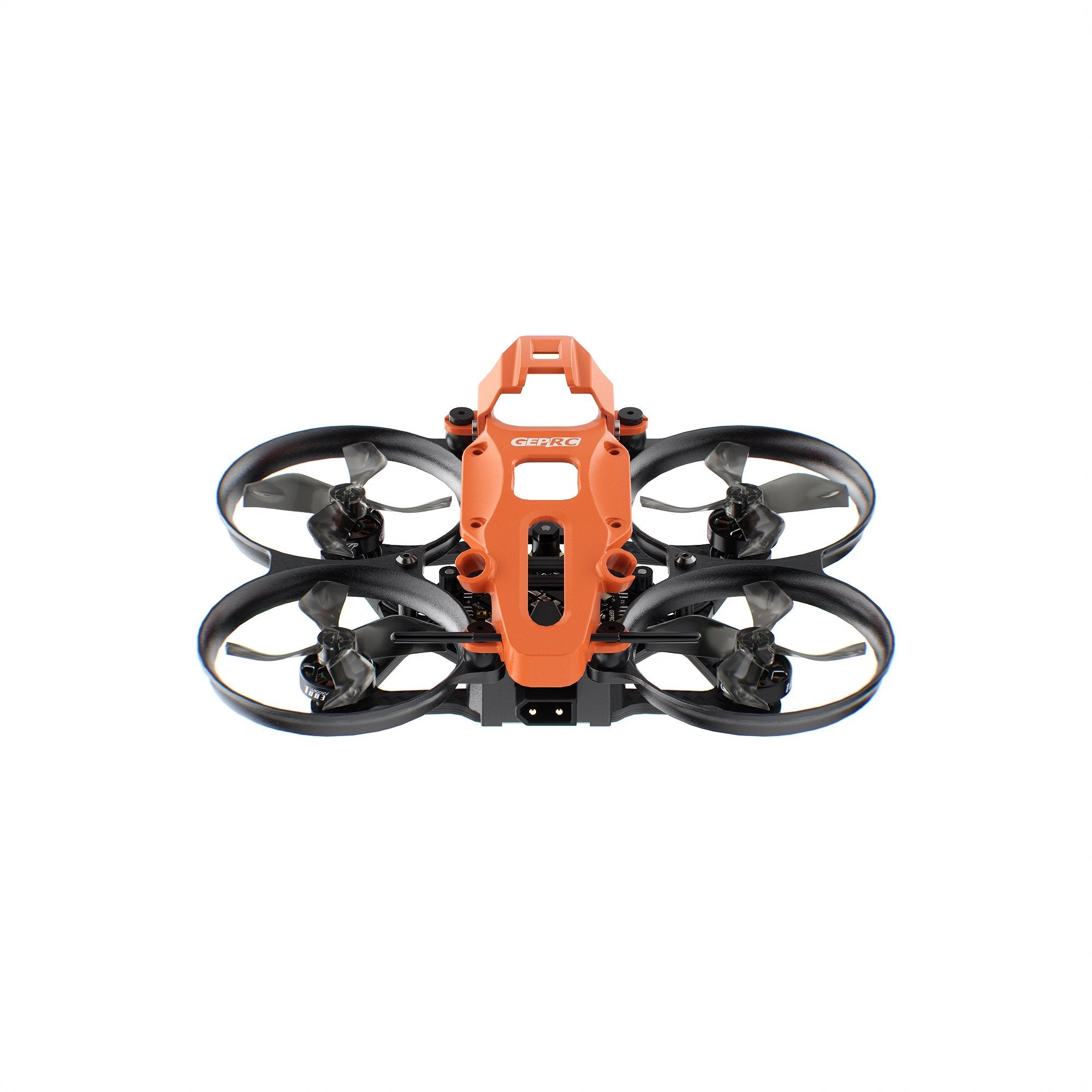

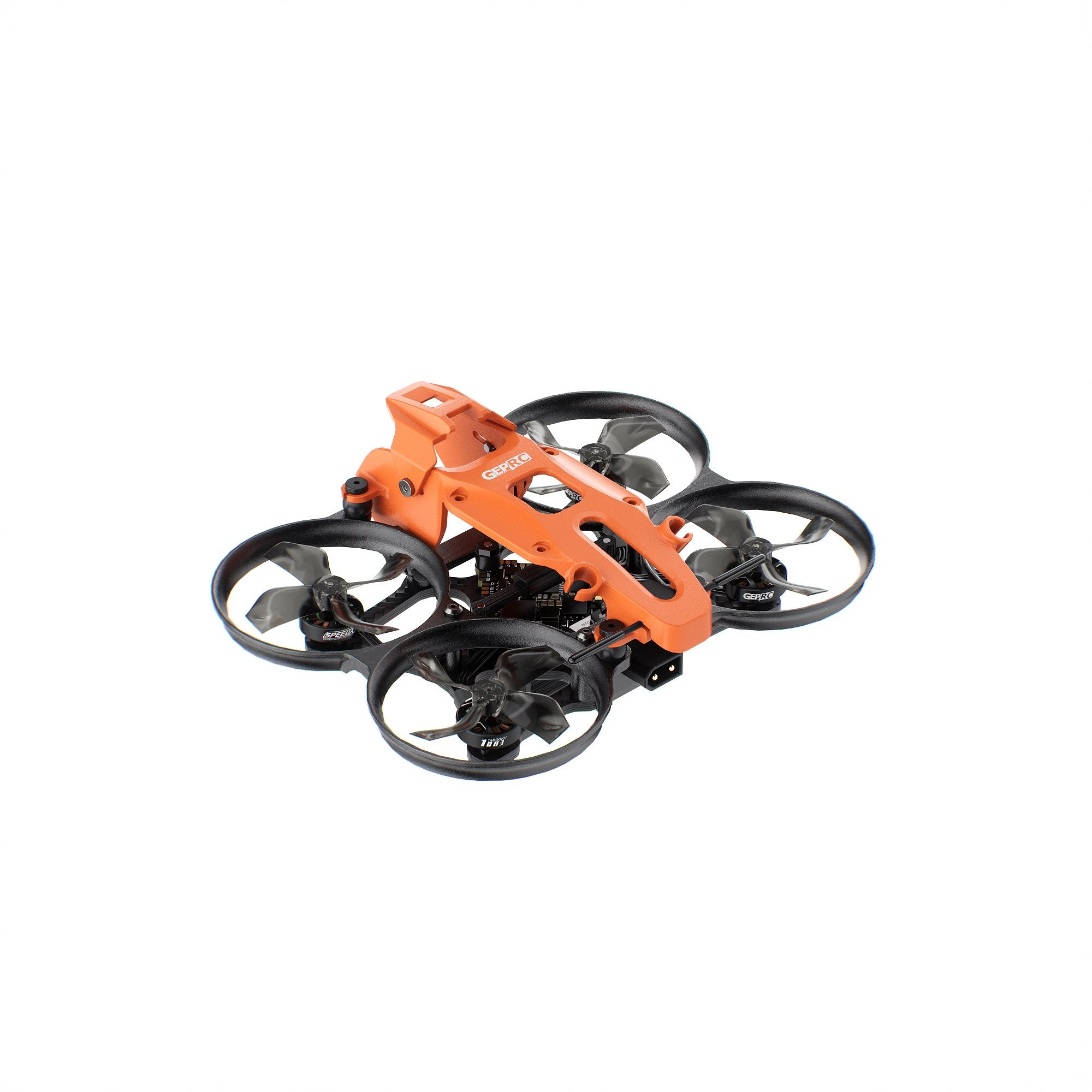

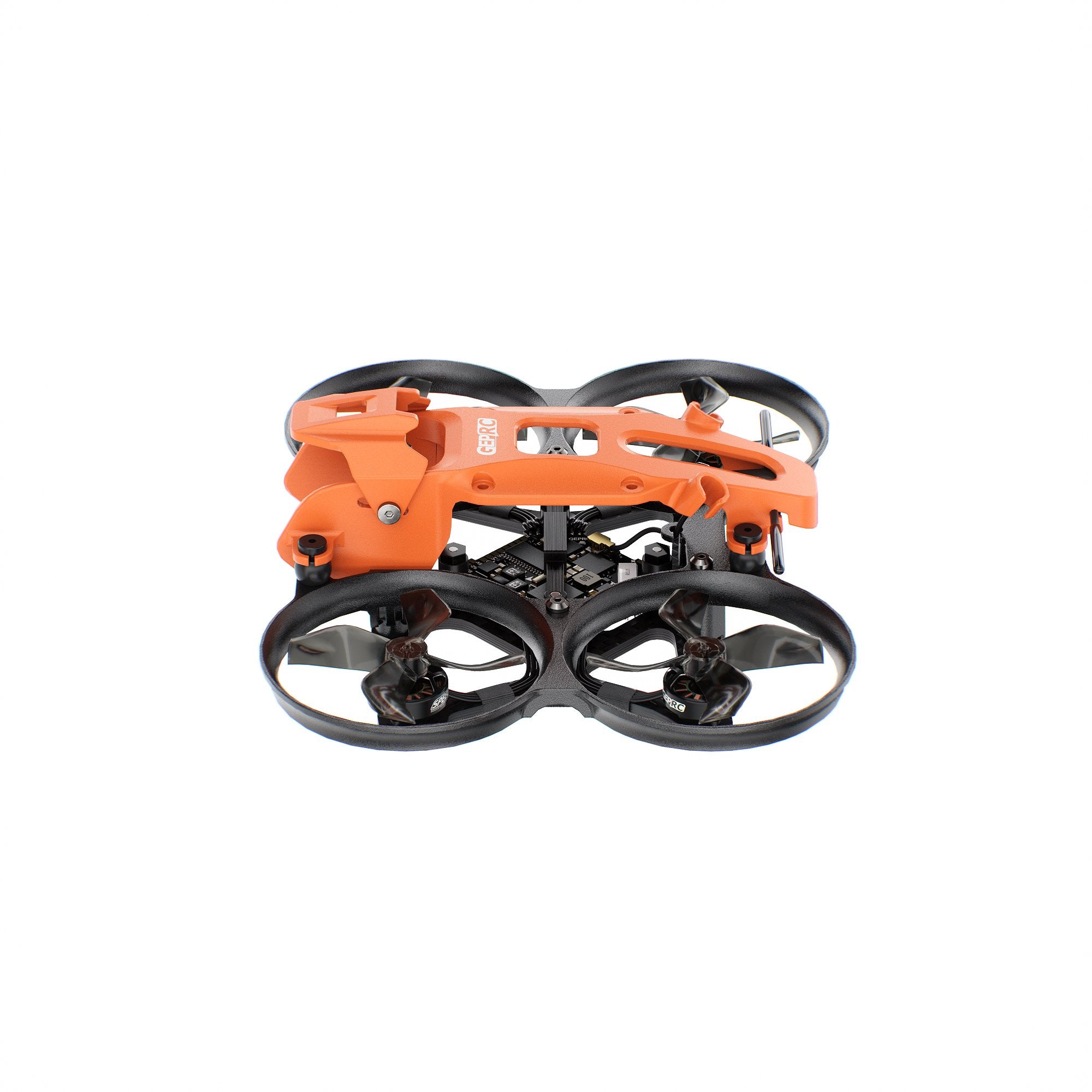

GEPRC DarkStar16 WTFPV TinyWhoop｜FPV 穿越機

GEPRC DarkStar16 WTFPV TinyWhoop｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.

Featuring a 1.6-inch frame and the DJI O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.

The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.

The Darkstar16 offers a high-performance, creative flight experience.

Feature

The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.

Quick-release design lets you detach the VTX module by removing just 6 screws.

Equipped with the DJI O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.

Lightweight molding strikes a balance between durability and performance.

The compact 1.6-inch frame offers portability for efficient filming.

The fixed XT30 power connector ensures simple on/off operation.

Specifications

Model: GEPRC DarkStar16 O4 Pro WTFPV

Frame: GEP-DS16

Wheelbase: 91mm

FC System: TAKER F411-12A-E 1-2S AIO

MCU: STM32F411CEU6

Gyro: ICM42688-P

OSD: Betaflight OSD w/AT7456E chip

ESC: Bluejay 8Bit 12A

VTX: /

Camera: /

Antenna: 5.8G UFL antenna

Motor: SPEEDX2 1003 14800KV

Propeller: Gemfan1636-4

GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g

Receiver: PNP / ELRS2.4G

Recommended Battery:

LiHV 2S 530mAh

Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

Includes

1 x GEPRC DarkStar16 O4 Pro WTFPV

1 x Darkstar16 Canopy (grey)

1 x Darkstar16 camera protector (grey)

1 x Darkstar16 prop guard (black)

1 x Gemfan1636-4 (2CW+2CCW)

1 x Plum screwdriver

1 x Spare screw pack

1 x Keychain
