Summary

For the shooting needs of complex indoor environments, GEPRC has recently released the 2 inch Cinewhoop CineLog20. Available in Link Wasp, O3 Air Unit, and Analog three mainstream video transmission system on the market.

The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 AIR Unit shooting, which can achieve excellent anti-shake effect. The O3 Air Unit version can shoot 4K 120fps video without mounting any camera. It is lighter in weight and has a longer battery life.

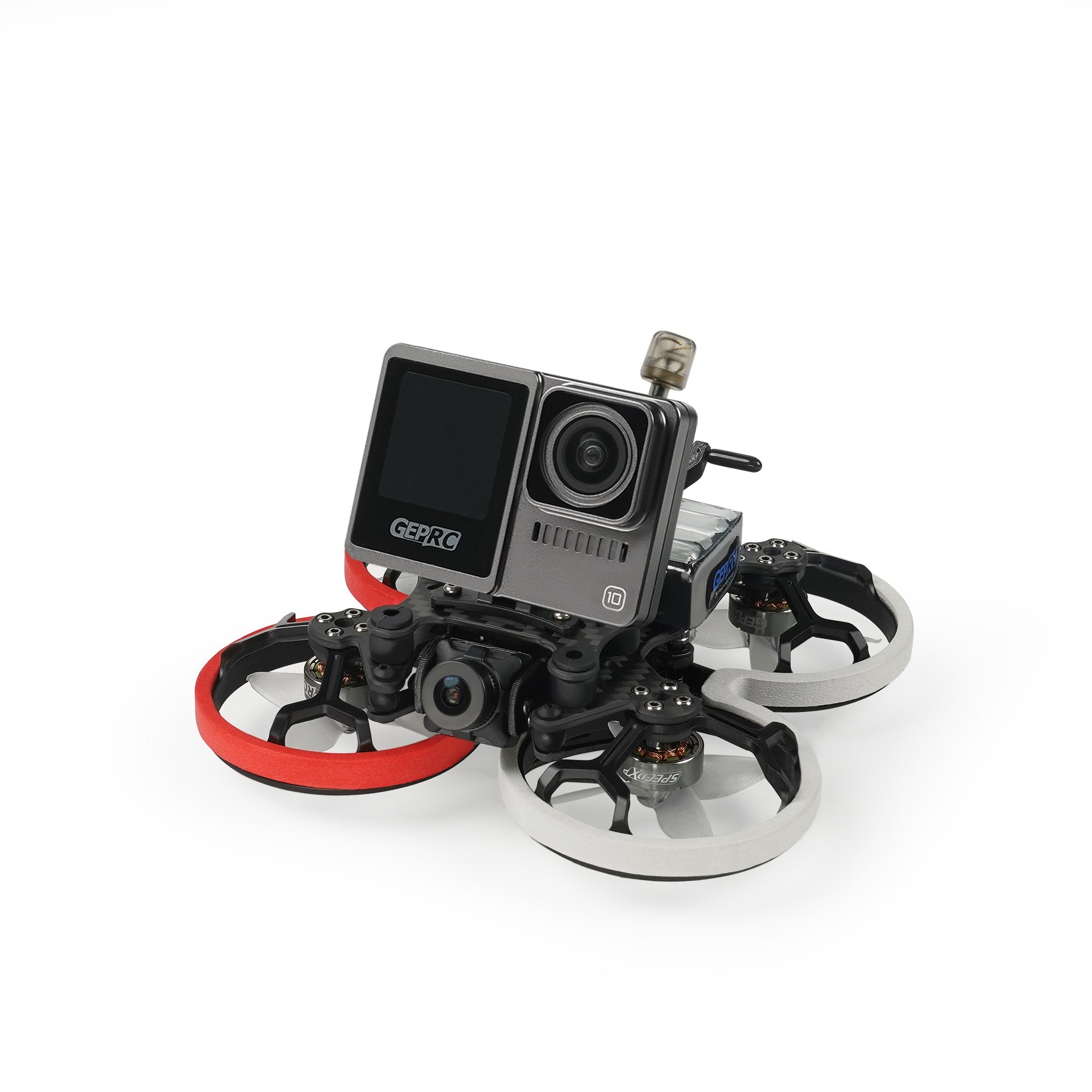

It adopts GEPRC SPEEDX2 1303.5 5500KV motor and Taker G4 35A AIO. Equipped with Emax 4-blade propellers, reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked GP 8/9/10/11 cameras, Action2, insta360 Go2, Peanut and other light and small action cameras.

Changelog

Apr 19, 2024: CineLog20 FC system changed from GEP-F411-35A AIO to TAKER G4 35A AIO.

Feature

Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.

Provide mainstream Link Wasp, O3 Air Unit, Bind-N-Fly to save the trouble of building and tuning.

2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.

SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.

Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GP Camera mounted.

The GEPRC Team’s splendid tuning and the overall flight feel are delicate and flexible.

Specifications

Model: CineLog20 HD Wasp

Frame:

GEP-CL20

Wheelbase: 100mm

Gimbal plate: 2.0mm

Top plate: 2.5mm

Bottom plate: 1.5mm

FC system:

Taker G4 35A AIO

MCU: STM32F411CEU6

Gyro: ICM 42688-P

OSD: Betaflight OSD w/AT7456E chip

ESC: 8Bit 35A

VTX: Link

Camera: Runcam Wasp

Antenna:

GEPRC Peano 5.8G LHCP UFL

Motor:

GR1303.5 5500KV

Propeller:

EMAX Avan Micro 2×2.4×4

CineLog20 HD Wasp TBSNanoRX weight: 133.6g

Receiver: PNP(Link built-in receiver), ELRS2.4G, TBS Nano RX

Recommended battery:

LiHv 4S 450mah-660mah

Flight time:4-6min

Includes

1 x CineLog20 HD Waps

2 x 2 inch propellers (pairs)

1 x Naked GP Camera Base

2 x M15*150mm battery strap

2 x Battery Silicone Pads

2 x EVA landing Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x Antenna fixed tube

1 x 4S Naked GP Camera power cable (with balanced terminal head)

2 x EVA damping rings of guards

1 x TBS Antenna mount (Vertical Type)

1 x TBS Antenna mount (Horizontal Type)

1 x TBS Antenna printed parts

Screw package includes:

3 x M2*12mm cup head screws

2 x M2*5mm round head screws

1 x M2*8mm round head screw with pad

3 x M2*7mm round head screws

2 x M2*8mm round head screws

2 x M2 iron nuts

1 x self-clinching nut
