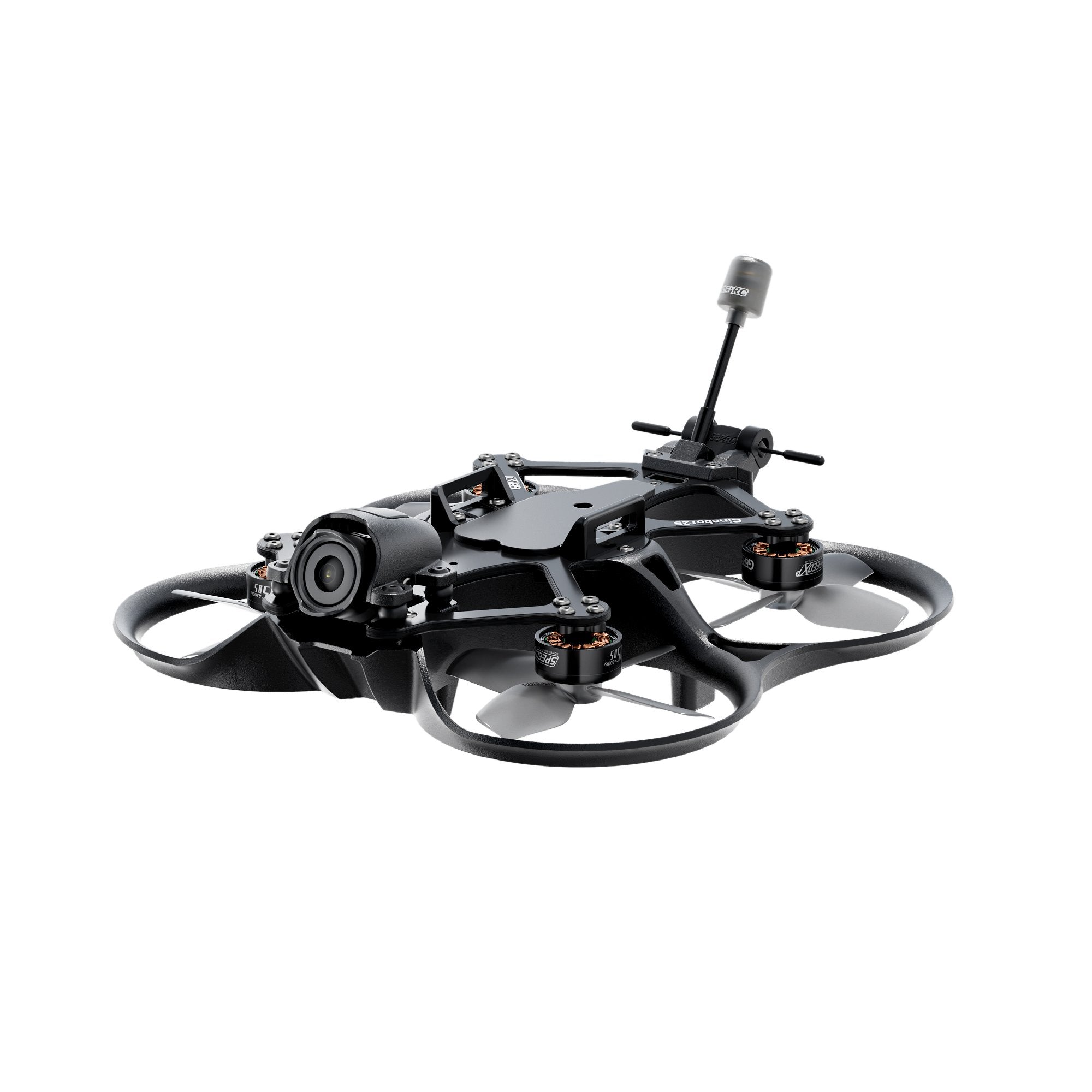

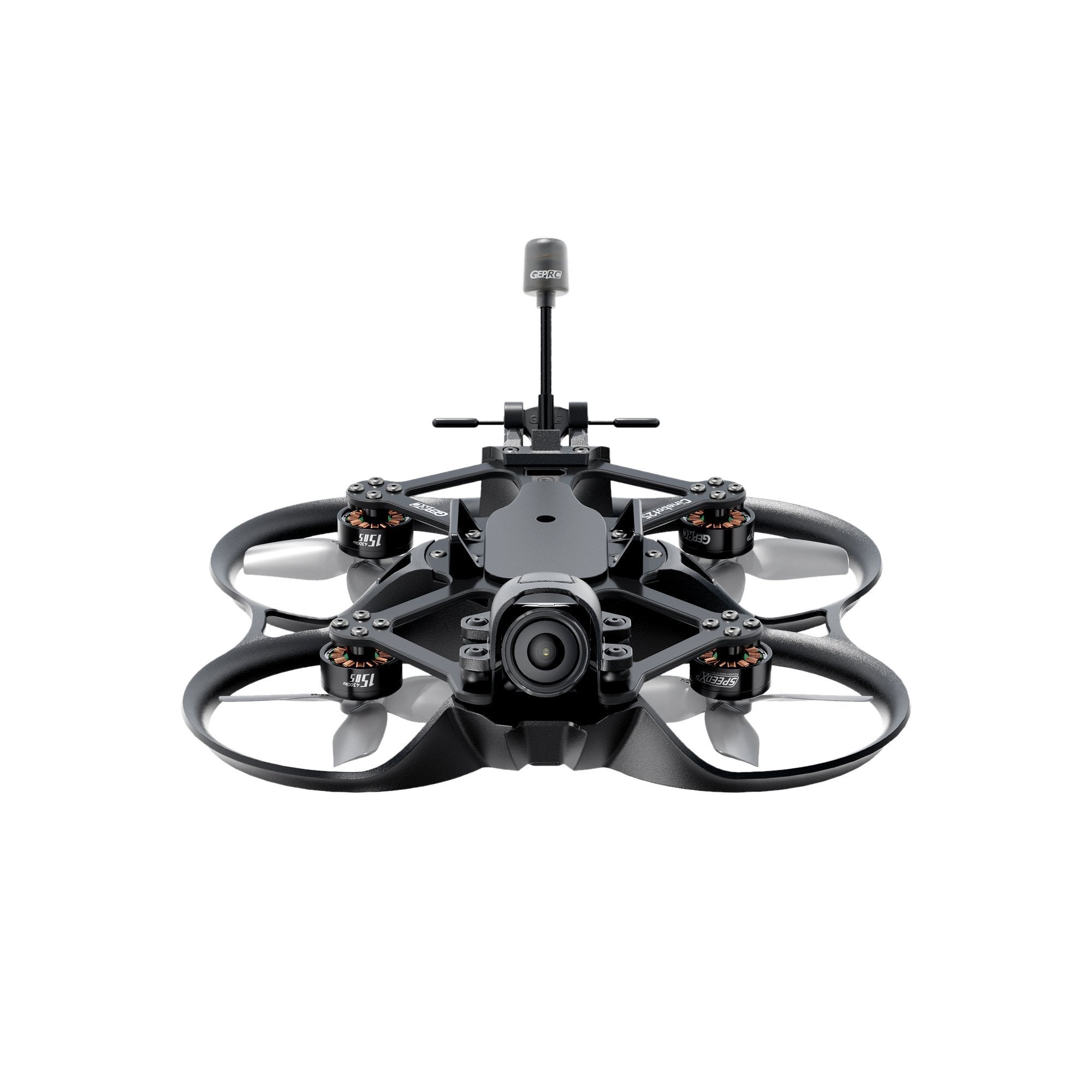

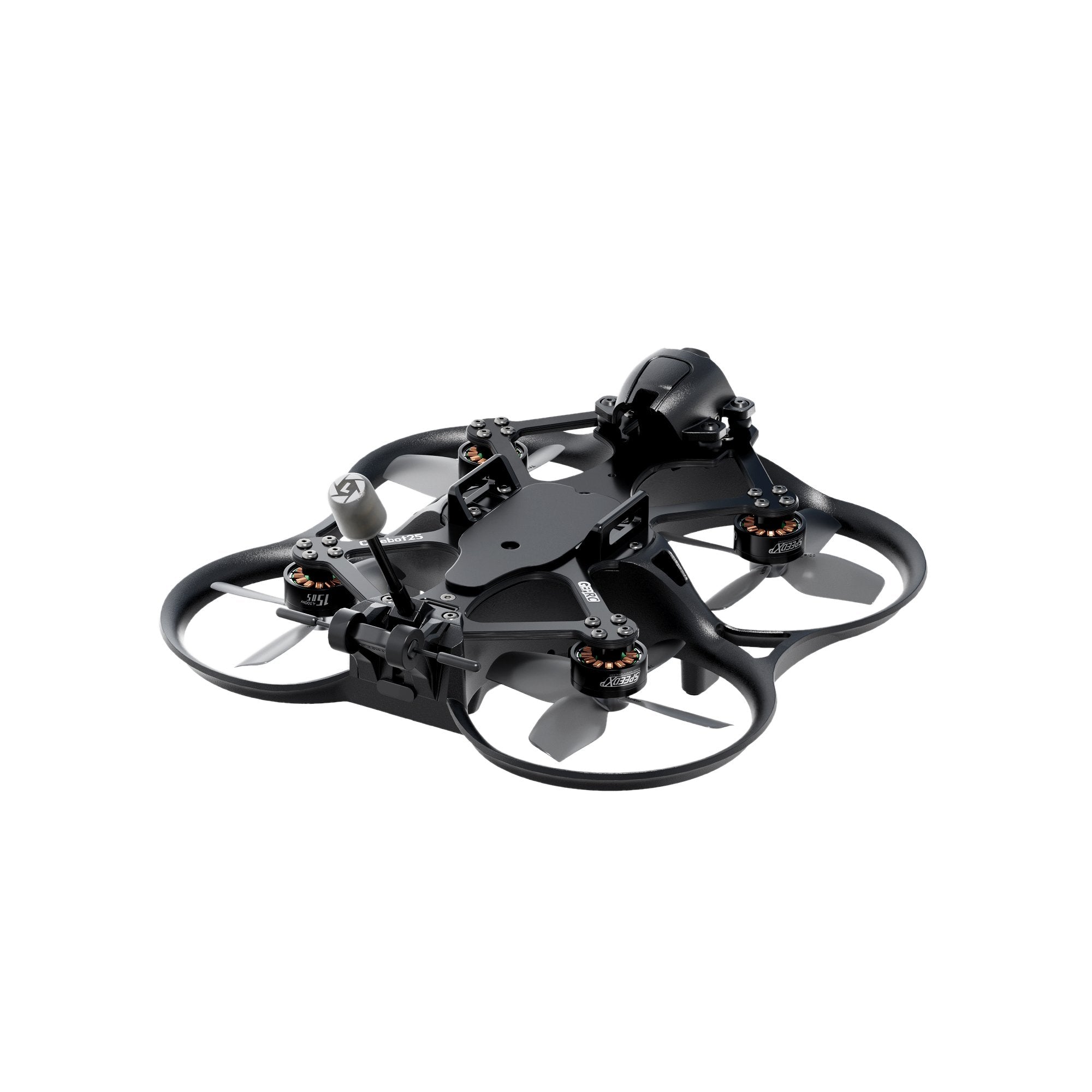

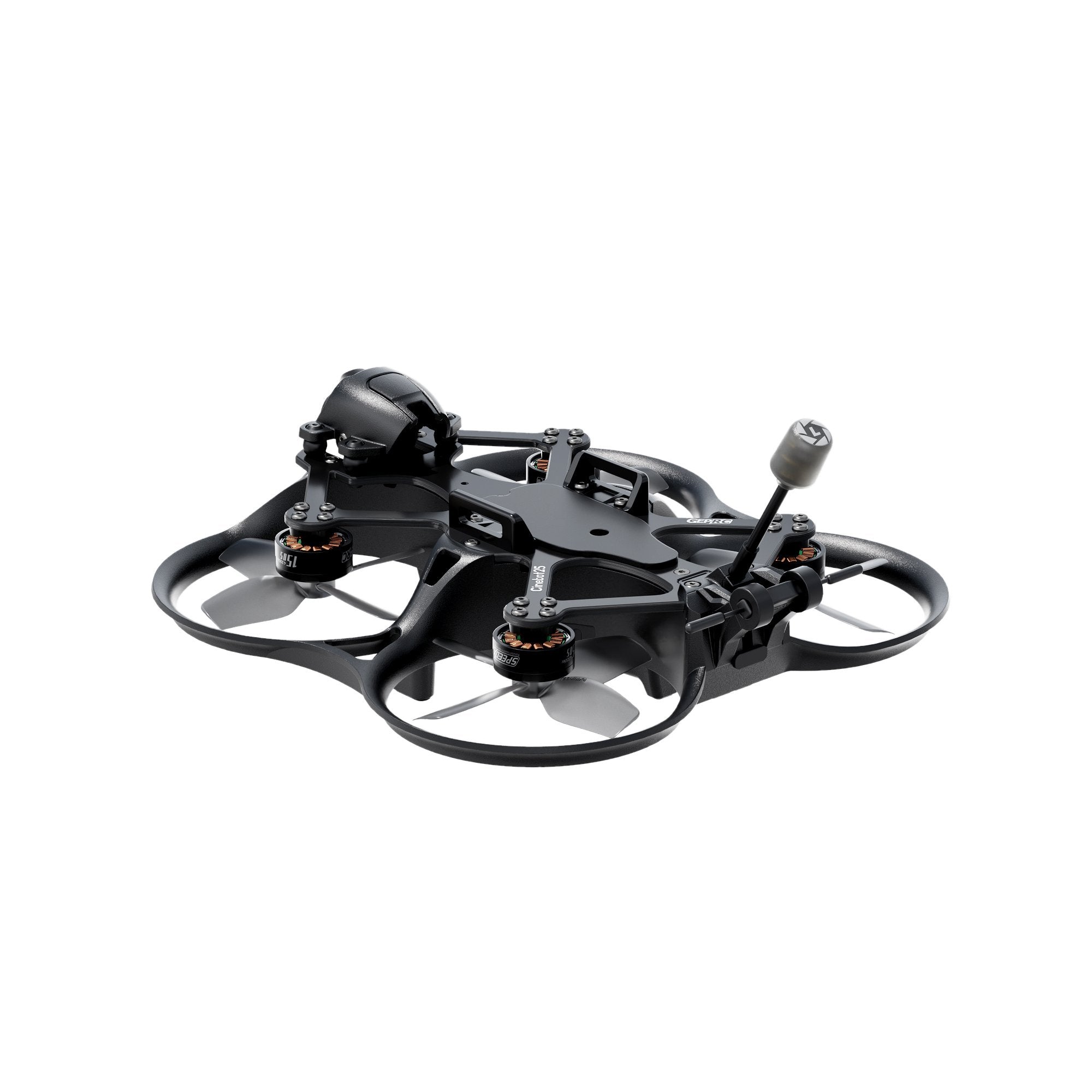

GEPRC Cinebot25 S HD Wasp Quadcopter｜FPV 穿越機

GEPRC Cinebot25 S HD Wasp Quadcopter｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

Cinebot 25 comes with two different options for the power version. They are the regular version with the SPEEDX2 1404 motor and the S(sport) version with the SPEEDX2 1505 motor.

The O3 anti-shake design applies four silicone damping balls to reduce vibration and filter jello, providing high-performance videos. The integrated structure adopts revolutionary modified materials to satisfy the need for rigidity and flexibility, reducing the possibility of damage to a minimum. The fuselage space is highly compatible with various video transmission systems like the O3 Air Unit， and it is equipped with a convenient outlet to make the use of the SD card slot and USB faster and more effective.

After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A 8Bit AIO FC that will breathe new life into the footage-shooting experience.

Changelog

August 3

, 2024: Cinebot25 AIO changed from TAKER G4 45A BL32 AIO to TAKER G4 45A 8Bit AIO.

Feature

Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.

The shock-absorbing protection cover of the camera provides better stability for footage shooting.

Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.

The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.

Optimized silicone T-shaped antenna fixing component.

Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g.

Equipped with the new TAKER G4 45A 8Bit AIO, the G4 main controller ensures stable flight computations, while its integrated 8Bit 45A ESC boasts robust over-current capability.

The compatibility between O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.

The customized fixing stand of the receiver simplifies the internal space.

Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

Specifications

Model: Cinebot25 S Wasp Quadcopter

Frame: GEP-CT25 Black

Wheelbase: 115mm

FC: TAKER G4 45A AIO

MCU: STM32G473CEU6

Gyroscope: ICM 42688-P

FC firmware: TAKERG4AIO

ESC:45A 8Bit ESC

Motor: SPEEDX2 1505 4300KV

Propellers: HQprop DT63mm x4

Connector: XT30

VTX: Runcam Link

Camera: Runcam Wasp

Antenna: Peano 5.8G LHCP UFL

Receiver: PNP(internal VTX receiver) / ELRS2.4G / TBS NanoRX

Weight: Cinebot25 S Wasp PNP version 180g±1g

Recommended battery:LiPo 4S 650mAh-850mAh

Flight Time：5′-7’30”（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

Includes

1 x Cinebot25 quadcopter

1 x HQprop DT63mmx4 propeller（pack）

2 x Battery anti-slip pads

1 x 15150mm battery strap

1 x 15*180mm battery strap

1 x Naked GoPro base

1 x O3 heat sink

1 x Reserved screw pack

1 x L-shaped screwdriver 1.5mm

1 x Frequency paring pointer

1 x Damping ball puncher

Reserved screw pack includes

2 x Camera damping balls

4 x M2 nuts

6 x M2*6 button head screws

4 x M2*18 button head screws

4 x M1.6*8 Round Head screws with collar

4 x M2*5 button head screws

4 x M1.6*10 allen screws

2 x M2*12 button head screws

2 x M2 self-clinching nuts

2 x T-shaped antenna fixing silicones
