GEPRC 915MHz/2.4GHz T Antenna｜FPV 天線

GEPRC 915MHz/2.4GHz T Antenna｜FPV 天線

GEPRC 官方FPV 天線，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

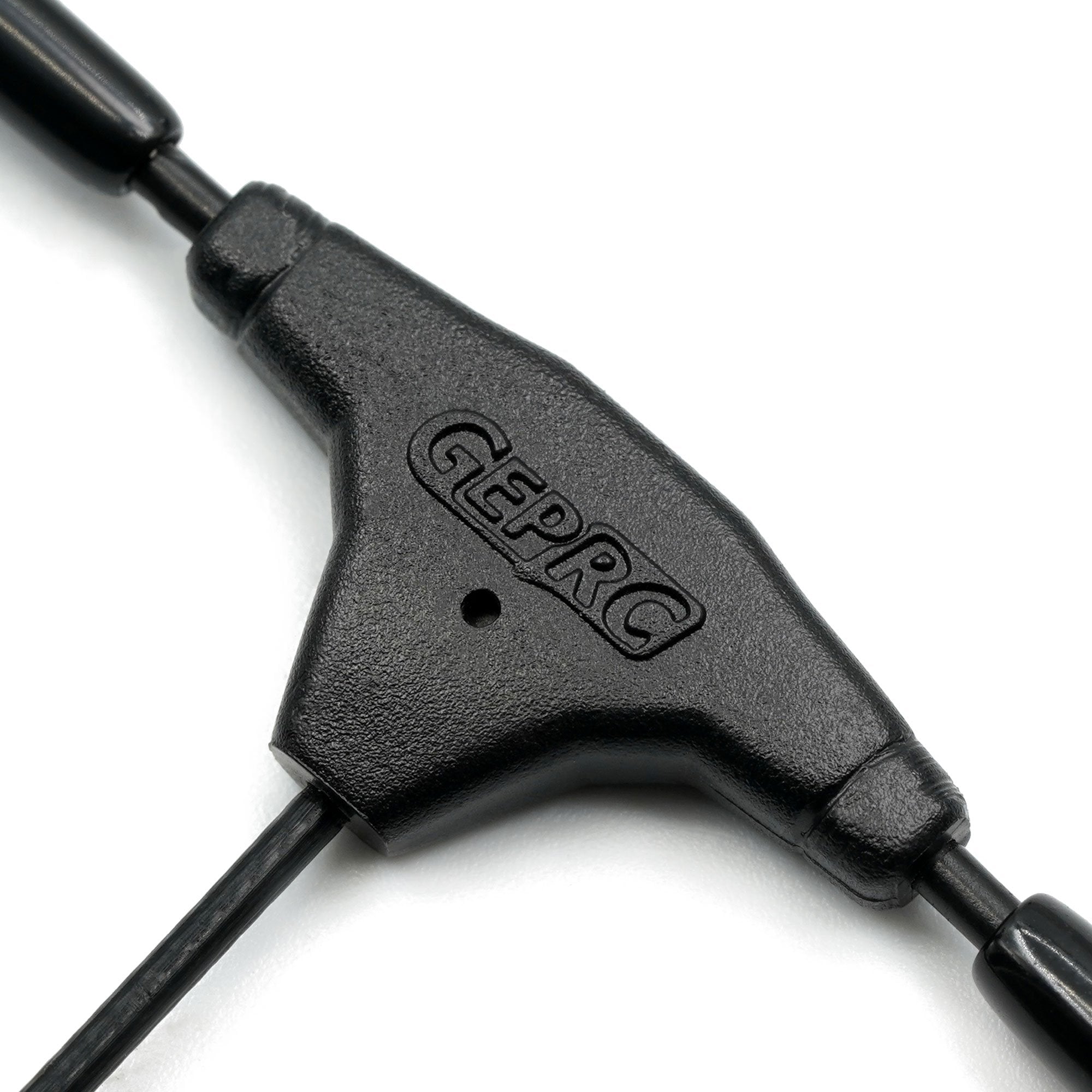

The T antenna is designed and manufactured by GEPRC team.Each antenna is repeatedly tested to ensure correct use.

Specifications

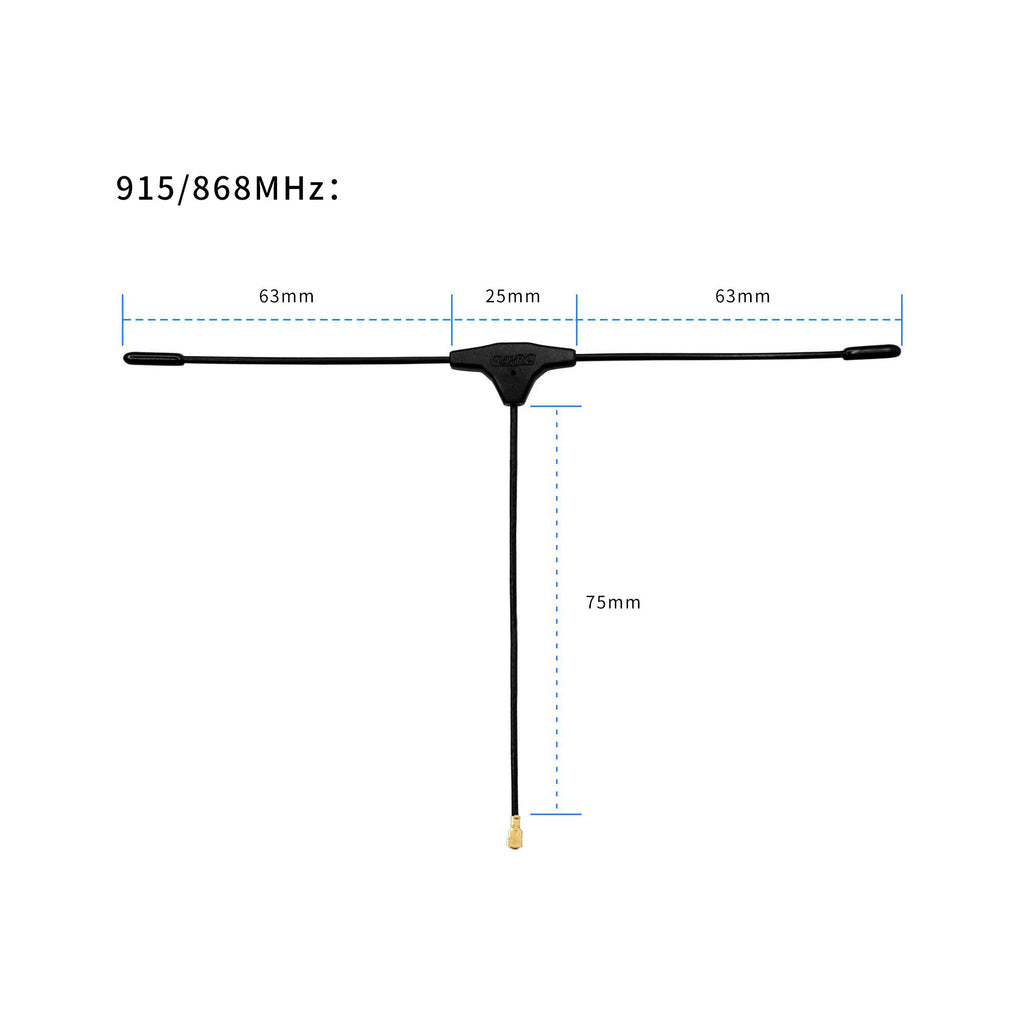

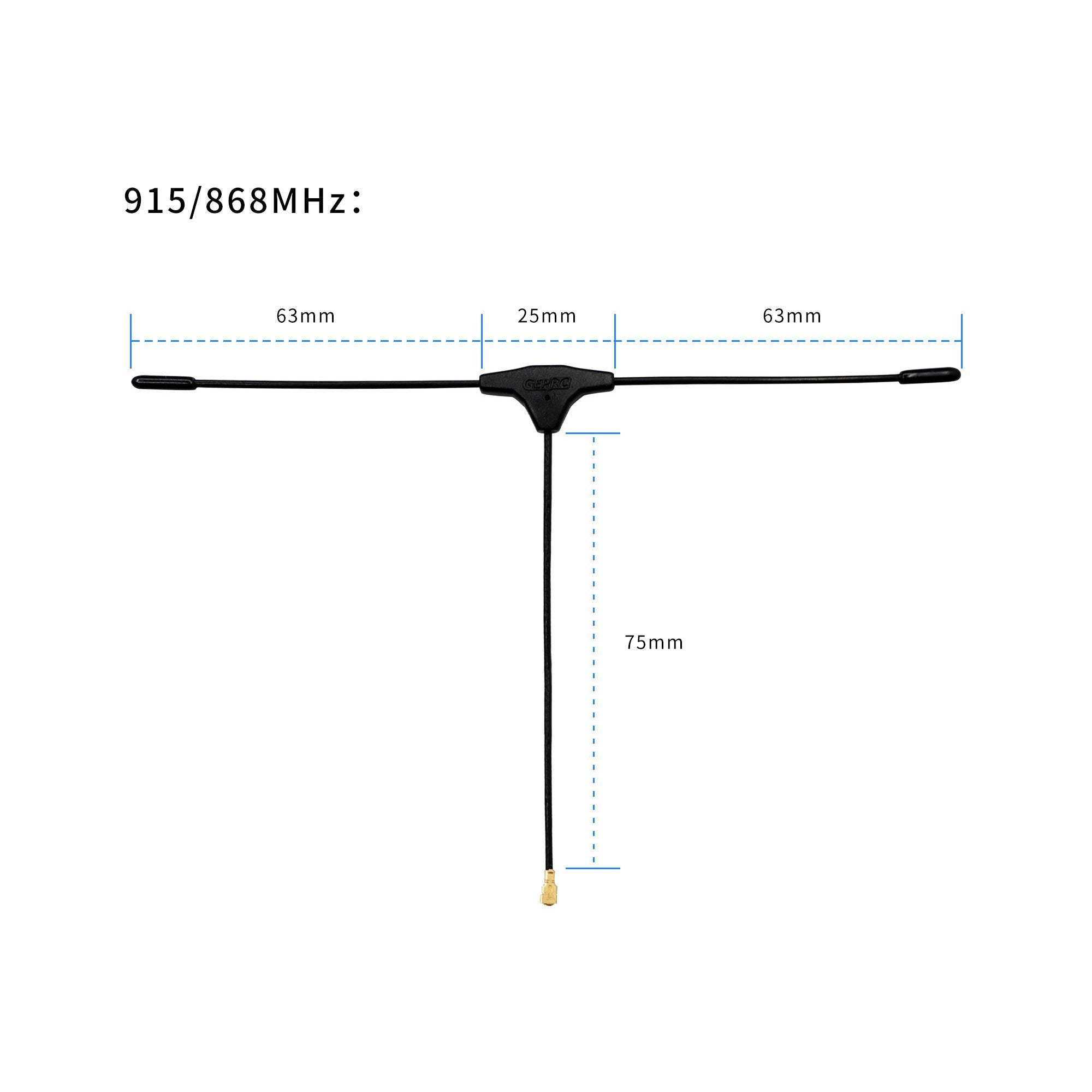

915MHz T Antenna

Antenna length：151mm

Coaxial cable length：75mm

Weight：2.6g

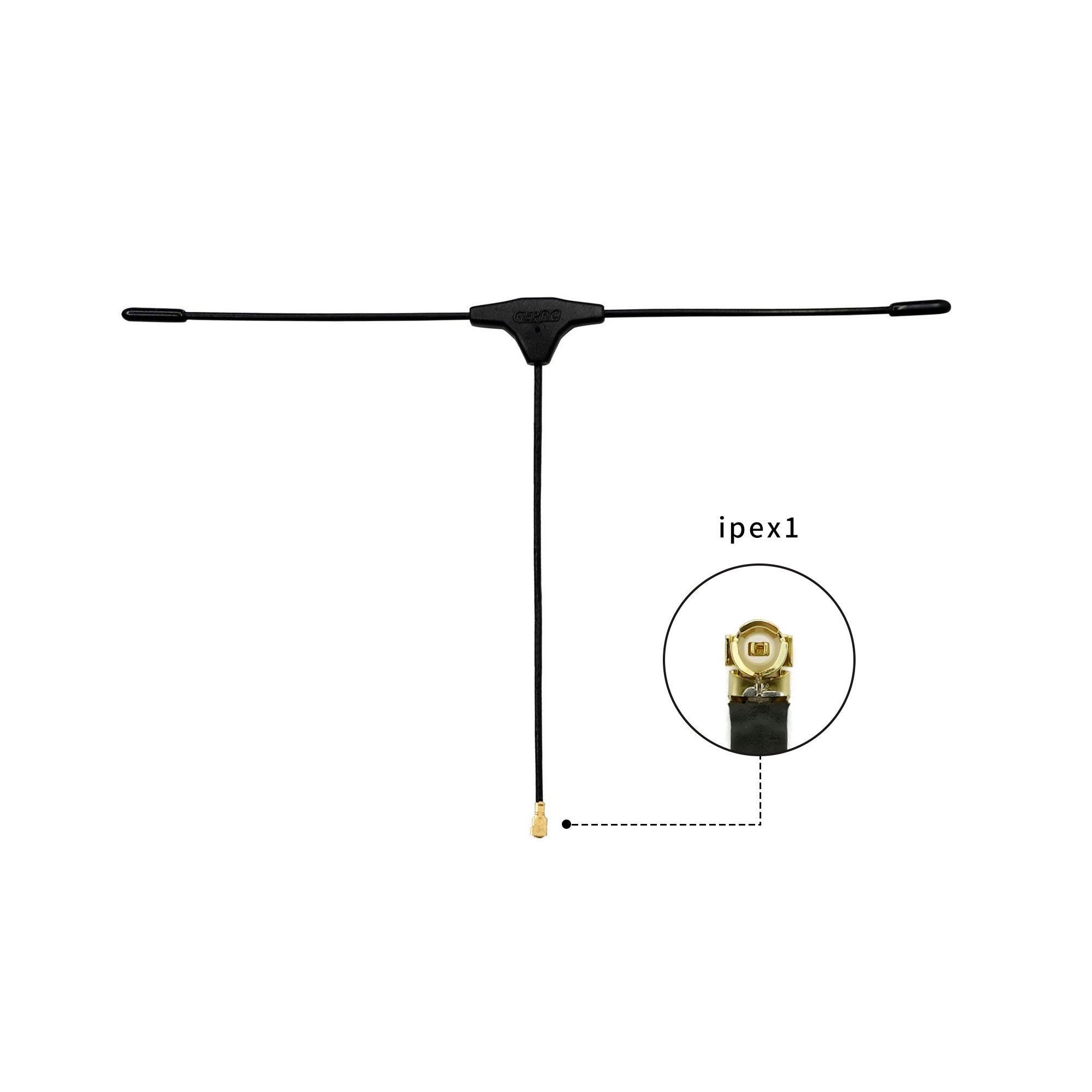

Connector：ipex1

Gain：2dBi

Frequency：868-915MHz

915MHz Mini T Antenna

Antenna length：60.5mm

Coaxial cable length：35mm

Weight：1.7g

Connector：ipex1

Gain：2dBi

Frequency：868-915MHz

2.4GHz Mini T Antenna

Antenna length：51mm

Coaxial cable length：35mm

Weight：1.6g

Connector：ipex1

Gain： 2dBi

Frequency：2.4-2.5GHz

Package Included

1 x T Antenna / Mini T Antenna

FAQ

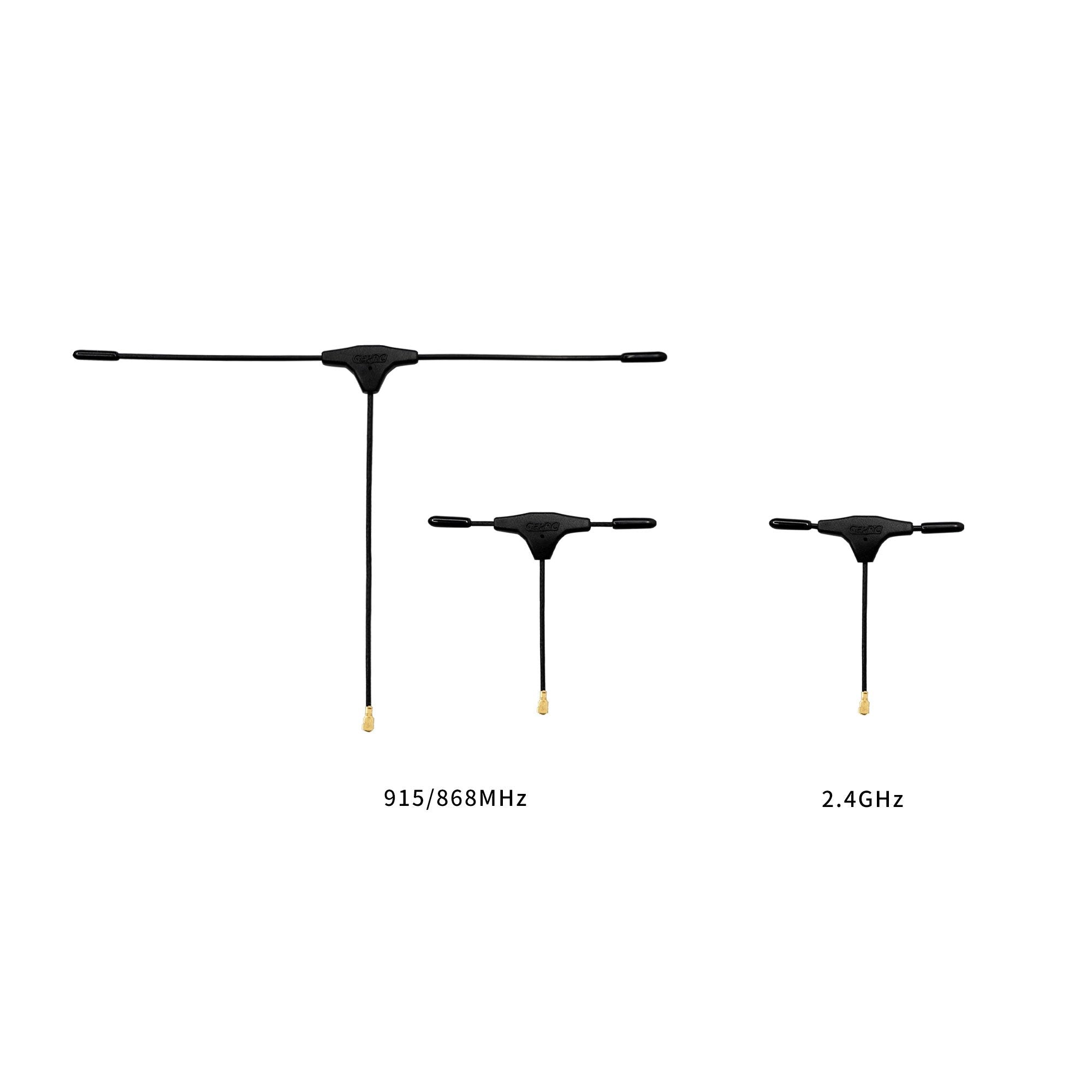

Q: There are two sizes of 915MHz T antenna,how should I choose?

A: You can choose different sizes of antennas according to the size of the quadcopter.For example,if the model is above 5 inch,you can choose T antenna,which can get better signal reception.A Mini T antenna is a good choice for small quadcopters under 3 inch.

Q: Besides,this antenna seems to be used with GEPRC ELRS receiver,can other receivers (such as TBS Nano, R9mm) be compatible with it?

A: GEPRC’s T antenna and mini T antenna connectors are IPEX1,so long as it matches with the working frequency and antenna connector of the receiver,it can be compatible to use.(TBS Nano, R9mm and other receivers can also be used.)
