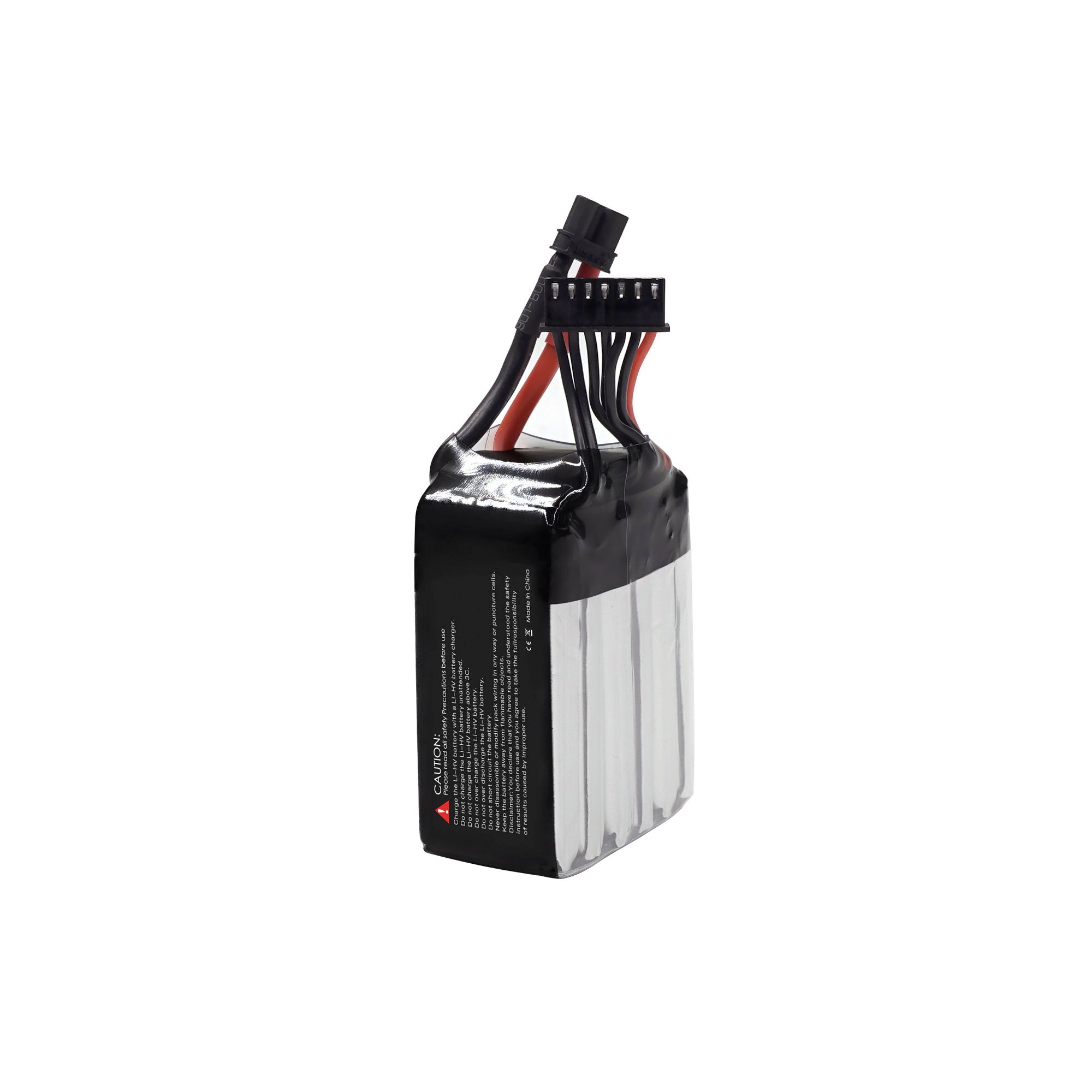

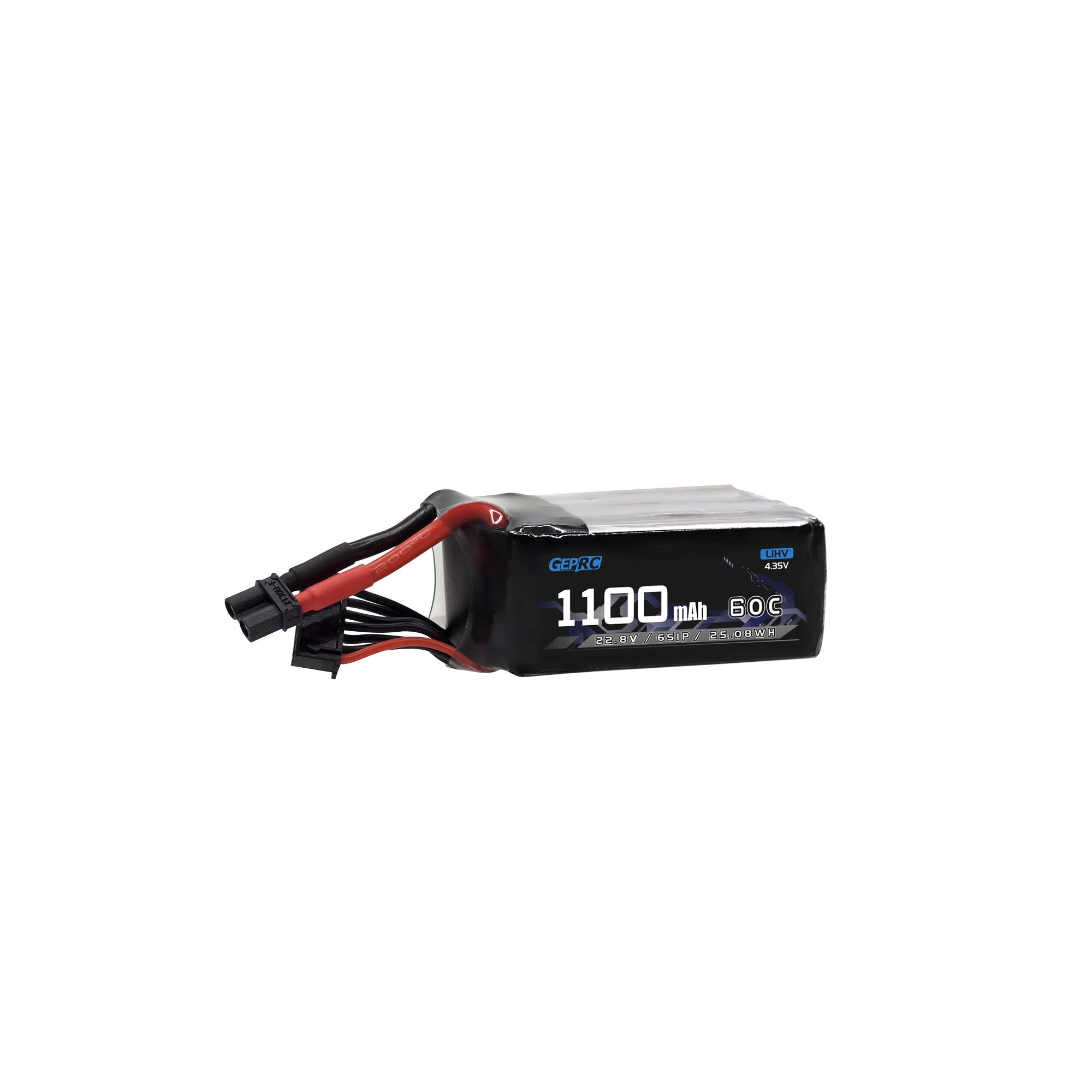

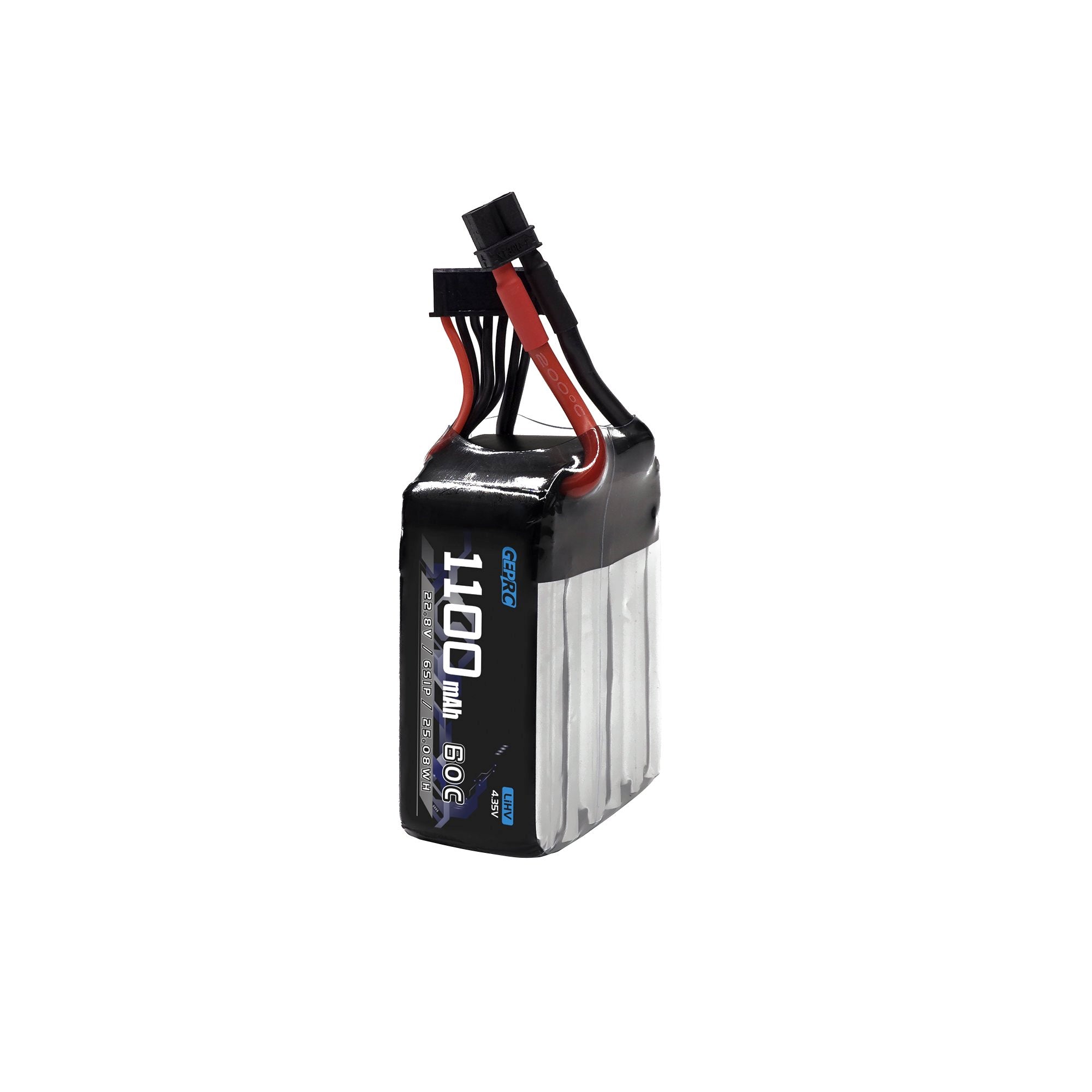

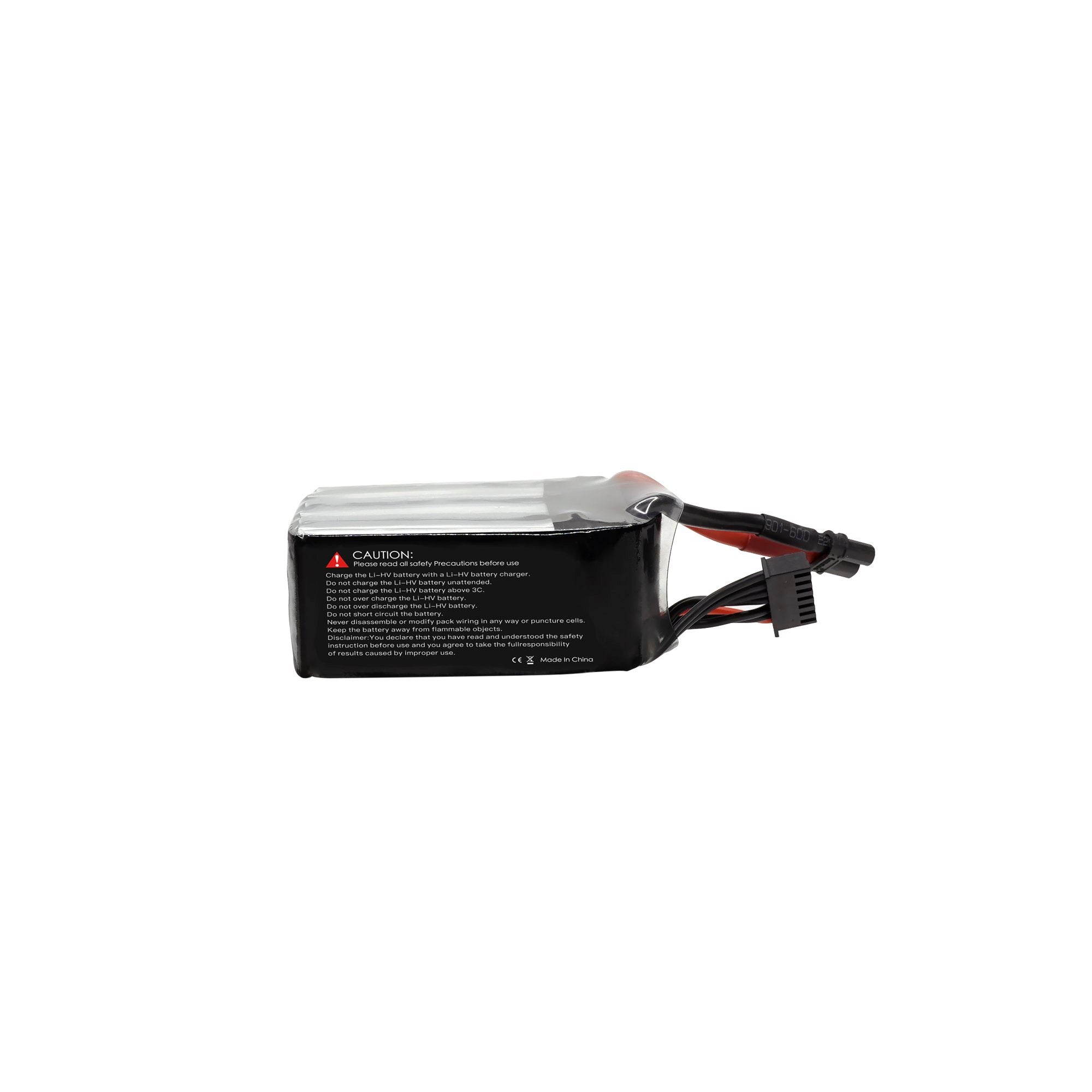

GEPRC 1100mAh 60C/110C 4.35V LiHV Battery 4S/6S｜電池

GEPRC 1100mAh 60C/110C 4.35V LiHV Battery 4S/6S｜電池

GEPRC 官方電池，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

This battery was made for providing more power for 3-5 inch drone.

Comparing to ordinary battery,the high voltage battery have more energy,means in same usage environment your flight time will be increase a lot.Because the high voltage battery have more energy density,so it have more discharge rate.In same capacity,high voltage battery have smaller volume and lighter weight.

Higher discharge rate can make your drone more powerful.

Feature:

More Energy

More Usage time

More Lightweight

More Discharge Rate

Specification:

Model: GEPRC 4S 1100mAh 110C

Model Number: GEP11004S110AHV

Capacity: 1100mAh

Configuration: 4S1P

Nominal Voltage: 14.8V

Type: Li-HV

Watt: 16.28WH

Dimension: 26*35*76(mm)

Weight: 120.0g

Max cont. discharge (C-rate/current): 110C

Max Burst (C-rate/current): 220C

Charge Connector: XT30/XT60

Discharge Connector: XT30/XT60

Recommended charging current: 1C

Maximum charging current: 3C

Working Temperature Charge: 0-45°C

Working Temperature Discharge: -20-60°C

Working Humility: 65%RH +/-20%

Storage Temperature: -20-35°C

Storage Humility: 65%RH +/-20%

Application: Toys,Boats,Quadcopter

Specification:

Model: GEPRC 6S 1100mAh 60C

Model Number: GEP11006S60AHV

Capacity: 1100mAh

Configuration: 6S1P

Nominal Voltage: 22.8V

Type: Li-HV

Watt: 25.08WH

Dimension: 26*50*61(mm)

Weight: 136.6g

Max cont. discharge (C-rate/current): 60C

Max Burst (C-rate/current): 120C

Charge Connector: XT30/XT60

Discharge Connector: XT30/XT60

Recommended charging current: 1C

Maximum charging current: 3C

Working Temperature Charge: 0-45°C

Working Temperature Discharge: -20-60°C

Working Humility: 65%RH +/-20%

Storage Temperature: -20-35°C

Storage Humility: 65%RH +/-20%

Application: Toys,Boats,Quadcopter

Include:

1 x GEPRC 4S 1100mAh 110C Battery/GEPRC 6S 1100mAh 60C Battery

Recommended:

Cinelog35

Warning:

Please read the battery parameters and instructions in detail before use.

Please don’t charge the battery unattended.

Do not overcharge (select the correct battery type before charging, the full charge voltage of single cell of LiPo battery is not more than 4.2V, and the full charge voltage of single cell of Li-HV battery is not more than 4.35v).

Do not over-discharge ( the single-cell discharge voltage of LiPo and Li-HV batteries cannot be lower than 3.5V, over-discharging will damage the battery and cause swelling).

Don’t place the battery close to open flames or fire sources.

Keep the battery away from flammable materials when charging

Please carefully check the battery voltage and capacity before charging and use

It is forbidden to reverse the positive and negative poles of the battery (to avoid short circuit)

Do not directly touch the leaking battery. If you accidentally touch the electrolyte, please wash it with clean water immediately. If it is serious, please consult a doctor immediately.

Please dispose of the ruptured battery in time and do not reuse it

If you need to store the battery for a long time, please maintain the battery voltage at a single-cell 3.80V-3.85V. Please ensure that a charge-discharge activation is performed within 3 months to maintain the stability of the battery.

It is forbidden to disassemble and reassemble the battery or change the wiring (it is easy to cause short circuit and burning).

If a collision occurs during use, please remove the battery. Check carefully whether the battery and connector are normal.

Please charge at a temperature of 0-45℃ (make sure the charging environment is cool and ventilated, the battery will generate a certain amount of heat after use and during the charging process, and the battery that has just been used is allowed to stand and wait for the temperature to be below 45℃ before charging).

FAQ:

Q:What is High Voltage Battery?

A:Voltage of High Voltage Battery higher than ordinary battery.The maximum charging voltage of high voltage battery is 4.35V,and ordinary only 4.2V.

Q: What is the appropriate charging rate C for the battery?

A: The charging rate supports up to 3C, and it is recommended to use 1-1.5C, which will basically have no effect on the service life of the battery.

Q: What kind of charger is used to charge the battery?

A: It is recommended to use the HOTA D6 PRO charger, ISDT 608AC charger and ToolkitRC M6D charger.
