GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

Due to the wide working frequency and poor filtering effect on most common 1.2-1.3G image transmission receivers, the video signal and the remote control signal cannot be effectively separated when collocation with the 915/868 remote control system, resulting in the image transmission picture is often disturbed.

By installing this filter between the 1.2G VRX and the antenna, the 915/868MHz signal can be effectively filtered out, and the signal quality of the 1.2G VRX can be improved, making the video picture cleaner.

Specifications

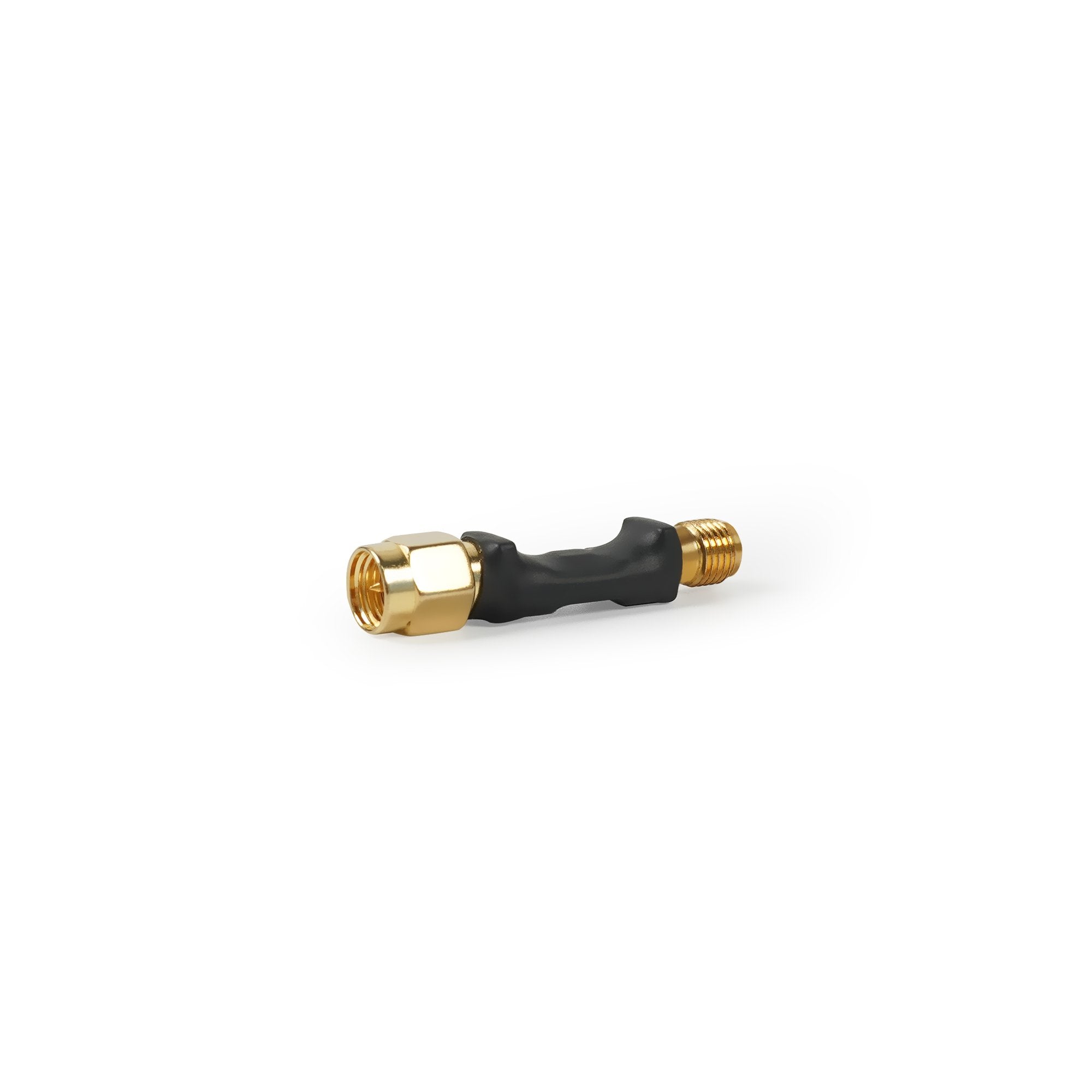

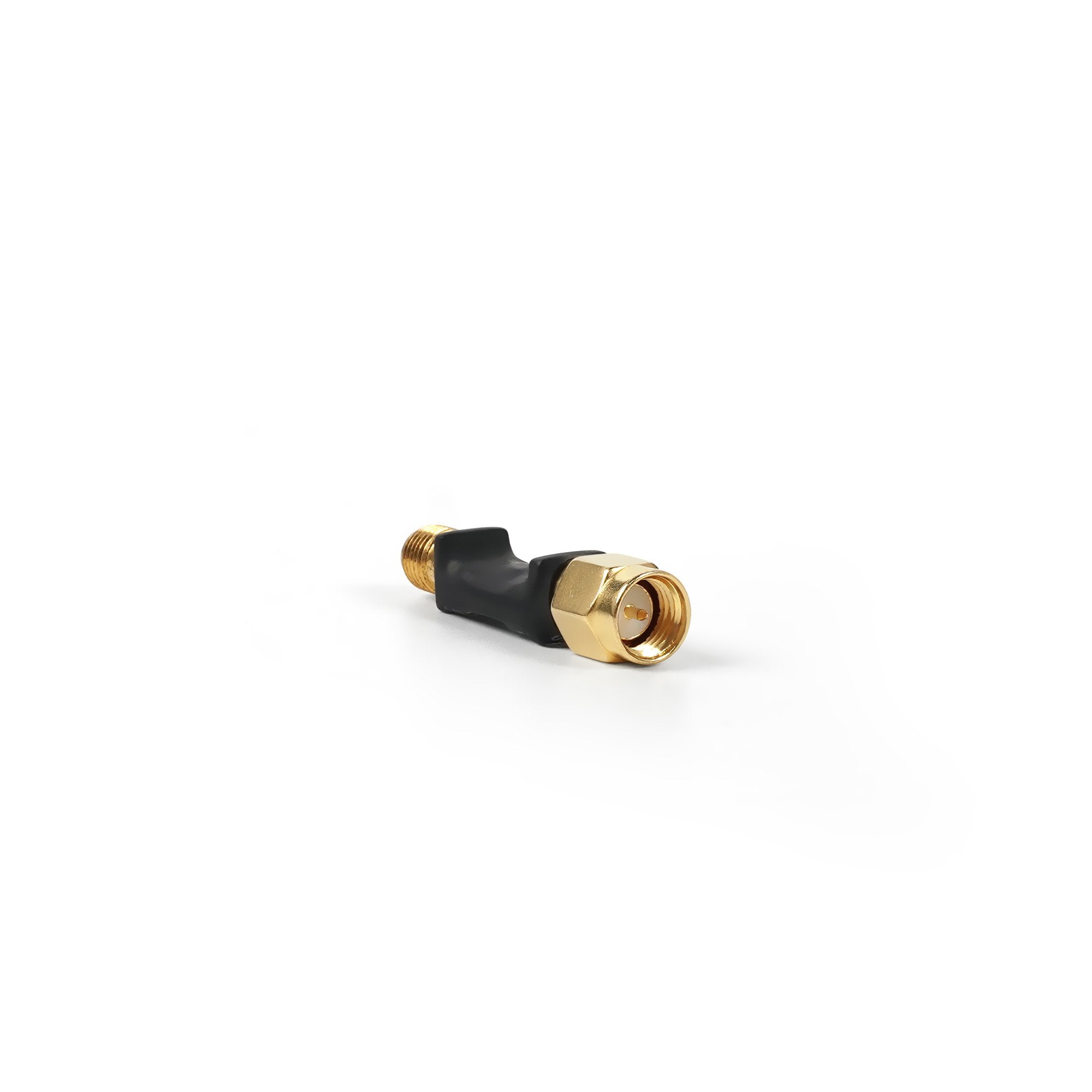

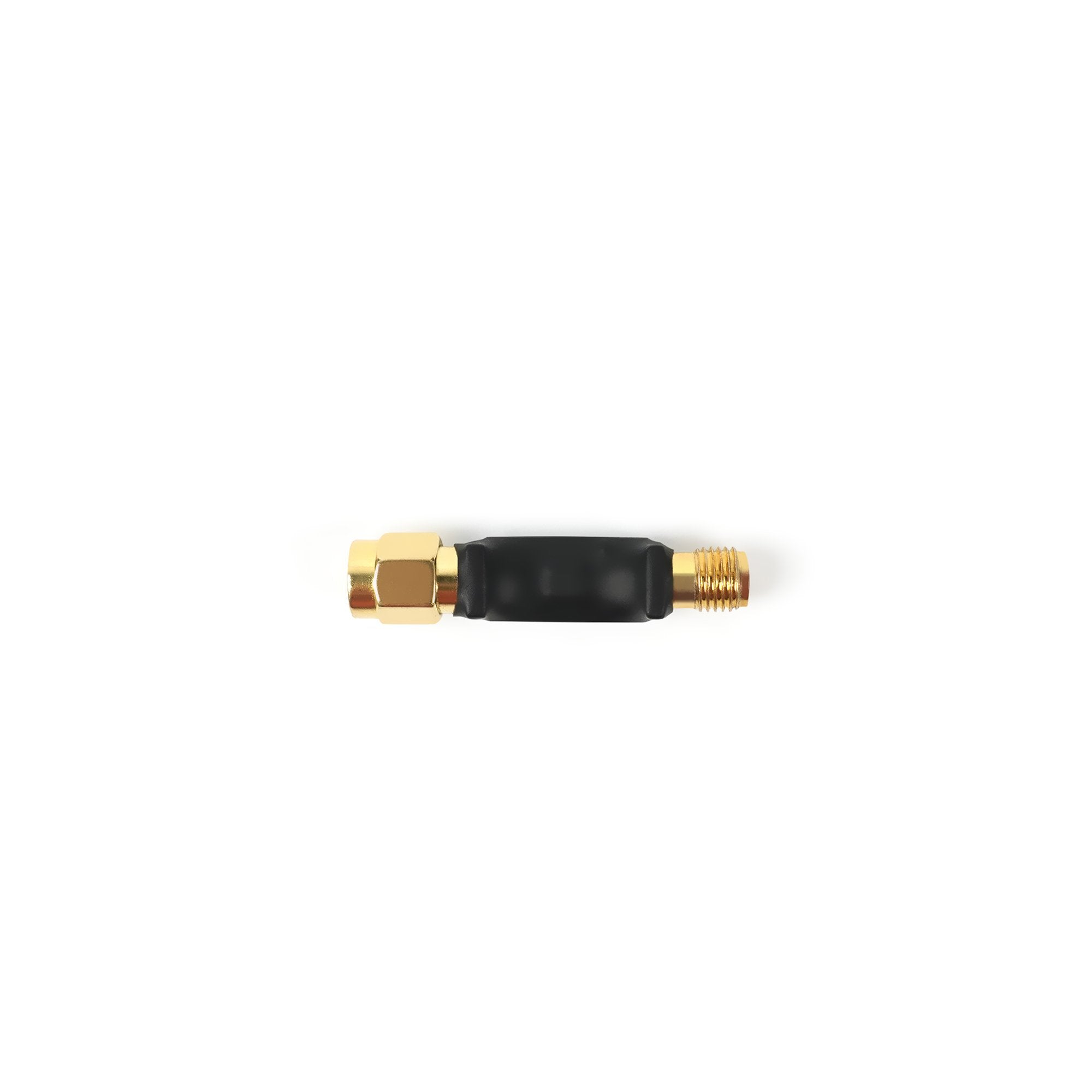

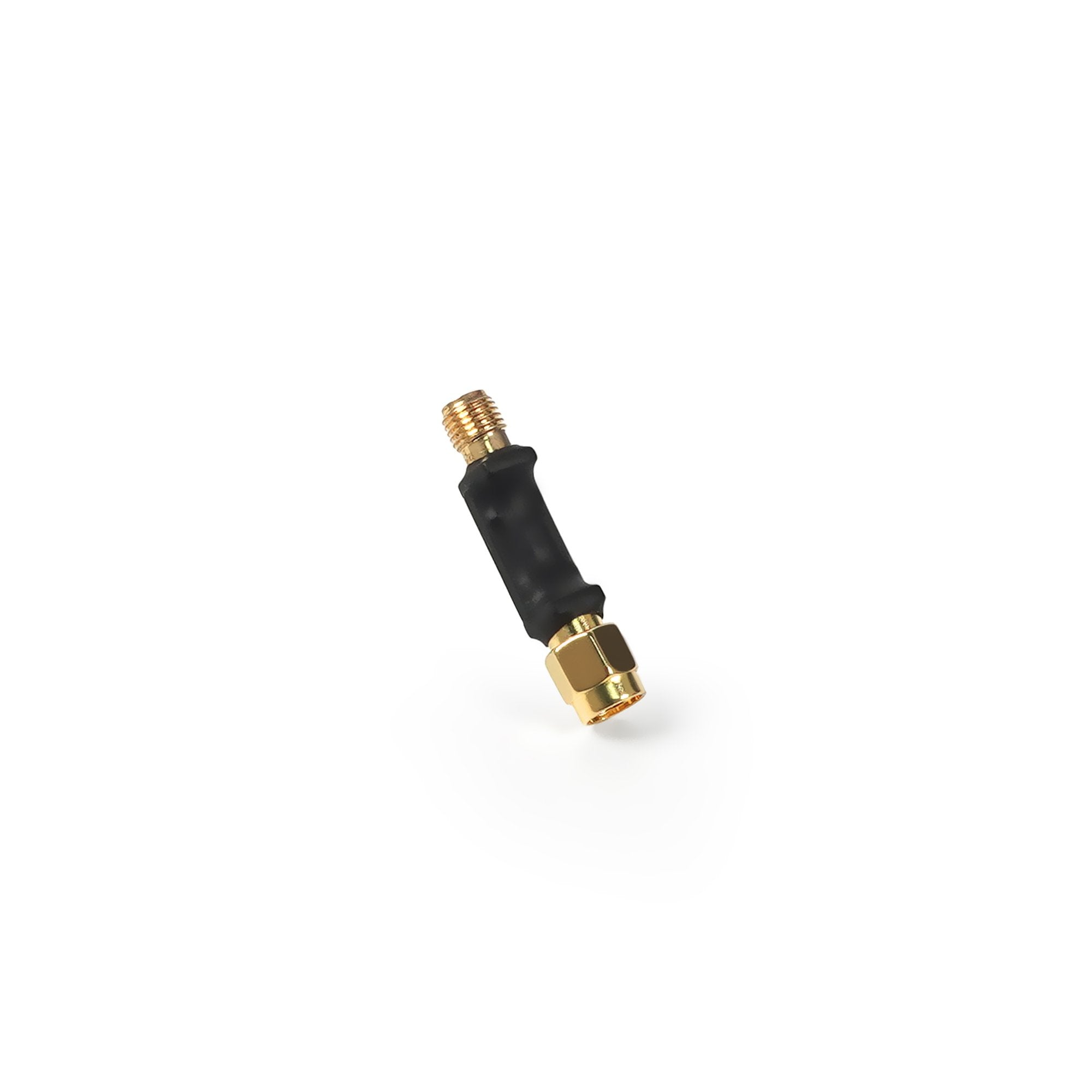

Product Name: 1.2G VTX filter

Material: Ceramic

Input and output impedance: 50Ω

Volume:37*8*7mm

Weight: 5.2g

Interface type: SMA(customizable)
