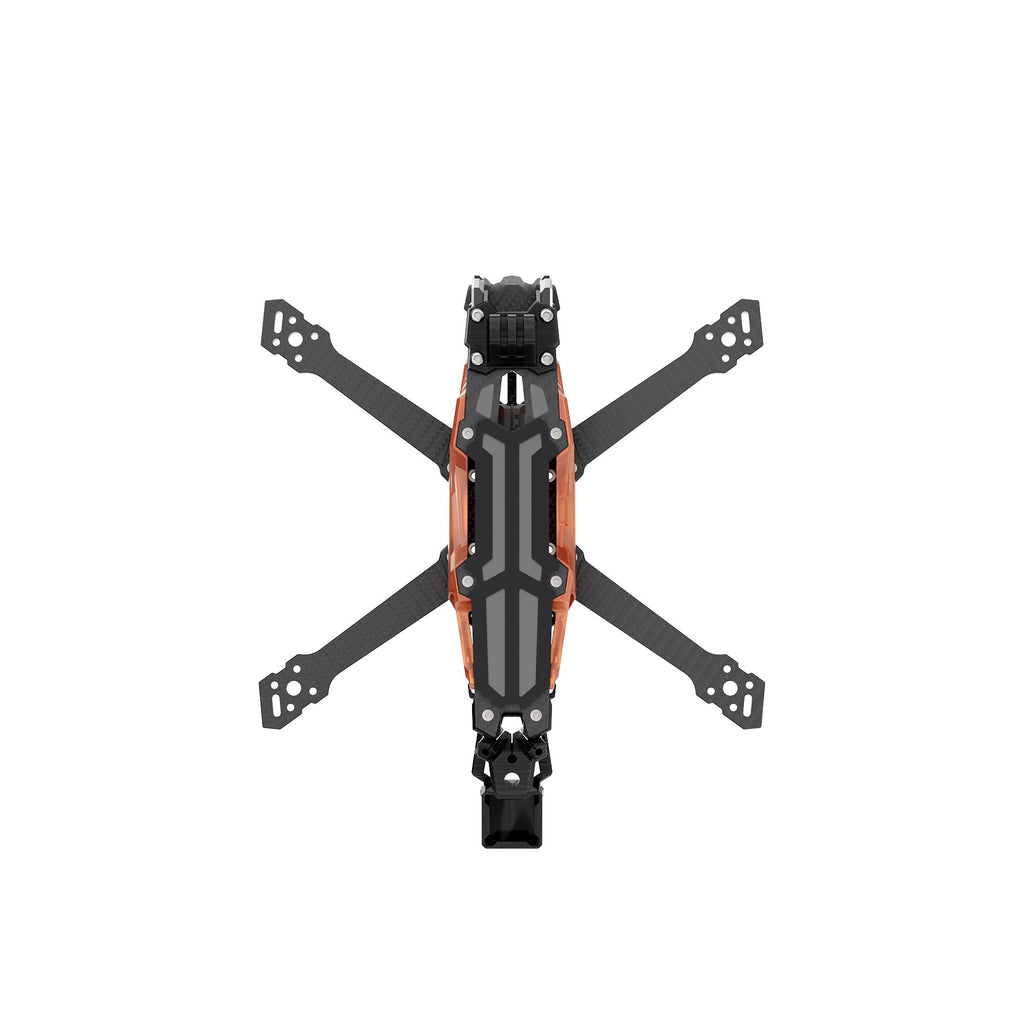

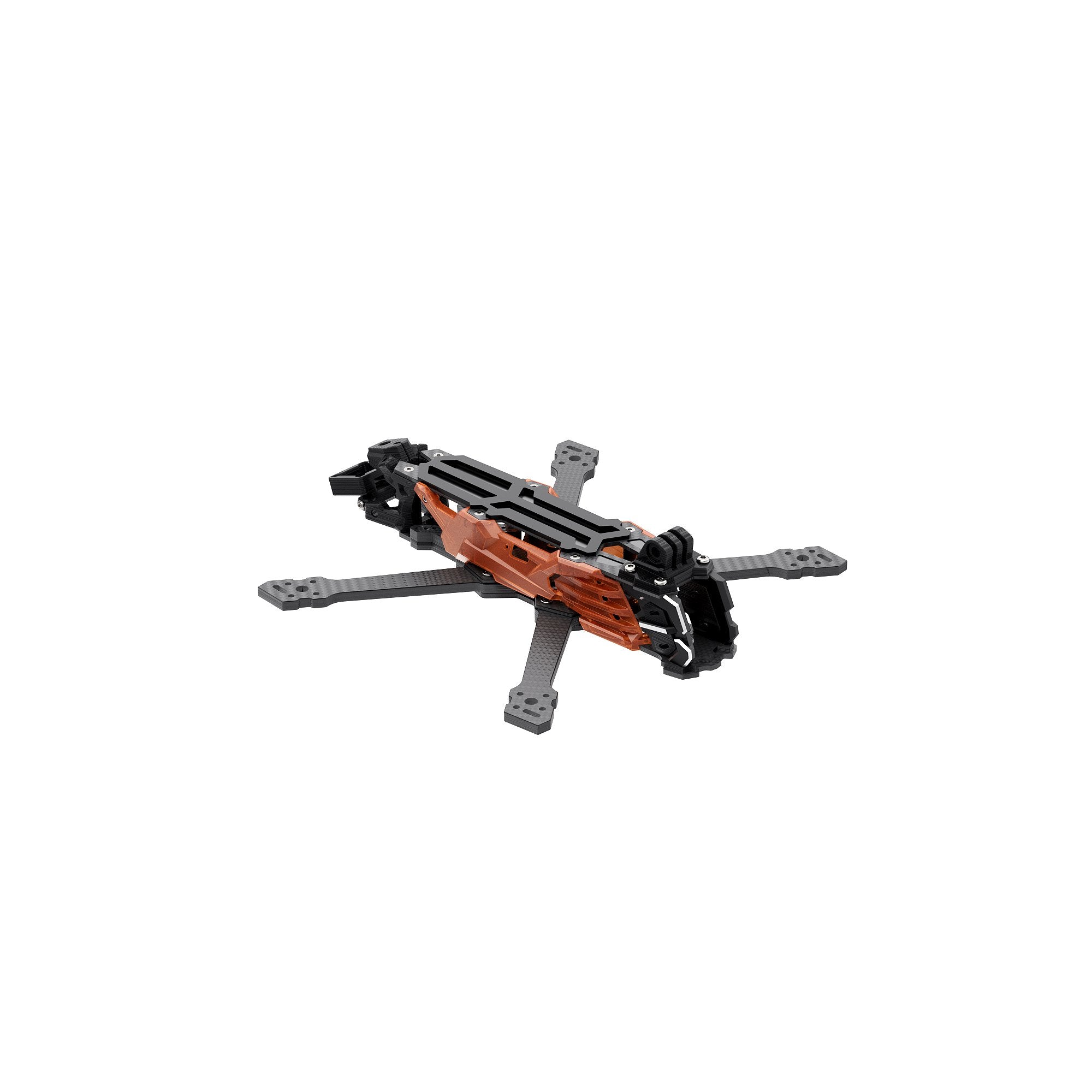

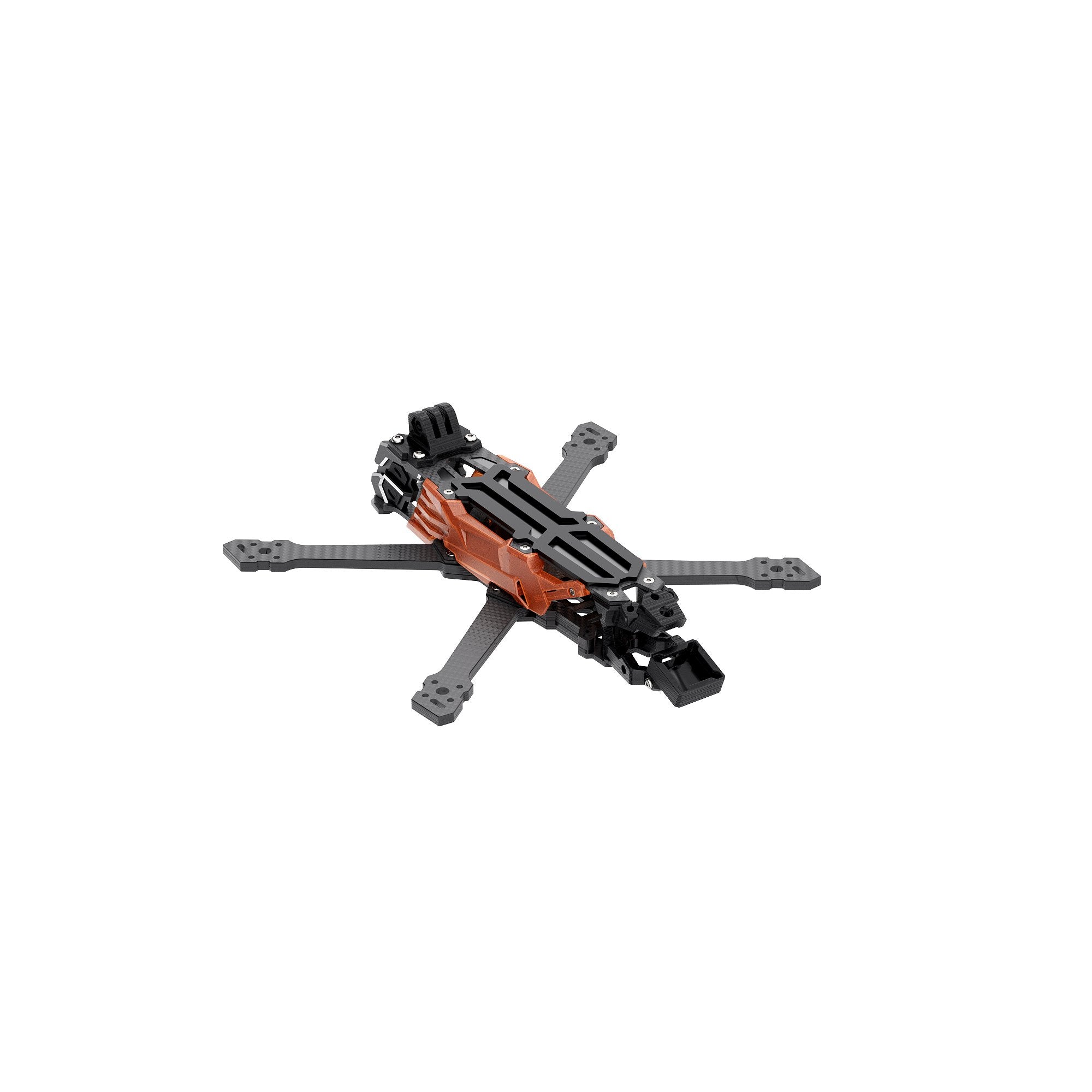

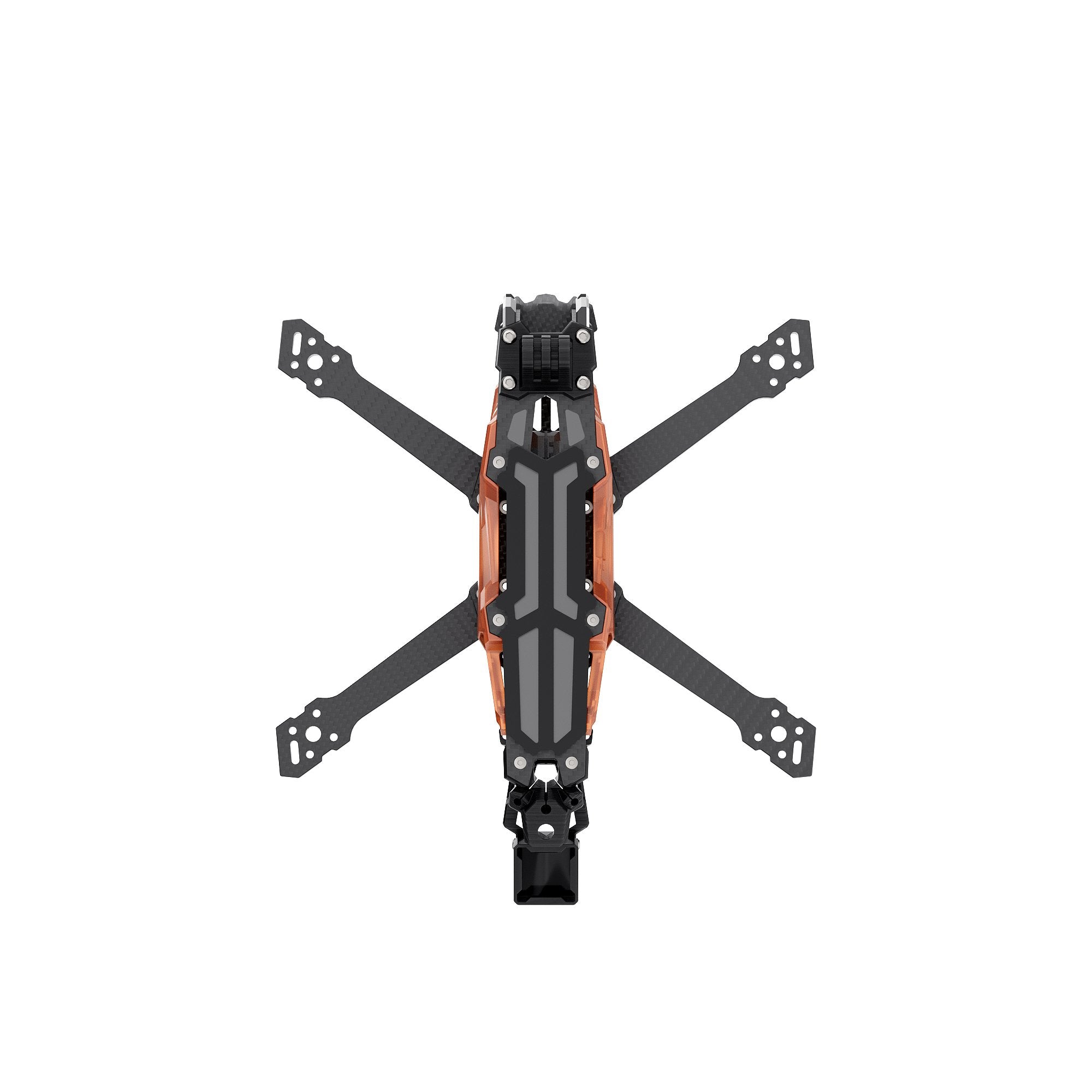

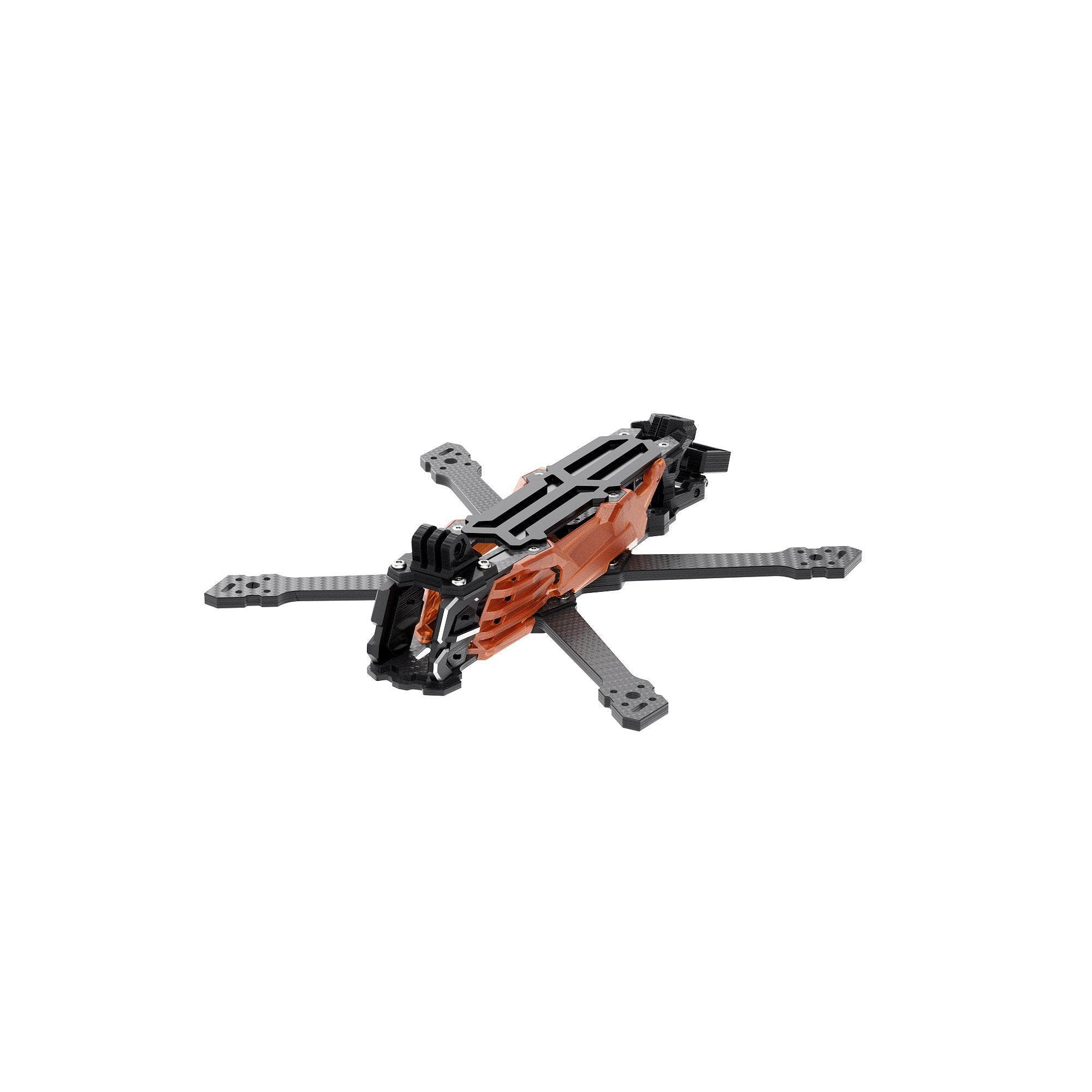

GEP-Vapor-X O4 Pro Frame｜FPV 機架

GEP-Vapor-X O4 Pro Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEPRC team presents the Vapor O4 Pro frame, designed specifically for the DJI O4 Air Unit Pro.

With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bold, sharp look, enhancing the frame’s stylish design. Made from high-strength carbon fiber, it’s lightweight yet durable, ensuring top-notch performance in any flight.

With its XH structure, the GEP-Vapor-X O4 Pro frame offers superior stability and precise handling.

Features

1. 5mm wide carbon fiber arms for better rigidity and durability.

2. Dual protection with camera guard side panels and a front lip design for better impact resistance.

3. Quick-release design for easy repairs and maintenance.

4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.

5. New mech-inspired side panels with a bold, sharp design.

6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

X5 Specifications

Model: GEP-Vapor-X5 O4 Pro Frame

Wheelbase: 230mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 5-inch

Weight: 206±5g

X6 Specifications

Model: GEP-Vapor-X6 O4 Pro Frame

Wheelbase: 254.5mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0m

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 6-inch

Weight: 214.1±5g

X5 Includes

1 x GEP-Vapor-X5 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench

X6 Includes

1 x GEP-Vapor-X6 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench
