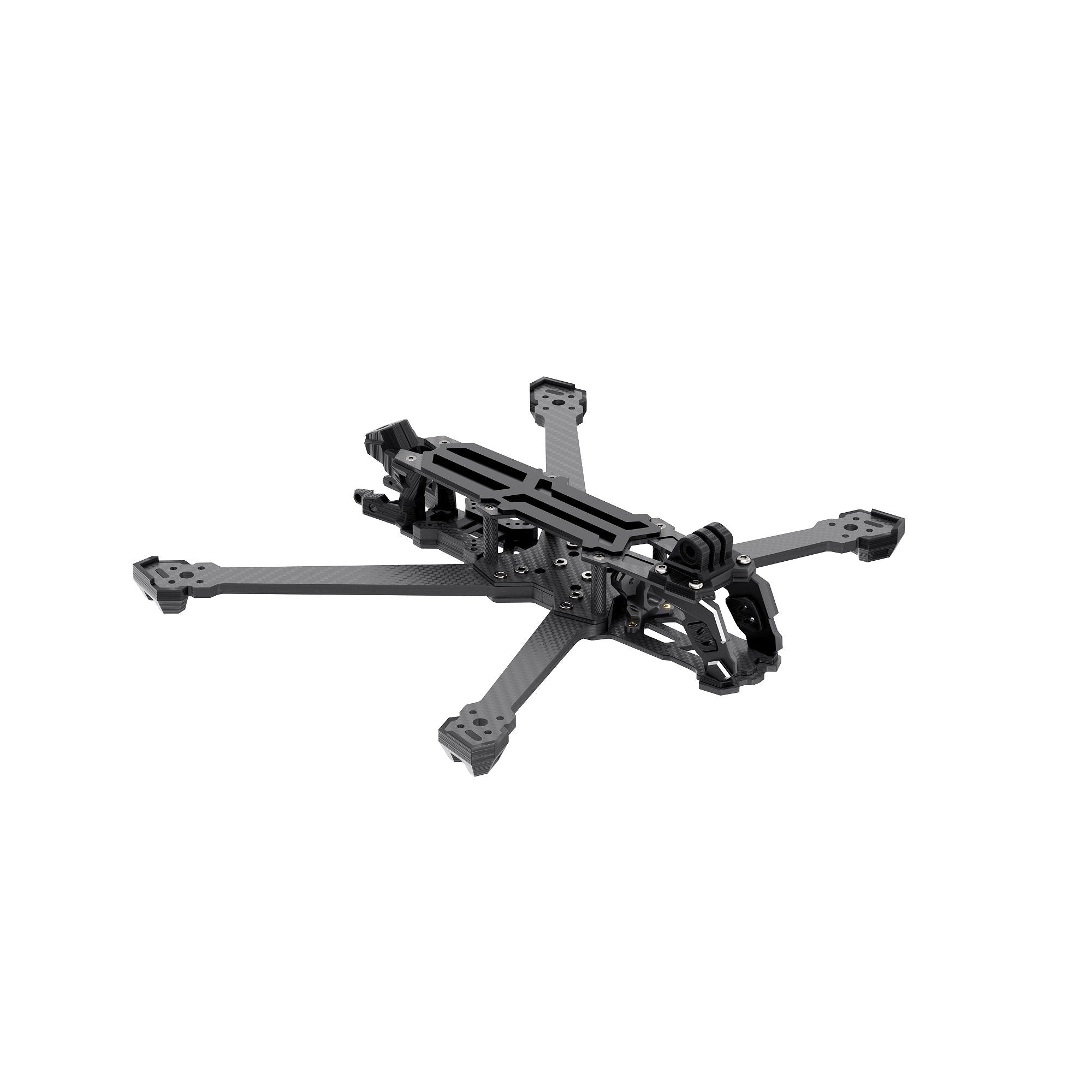

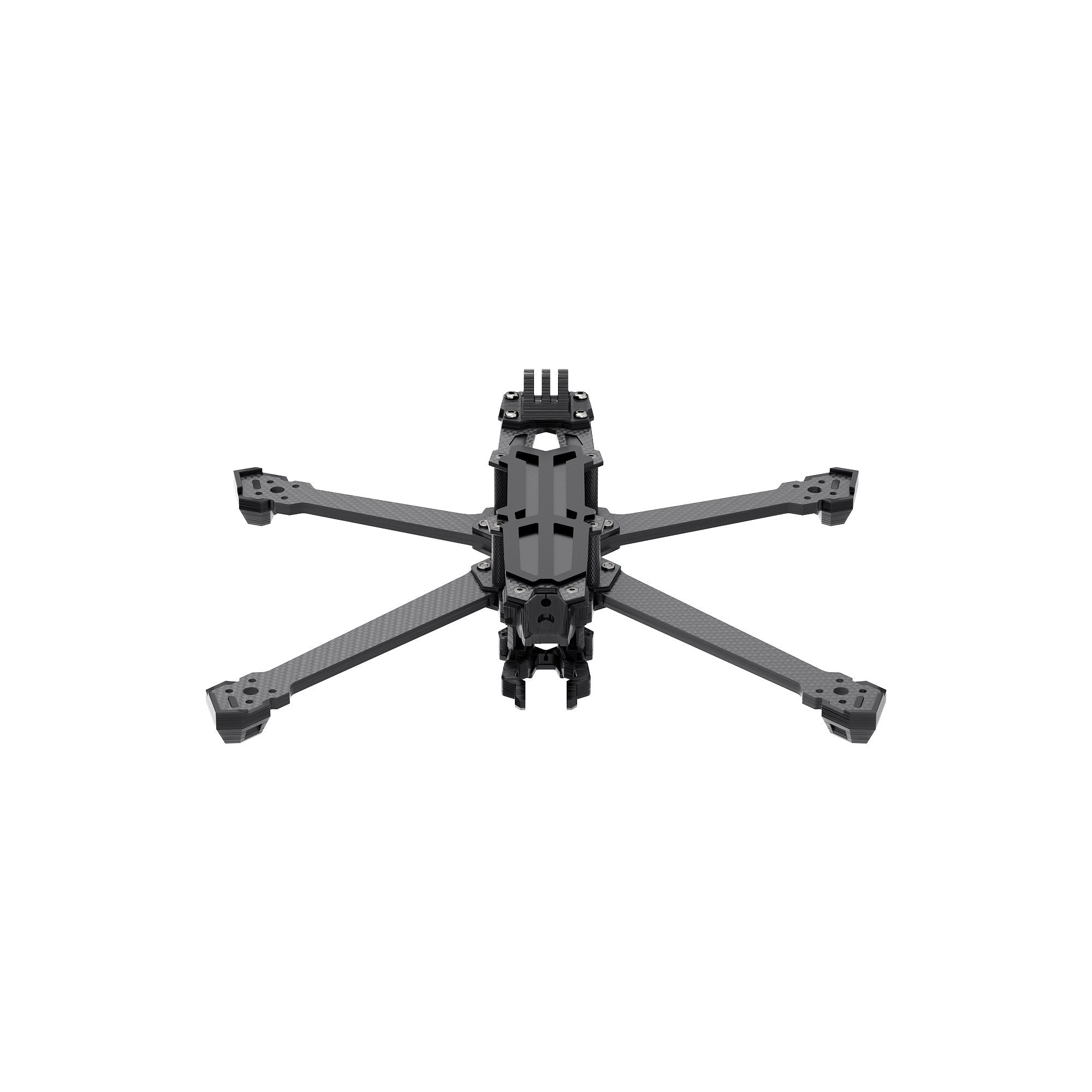

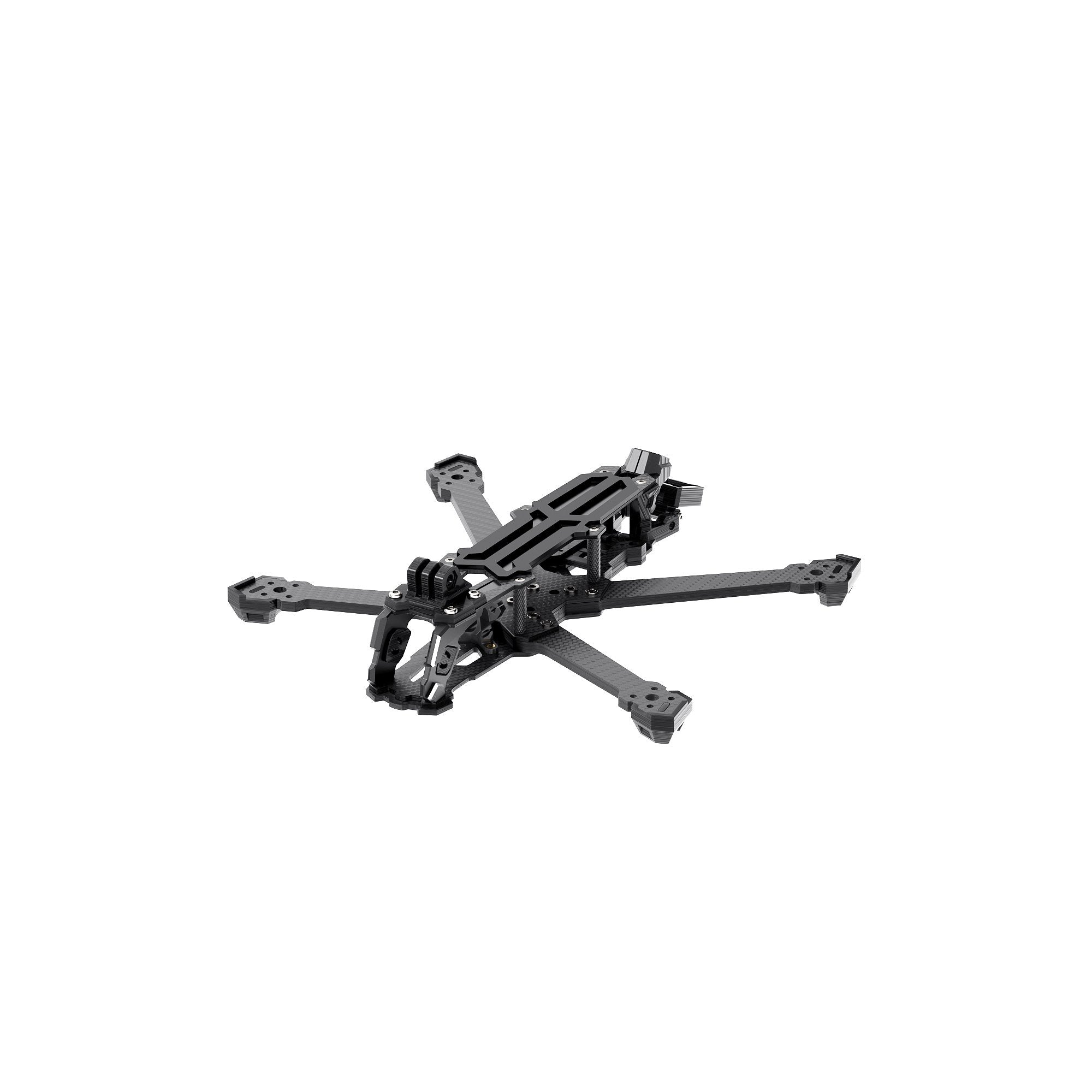

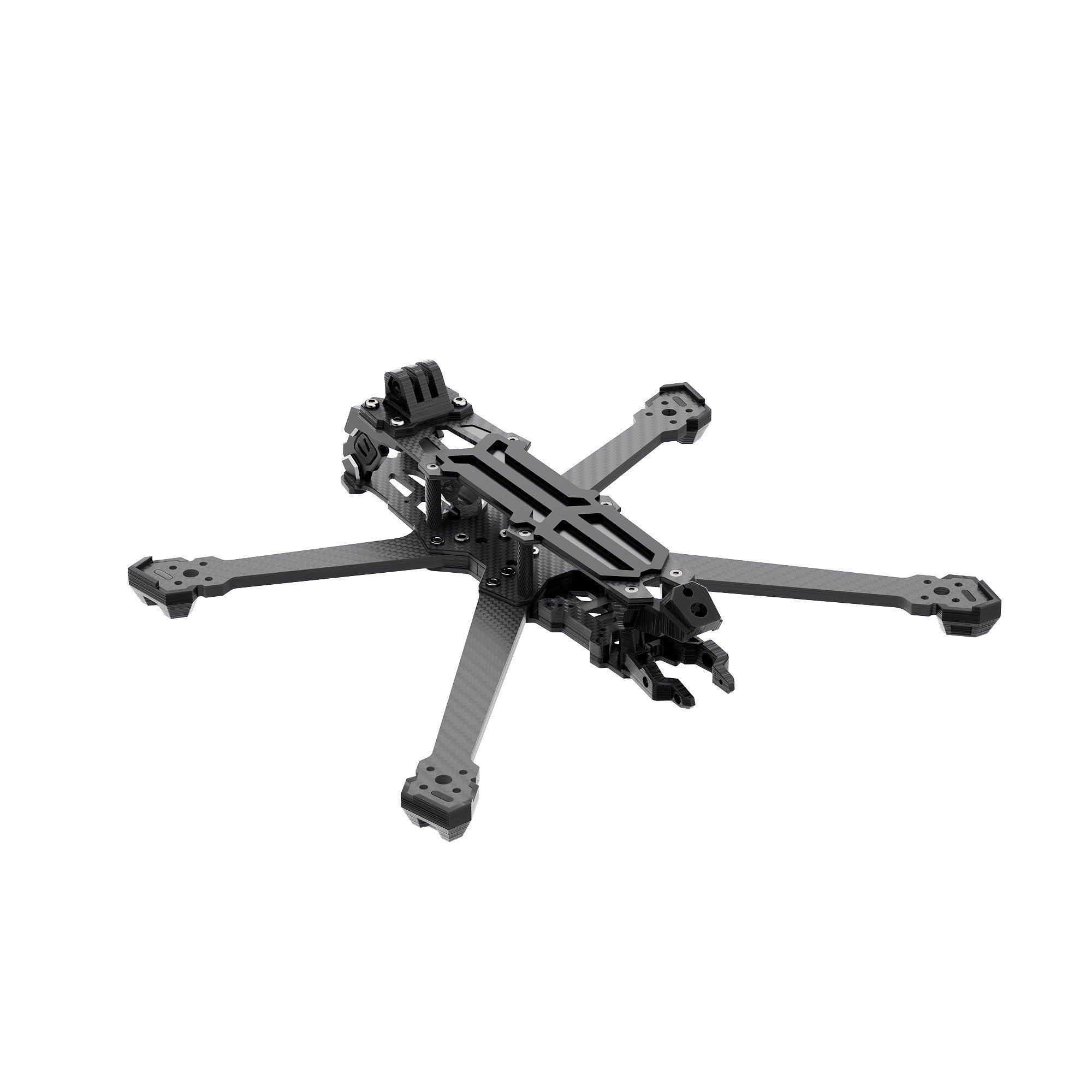

GEP-Vapor-D6 Frame｜FPV 機架

GEP-Vapor-D6 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEP-Vapor-D frame is built for cinematic use.

Its innovative DC design keeps the propellers out of view, boosting your shot success rate and flight experience. With CNC-machined aluminum lens guard panels for style and durability, and high-strength carbon fiber for a lightweight, sturdy build, the GEP-Vapor-D delivers exceptional performance in any conditions.

Choose from two model options to match your flying style and needs.

Features

The unique DC structure provides the flexibility of a wide-X design while keeping the propellers out of the camera’s view for clear shots.

Made from high-strength carbon fiber, the frame is lightweight yet durable.

The camera side panels and front guard offer double protection for enhanced durability.

Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

The quick-release design makes maintenance and assembly a breeze.

Specification

Model: GEP-Vapor-D6 Frame

Wheelbase: 274.6mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 6-inch

Weight: 203.8g ±2g

Includes

1 x GEP-Vapor-D6 Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printouts pack

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench
