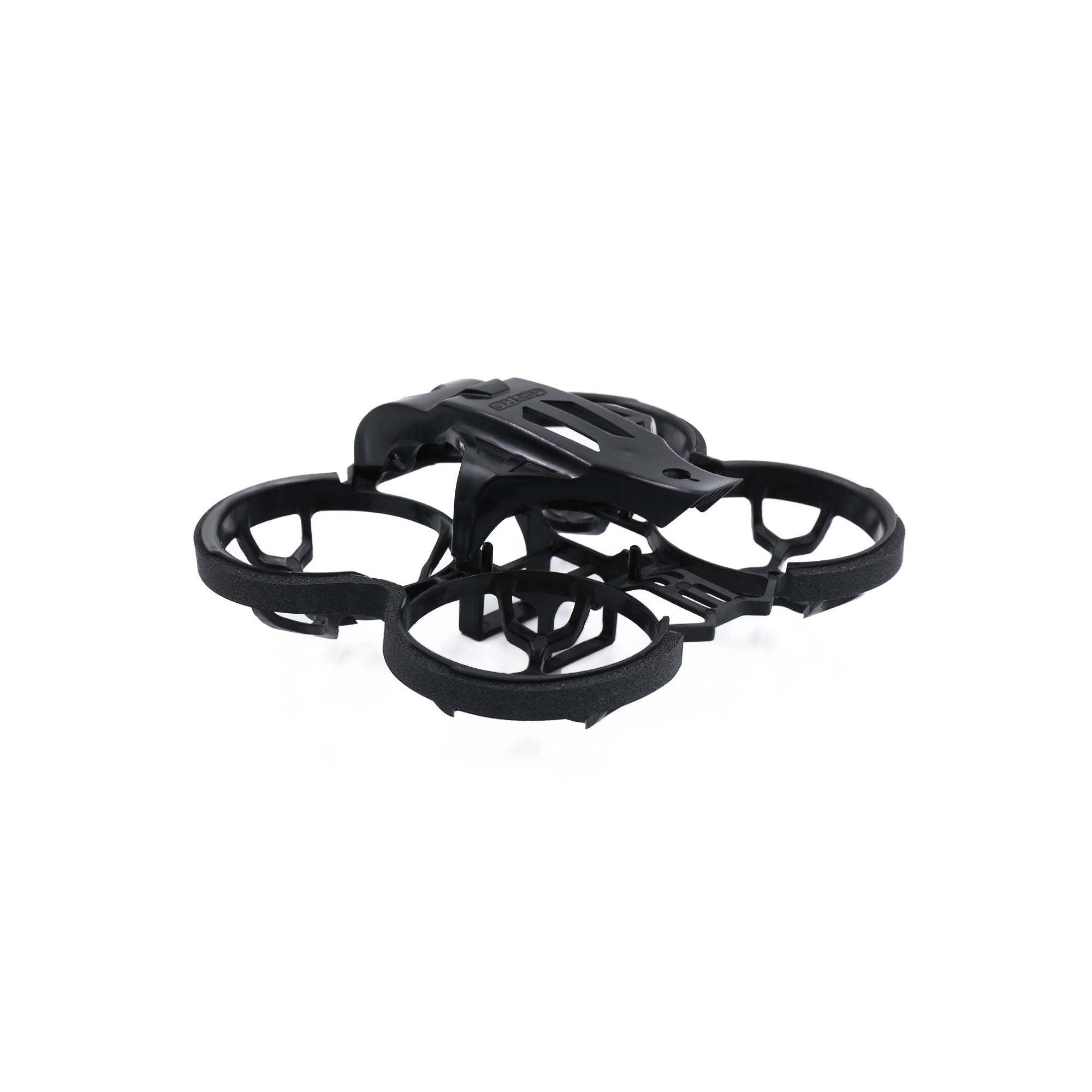

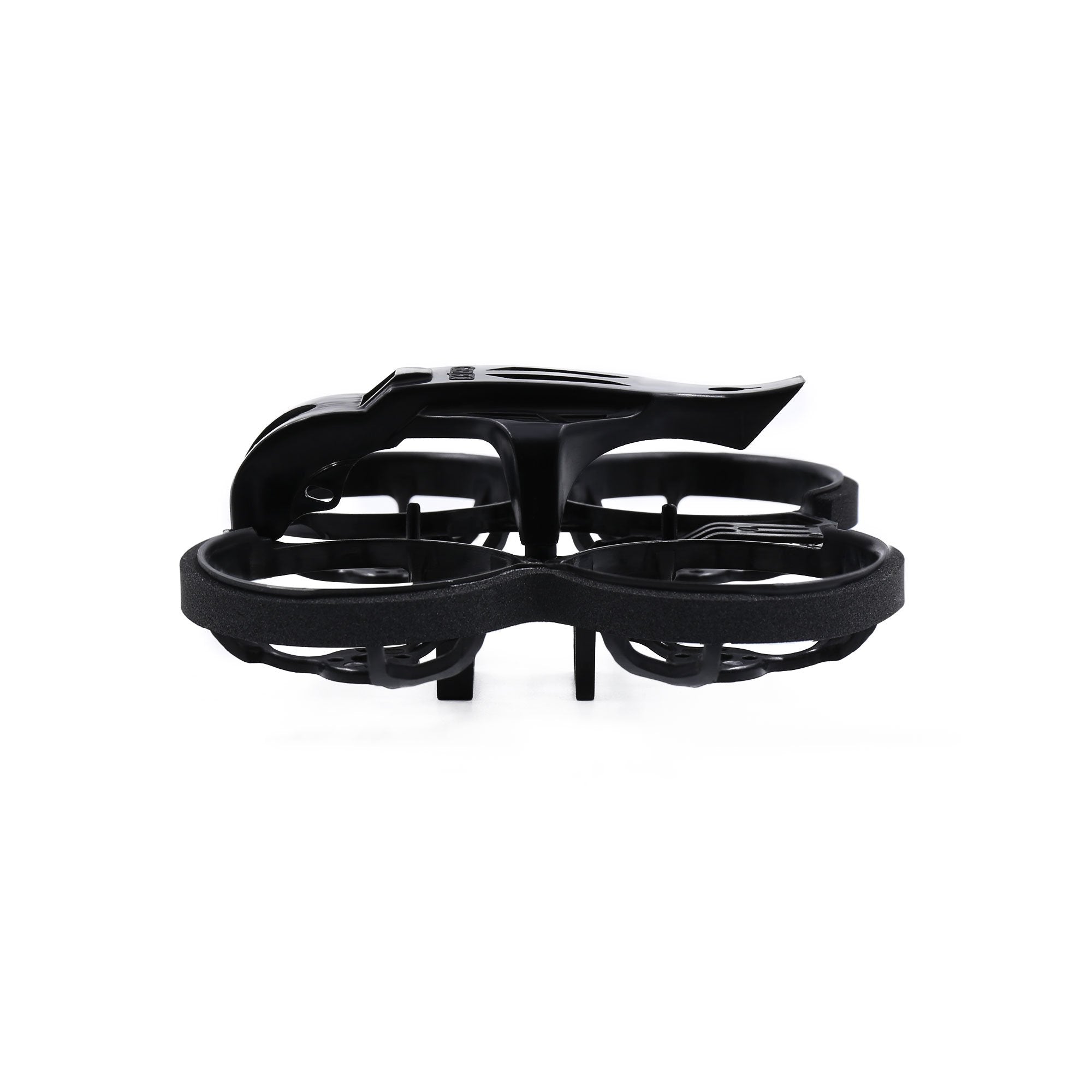

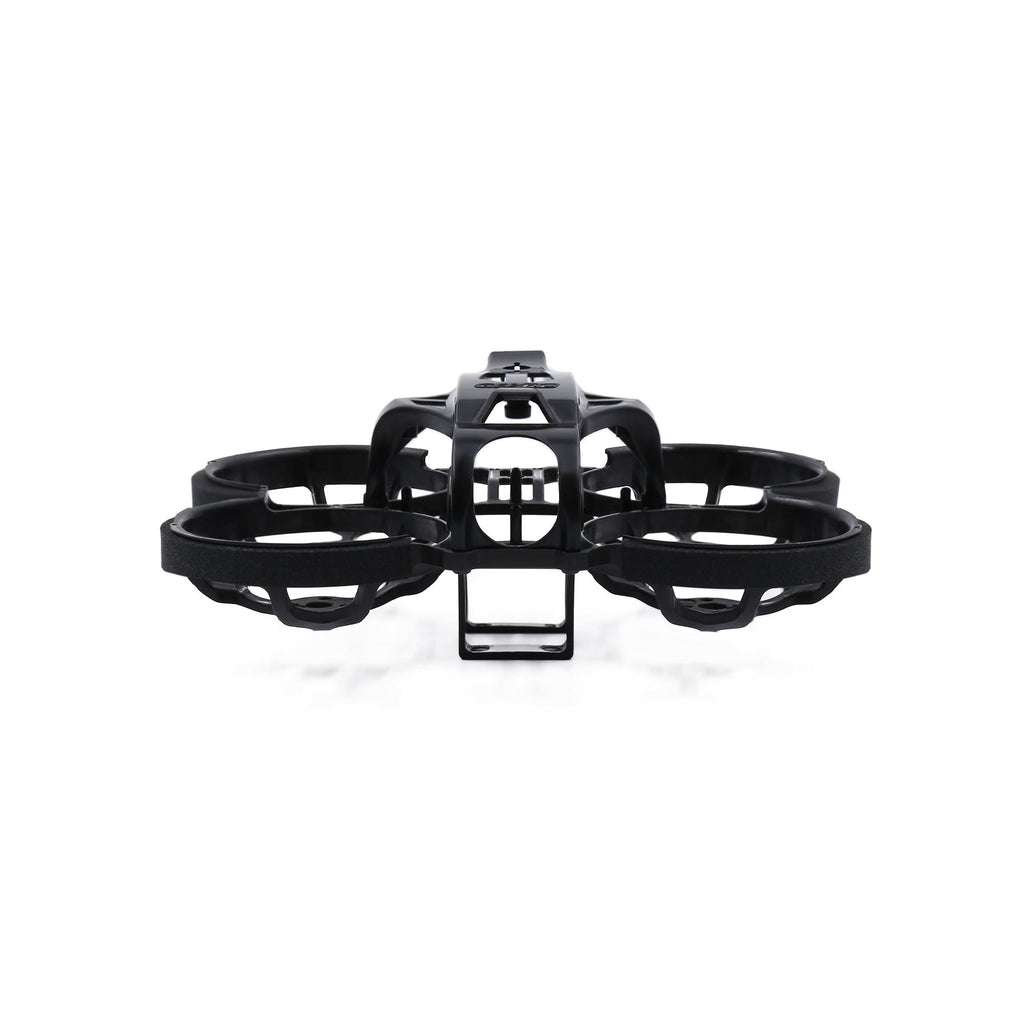

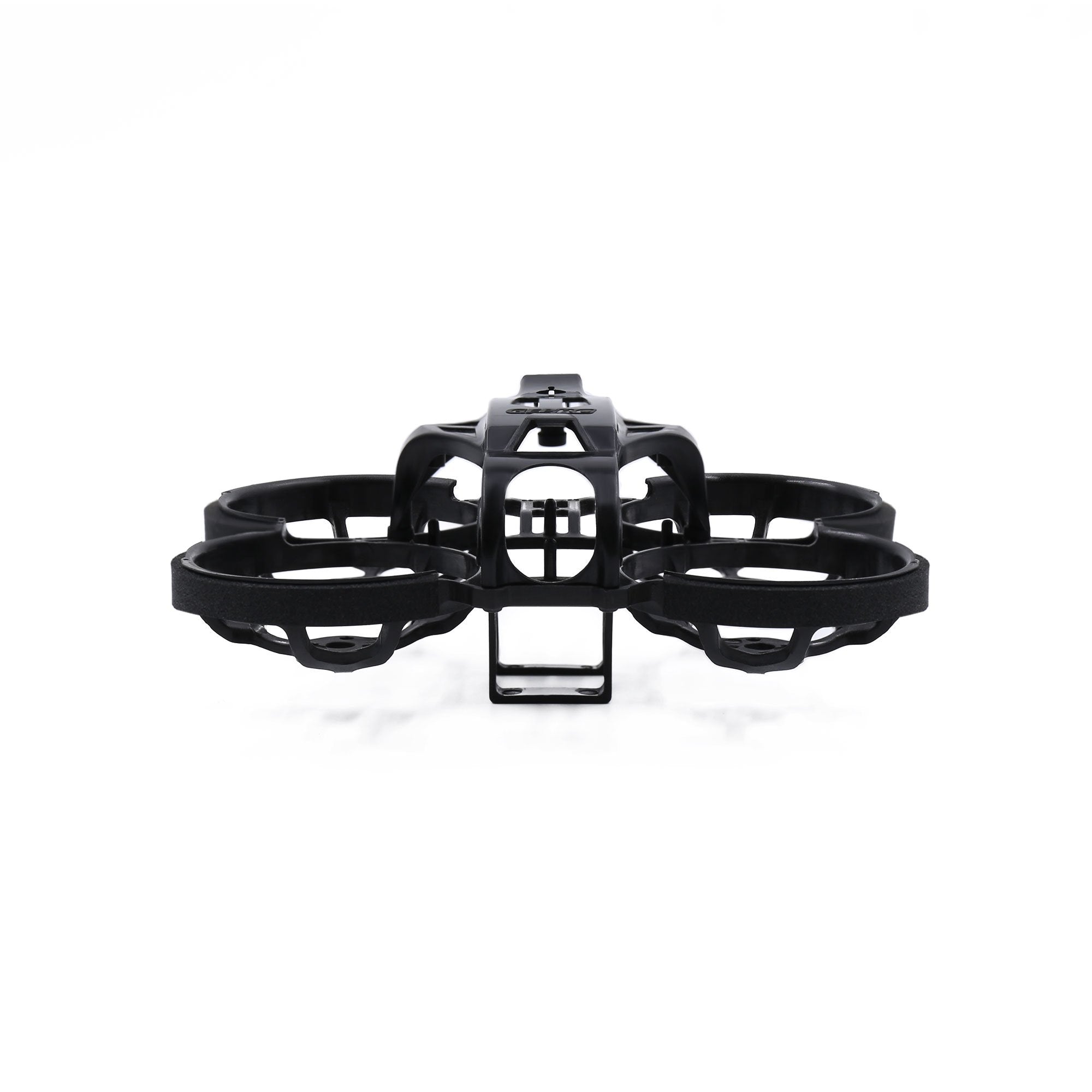

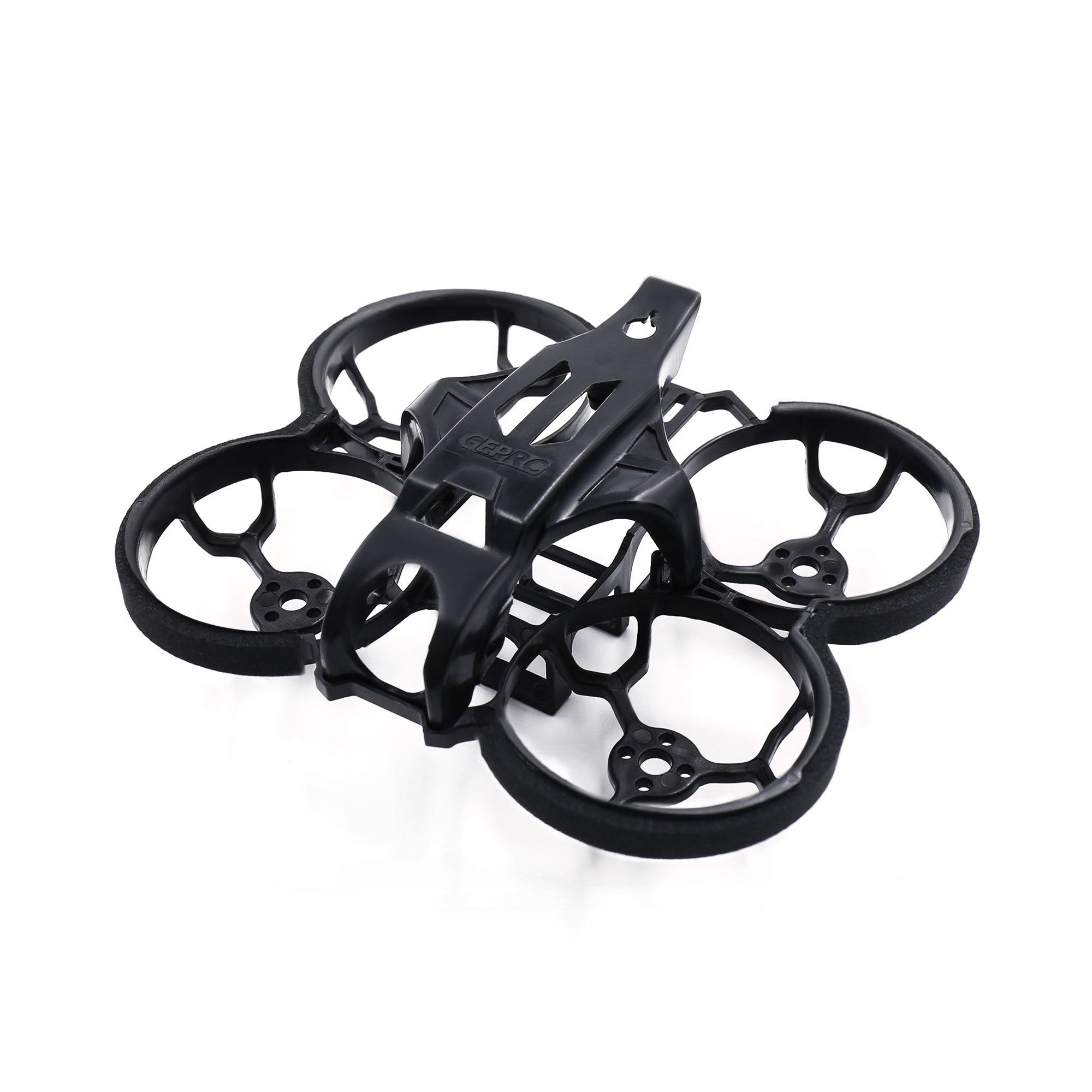

GEP-TG Frame｜FPV 機架

GEP-TG Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Introduction:

GEP-TG Frame is designed by GEPRC team,It is very light and compact,The weight of frame just only 11g,It is very suitable for indoor flight,The overall enclosure structure design is used to enclose propellers,The Fantastic enclosure structure not only providing security to people But also Reducing the risk of crash,The powerful flight with sense of stable control allows pilots get wonderful experience.

GEP-TG Frame Product specifications:

Brand:GEPRC

Item:GEP-TG Frame

Motor to Motor:79mm

Camera Size:14~19mm

Propeller Size: Gemfan 1635 1.6inch

The Hole size of FC :25.5mmx25.5mm

The Hole size of Motors:9mm (suit for1102,1103 etc)

Weight:11g

GEP-TG Frame include:

1 x Canopy Black

1 x Bottom plate Black

8 x (M1.4*5)Round head screws black

5 x (M2)Shock circular pad black

2 x (M2*4)Shock circular pad black

2 x (M2*18)Nylon crosshead nut

4 x (M1.4*10)Countersunk crosshead screws black

4 x (M2)Nylon Screws black

2 x (M2*5)YFS screws black

16 x (M2*4)Stainless steel Round head screws

4 x (1.4*5)crosshead nut

1 x (14mmx19mm)Mount of camera white
