GEP-TAKER G4 35A AIO｜一體式飛控

GEP-TAKER G4 35A AIO｜一體式飛控

GEPRC 官方一體式飛控，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.

In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.

We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.

Feature

Compact size and compatible mounting holes make installation convenient.

Light weight only 7.7g.

G473 main control, 170MHz operating frequency, abundant computing power.

Upgraded Type-c USB for better versatility.

Specifications

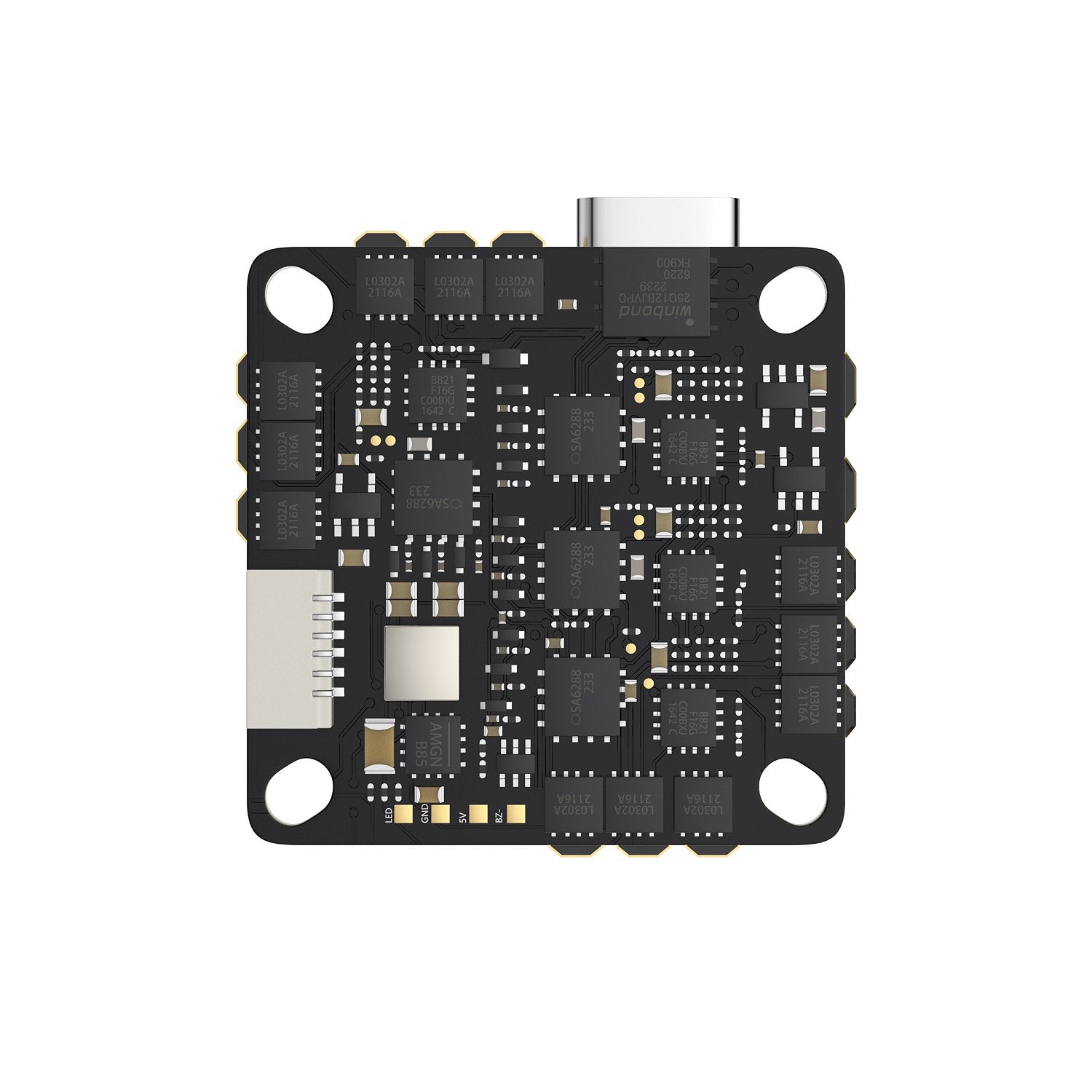

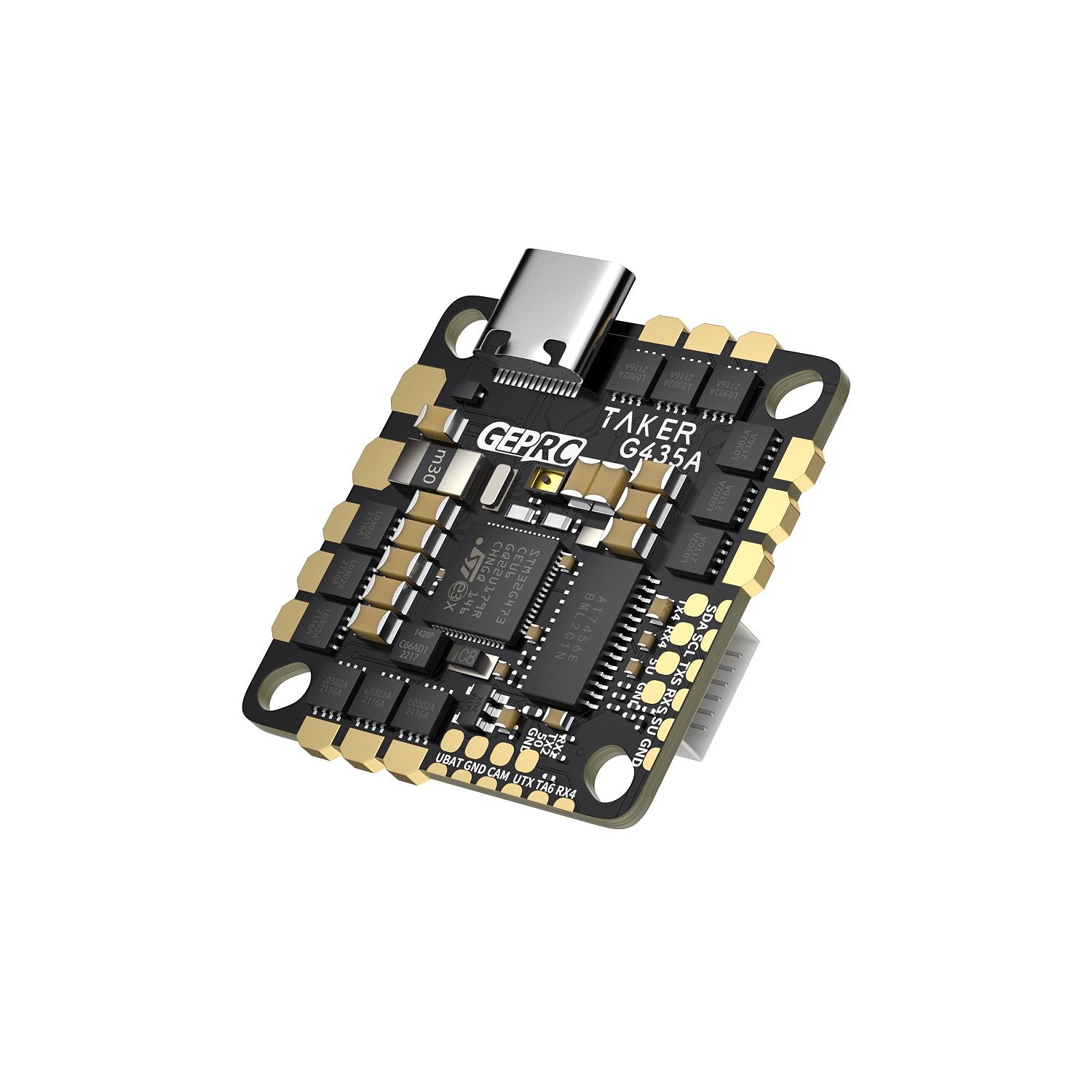

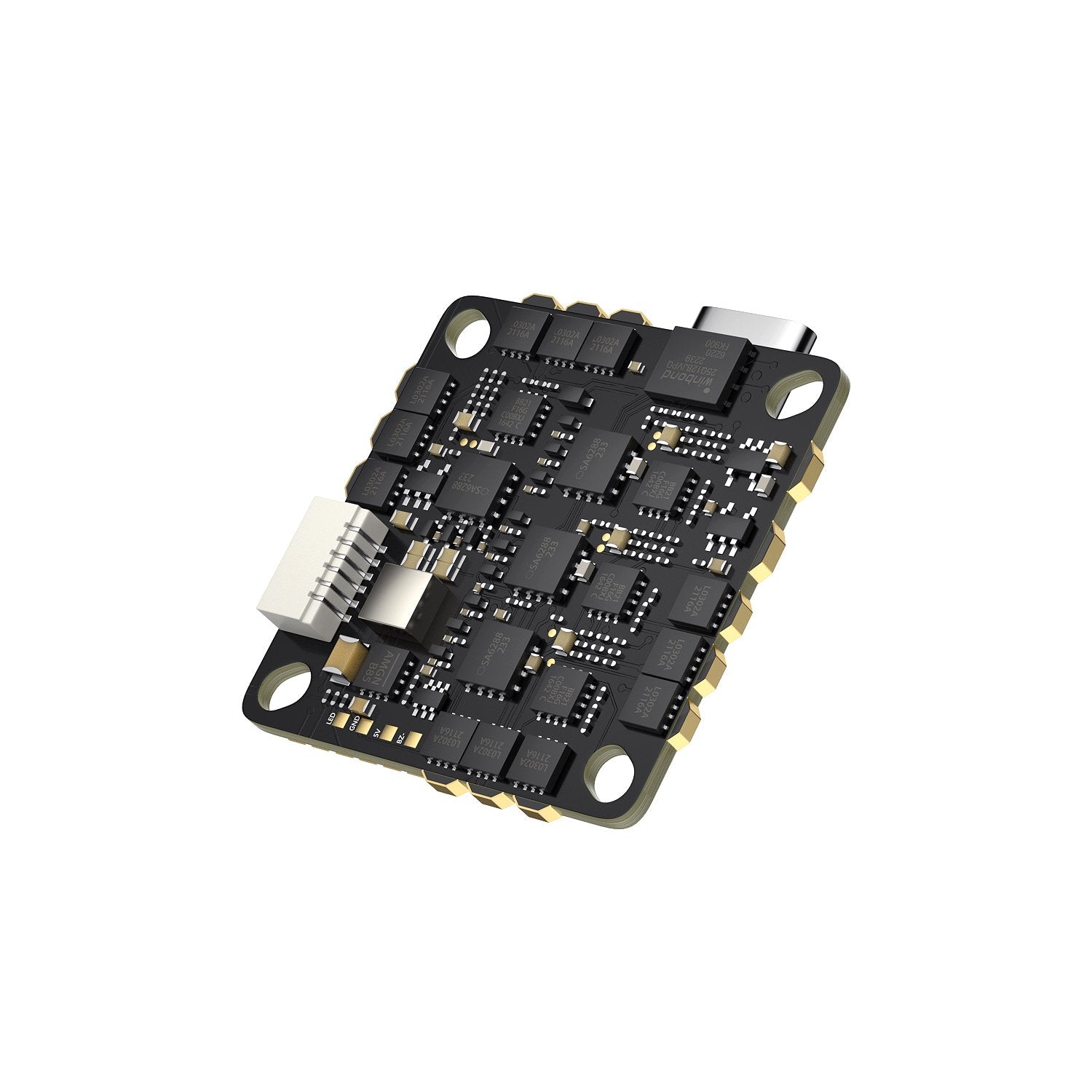

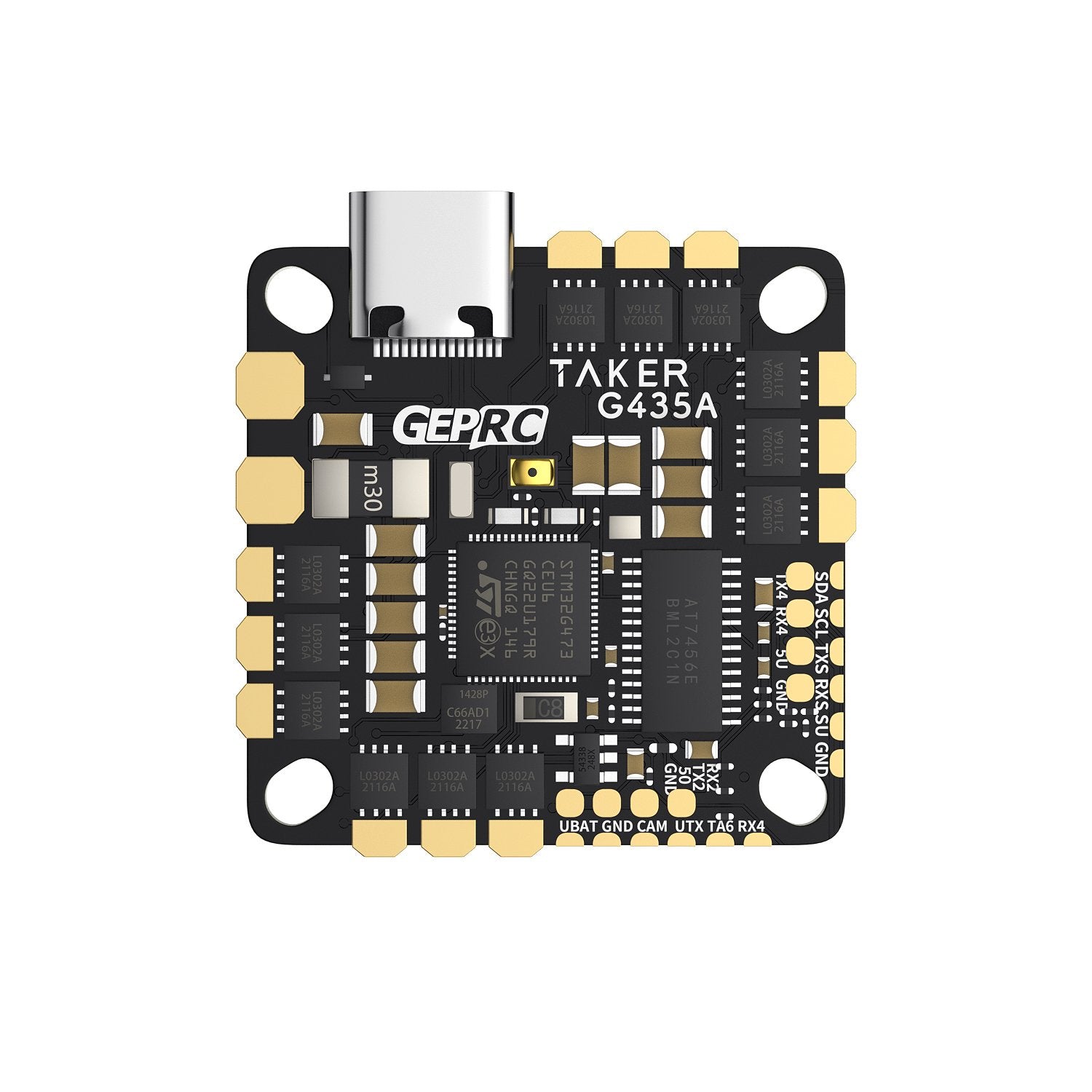

Model Name：TAKER G4 35A AIO

MCU：STM32G473CEU6

IMU：ICM 42688-P

Firmware target：TAKERG4AIO

OSD：Betaflight OSD w/ AT7456Ev

Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5

Buzzer：YES

LED ：YES

USB ：Type-c USB

BEC output：5V@3A

ESC MCU：BB21F16G

Continuous Current：35A

Burst Current：45A(5″)

lnput Voltage：2~4S (LIPO Battery)

Supports：Dshot600,Oneshot,Multishot

Current meter: YES

target：J -H -15

Size：33.4×34.4mm Board

Install hole：25.5-26.5 Φ3.05mm

Weight：7.7g

Includes

1 x GEP-TAKER G4 35A AIO

1 x Cable Set
