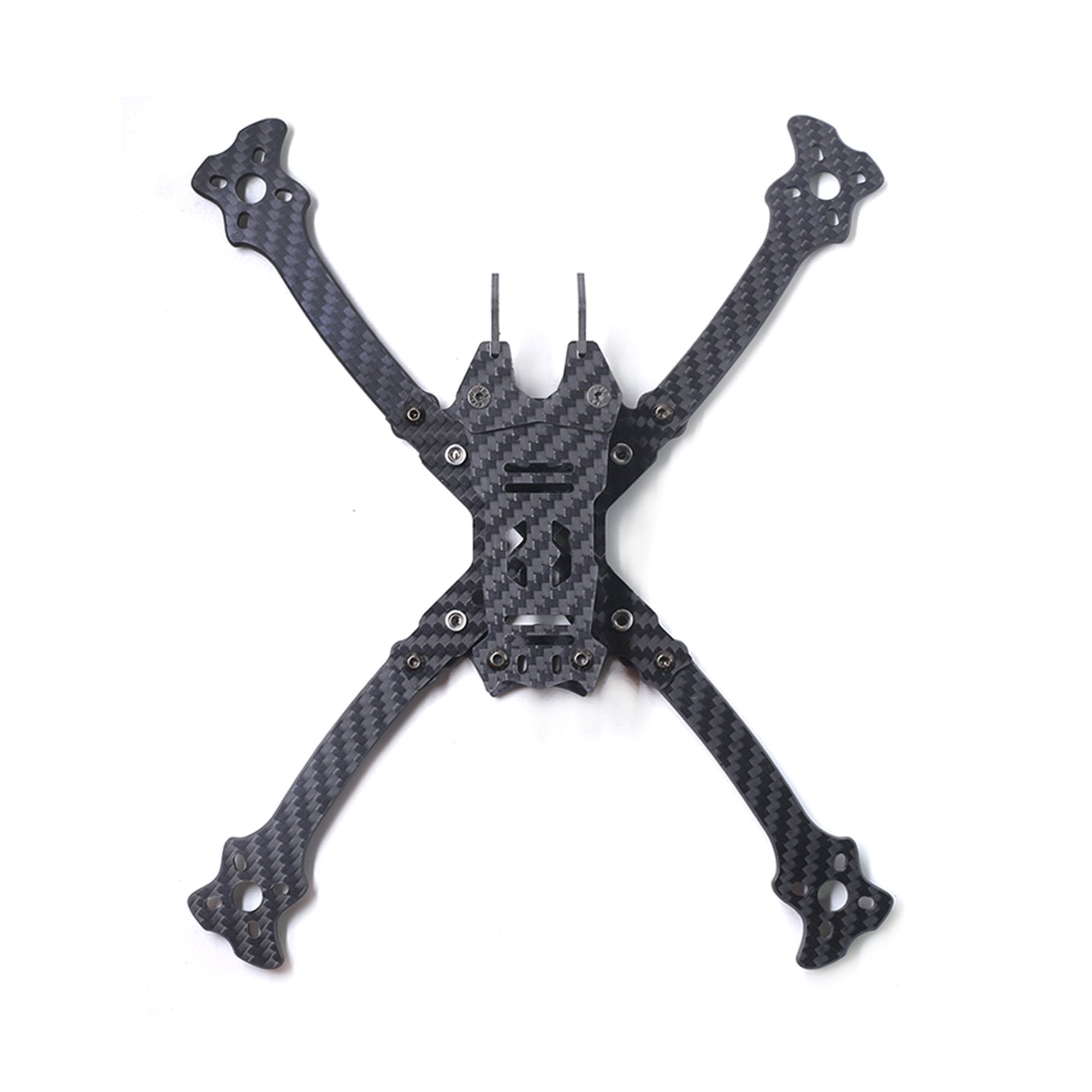

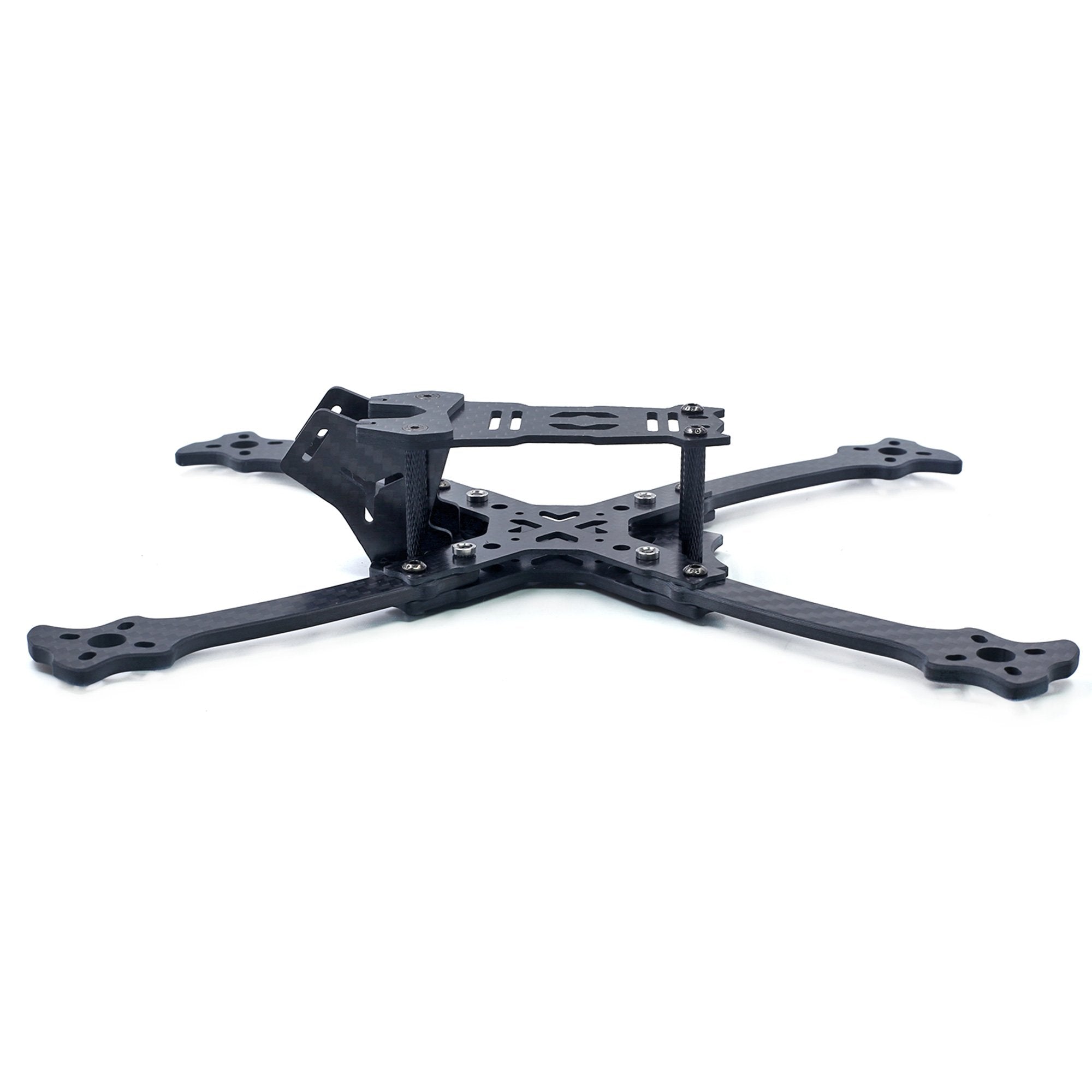

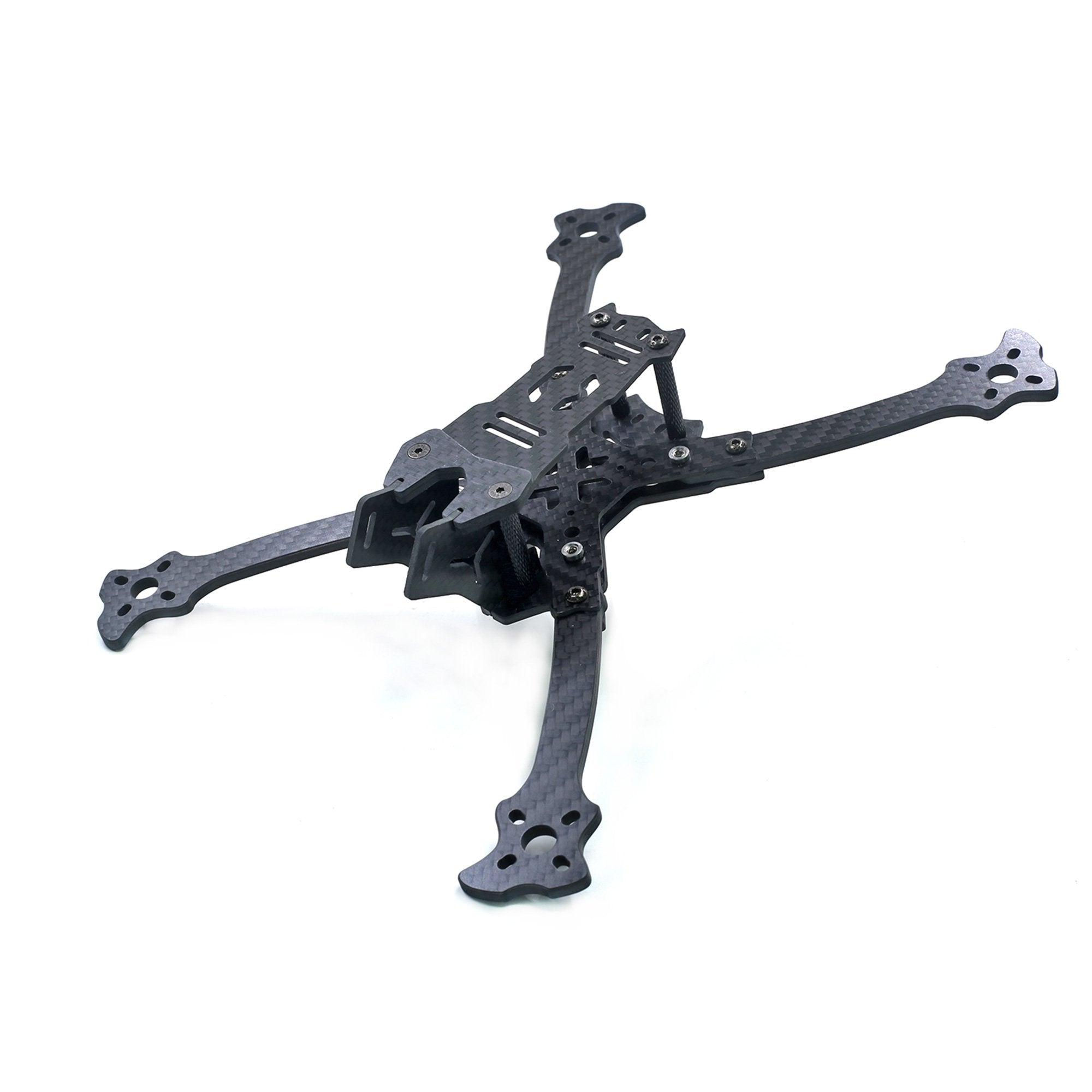

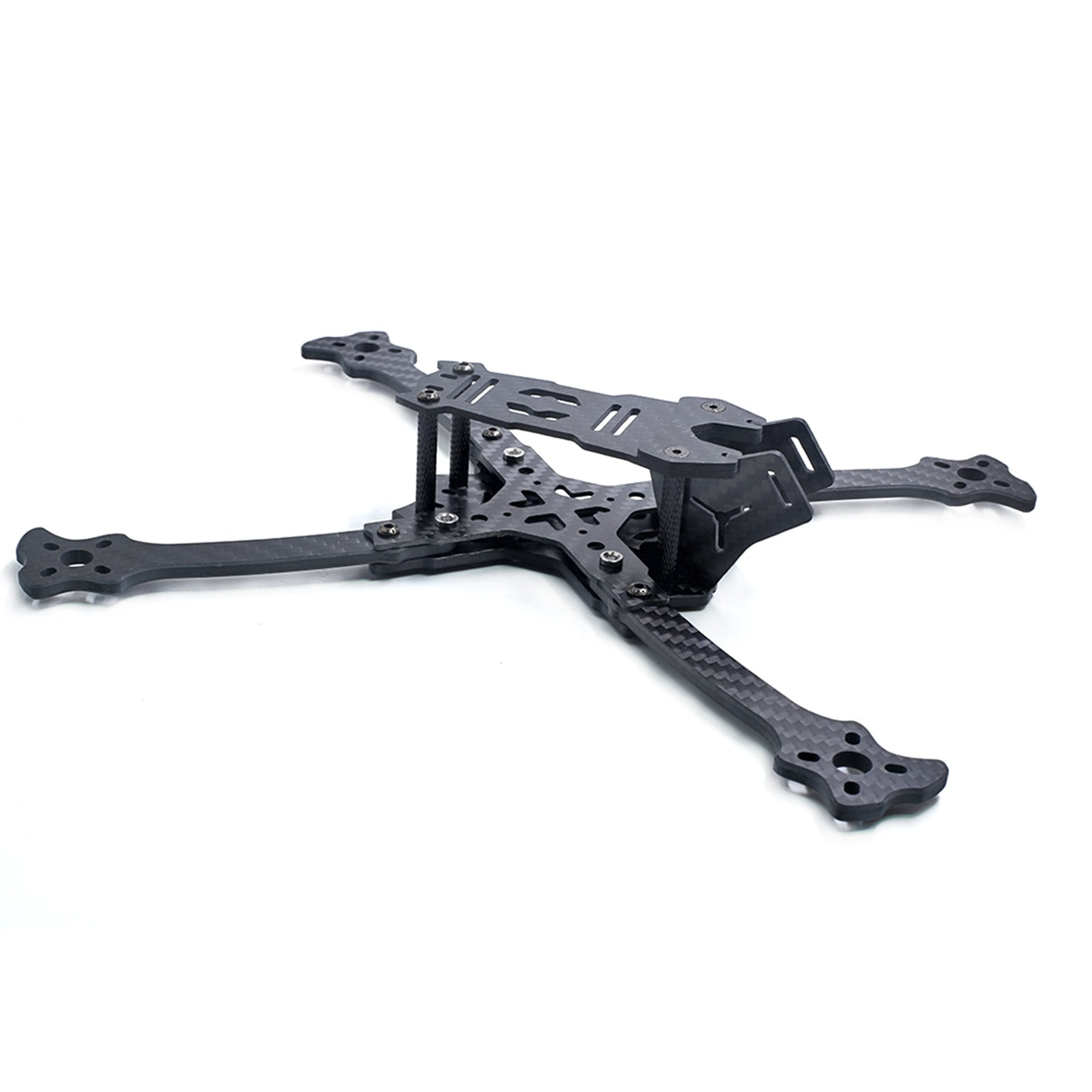

GEP-OX-S5 Pika Frame｜FPV 機架

GEP-OX-S5 Pika Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

Light, agile and light like a Pika.

The new GEP-OX models are competitive, and the series is divided into three versions: GEP-OX-X,GEP-OX-S, and GEP-OX-H, which represent the three different arm structures, True X, Stretched X, and H.Different aircraft have different flight experiences.

In the competition, the design is light, and the arms are designed to be narrow and small.On the arm thickness, the team decided on two thickness options, 4mm and 5mm, after considering various situations.Lens installation can only be equipped with Micro size lens, with lighter equipment to have more advantages.The fixation method of the arm with two screws is to cope with different situations, and the quick replacement of the arm is an advantage of GEP-OX.

We are also equipped with some 3D printing pieces to allow players to better fix the 5.8g and 2.4g antennas.This is a very nice design.Of course, a 35 degree 3d-printed Session mount.In terms of the center of gravity, we designed the case where the generated battery can be placed up and down, so that players can have better choices and matches in the center of gravity.

Maintaining good quality, all 3K carbon fiber panels are also being upgraded.The screw is still at level 12.9 of YFS Choose your flight gear and start your race.Believe that gep-ox will be your game choice.

Specifications：

Name：GEP-OX-S5

Weight：81g/94g

Wheelbase：230mm

Props Size: 5inch

Size：175*215mm

Arms board:4mm/5mm

Base board:3mm

Side board:1.5mm

Recommended：

Flight Controller：Kiss/F3/F4/RaceFlight

Motors：

2205

/2206/

2207

/2305/

2306

/2407

ESC：20A-50A

Propeller：5inch

Battery: 3S 1300mAh ~ 6S 1500mAh

Features:

1. Lightweight design enables the aircraft to have stronger power

2. Three different types of aircraft arms are designed for a variety of flight requirements. Narrow arms are designed for stronger airflow passage

3.4mm and 5mm different arm thickness

4. The micro-sized lens is installed with side plates to make the frame fit to the racing equipment and the weight is lighter.The screw hole position of lens side plate can also be adjusted freely

5. High-precision CNC for all 3K carbon upgraded fiber board, and 12.9 grade YFS aromatic screws.Strong frame

6. The flight control position has a hole position of 20*20 and a hole position of 30.5*30.5, and is equipped with a shock absorbing silica gel column, which enables the flight control to have better shock absorbing treatment.

7. Multiple 3D printing parts, equipped with a 35 degree dip of Session mount and fixed tail antenna

8. Two battery installation methods can make it more convenient for players to choose

Includes:

1x GEP-OX-S5 frame kits
