Summary

The HD VTX ushered in a new upgrade, and the brand new VTX of DJI O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance on the basis of MARK5. At the same time, it will be equipped with DJI O3 air unit to design the new MARK5 O3 version.

The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to DJI’s new O3 air unit camera, with a field of view (FOV) of 155°, and can support up to 4K 60FPS recording. We also specially designed TPU soft printing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. GEP-MK5 O3 Pro is shipped with two different camera mounts, which can be mounted with a full range of GP action cameras, as well as Naked camera GP 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.

Specifications

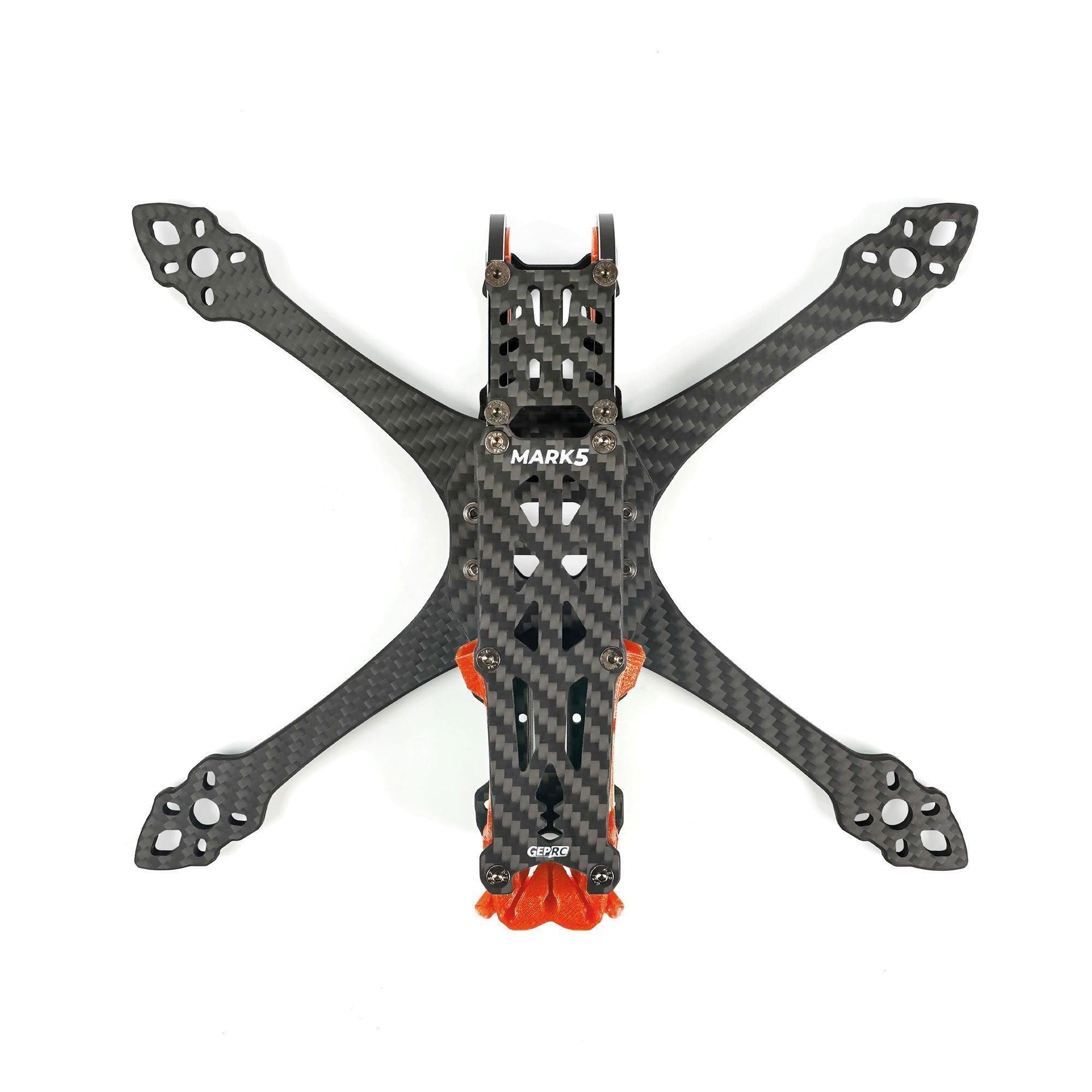

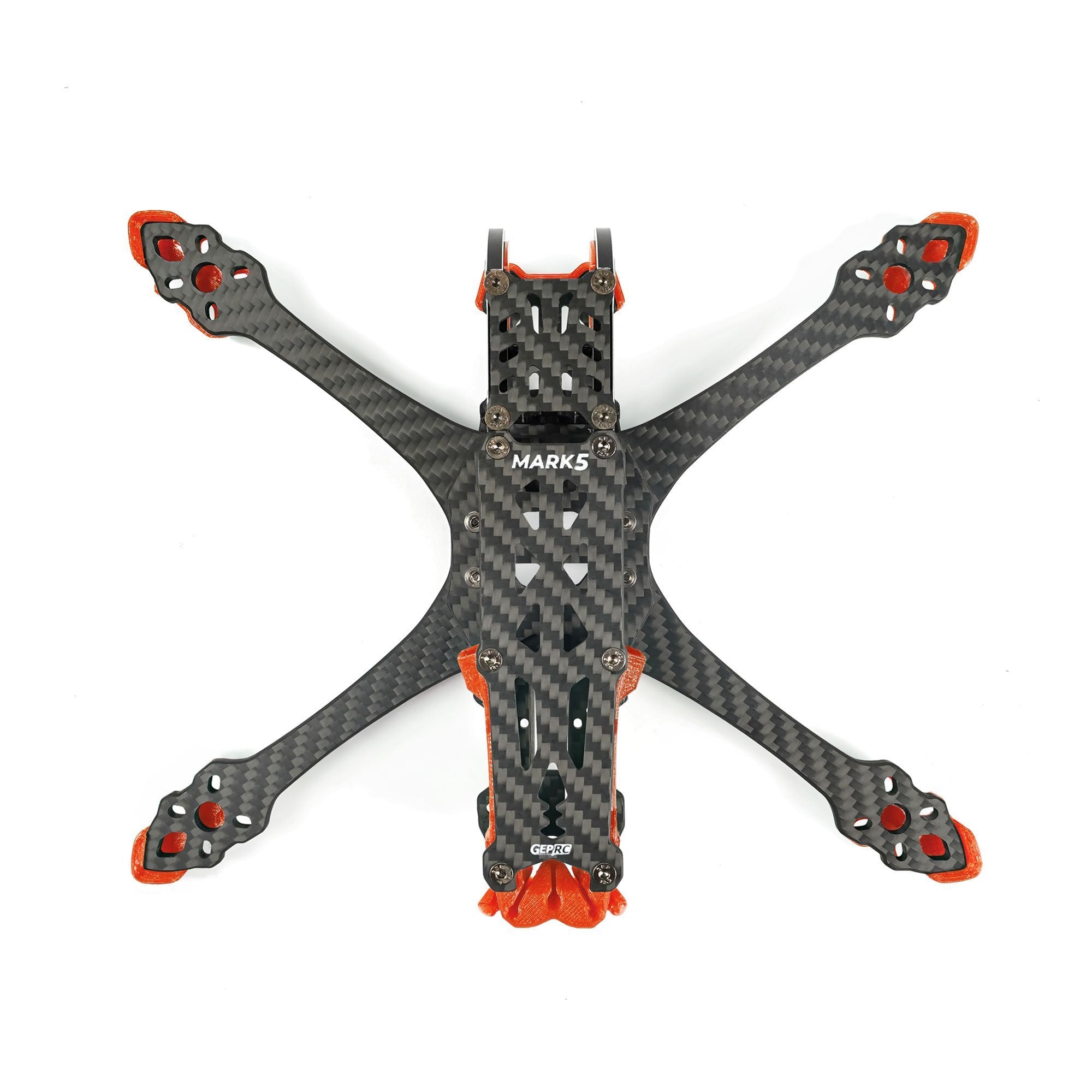

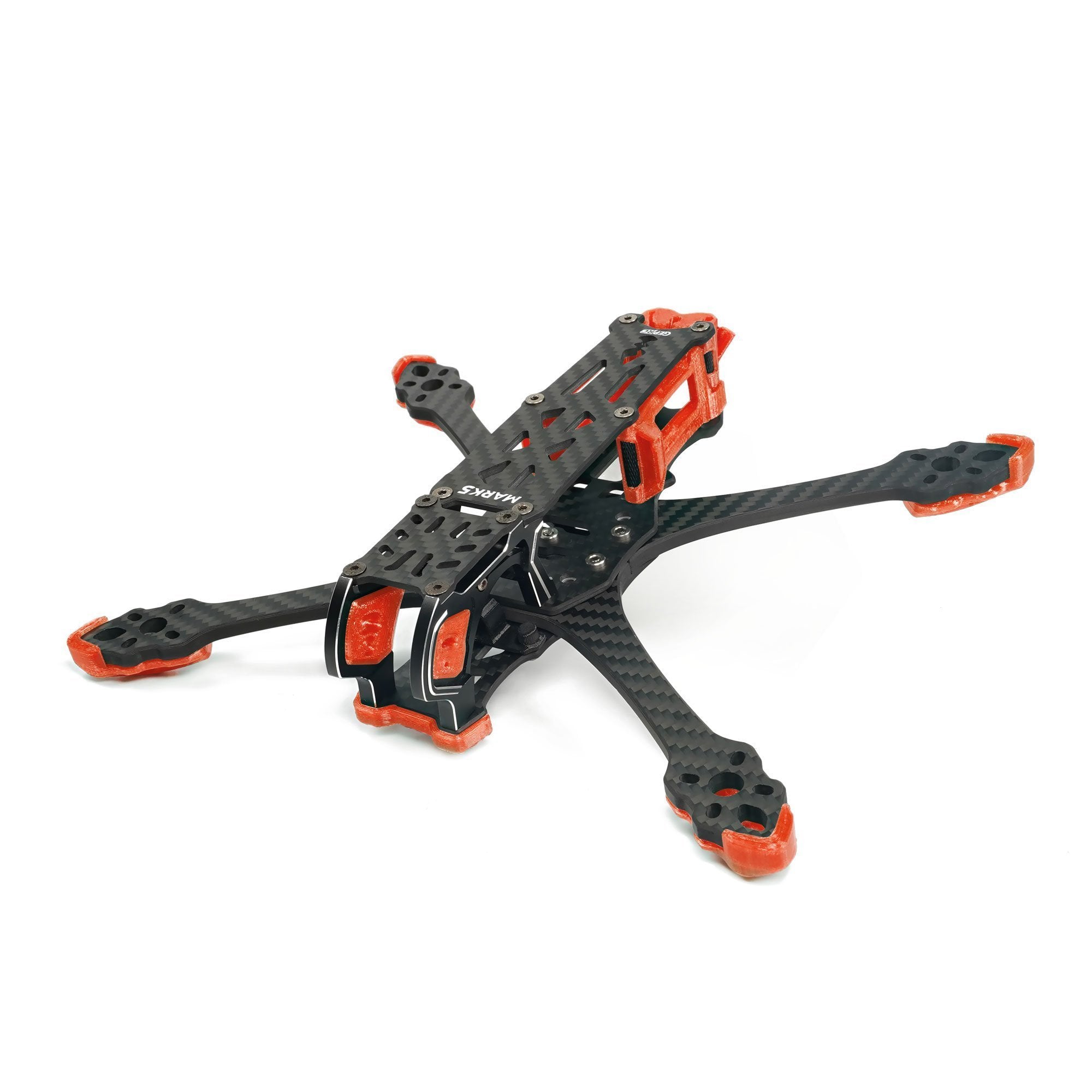

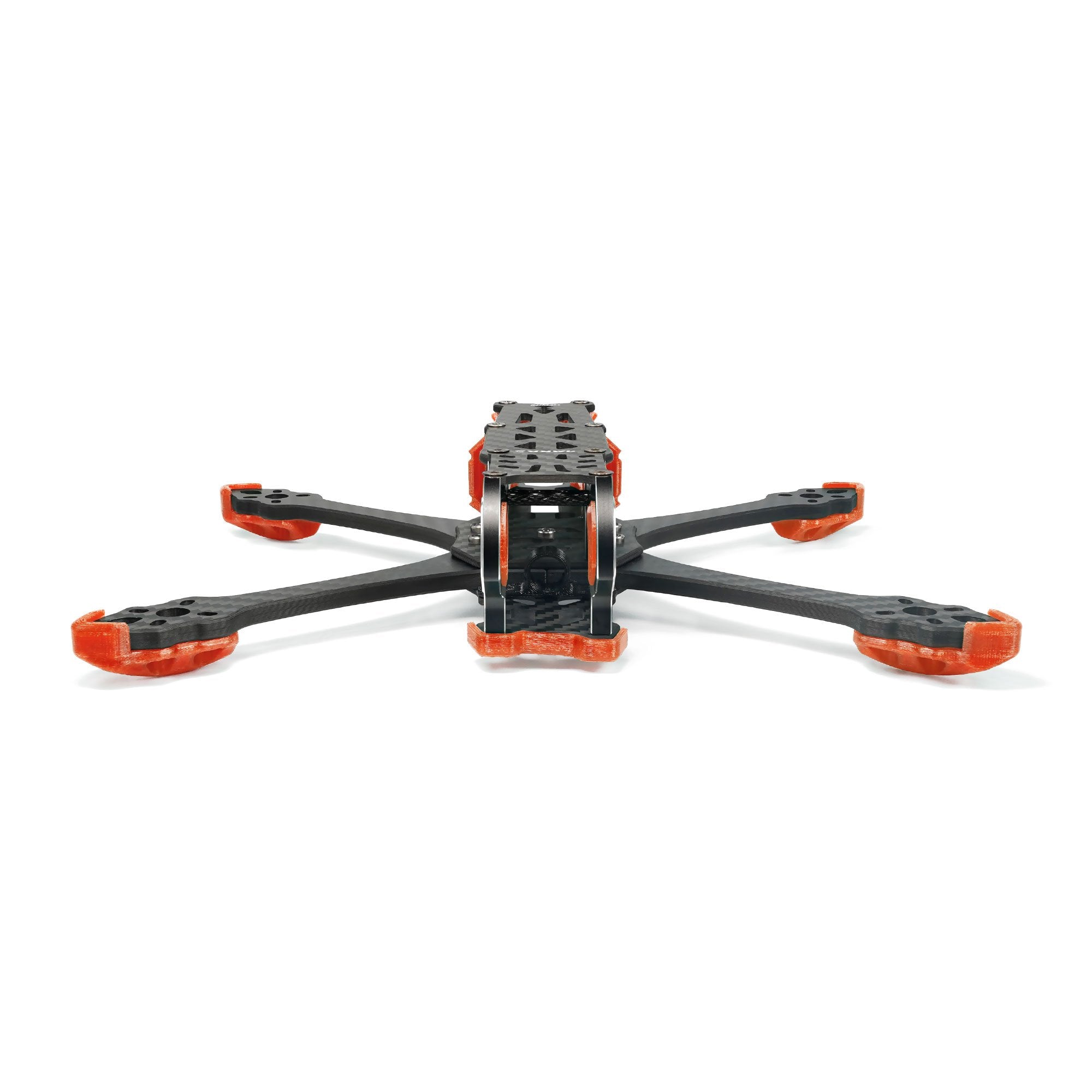

GEP-MK5X O3 Frame

Wheelbase: 225mm

Top plate: 2.5mm

Bottom plate: 2.5mm

Arm plate: 5mm

FC mounting holes: 30.5mm x 30.5mm

Camera installation space: 20mm

Suitable propeller size: 5″propeller

Dimension: 214mm x 168mm x 42mm

Standard Version Weight: 141.9g

Pro Version Weight: 156.1g

GEP-MK5D O3 Frame

Wheelbase: 230mm

Top plate: 2.5mm

Bottom plate: 2.5mm

Arm plate: 5mm

FC mounting holes: 30.5mm x 30.5mm

Camera installation space: 20mm

Suitable propeller size: 5″propeller

Dimension: 208mm x 193mm x 42mm

Standard Version Weight: 168.0g

Pro Version Weight: 197.0g

Features

1. Upgraded lens aluminum alloy side plate, durable and more visual impact

2. Developed specifically for freestyle with squashed X arm design.

3. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment

4. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

5. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GP cameras, as well as Naked camera GP 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear

6. Add coral orange and emerald green colors to the O3 version to add more colors to your flight

7. MARK5 O3 is optimized for freestyle, with a smoother flight experience

Includes

Standard Edition List:

Frame:

1 x 2.0mm small top plate

1 x 2.5mm large top plate

1 x 2.5mm front bottom plate

1 x 2.5mm rear bottom plate

2 x 5.0mm front arms

2 x 5.0mm rear arms

1 x 5.0mm arm limit plate

1 x 2.0mm front protection plate

1 x Camera aluminum part

1 x Set of screws

3D printed parts:

1 x Camera vibration reduction mount

1 x O3 VTX mount

1 x VTX antenna mount

1 x TBS antenna mount

Accessories:

8 x M3x8 flight controller shock absorbing ball

4 x 10x50mm motor hubs

Other Accessories:

1 x M15x250 Batteries straps

2 x M20x250 Batteries straps

2 x Battery non-slip mat

8 x EVA tripod shock pads

1 x EVA camera base

1 x EVA camera base (with backrest)

1 x 3M double-sided tape

1 x 1.5mm L-type screwdriver

1 x 2.0mm L-type screwdriver

1 x Antenna fixed tube

Pro Edition List:

Frame:

1 x 2.0mm small top plate

1 x 2.5mm large top plate

1 x 2.5mm front bottom plate

1 x 2.5mm rear bottom plate

2 x 5.0mm front arms

2 x 5.0mm rear arms

1 x 5.0mm arm limit plate

1 x 2.0mm front protection plate

1 x Camera aluminum part

1 x Set of screws

3D printed parts:

1 x Front protector

4 x Motor shock pads

1 x Buzzer Holder

1 x VTX antenna mount

1 x TBS antenna mount

1 x GP camera mount

1 x Naked camera GP8 Base

1 x Camera vibration reduction mount

1 x O3 VTX mount

Accessories:

8 x M3x8 flight controller shock absorbing ball

4 x 10x50mm Motor hubs

Other Accessories:

1 x M15x250 Batteries straps

2 x M20x250 Batteries straps

2 x Battery non-slip mat

1 x EVA camera base

1 x EVA camera base (with backrest)

1 x 3M double-sided tape

1 x 1.5mm L-type screwdriver

1 x 2.0mm L-type screwdriver

1 x 3.0mm L-type screwdriver

1 x M8 Wrench

1 x Antenna fixed tube
