GEP-MK5 O4 Pro Wide X Frame｜FPV 機架

GEP-MK5 O4 Pro Wide X Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEPRC MARK5 O4 Pro frame is designed specifically for the DJI O4 Air Unit Pro.

It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.

Features

Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

DC and wide X shapes, fit for a variety of flying situations.

Two TPU camera mounts, compatible with all action cameras.

Quick-release arms with just two screws for easy swapping.

3K carbon fiber frame that is lighter, stronger, and more durable.

DC Specifications

Model: GEP-MK5 O4 Pro DC Frame

Wheelbase: 230mm

Weight: 197.0g ± 10g

Color: emerald green / coral orange

Top Plate Thickness: 2.5mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Pattern: 30.5mm * 30.5mm

VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm

Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm

Camera Mounting Pattern: 20mm

Recommended Prop：5-inch

Wide X Specifications

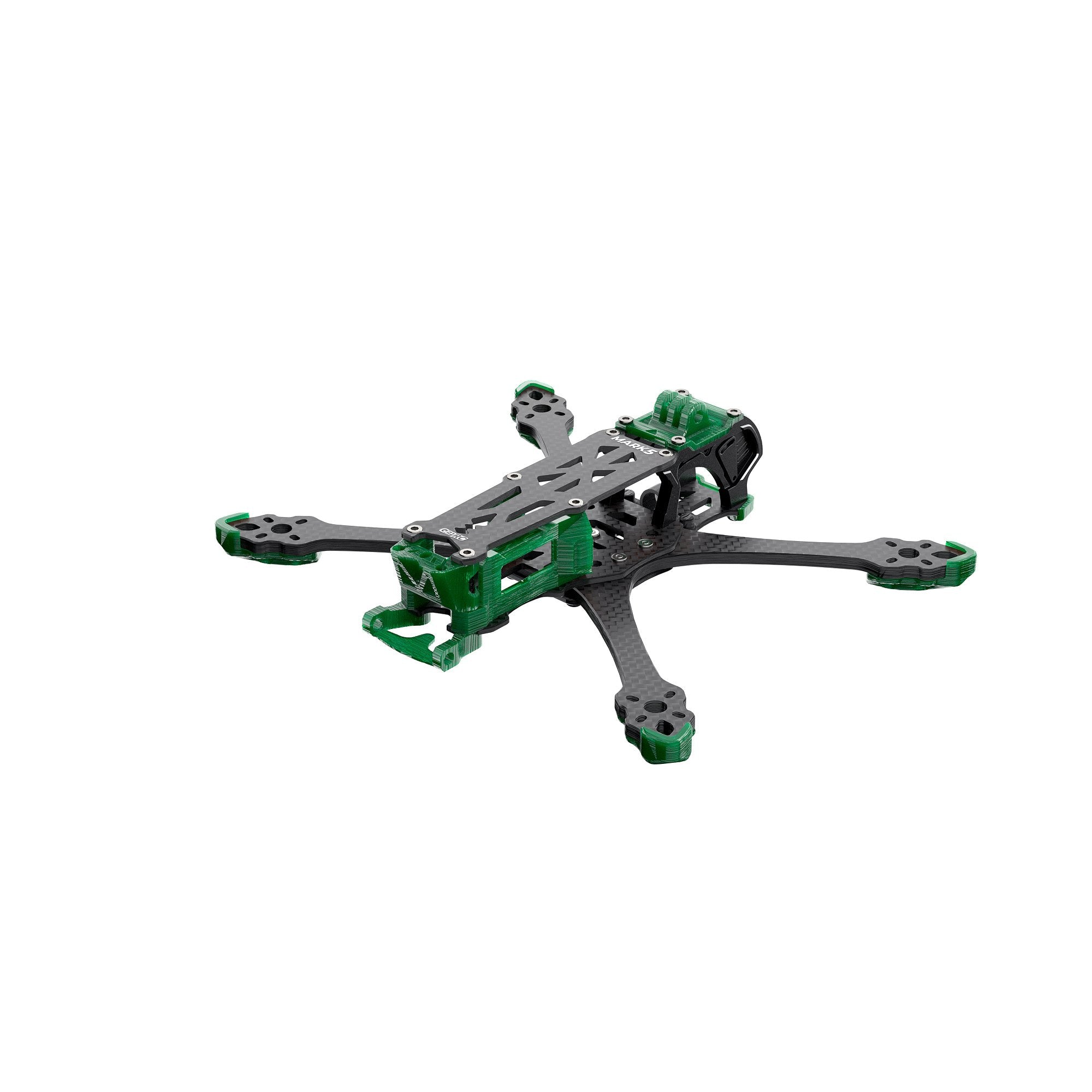

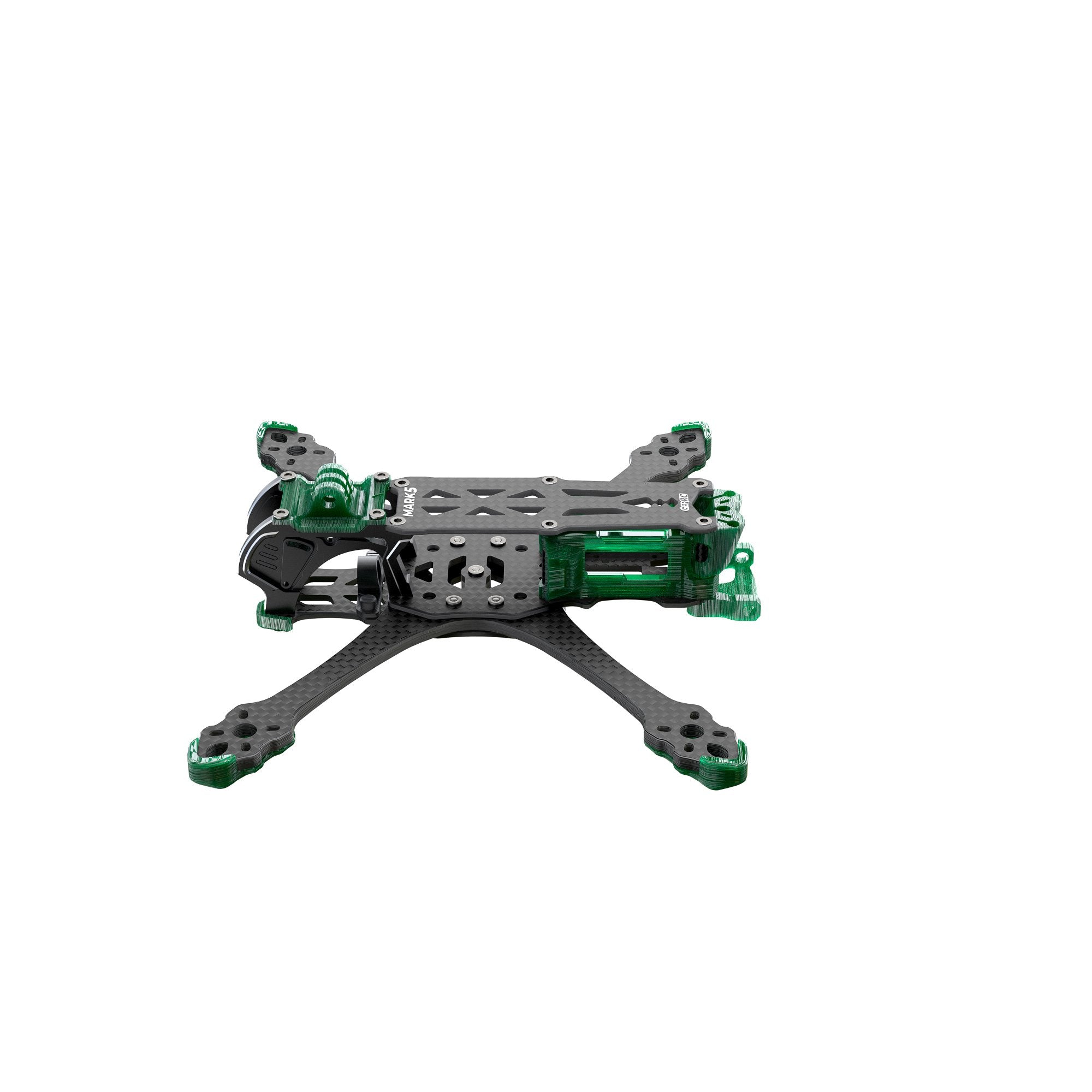

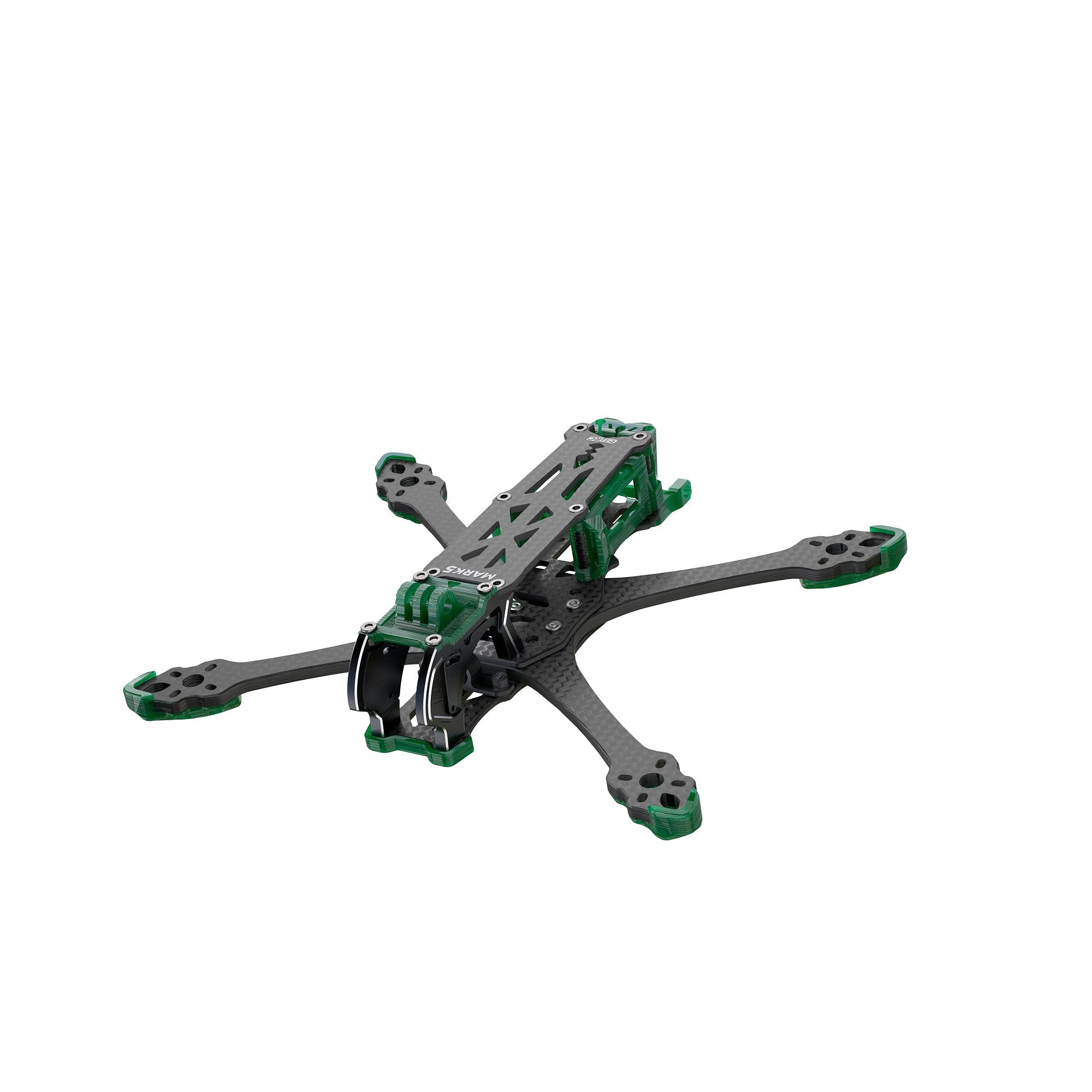

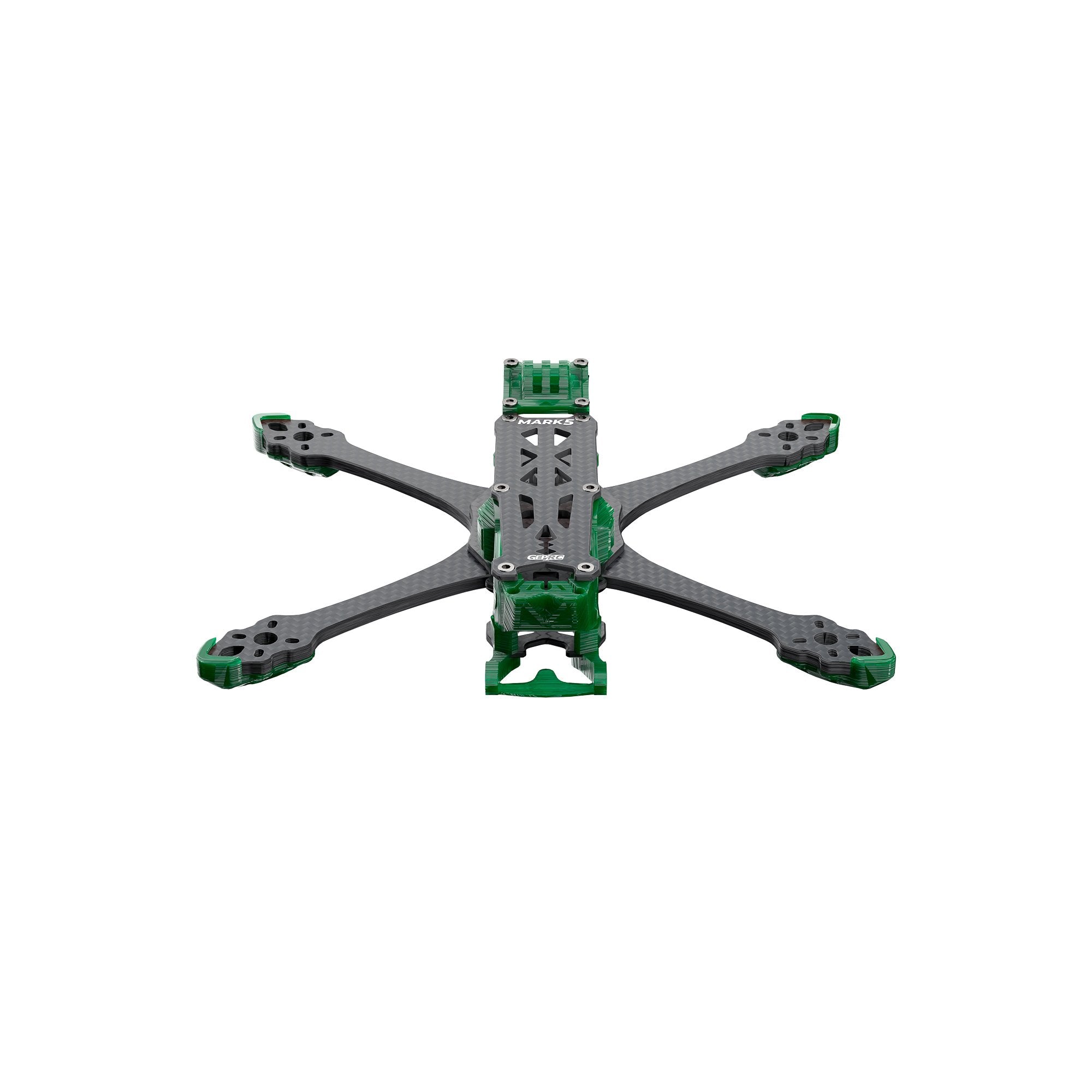

Model: GEP-MK5 O4 Pro wide X Frame

Wheelbase: 225mm

Weight: 165.1g ± 10g

Color: emerald green/coral orange

Top Plate Thickness: 2.5mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Pattern: 30.5mm * 30.5mm

VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm

Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm

Camera Mounting Pattern: 20mm

Recommended Prop：5-inch

Includes

1 x GEP-MK5 O4 Pro Frame

1 x 15*250mm heavy-duty Velcro straps

2 x Battery anti-slip pads

1 x 3D printouts pack

2 x 20*250mm rubber anti-slip straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2mm

1 x L-shaped screwdriver 3mm

1 x M8 wench

1 x Screw pack
