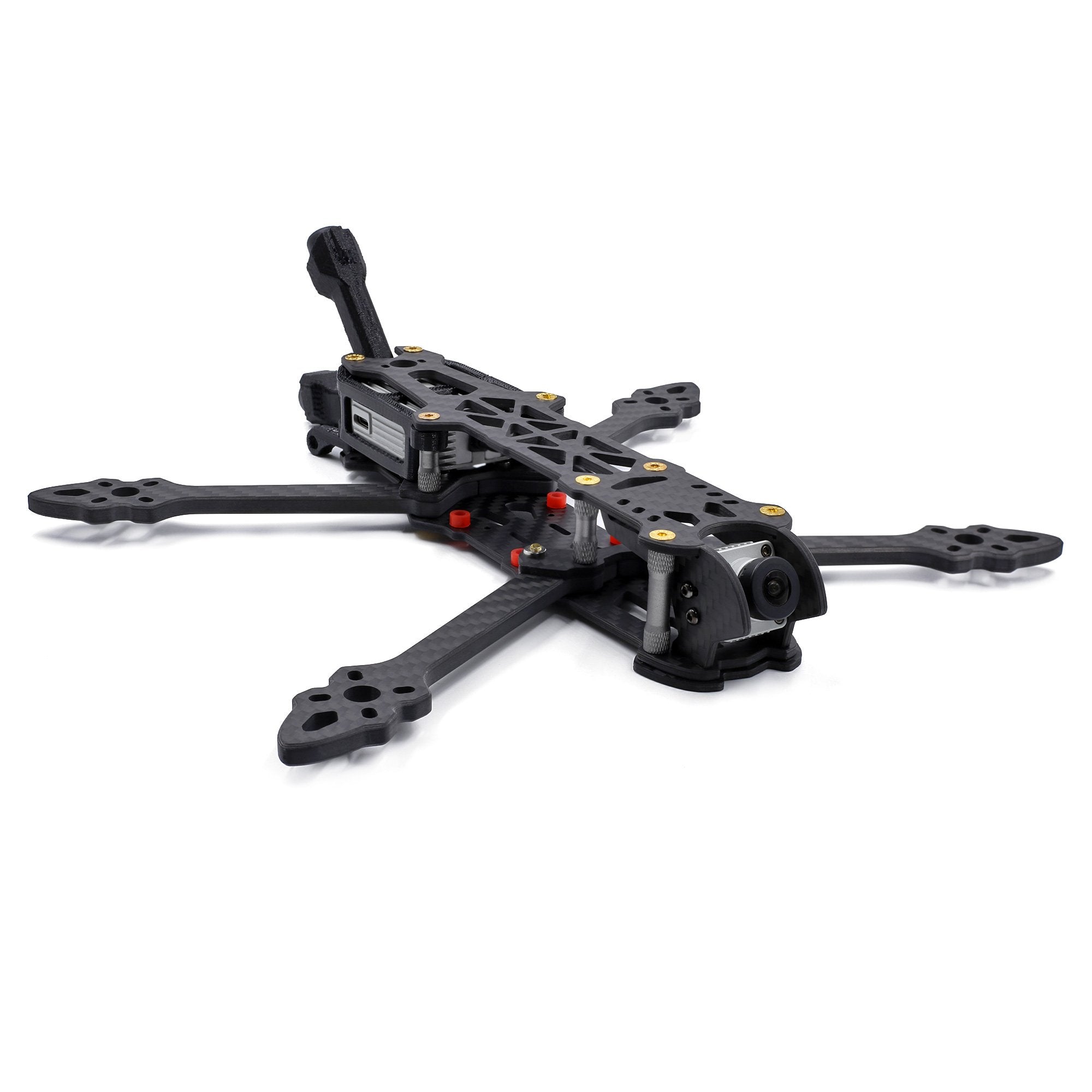

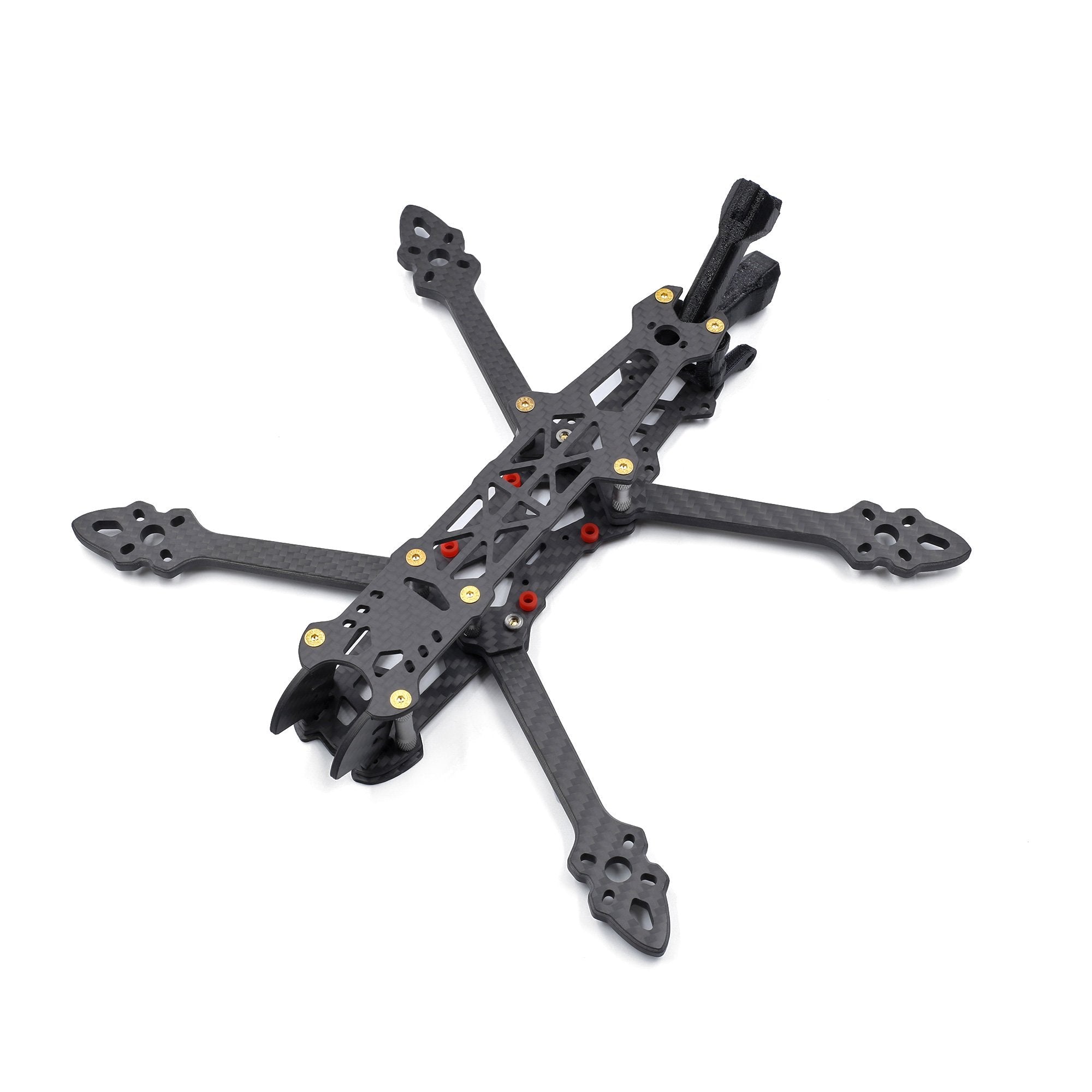

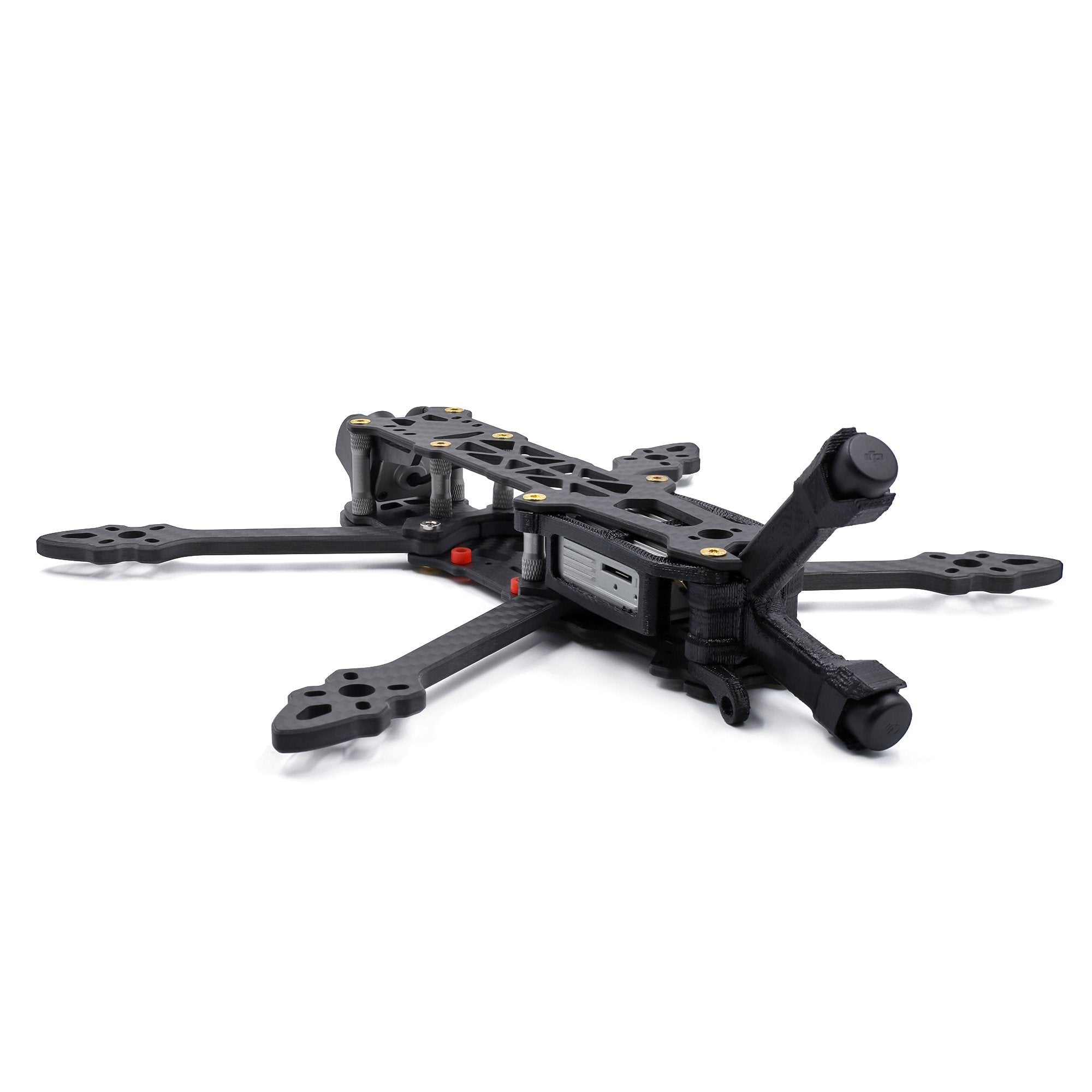

GEP-MARK4 HD5 DJI FPV Freestyle Frame kits｜FPV 機架

GEP-MARK4 HD5 DJI FPV Freestyle Frame kits｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features

：

The perfect match DJI FPV Air Unit

3D printing parts are fixed and protected

No propeller in the view

Full 3K Carbon Fiber Frame

Super lightweight Freestyle frame

Beautiful appearance design，durable in crashing

Quick maintenance Arms and replacement of equipment

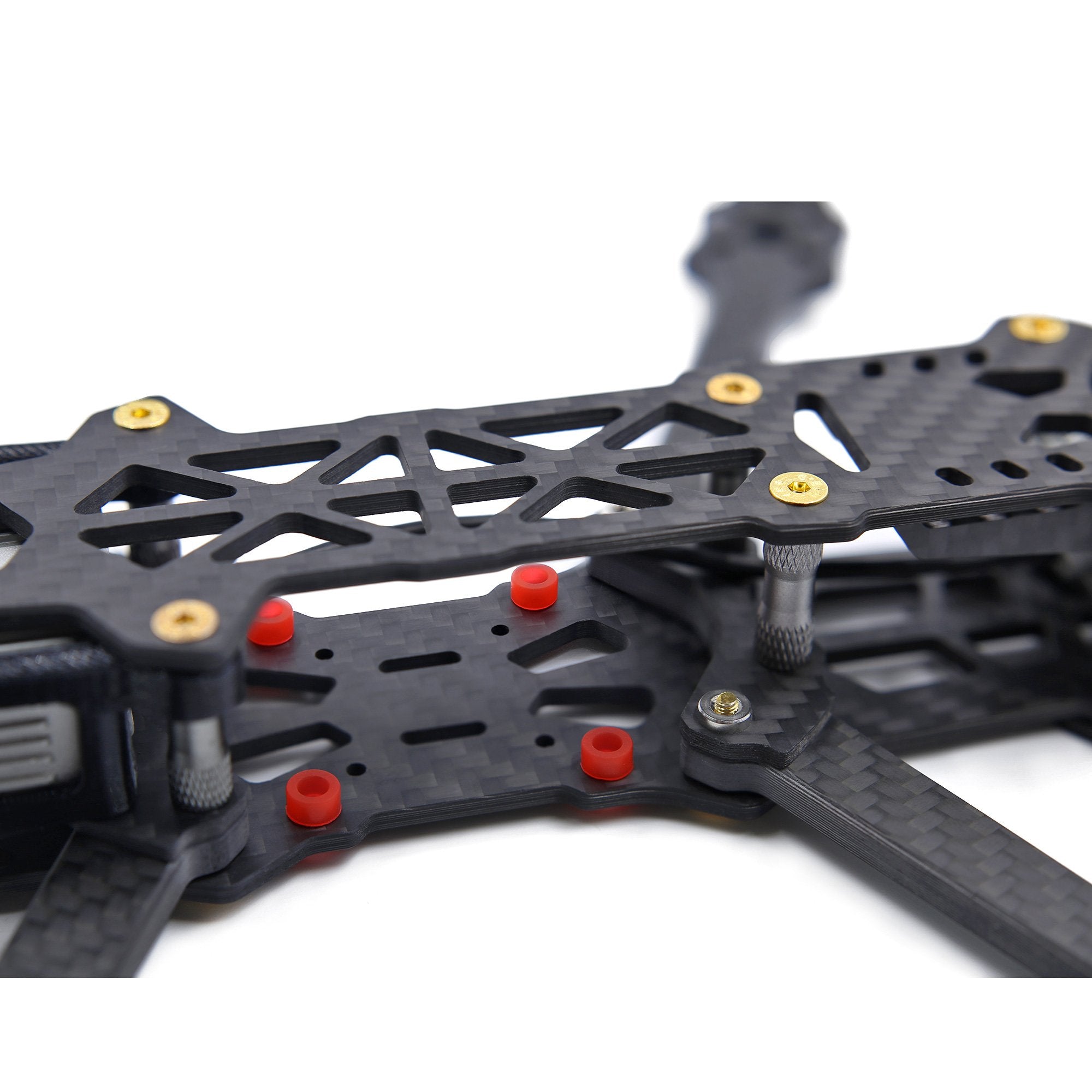

25mm standoffs for better height and CG relation,Ample space for electronic installation

ALU6061 Srandoff New , Strengthen the hardness

There are 30.5*30.5mm and 20*20mm flight control holes , Stack can fit in the center or the rear.

High quality 3K twill carbon fiber plate, high precision CNC processing

YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware

Specifications

：

Item name：GEP-Mark4 HD5 Frame

Frame type：H-TYPE

Propeller : 5inch

Motor to motor：224mm

Size：138*176mm

Mounting Holes: 30.5*30.5mm/20*20mm

Weight：121g

Arms plate : 5mm

Side plate : 2.5mm

Top plate : 2.5mm

Bottom plate : 2.5mm

Protect plate : 2mm

Recommended

：

Flight Controller：RF/Kiss/F3/F4/F7

Motor：2205/2206/2207/2207.5/2305/2306/2306.5

ESC：30A-50A

Propeller：5inch

Lipo: 4S 1500mAh ~ 6S 1300mAh

FPV :DJI FPV Air Unit

Include

：

4 x 5mm 5inch Arms

2 x 2.5mm side plate

1 x 2.5mm top plate

1 x 2.5mm Bottom plate

2 x 2mm Bumpers plate

2 x 2mm Reinforce plate

1 x Lipo silicone pad

1x DJI FPV Air Unit fixed

1x Antenna Mount

1x RX Antenna Mount
