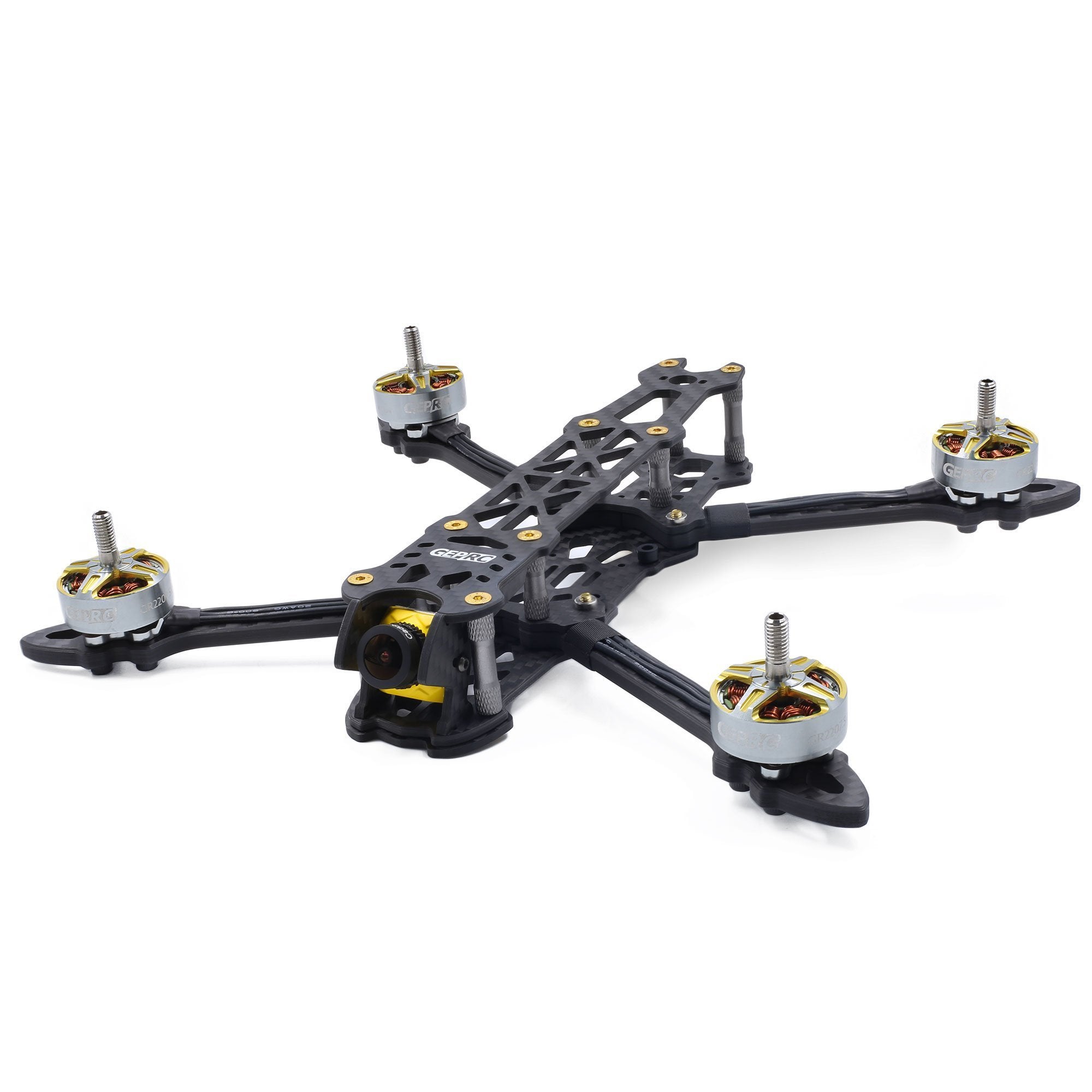

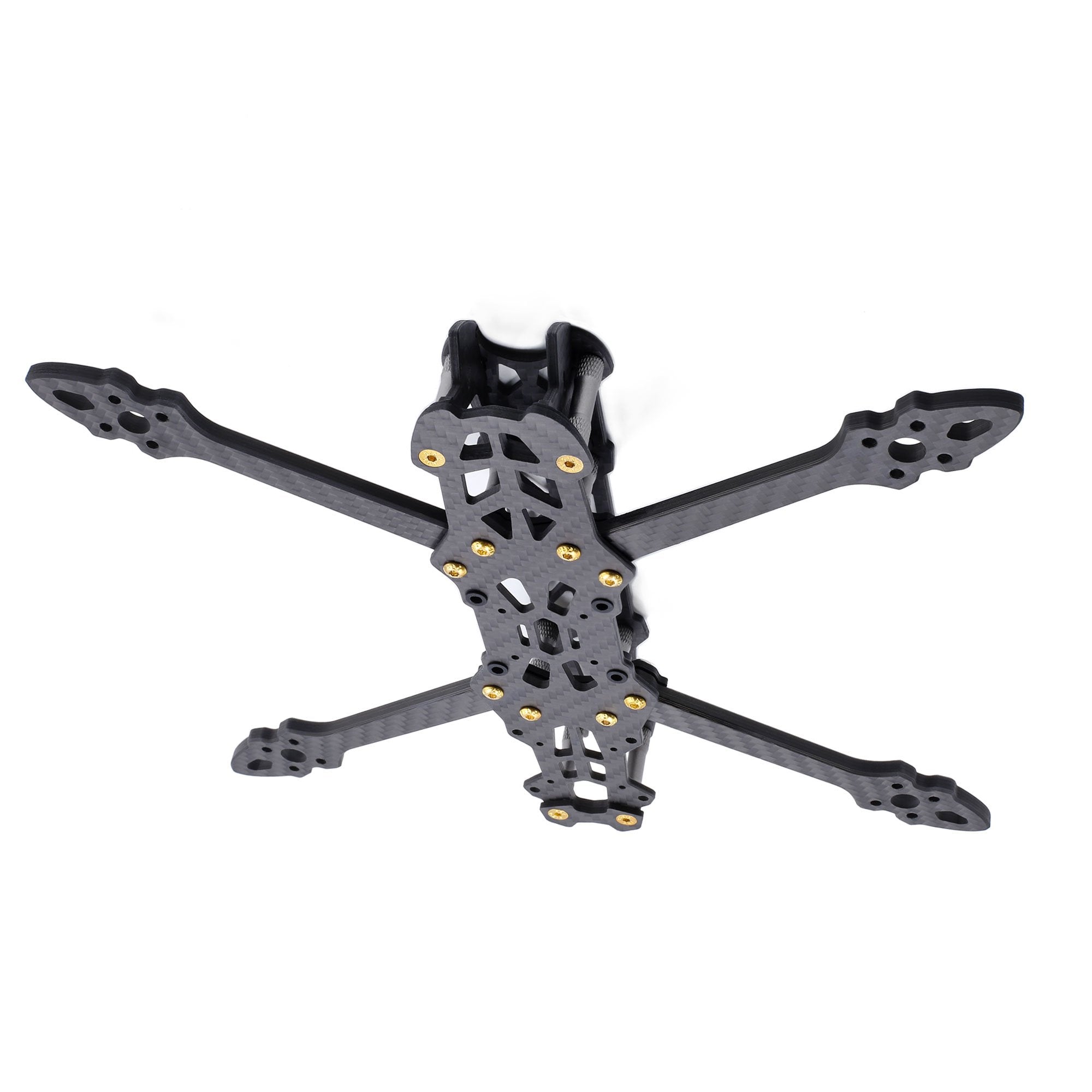

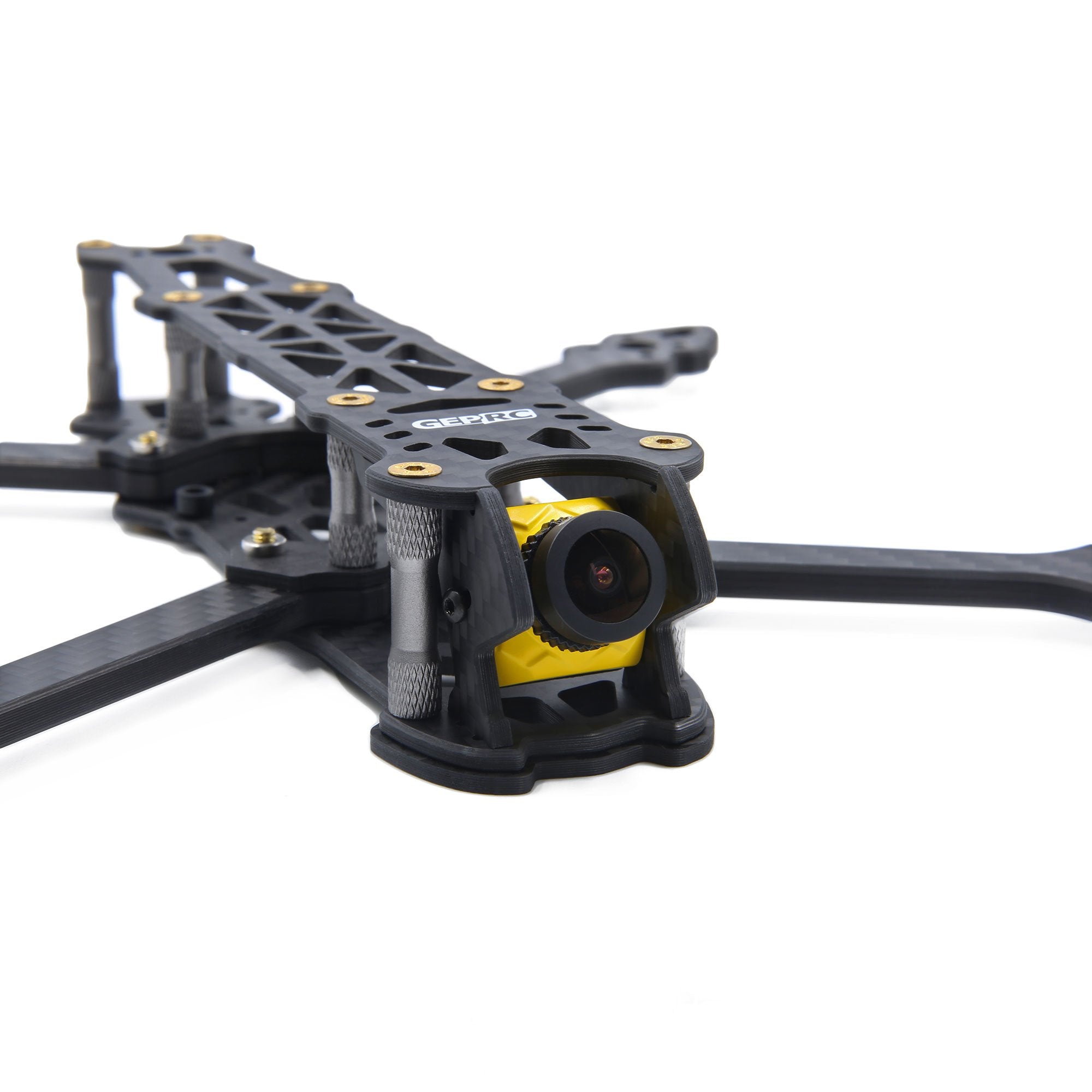

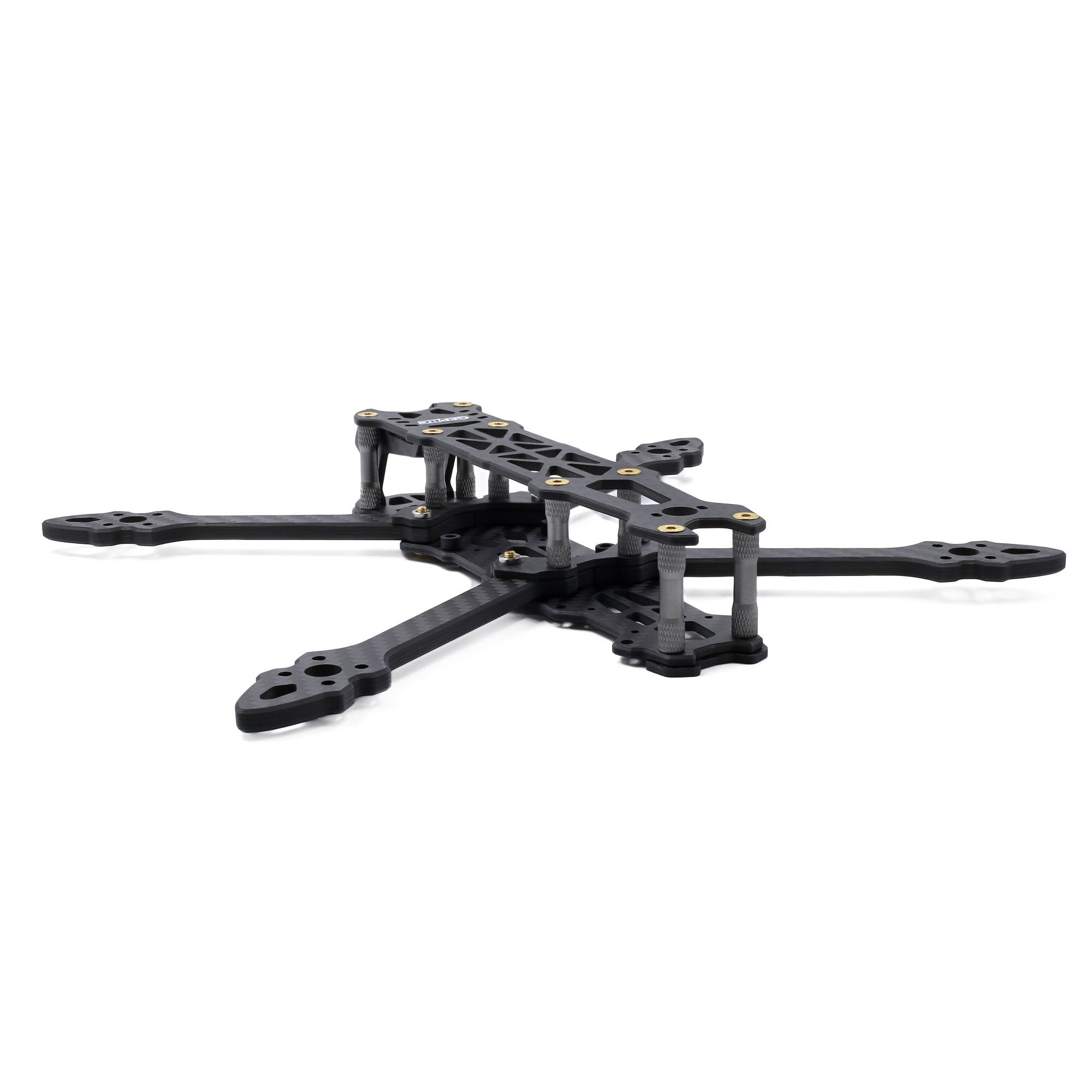

GEP-Mark4 Frame｜FPV 機架

GEP-Mark4 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

I want freestyle frame to show more performance in flight,a Super lightweight Freestyle frame,more convenient installation of electronic devices and more balanced center of gravity, so as to achieve better Smooth flight shooting, These ideas build the freestyle frame Mark4.

Mark4 5inch

Specifications：

Brand name：GEPRC

Item name：Mark 4-5

Frame type：H type

Propeller : 5inch

Motor to motor：225mm

Size：145*172mm

Weight：102g

Arms plate : 5mm

Side plate : 2.5mm

Top plate : 2.5mm

Bottom plate : 2.5mm

Protect plate : 2mm

Mark4 6inch

Specifications：

Brand name：GEPRC

Item name：Mark 4-6

Frame type：H type

Propeller : 6inch

Motor to motor：260mm

Size：162*203mm

Weight：111g

Arms plate : 5mm

Side plate : 2.5mm

Top plate : 2.5mm

Bottom plate : 2.5mm

Protect plate : 2mm

Mark4 7inch

Specifications：

Brand name：GEPRC

Item name：Mark 4-7

Frame type：H type

Propeller : 7inch

Motor to mot or：295mm

Size：193*223mm

Weight：121g

Arms plate : 5mm

Side plate : 2.5mm

Top plate : 2.5mm

Bottom plate : 2.5mm

Protect plate : 2mm

Mark4 Includes

：

4 x 5mm 5inch Arms plate

2 x 2.5mm side plate

1 x 2.5mm top plate

1 x 2.5mm Bottom plate

2 x 2mm Bumpers plate

2 x 2mm Reinforce plate

1 x Lipo silicone pad

Hardware：

8 x M3*25mm Alu6061 Srandoff New Titanium color

4 x M3*18mm Alu6061 Srandoff New Titanium color

8 x M3*8 YFS Flat Screw

4 x M3*10 YFS Flat Screw

4 x M3*12 YFS Button Screw

4 x M3*14 YFS Button Screw

4 x M3*20 YFS Button Screw

4 x M3 Flight control silicone

4 x M3 Nylon nut

4 x 5*150 Nylon tie

2 x 20*220 GEPRC Lipo strap

1 x 15*250 GEPRC Lipo strap

1 x 2.4g Antenna fixed tube

5inch

Recommended

：

Flight Controller：RF/Kiss/F3/F4/F7

Motor： 2205/2206/2207/2207.5/2305/2306

ESC：30A-50A

Propeller：5inch

Lipo: 4S 1500mAh ~ 6S 1150mAh

6inch

Recommended

：

Flight Controller：RF/Kiss/F3/F4/F7

Motor： 2207.5/2305/2306/2407

ESC：35A-60A

Propeller：6inch

Lipo: 4S 1500mAh ~ 6S 1300mAh

7inch

Recommended

：

Flight Controller：RF/Kiss/F3/F4/F7

Motor： 2207.5/2305/2306/2408/2507

ESC：40A-60A

Propeller：7inch

Lipo: 4S 1800mAh ~ 6S 2200mAh

Features：

Super lightweight Freestyle frame

Beautiful appearance design，durable in crashing

Quick maintenance Arms and replacement of equipment

25mm standoffs for better height and CG relation,Ample space for electronic installation

Alu6061 Srandoff New , Strengthen the hardness

There are 30.5*30.5 and 20*20 flight control holes , Stack can fit in the center or the rear.

High quality 3K twill carbon fiber plate, high precision CNC processing

YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware
