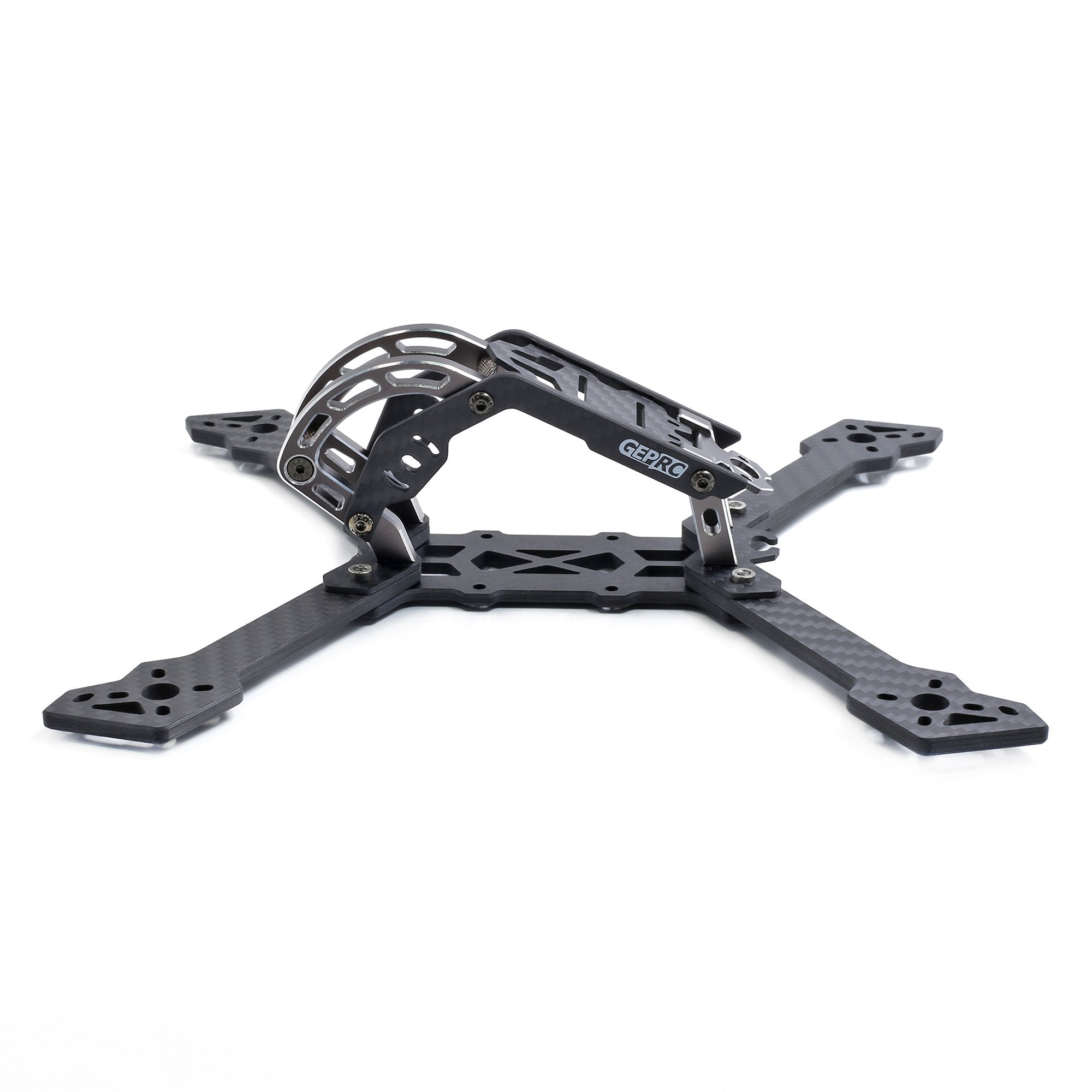

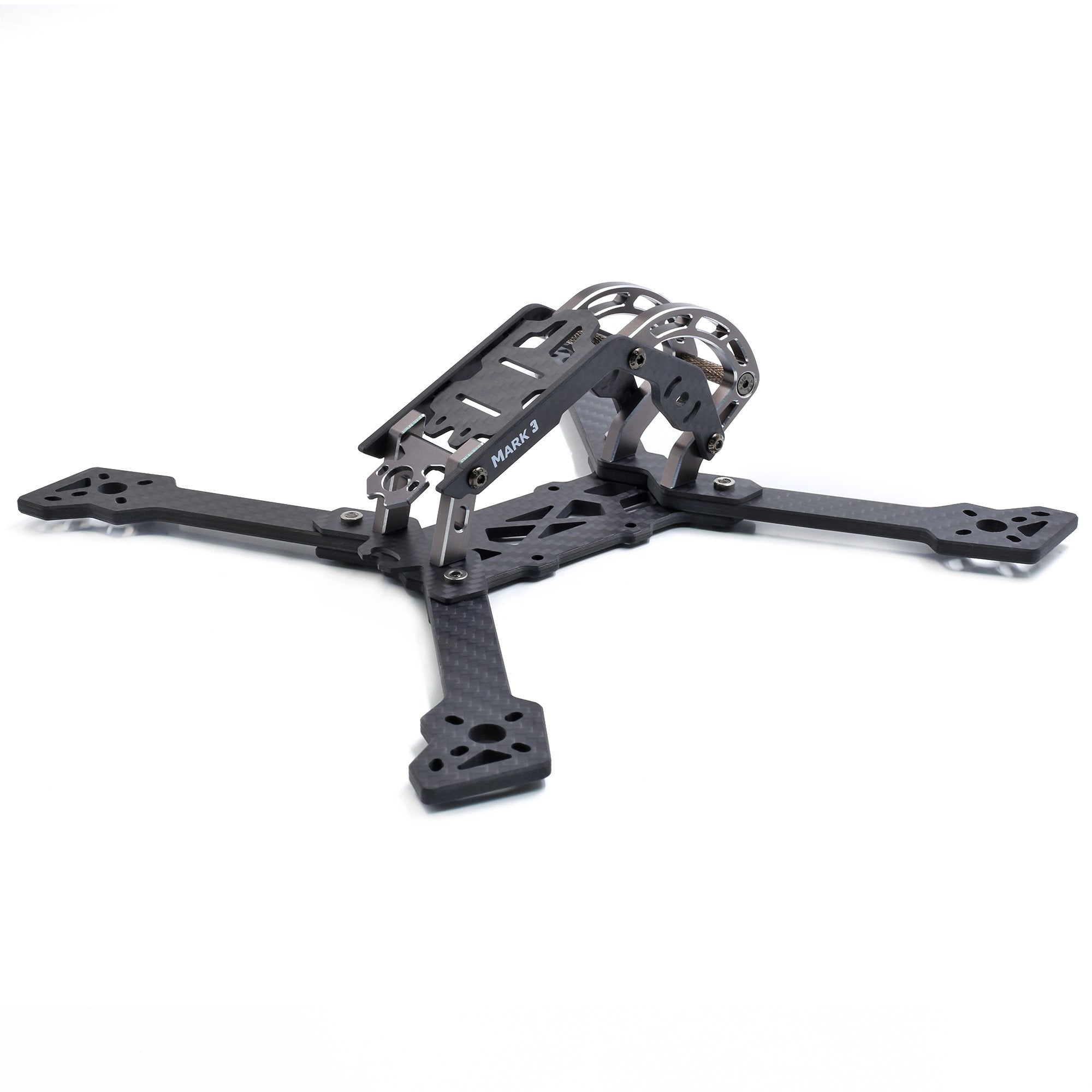

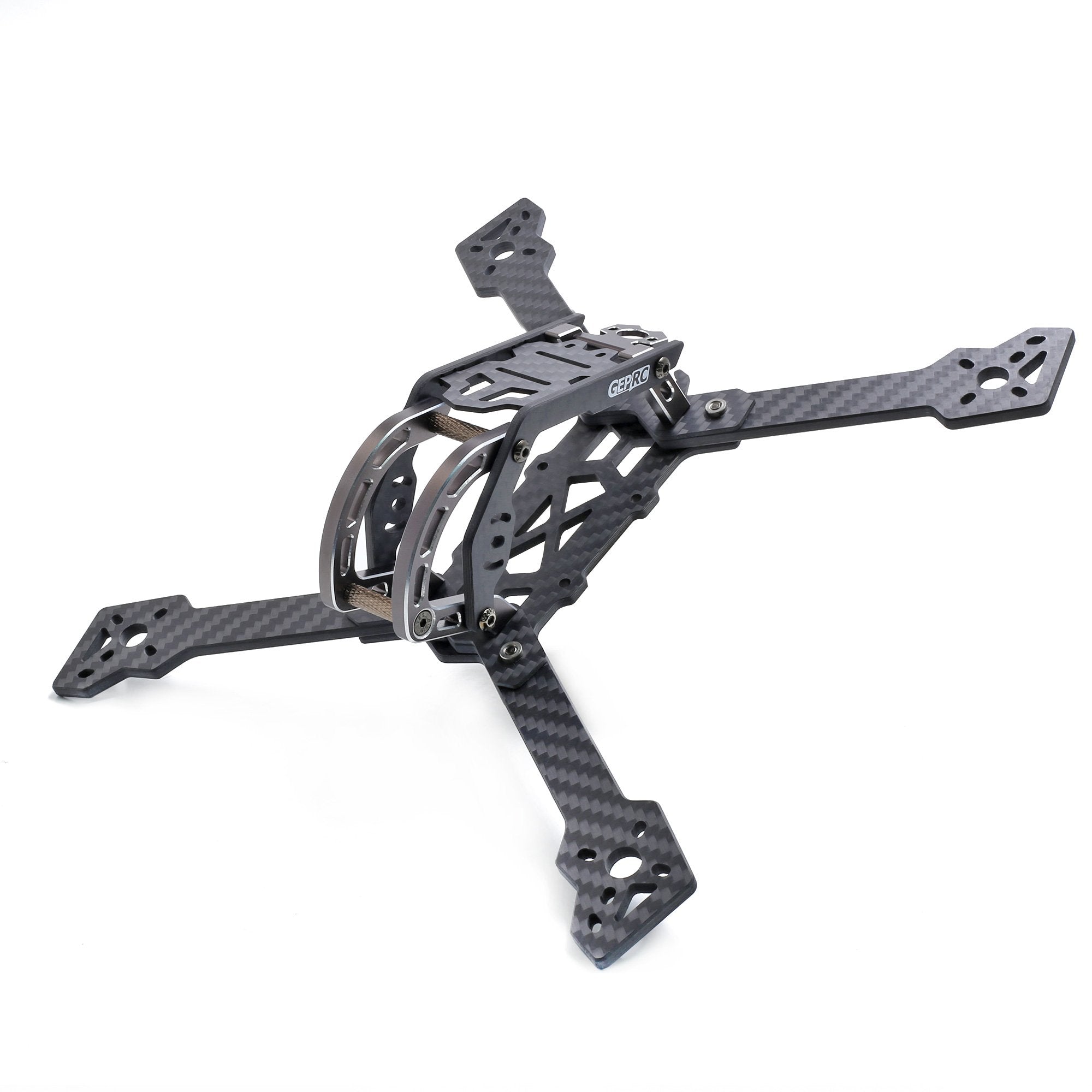

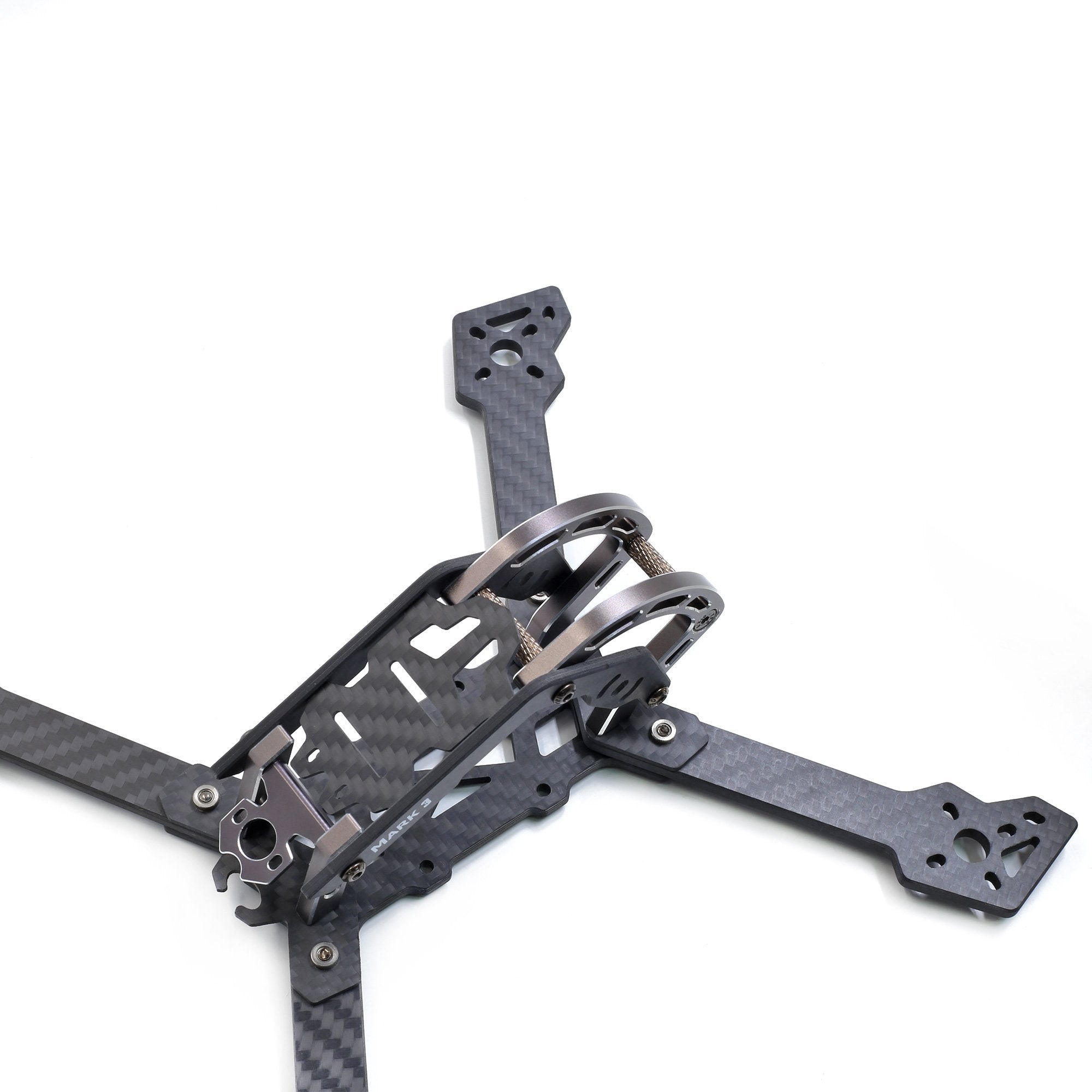

GEP-Mark3 H6 Frame｜FPV 機架

GEP-Mark3 H6 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

Mark3-h5 and Mark3-h6 is a H-type replaceable arms design.

Mark3 is a comprehensive frame, which has three types of different arm structures, namely, whole unibody design true X-type,replaceable arms h-type and the latest replaceable arms HB (front stretch X and back true X).The new arm structure is a hybrid.The model, which can be controlled more accurately when turning rapidly, will have more advantages.

The structural design of the fuselage USES a combination of carbon fiber plates and aluminum parts,which can act like a car hood flip (quick maintenance and replacement of equipment).The lens protection adopts 7075 aviation grade aluminum as the protection,installation size is 29*29. Position is more compact and the protection is more comprehensive.Movable 5.8g antenna is fixed and installed, which can be adjusted to the right Angle at will.

The appearance design of the model, high precision carbon fiber CNC combined with 7075 grade aluminum, to build a durable structure.

Specifications：

Brand name：GEPRC

Item name：Mark 3-H6

Frame type：H type

Propeller : 6inch

Motor to motor：250mm

Size：172*180mm

Weight：106g

Arms plate : 4mm

Bottom plate：3mm

Side plate : 3mm

Top plate : 1.5mm

Reinforce plate : 1.5mm

Recommended：

Flight Controller：RF/Kiss/F4/F3

Motor： 2205/2206/2207/2305/2306

ESC：20A-50A

Propeller：5inch~6inch

Lipo: 3S 1300mAh ~ 6S 1500mAh

Features:

H type Frame

Beautiful appearance design，durable in crashing

Hood engine room design，Quick maintenance and replacement of equipment

Quick swapping of arms

Ample space for electronic installation

With 25 ° Camera mount

Center Stack Mount 30.5×30.5mm，It is also equipped with a 20x20mm flight controller plate

High quality 3K twill carbon fiber plate, high precision CNC processing,7075 aluminum alloy

YFS screw, 12.9 grade strength, non-slip teeth, anti-rust

Includes:

4 x 4mm 6inch arms plate

1 x 3mm bottom plate

2 x 3mm Side plate

1 x 1.5mm top plate

1 x 1.5mm reinforce plate

1 x 1mm 20*20mm flight controller plate

1 x 1mm receiver plate

1 x 1.5mm Lipo protection plate

1 x 7075 Aluminum Camera Protector

1 x Camera No-Slip Silicone Pad

1 x Lipo foam pad

Hardware：

3 x M3*18.5mm Aluminum alloy standoff Titanium color

4 x M3*14 YFS Button Screw

4 x M3*12 YFS Button Screw

4 x M3*10 YFS Button Screw

2 x M3*6 YFS Button Screw

4 x M3*5 YFS Button Screw

2 x M3*10 Flat Screw

3 x M2*5 Cap Screw

4 x M3 insert nut

4 x FC Rubber damping pad

3 x M2 Gasket red

4 x M3 Nylon nut

6 x M3*5+6 Nylon standoff

2 x 20*220 GEPRC Lipo strap

1 x 2.4g Antenna fixed tube
